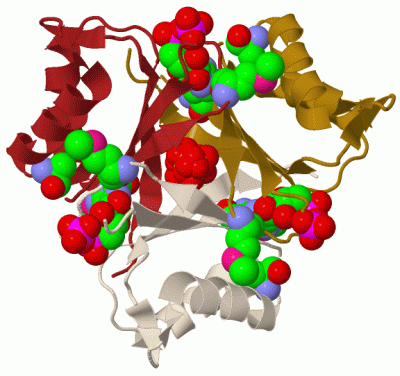

Image Biol.Unit 1 - manually
Biol.Unit 1 - manually  (Jmol Viewer)

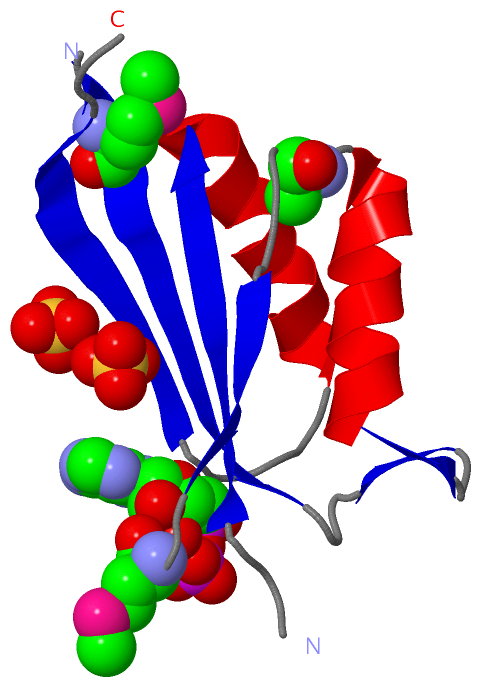

Image Asymmetric Unit
Asymmetric Unit  (Jmol Viewer)

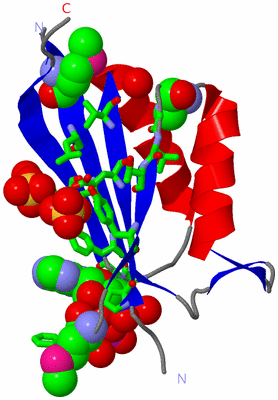

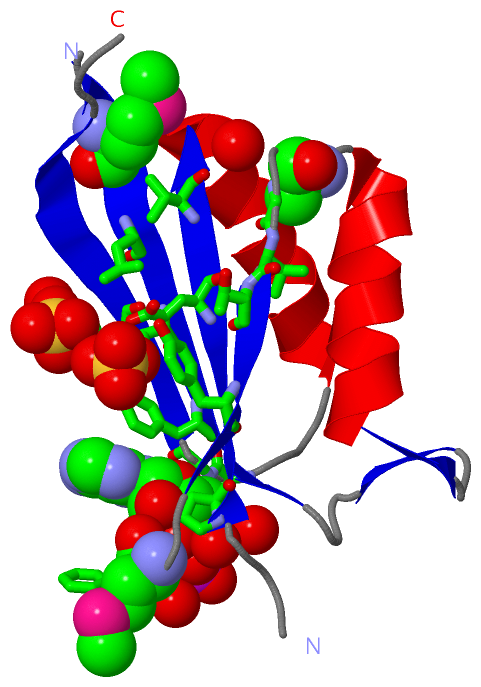

Image Asym. Unit - sites
Asym. Unit - sites  (Jmol Viewer)

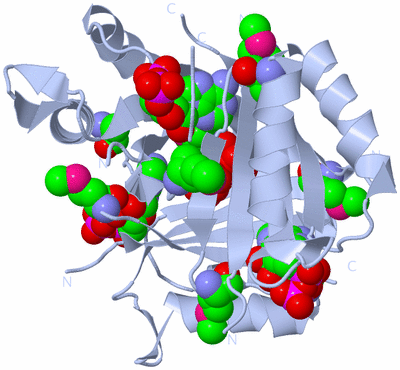

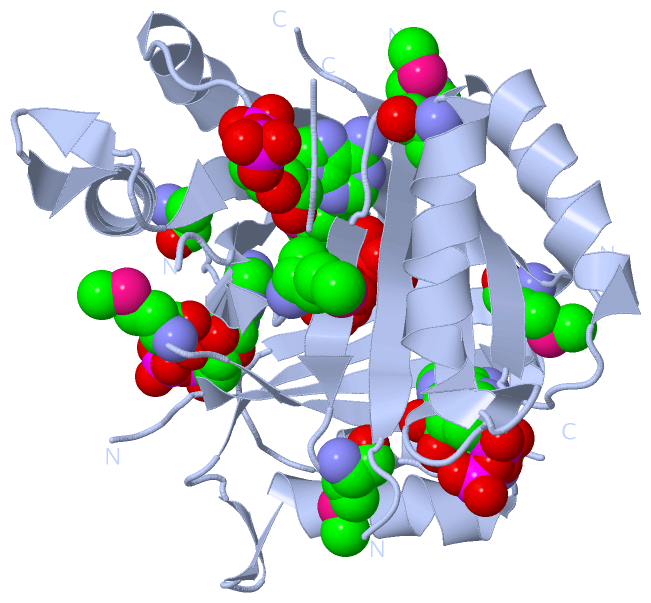

Image Biological Unit 1
Biological Unit 1  (Jmol Viewer)

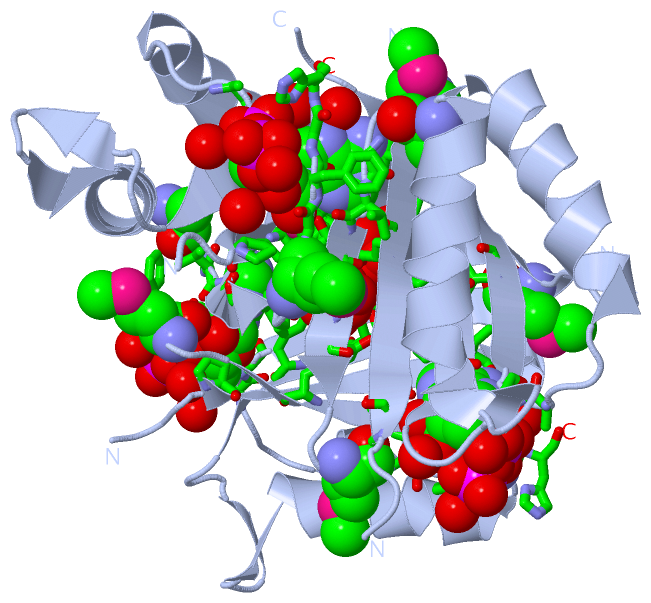

Image Biol. Unit 1 - sites
Biol. Unit 1 - sites  (Jmol Viewer)

(-) Description

Title :  CRYSTAL STRUCTURE OF A PUTATIVE PII-LIKE SIGNALING PROTEIN (TM0021) FROM THERMOTOGA MARITIMA AT 2.50 A RESOLUTION

Authors :  Joint Center For Structural Genomics (Jcsg)
Date :  01 Aug 03  (Deposition) - 19 Aug 03  (Release) - 13 Jul 11  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  2.50
Chains :  Asym. Unit :  A
Biol. Unit 1:  A  (3x)
Keywords :  Ferredoxin-Like Fold, Structural Genomics, Joint Center For Structural Genomics, Jcsg, Protein Structure Initiative, Psi, Signaling Protein (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  R. Schwarzenbacher, F. Von Delft, P. Abdubek, E. Ambing, T. Biorac, L. S. Brinen, J. M. Canaves, J. Cambell, H. J. Chiu, X. Dai, A. M. Deacon, M. Didonato, M. A. Elsliger, S. Eshagi, R. Floyd, A. Godzik, C. Grittini, S. K. Grzechnik, E. Hampton, L. Jaroszewski, C. Karlak, H. E. Klock, E. Koesema, J. S. Kovarik, A. Kreusch, P. Kuhn, S. A. Lesley I. Levin, D. Mcmullan, T. M. Mcphillips, M. D. Miller, A. Morse, K. Moy, J. Ouyang, R. Page, K. Quijano, A. Robb, G. Spraggon, R. C. Stevens, H. Van Den Bedem, J. Velasquez, J. Vincent, X. Wang, B. West, G. Wolf, Q. Xu, K. O. Hodgson, J. Wooley, I. A. Wilson
Crystal Structure Of A Putative Pii-Like Signaling Protein (Tm0021) From Thermotoga Maritima At 2. 5 A Resolution
Proteins V. 54 810 2004
PubMed-ID: 14997579  |  Reference-DOI: 10.1002/PROT.10647

(-) Compounds

Molecule 1 - HYPOTHETICAL PROTEIN TM0021
    Chains: A
    Engineered: YES
    Expression System: ESCHERICHIA COLI
    Expression System Taxid: 562
    Expression System Vector Type: PLASMID
    Gene: TM0021
    Organism Scientific: THERMOTOGA MARITIMA
    Organism Taxid: 2336

 Structural Features

(-) Chains, Units

  1
Asymmetric Unit : A
Biological Unit 1 (3x): A

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (3, 6)

Asymmetric Unit (3, 6)
No.NameCountTypeFull Name
1ADP1Ligand/IonADENOSINE-5'-DIPHOSPHATE
2MSE3Mod. Amino AcidSELENOMETHIONINE
3SO42Ligand/IonSULFATE ION
Biological Unit 1 (3, 18)
No.NameCountTypeFull Name
1ADP3Ligand/IonADENOSINE-5'-DIPHOSPHATE
2MSE9Mod. Amino AcidSELENOMETHIONINE
3SO46Ligand/IonSULFATE ION

(-) Sites  (3, 3)

Asymmetric Unit (3, 3)
No.NameEvidenceResiduesDescription
1AC1SOFTWARELYS A:5 , TYR A:38 , GLU A:67 , SO4 A:302BINDING SITE FOR RESIDUE SO4 A 301
2AC2SOFTWARELEU A:3 , LYS A:5 , GLU A:67 , PHE A:92 , SO4 A:301 , HOH A:341BINDING SITE FOR RESIDUE SO4 A 302
3AC3SOFTWARETYR A:7 , GLY A:34 , VAL A:35 , THR A:36 , GLY A:43 , PHE A:44 , GLY A:45 , HIS A:46 , PRO A:63 , GLU A:67 , VAL A:69 , ASP A:88 , GLY A:89 , HOH A:311 , HOH A:319 , HOH A:336 , HOH A:337 , HOH A:339BINDING SITE FOR RESIDUE ADP A 200

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 1O51)

(-) Cis Peptide Bonds  (0, 0)

(no "Cis Peptide Bond" information available for 1O51)

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 1O51)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 1O51)

(-) Exons   (0, 0)

(no "Exon" information available for 1O51)

(-) Sequences/Alignments

Asymmetric Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:89
 aligned with Y021_THEMA | Q9WXM9 from UniProtKB/Swiss-Prot  Length:102

    Alignment length:102
                              1
                              |      8        18        28        38        48        58        68        78        88        98
           Y021_THEMA     - --MKLLKIYLGEKDKHSGKPLFEYLVKRAYELGMKGVTVYRGIMGFGHKRHMHRSDFFSLSPDLPIVLEIVDEEERINLFLKEIDNIDFDGLVFTADVNVVK 100
               SCOP domains d1o51a_ A: Hypothetical protein TM0021                                                                 SCOP domains
               CATH domains 1o51A00 A:-1-100  [code=3.30.70.120, no name def             ined]                                     CATH domains
               Pfam domains --DUF190-1o51A01 A:1-99                                                                              - Pfam domains
         Sec.struct. author .eeeeeeeeee...ee..eehhhhhhhhhhhh.....eeee.......-------------...eeeeeeeehhhhhhhhhhhhhh.....eeeeeeee... Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------ SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------ PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------ Transcript
                 1o51 A  -1 HHmKLLKIYLGEKDKHSGKPLFEYLVKRAYELGmKGVTVYRGImGFGH-------------PDLPIVLEIVDEEERINLFLKEIDNIDFDGLVFTADVNVVK 100
                              |      8        18        28   |    38   |   | -         - |      68        78        88        98
                              |                             32-MSE    42-MSE            60
                              1-MSE
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (1, 1)

Asymmetric Unit
(-)
Class: Alpha and beta proteins (a+b) (23004)

(-) CATH Domains  (1, 1)

Asymmetric Unit
(-)
Class: Alpha Beta (26913)

(-) Pfam Domains  (1, 1)

Asymmetric Unit
(-)
Clan: GlnB-like (50)

(-) Gene Ontology  (0, 0)

Asymmetric Unit(hide GO term definitions)
    (no "Gene Ontology" information available for 1O51)

 Visualization

(-) Interactive Views

Asymmetric Unit
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
    ADP  [ RasMol | Jena3D ]  +environment [ RasMol | Jena3D ]
    MSE  [ RasMol | Jena3D ]  +environment [ RasMol | Jena3D ]
    SO4  [ RasMol | Jena3D ]  +environment [ RasMol | Jena3D ]

  Sites
    AC1  [ RasMol ]  +environment [ RasMol ]
    AC2  [ RasMol ]  +environment [ RasMol ]
    AC3  [ RasMol ]  +environment [ RasMol ]

  Cis Peptide Bonds
(no "Cis Peptide Bonds" information available for 1o51)

Biological Unit
  Complete Structure
    Biological Unit 1  [ Jena3D ]

(-) Still Images

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick
[ Asym. Unit PNG format | Asym. Unit - sites PNG format | Biol. Unit 1 PNG format | Biol. Unit 1 - sites PNG format ](automatic orientation, automatically generated)
Molscript
  protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick
[ mono PDF format | stereo PDF format ](default orientation, automatically generated)

 Databases and Analysis Tools

(-) Databases

Access by PDB/NDB ID
  1o51
    Family and Domain Information: ProDom | SYSTERS
    General Structural Information: GlycoscienceDB | MMDB | NDB | OCA | PDB | PDBe | PDBj | PDBsum | PDBWiki | PQS | PROTEOPEDIA
    Orientation in Membranes: OPM
    Protein Surface: SURFACE
    Secondary Structure: DSSP (structure derived) | HSSP (homology derived)
    Structural Genomics: GeneCensus
    Structural Neighbours: CE | VAST
    Structure Classification: CATH | Dali | SCOP
    Validation and Original Data: BMRB Data View | BMRB Restraints Grid | EDS | PROCHECK | RECOORD | WHAT_CHECK

Access by UniProt ID/Accession number
  Y021_THEMA | Q9WXM9
    Comparative Protein Structure Models: ModBase
    Genomic Information: Ensembl
    Protein-protein Interaction: DIP
    Sequence, Family and Domain Information: InterPro | Pfam | SMART | UniProtKB/SwissProt

Access by Enzyme Classificator   (EC Number)
  (no 'Enzyme Classificator' available)
    General Enzyme Information: BRENDA | EC-PDB | Enzyme | IntEnz
    Pathway: KEGG | MetaCyc

Access by Disease Identifier   (MIM ID)
  (no 'MIM ID' available)
    Disease Information: OMIM

Access by GenAge ID
  (no 'GenAge ID' available)
    Age Related Information: GenAge

(-) Analysis Tools

Access by PDB/NDB ID
    Domain Information: XDom
    Interatomic Contacts of Structural Units: CSU
    Ligand-protein Contacts: LPC
    Protein Cavities: castP
    Sequence and Secondary Structure: PDBCartoon
    Structure Alignment: STRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    Structure and Sequence Browser: STING

Access by UniProt ID/Accession number
  Y021_THEMA | Q9WXM9
    Protein Disorder Prediction: DisEMBL | FoldIndex | GLOBPLOT (for more information see DisProt)

 Related Entries

(-) Entries Sharing at Least One Protein Chain (UniProt ID)

(no "Entries Sharing at Least One Protein Chain" available for 1O51)

(-) Related Entries Specified in the PDB File

(no "Related Entries Specified in the PDB File" available for 1O51)
