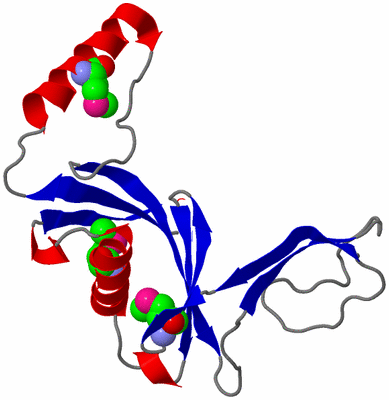

Image Asymmetric Unit
Asymmetric Unit  (Jmol Viewer)

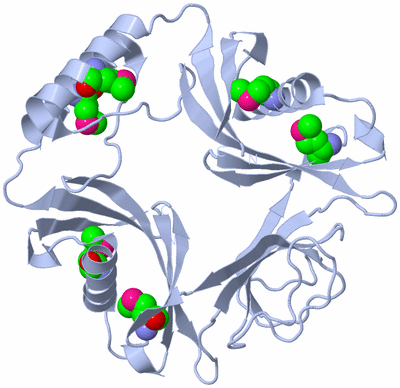

Image Biological Unit 1
Biological Unit 1  (Jmol Viewer)

(-) Description

Title :  CRYSTAL STRUCTURE OF AN ORPHAN PROTEIN (TM0875) FROM THERMOTOGA MARITIMA AT 2.00 A RESOLUTION

Authors :  Joint Center For Structural Genomics (Jcsg)
Date :  15 Feb 03  (Deposition) - 01 Apr 03  (Release) - 13 Jul 11  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  2.00
Chains :  Asym. Unit :  A
Biol. Unit 1:  A  (2x)
Keywords :  Orphan Protein, Structural Genomics, Joint Center For Structural Genomics, Jcsg, Protein Structure Initiative, Psi, Unknown Function (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  C. Bakolitsa, R. Schwarzenbacher, D. Mcmullan, L. S. Brinen, J. M. Canaves, X. Dai, A. M. Deacon, M. A. Elsliger, S. Eshagi, R. Floyd, A. Godzik, C. Grittini, S. K. Grzechnik, L. Jaroszewski, C. Karlak, H. E. Klock, E. Koesema, J. S. Kovarik, A. Kreusch, P. Kuhn, S. A. Lesley T. M. Mcphillips, M. D. Miller, A. Morse, K. Moy, J. Ouyang, R. Page, K. Quijano, A. Robb, G. Spraggon, R. C. Stevens, H. Van Den Bedem, J. Velasquez, J. Vincent, F. Von Delft, X. Wang, B. West, G. Wolf, K. O. Hodgson, J. Wooley, I. A. Wilson
Crystal Structure Of An Orphan Protein (Tm0875) From Thermotoga Maritima At 2. 00-A Resolution Reveals A New Fold
Proteins V. 56 607 2004
PubMed-ID: 15229892  |  Reference-DOI: 10.1002/PROT.20138

(-) Compounds

Molecule 1 - ORPHAN PROTEIN TM0875
    Chains: A
    Engineered: YES
    Expression System: ESCHERICHIA COLI
    Expression System Taxid: 562
    Expression System Vector Type: PLASMID
    Gene: TM0875
    Organism Scientific: THERMOTOGA MARITIMA
    Organism Taxid: 2336

 Structural Features

(-) Chains, Units

  1
Asymmetric Unit : A
Biological Unit 1 (2x): A

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (1, 3)

Asymmetric Unit (1, 3)
No.NameCountTypeFull Name
1MSE3Mod. Amino AcidSELENOMETHIONINE
Biological Unit 1 (1, 6)
No.NameCountTypeFull Name
1MSE6Mod. Amino AcidSELENOMETHIONINE

(-) Sites  (0, 0)

(no "Site" information available for 1O22)

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 1O22)

(-) Cis Peptide Bonds  (0, 0)

(no "Cis Peptide Bond" information available for 1O22)

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 1O22)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 1O22)

(-) Exons   (0, 0)

(no "Exon" information available for 1O22)

(-) Sequences/Alignments

Asymmetric Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:149
 aligned with Q9WZX8_THEMA | Q9WZX8 from UniProtKB/TrEMBL  Length:158

    Alignment length:149
                                    15        25        35        45        55        65        75        85        95       105       115       125       135       145
         Q9WZX8_THEMA     6 ILEILYYKKGKEFGILEKKMKEIFNETGVSLEPVNSELIGRIFLKISVLEEGEEVPSFAIKALTPKENAVDLPLGDWTDLKNVFVEEIDYLDSYGDMKILSEKNWYKIYVPYSSVKKKNRNELVEEFMKYFFESKGWNPGEYTFSVQEI 154
               SCOP domains d1o22a_ A: Hypothetical protein TM0875                                                                                                                SCOP domains
               CATH domains 1o22A00 A:6-154  [code=3.90.1000.10, no name defined]                                                                                                 CATH domains
               Pfam domains DUF3855-1o22A01 A:6-154                                                                                                                               Pfam domains
         Sec.struct. author .eeeeeee....hhhhhhhhhhhhhhhh..........eeeeeeeeeee........eeeeee....................eeeeeee.eee..eeeeee..eeeeeee.hhh...hhhhhhhhhhhhhhhhh..hhh.eeeeeee. Sec.struct. author
                 SAPs(SNPs) ----------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ----------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ----------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 1o22 A   6 ILEILYYKKGKEFGILEKKmKEIFNETGVSLEPVNSELIGRIFLKISVLEEGEEVPSFAIKALTPKENAVDLPLGDWTDLKNVFVEEIDYLDSYGDmKILSEKNWYKIYVPYSSVKKKNRNELVEEFmKYFFESKGWNPGEYTFSVQEI 154
                                    15        25        35        45        55        65        75        85        95      |105       115       125       135       145
                                              25-MSE                                                                      102-MSE                        133-MSE
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (1, 1)

Asymmetric Unit
(-)
Class: Alpha and beta proteins (a+b) (23004)

(-) CATH Domains  (1, 1)

Asymmetric Unit
(-)
Class: Alpha Beta (26913)

(-) Pfam Domains  (1, 1)

Asymmetric Unit
(-)
Clan: no clan defined [family: DUF3855] (1)

(-) Gene Ontology  (0, 0)

Asymmetric Unit(hide GO term definitions)
    (no "Gene Ontology" information available for 1O22)

 Visualization

(-) Interactive Views

Asymmetric Unit
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
    MSE  [ RasMol | Jena3D ]  +environment [ RasMol | Jena3D ]

  Sites
(no "Sites" information available for 1o22)

  Cis Peptide Bonds
(no "Cis Peptide Bonds" information available for 1o22)

Biological Unit
  Complete Structure
    Biological Unit 1  [ Jena3D ]

(-) Still Images

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick

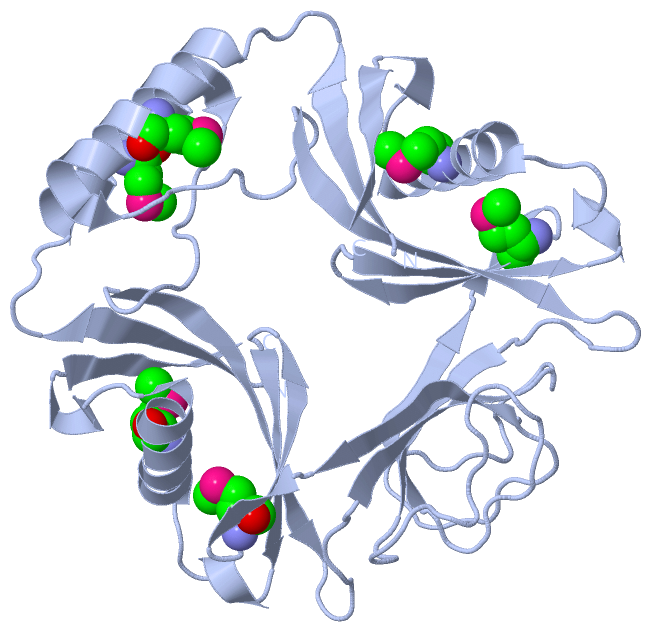

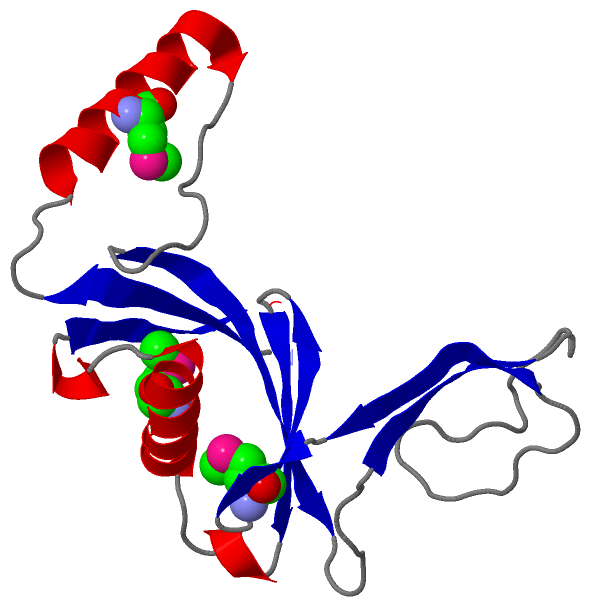

[ Asym. Unit PNG format | Biol. Unit 1 PNG format ](automatic orientation, automatically generated)
Molscript
  protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick
[ mono PDF format | stereo PDF format ](default orientation, automatically generated)
