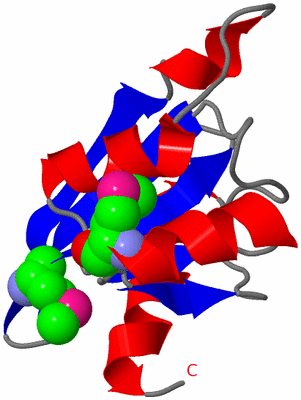

Image Asym./Biol. Unit
Asym./Biol. Unit  (Jmol Viewer)

(-) Description

Title :  CRYSTAL STRUCTURE OF A PUTATIVE DINITROGENASE IRON-MOLYBDENUM COFACTOR (TM1816) FROM THERMOTOGA MARITIMA AT 1.83 A RESOLUTION

Authors :  Joint Center For Structural Genomics (Jcsg)
Date :  15 Oct 02  (Deposition) - 18 Dec 02  (Release) - 23 Mar 11  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  1.83
Chains :  Asym./Biol. Unit :  A
Keywords :  Ribonuclease H-Like Motif Fold, Structural Genomics, Joint Center For Structural Genomics, Jcsg, Protein Structure Initiative, Psi, Biosynthetic Protein (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  Joint Center For Structural Genomics (Jcsg)
Crystal Structure Of Probable Nifb Protein That Is Involved In Femo-Co Biosynthesis Tm1816 From Thermotoga Maritima At 1. 83 A Resolution
To Be Published
PubMed: search

(-) Compounds

Molecule 1 - PROBABLE NIFB PROTEIN
    Chains: A
    Engineered: YES
    Expression System: ESCHERICHIA COLI
    Expression System Taxid: 562
    Gene: TM1816
    Organism Scientific: THERMOTOGA MARITIMA
    Organism Taxid: 2336
    Other Details: INVOLVED IN FEMO-CO BIOSYNTHESIS

 Structural Features

(-) Chains, Units

  1
Asymmetric/Biological Unit : A

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (1, 2)

Asymmetric/Biological Unit (1, 2)
No.NameCountTypeFull Name
1MSE2Mod. Amino AcidSELENOMETHIONINE

(-) Sites  (0, 0)

(no "Site" information available for 1O13)

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 1O13)

(-) Cis Peptide Bonds  (0, 0)

(no "Cis Peptide Bond" information available for 1O13)

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 1O13)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 1O13)

(-) Exons   (0, 0)

(no "Exon" information available for 1O13)

(-) Sequences/Alignments

Asymmetric/Biological Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:107
 aligned with Q9X2D6_THEMA | Q9X2D6 from UniProtKB/TrEMBL  Length:124

    Alignment length:107
                                    10        20        30        40        50        60        70        80        90       100
         Q9X2D6_THEMA     1 MIIAIPVSENRGKDSPISEHFGRAPYFAFVKVKNNAIADISVEENPLAQDHVHGAVPNFVKEKGAELVIVRGIGRRAIAAFEAMGVKVIKGASGTVEEVVNQYLSGQ 107
               SCOP domains d1o13a_ A: Hypothetical protein TM1816                                                                      SCOP domains
               CATH domains -1o13A00 A:2-107  [code=3.30.420.130, no name defined]                                                      CATH domains
               Pfam domains ------------Nitro_FeMo-Co-1o13A01 A:13-105                                                               -- Pfam domains
         Sec.struct. author .eeeeee...hhhhh..........eeeeeeee..eeeeeeeee.hhhh.....hhhhhhhhh...eee....hhhhhhhhhhh..eee.....hhhhhhhhhhh.. Sec.struct. author
                 SAPs(SNPs) ----------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ----------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ----------------------------------------------------------------------------------------------------------- Transcript
                 1o13 A   1 mIIAIPVSENRGKDSPISEHFGRAPYFAFVKVKNNAIADISVEENPLAQDHVHGAVPNFVKEKGAELVIVRGIGRRAIAAFEAmGVKVIKGASGTVEEVVNQYLSGQ 107
                            |       10        20        30        40        50        60        70        80   |    90       100
                            |                                                                                 84-MSE
                            1-MSE
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (1, 1)

Asymmetric/Biological Unit
(-)
Class: Alpha and beta proteins (a/b) (23833)

(-) CATH Domains  (1, 1)

Asymmetric/Biological Unit
(-)
Class: Alpha Beta (26913)

(-) Pfam Domains  (1, 1)

Asymmetric/Biological Unit
(-)
Clan: no clan defined [family: Nitro_FeMo-Co] (9)

(-) Gene Ontology  (0, 0)

Asymmetric/Biological Unit(hide GO term definitions)
    (no "Gene Ontology" information available for 1O13)

 Visualization

(-) Interactive Views

Asymmetric/Biological Unit
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
    MSE  [ RasMol | Jena3D ]  +environment [ RasMol | Jena3D ]

  Sites
(no "Sites" information available for 1o13)

  Cis Peptide Bonds
(no "Cis Peptide Bonds" information available for 1o13)

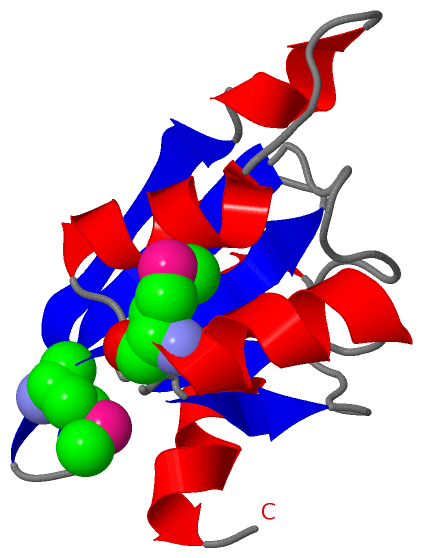

(-) Still Images

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick
[ Asym./Biol. Unit PNG format ](automatic orientation, automatically generated)
Molscript
  protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick
[ mono PDF format | stereo PDF format ](default orientation, automatically generated)
