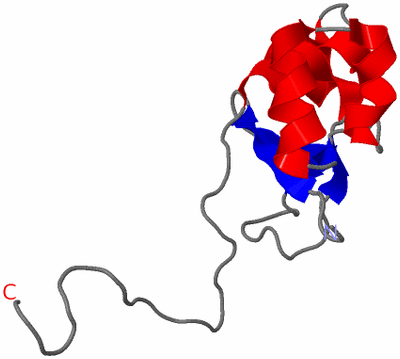

Image NMR Structure - model 1
NMR Structure - model 1  (Jmol Viewer)

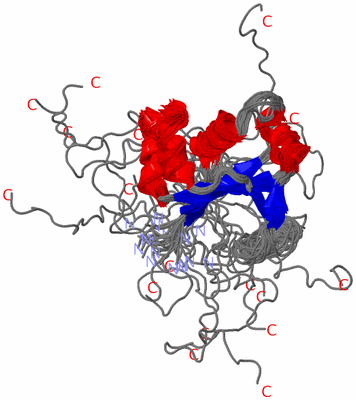

Image NMR Structure - all models
NMR Structure - all models  (Jmol Viewer)

(-) Description

Title :  SOLUTION NMR STRUCTURE OF PROTEIN YHR087W FROM SACCHAROMYCES CEREVISIAE. NORTHEAST STRUCTURAL GENOMICS CONSORTIUM TARGET YTYST425.

Authors :  J. R. Cort, A. A. Yee, C. H. Arrowsmith, M. A. Kennedy, Northeast Structural Genomics Consortium (Nesg)
Date :  13 Feb 03  (Deposition) - 08 Apr 03  (Release) - 24 Feb 09  (Revision)
Method :  SOLUTION NMR
Resolution :  NOT APPLICABLE
Chains :  NMR Structure  :  A  (20x)
Keywords :  Hypothetical Protein, Structural Genomics, Psi, Protein Structure Initiative, Northeast Structural Genomics Consortium, Nesg, Unknown Function (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  A. Savchenko, N. Krogan, J. R. Cort, E. Evdokimova, J. M. Lew, A. A. Yee, L. Sanchez-Pulido, M. A. Andrade, A. Bochkarev, J. D. Watson, M. A. Kennedy, J. Greenblatt, T. Hughes, C. H. Arrowsmith, J. M. Rommens, A. M. Edwards
The Shwachman-Bodian-Diamond Syndrome Protein Family Is Involved In Rna Metabolism.
J. Biol. Chem. V. 280 19213 2005
PubMed-ID: 15701634  |  Reference-DOI: 10.1074/JBC.M414421200
(for further references see the PDB file header)

(-) Compounds

Molecule 1 - HYPOTHETICAL 12.0 KDA PROTEIN IN NAM8-GAR1 INTERGENIC REGION
    Chains: A
    Engineered: YES
    Expression System: ESCHERICHIA COLI BL21(DE3)
    Expression System Plasmid: PET 15B
    Expression System Strain: BL21(DE3)
    Expression System Taxid: 469008
    Expression System Vector Type: PLASMID
    Gene: YHR087W
    Organism Common: BAKER'S YEAST
    Organism Scientific: SACCHAROMYCES CEREVISIAE
    Organism Taxid: 4932

 Structural Features

(-) Chains, Units


NMR Structure (20x):

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (0, 0)

(no "Ligand,Modified Residues,Ions" information available for 1NYN)

(-) Sites  (0, 0)

(no "Site" information available for 1NYN)

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 1NYN)

(-) Cis Peptide Bonds  (0, 0)

(no "Cis Peptide Bond" information available for 1NYN)

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 1NYN)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 1NYN)

(-) Exons   (1, 1)

NMR Structure (1, 1)
 ENSEMBLUniProtKBPDB
No.Transcript IDExonExon IDGenome LocationLengthIDLocationLengthCountLocationLength
1.1YHR087W1YHR087W.1VIII:280822-281157336SDO1L_YEAST1-1111111A:1-111111

(-) Sequences/Alignments

NMR Structure
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:111
 aligned with SDO1L_YEAST | P38804 from UniProtKB/Swiss-Prot  Length:111

    Alignment length:111
                                    10        20        30        40        50        60        70        80        90       100       110
          SDO1L_YEAST     1 MSTVTKYFYKGENTDLIVFAASEELVDEYLKNPSIGKLSEVVELFEVFTPQDGRGAEGELGAASKAQVENEFGKGKKIEEVIDLILRNGKPNSTTSSLKTKGGNAGTKAYN 111
               SCOP domains d1nyna_ A: Hypothetical protein Yhr087W                                                                         SCOP domains
               CATH domains 1nynA00 A:1-111  [code=3.30.1250.10, no name defined]                                                           CATH domains
               Pfam domains -SBDS-1nynA01 A:2-101                                                                                ---------- Pfam domains
         Sec.struct. author ....eeeeee....eeeeee.hhhhhhhhhhh.hhhhhhhhh.....ee...........ee.hhhhhhhhhh....hhhhhhhhhhh....................... Sec.struct. author
                 SAPs(SNPs) --------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE --------------------------------------------------------------------------------------------------------------- PROSITE
               Transcript 1 Exon 1.1  PDB: A:1-111 UniProt: 1-111                                                                           Transcript 1
                 1nyn A   1 MSTVTKYFYKGENTDLIVFAASEELVDEYLKNPSIGKLSEVVELFEVFTPQDGRGAEGELGAASKAQVENEFGKGKKIEEVIDLILRNGKPNSTTSSLKTKGGNAGTKAYN 111
                                    10        20        30        40        50        60        70        80        90       100       110
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (1, 1)

NMR Structure
(-)
Class: Alpha and beta proteins (a+b) (23004)

(-) CATH Domains  (1, 1)

NMR Structure
(-)
Class: Alpha Beta (26913)

(-) Pfam Domains  (1, 1)

NMR Structure
(-)
Clan: no clan defined [family: SBDS] (6)

(-) Gene Ontology  (6, 6)

NMR Structure(hide GO term definitions)
Chain A   (SDO1L_YEAST | P38804)
molecular function
    GO:0003674    molecular_function    Elemental activities, such as catalysis or binding, describing the actions of a gene product at the molecular level. A given gene product may exhibit one or more molecular functions.
biological process
    GO:0016070    RNA metabolic process    The cellular chemical reactions and pathways involving RNA, ribonucleic acid, one of the two main type of nucleic acid, consisting of a long, unbranched macromolecule formed from ribonucleotides joined in 3',5'-phosphodiester linkage.
    GO:0006364    rRNA processing    Any process involved in the conversion of a primary ribosomal RNA (rRNA) transcript into one or more mature rRNA molecules.
    GO:0042254    ribosome biogenesis    A cellular process that results in the biosynthesis of constituent macromolecules, assembly, and arrangement of constituent parts of ribosome subunits; includes transport to the sites of protein synthesis.
cellular component
    GO:0005737    cytoplasm    All of the contents of a cell excluding the plasma membrane and nucleus, but including other subcellular structures.
    GO:0005634    nucleus    A membrane-bounded organelle of eukaryotic cells in which chromosomes are housed and replicated. In most cells, the nucleus contains all of the cell's chromosomes except the organellar chromosomes, and is the site of RNA synthesis and processing. In some species, or in specialized cell types, RNA metabolism or DNA replication may be absent.

 Visualization

(-) Interactive Views

NMR Structure
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
(no "Ligands, Modified Residues, Ions" information available for 1nyn)

  Sites
(no "Sites" information available for 1nyn)

  Cis Peptide Bonds
(no "Cis Peptide Bonds" information available for 1nyn)


(-) Still Images

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick

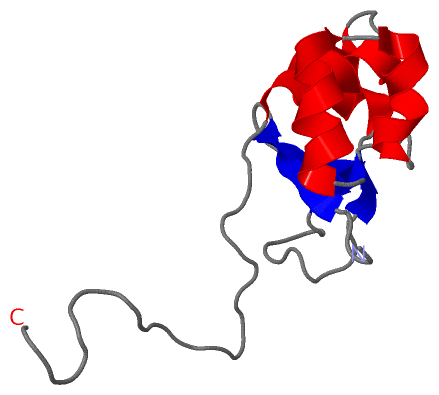

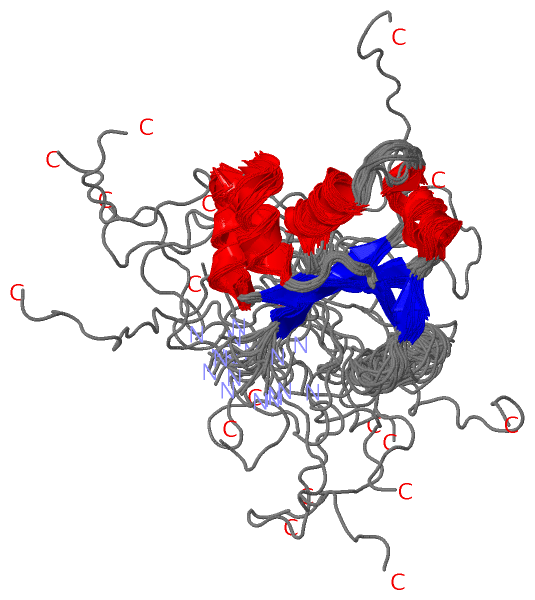

[ NMR Structure - model 1 PNG format | NMR Structure - all models PNG format ](automatic orientation, automatically generated)
