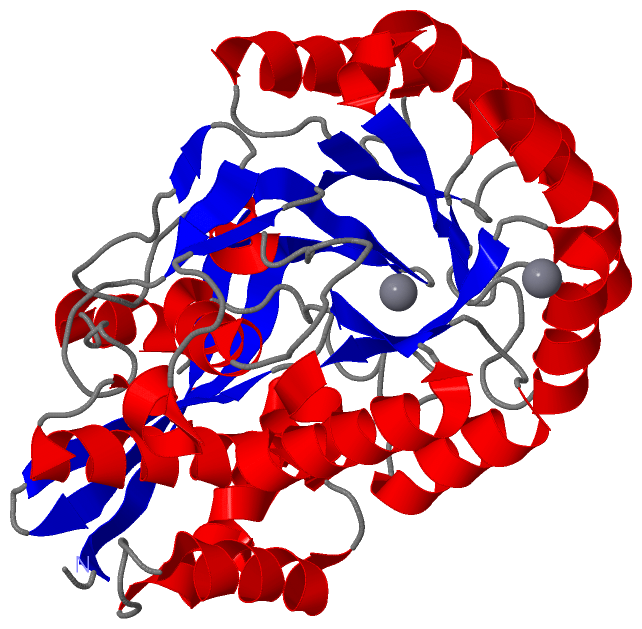

Asymmetric Unit (Jmol Viewer)

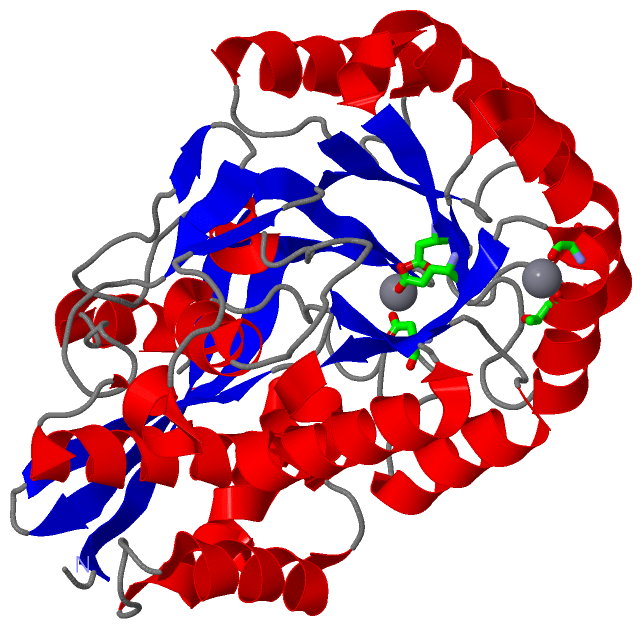

Asym. Unit - sites (Jmol Viewer)

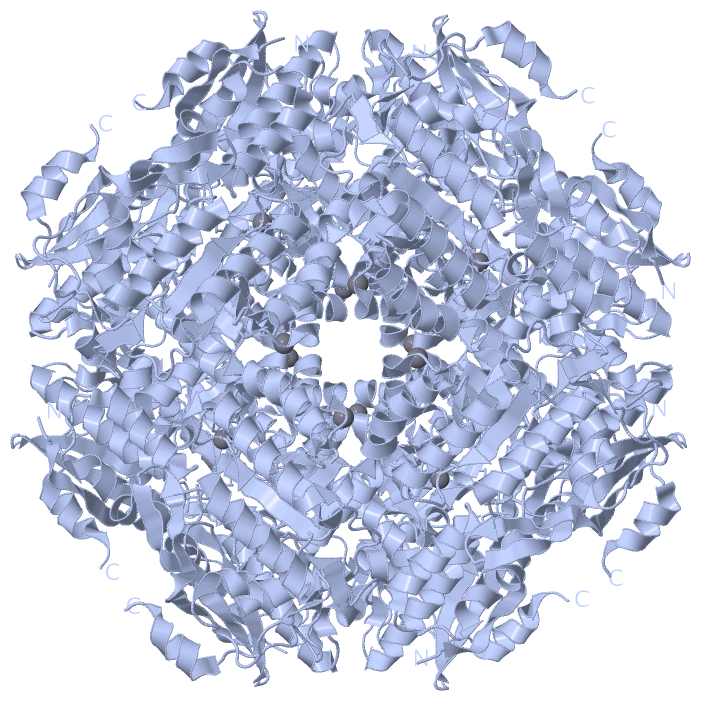

Biological Unit 1 (Jmol Viewer)

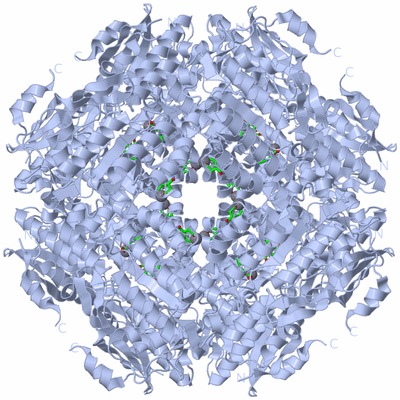

Biol. Unit 1 - sites (Jmol Viewer)

Title :   CRYSTAL STRUCTURE OF PSEUDOMONAS SP. P51 CHLOROMUCONATE LACTONIZING ENZYME

Authors :   T. Kajander, L. Lehtio, A. Goldman

Date :   31 Jan 03 (Deposition) - 30 Dec 03 (Release) - 13 Jul 11 (Revision)

Method :   X-RAY DIFFRACTION

Resolution :   1.95

Chains :   Asym. Unit : A
Biol. Unit 1: A  (8x)

Keywords :   Enzyme, Muconate, Dehalogenation, Isomerase (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :   T. Kajander, L. Lehtio, M. Schlomann, A. Goldman
The Structure Of Pseudomonas P51 Cl-Muconate Lactonizing Enzyme: Co-Evolution Of Structure And Dynamics With The Dehalogenation Function.
Protein Sci. V. 12 1855 2003
PubMed-ID: 12930985 | Reference-DOI: 10.1110/PS.0388503

Molecule 1 - CHLOROMUCONATE CYCLOISOMERASE
	Chains	:	A
	EC Number	:	5.5.1.7
	Engineered	:	YES
	Expression System	:	ESCHERICHIA COLI
	Expression System Plasmid	:	PET11A
	Expression System Taxid	:	562
	Expression System Vector Type	:	PLASMID
	Organism Scientific	:	PSEUDOMONAS SP.
	Organism Taxid	:	65067
	Strain	:	P51
	Synonym	:	CL-MLE, MUCONATE CYCLOISOMERASE II, CHLOROMUCONATE LACTONIZING ENZYME

		1
Asymmetric Unit	:	A
Biological Unit 1 (8x)	:	A

Summary Information (see also Sequences/Alignments below)

Asymmetric Unit (1, 2)

No.	Name	Count	Type	Full Name
1	MN	2	Ligand/Ion	MANGANESE (II) ION

Biological Unit 1 (0, 0)

No.	Name	Count	Type	Full Name
1	MN	-1	Ligand/Ion	MANGANESE (II) ION

Asymmetric Unit (2, 2)

No.	Name	Evidence	Residues	Description
1	AC1	SOFTWARE	ASP A:194 , GLU A:220 , ASP A:245 , HOH A:455 , HOH A:456 , HOH A:462	BINDING SITE FOR RESIDUE MN A 371
2	AC2	SOFTWARE	THR A:235 , ASN A:238 , HOH A:421 , HOH A:430 , HOH A:451 , HOH A:454	BINDING SITE FOR RESIDUE MN A 372

(no "SS Bond" information available for 1NU5)

(no "Cis Peptide Bond" information available for 1NU5)

(no "SAP(SNP)/Variant" information available for 1NU5)

Asymmetric Unit (2, 2)

	PROSITE			UniProtKB		PDB
No.	ID	AC	Description	ID	Location	Count	Location
1	MR_MLE_1	PS00908	Mandelate racemase / muconate lactonizing enzyme family signature 1.	TCBD_PSESQ	100-125	1	A:100-125
2	MR_MLE_2	PS00909	Mandelate racemase / muconate lactonizing enzyme family signature 2.	TCBD_PSESQ	191-222	1	A:191-222

Biological Unit 1 (2, 16)

	PROSITE			UniProtKB		PDB
No.	ID	AC	Description	ID	Location	Count	Location
1	MR_MLE_1	PS00908	Mandelate racemase / muconate lactonizing enzyme family signature 1.	TCBD_PSESQ	100-125	8	A:100-125
2	MR_MLE_2	PS00909	Mandelate racemase / muconate lactonizing enzyme family signature 2.	TCBD_PSESQ	191-222	8	A:191-222

(no "Exon" information available for 1NU5)

Asymmetric Unit

Reformat:	Number of residues per line = ('0' or empty: single-line sequence representation)
	Number of residues per labelling interval =
	UniProt sequence: complete aligned part

Show mapping:	SCOP domains	CATH domains	Pfam domains	Secondary structure (by author)
	SAPs(SNPs)	PROSITE motifs	Exons
	(details for a mapped element are shown in a popup box when the mouse pointer rests over it)

Chain A from PDB  Type:PROTEIN  Length:369
 aligned with TCBD_PSESQ | P27099 from UniProtKB/Swiss-Prot  Length:370

    Alignment length:369
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150       160       170       180       190       200       210       220       230       240       250       260       270       280       290       300       310       320       330       340       350       360
           TCBD_PSESQ     1 MKIEAISTTIVDVPTRRPLQMSFTTVHKQSYVIVQVKAGGLVGIGEGGSVGGPTWGSESAETIKVIIDNYLAPLLVGKDASNLSQARVLMDRAVTGNLSAKAAIDIALHDLKARALNLSIADLIGGTMRTSIPIAWTLASGDTARDIDSALEMIETRRHNRFKVKLGARTPAQDLEHIRSIVKAVGDRASVRVDVNQGWDEQTASIWIPRLEEAGVELVEQPVPRANFGALRRLTEQNGVAILADESLSSLSSAFELARDHAVDAFSLKLCNMGGIANTLKVAAVAEAAGISSYGGTMLDSTVGTAAALHVYATLPSLPYGCELIGPWVLGDRLTQQDLEIKDFEVHLPLGSGLGVDLDHDKVRHYTRA 369
               SCOP domains d1nu5a2 A:1-126 Chlormuconate cycloisomerase                                                                                  d1nu5a1 A:127-369 Chlormuconate cycloisomerase                                                                                                                                                                                                      SCOP domains
               CATH domains 1nu5A01 A:1-116 Enolase-like, N-terminal domain                                                                     1nu5A02 A:117-369 Enolase superfamily                                                                                                                                                                                                                         CATH domains
               Pfam domains --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ..eeeeeeeeeeeeeeeeeee..eeeeeeeeeeeeeee..eeeeeee...........hhhhhhhhhhhhhhhhhh.....hhhhhhhhhhhhh..hhhhhhhhhhhhhhhhhhhh..hhhhhhh.....eee..eee...hhhhhhhhhhhhhhh....eeeee....hhhhhhhhhhhhhhhhhhhheeeee.....hhhhhhhhhhhhhhhh..eee......hhhhhhhhhhhh..eeee.....hhhhhhhhhhh....eeeehhhhhhhhhhhhhhhhhhhhhh.eeee.....hhhhhhhhhhhhh...........hhhhhh..........ee..eee...........hhhhhhhhh.. Sec.struct. author
                 SAPs(SNPs) --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ---------------------------------------------------------------------------------------------------MR_MLE_1  PDB: A:100-125  -----------------------------------------------------------------MR_MLE_2  PDB: A:191-222        --------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 1nu5 A   1 MKIEAISTTIVDVPTRRPLQMSFTTVHKQSYVIVQVKAGGLVGIGEGGSVGGPTWGSESAETIKVIIDNYLAPLLVGKDASNLSQARVLMDRAVTGNLSAKAAIDIALHDLKARALNLSIADLIGGTMRTSIPIAWTLASGDTARDIDSALEMIETRRHNRFKVKLGARTPAQDLEHIRSIVKAVGDRASVRVDVNQGWDEQTASIWIPRLEEAGVELVEQPVPRANFGALRRLTEQNGVAILADESLSSLSSAFELARDHAVDAFSLKLCNMGGIANTLKVAAVAEAAGISSYGGTMLDSTVGTAAALHVYATLPSLPYGCELIGPWVLGDRLTQQDLEIKDFEVHLPLGSGLGVDLDHDKVRHYTRA 369
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150       160       170       180       190       200       210       220       230       240       250       260       270       280       290       300       310       320       330       340       350       360

Legend:		→ Mismatch	(orange background)
	-	→ Gap	(green background, '-', border residues have a numbering label)
		→ Modified Residue	(blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
	x	→ Chemical Group	(purple background, 'x', labelled with number + name, e.g. ACE or NH2)
	extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '\|'

Asymmetric Unit

Classes(

)

Architectures( (-)

)

Topologies( (-)

)

Homologous Superfamilies( (-)

)

Organisms( (-)

)

Class: Alpha Beta (26913)

Architecture: 2-Layer Sandwich (8480)

Topology: Enolase-like; domain 1 (252)

Homologous Superfamily: Enolase-like, N-terminal domain (130)

P51 (Pseudomonas sp) (1)

1nu5A01

A:1-116

Architecture: Alpha-Beta Barrel (2994)

Topology: TIM Barrel (2806)

Homologous Superfamily: Enolase superfamily (142)

P51 (Pseudomonas sp) (1)

1nu5A02

A:117-369

(no "Pfam Domain" information available for 1NU5)

Asymmetric Unit(hide GO term definitions)

Chain A (TCBD_PSESQ | P27099)

molecular function
	GO:0003824	catalytic activity	Catalysis of a biochemical reaction at physiological temperatures. In biologically catalyzed reactions, the reactants are known as substrates, and the catalysts are naturally occurring macromolecular substances known as enzymes. Enzymes possess specific binding sites for substrates, and are usually composed wholly or largely of protein, but RNA that has catalytic activity (ribozyme) is often also regarded as enzymatic.
	GO:0018850	chloromuconate cycloisomerase activity	Catalysis of the reaction: 2-chloro-2,5-dihydro-5-oxofuran-2-acetate = 3-chloro-cis,cis-muconate.
	GO:0016853	isomerase activity	Catalysis of the geometric or structural changes within one molecule. Isomerase is the systematic name for any enzyme of EC class 5.
	GO:0030145	manganese ion binding	Interacting selectively and non-covalently with manganese (Mn) ions.
	GO:0046872	metal ion binding	Interacting selectively and non-covalently with any metal ion.
	GO:0018849	muconate cycloisomerase activity	Catalysis of the reaction: 2,5-dihydro-5-oxofuran-2-acetate = cis,cis-hexadienedioate.
biological process
	GO:0046300	2,4-dichlorophenoxyacetic acid catabolic process	The chemical reactions and pathways resulting in the breakdown of 2,4-dichlorophenoxyacetic acid, a chlorinated phenoxy compound which functions as a systemic herbicide and is used to control many types of broadleaf weeds.
	GO:0019439	aromatic compound catabolic process	The chemical reactions and pathways resulting in the breakdown of aromatic compounds, any substance containing an aromatic carbon ring.
	GO:0009063	cellular amino acid catabolic process	The chemical reactions and pathways resulting in the breakdown of amino acids, organic acids containing one or more amino substituents.
	GO:0008152	metabolic process	The chemical reactions and pathways, including anabolism and catabolism, by which living organisms transform chemical substances. Metabolic processes typically transform small molecules, but also include macromolecular processes such as DNA repair and replication, and protein synthesis and degradation.

Asymmetric Unit
	Complete Structure
		Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
		WebMol \| AstexViewer[tm]@PDBe (Java Applets, require no local installation except for Java; loading may be slow)
		STRAP (Java WebStart application, automatic local installation, requires Java; full application with system access!)
		RasMol (require local installation)
		Molscript (VRML) (requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

	Ligands, Modified Residues, Ions
		MN	[ RasMol \| Jena3D ]	+environment [ RasMol \| Jena3D ]

	Sites
		AC1	[ RasMol ]	+environment [ RasMol ]
		AC2	[ RasMol ]	+environment [ RasMol ]

	Cis Peptide Bonds
(no "Cis Peptide Bonds" information available for 1nu5)
