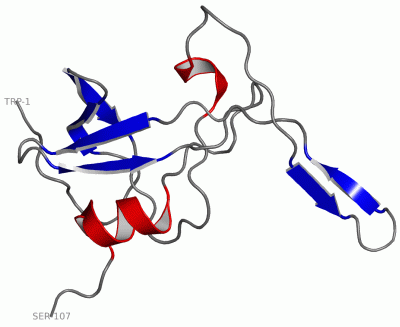

Image NMR Structure - manually
NMR Structure - manually  (Jmol Viewer)

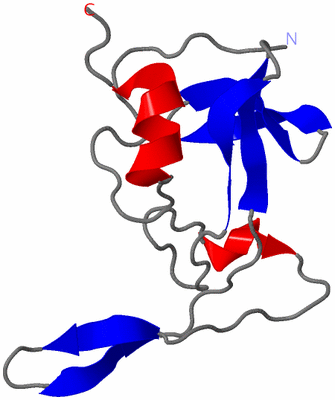

Image NMR Structure - model 1
NMR Structure - model 1  (Jmol Viewer)

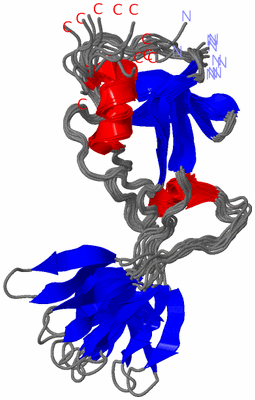

Image NMR Structure - all models
NMR Structure - all models  (Jmol Viewer)

(-) Description

Title :  FOLDED MONOMER OF PROTEASE FROM MASON-PFIZER MONKEY VIRUS

Authors :  V. Veverka, H. Bauerova, A. Zabransky, J. Lang, T. Ruml, I. Pichova, R. Hrabal
Date :  28 Jan 03  (Deposition) - 18 Feb 03  (Release) - 24 Feb 09  (Revision)
Method :  SOLUTION NMR
Resolution :  NOT APPLICABLE
Chains :  NMR Structure  :  A  (10x)
Keywords :  M-Pmv, Protease, Virus Maturation, Folded Monomer, Hydrolase (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  V. Veverka, H. Bauerova, A. Zabransky, J. Lang, T. Ruml, I. Pichova, R. Hrabal
Three-Dimensional Structure Of A Monomeric Form Of A Retroviral Protease
J. Mol. Biol. V. 333 771 2003
PubMed-ID: 14568536  |  Reference-DOI: 10.1016/J.JMB.2003.08.049
(for further references see the PDB file header)

(-) Compounds

Molecule 1 - PROTEASE
    Chains: A
    EC Number: 3.4.23.-
    Engineered: YES
    Expression System: ESCHERICHIA COLI
    Expression System Taxid: 562
    Expression System Vector Type: PLASMID
    Gene: PRT
    Mutation: YES
    Organism Scientific: SIMIAN RETROVIRUS 1
    Organism Taxid: 11942

 Structural Features

(-) Chains, Units


NMR Structure (10x):

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (0, 0)

(no "Ligand,Modified Residues,Ions" information available for 1NSO)

(-) Sites  (0, 0)

(no "Site" information available for 1NSO)

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 1NSO)

(-) Cis Peptide Bonds  (0, 0)

(no "Cis Peptide Bond" information available for 1NSO)

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 1NSO)

(-) PROSITE Motifs  (2, 2)

NMR Structure (2, 2)
 PROSITEUniProtKBPDB
No.IDACDescriptionIDLocationCountLocation
1ASP_PROT_RETROVPS50175 Aspartyl protease, retroviral-type family profile.VPRT_MPMV183-259  1A:21-97
VPRT_SRV1183-259  1A:21-97
2ASP_PROTEASEPS00141 Eukaryotic and viral aspartyl proteases active site.VPRT_MPMV185-196  1A:23-34
VPRT_SRV1185-196  1A:23-34

(-) Exons   (0, 0)

(no "Exon" information available for 1NSO)

(-) Sequences/Alignments

NMR Structure
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:107
 aligned with VPRT_MPMV | P07570 from UniProtKB/Swiss-Prot  Length:314

    Alignment length:107
                                   172       182       192       202       212       222       232       242       252       262
            VPRT_MPMV   163 WVQPITCQKPSLTLWLDDKMFTGLIDTGADVTIIKLEDWPPNWPITDTLTNLRGIGQSNNPKQSSKYLTWRDKENNSGLIKPFVIPNLPVNLWGRDLLSQMKIMMCS 269
               SCOP domains d1nsoa_ A: Mason-Pfizer monkey virus protease                                                               SCOP domains
               CATH domains 1nsoA00 A:1-107 Acid Proteases                                                                              CATH domains
               Pfam domains ----------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ...........eeeee..eeeee...........hhhhh.........eeee....eeee.......eeeee...eeeee.............hhhhhhhhhh.... Sec.struct. author
                 SAPs(SNPs) ----------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                PROSITE (2) --------------------ASP_PROT_RETROV  PDB: A:21-97 UniProt: 183-259                               ---------- PROSITE (2)
                PROSITE (3) ----------------------ASP_PROTEASE------------------------------------------------------------------------- PROSITE (3)
                 Transcript ----------------------------------------------------------------------------------------------------------- Transcript
                 1nso A   1 WVQPITAQKPSLTLWLDDKMFTGLINTGADVTIIKLEDWPPNWPITDTLTNLRGIGQSNNPKQSSKYLTWRDKENNSGLIKPFVIPNLPVNLWGRDLLSQMKIMMAS 107
                                    10        20        30        40        50        60        70        80        90       100


Chain A from PDB  Type:PROTEIN  Length:107
 aligned with VPRT_SRV1 | P04024 from UniProtKB/Swiss-Prot  Length:314

    Alignment length:107
                                   172       182       192       202       212       222       232       242       252       262
            VPRT_SRV1   163 WVQPITCQKPSLTLWLDDKMFTGLIDTGADVTIIKLEDWPPNWPITDTLTNLRGIGQSNNPKQSSKYLTWRDKENNSGLIKPFVIPNLPVNLWGRDLLSQMKIMMCS 269
               SCOP domains d1nsoa_ A: Mason-Pfizer monkey virus protease                                                               SCOP domains
               CATH domains 1nsoA00 A:1-107 Acid Proteases                                                                              CATH domains
               Pfam domains ----------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ...........eeeee..eeeee...........hhhhh.........eeee....eeee.......eeeee...eeeee.............hhhhhhhhhh.... Sec.struct. author
                 SAPs(SNPs) ----------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                PROSITE (1) --------------------ASP_PROT_RETROV  PDB: A:21-97 UniProt: 183-259                               ---------- PROSITE (1)
                PROSITE (2) ----------------------------------------------------------------------------------------------------------- PROSITE (2)
                PROSITE (3) ----------------------------------------------------------------------------------------------------------- PROSITE (3)
                PROSITE (4) ----------------------ASP_PROTEASE------------------------------------------------------------------------- PROSITE (4)
                 Transcript ----------------------------------------------------------------------------------------------------------- Transcript
                 1nso A   1 WVQPITAQKPSLTLWLDDKMFTGLINTGADVTIIKLEDWPPNWPITDTLTNLRGIGQSNNPKQSSKYLTWRDKENNSGLIKPFVIPNLPVNLWGRDLLSQMKIMMAS 107
                                    10        20        30        40        50        60        70        80        90       100
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (1, 1)

NMR Structure
(-)
Class: All beta proteins (24004)

(-) CATH Domains  (1, 1)

NMR Structure
(-)
Class: Mainly Beta (13760)

(-) Pfam Domains  (0, 0)

(no "Pfam Domain" information available for 1NSO)

(-) Gene Ontology  (6, 12)

NMR Structure(hide GO term definitions)
Chain A   (VPRT_MPMV | P07570)
molecular function
    GO:0004190    aspartic-type endopeptidase activity    Catalysis of the hydrolysis of internal, alpha-peptide bonds in a polypeptide chain by a mechanism in which a water molecule bound by the side chains of aspartic residues at the active center acts as a nucleophile.
    GO:0016787    hydrolase activity    Catalysis of the hydrolysis of various bonds, e.g. C-O, C-N, C-C, phosphoric anhydride bonds, etc. Hydrolase is the systematic name for any enzyme of EC class 3.
    GO:0003676    nucleic acid binding    Interacting selectively and non-covalently with any nucleic acid.
    GO:0008233    peptidase activity    Catalysis of the hydrolysis of a peptide bond. A peptide bond is a covalent bond formed when the carbon atom from the carboxyl group of one amino acid shares electrons with the nitrogen atom from the amino group of a second amino acid.
biological process
    GO:0046080    dUTP metabolic process    The chemical reactions and pathways involving dUTP, deoxyuridine (5'-)triphosphate.
    GO:0006508    proteolysis    The hydrolysis of proteins into smaller polypeptides and/or amino acids by cleavage of their peptide bonds.

Chain A   (VPRT_SRV1 | P04024)
molecular function
    GO:0004190    aspartic-type endopeptidase activity    Catalysis of the hydrolysis of internal, alpha-peptide bonds in a polypeptide chain by a mechanism in which a water molecule bound by the side chains of aspartic residues at the active center acts as a nucleophile.
    GO:0016787    hydrolase activity    Catalysis of the hydrolysis of various bonds, e.g. C-O, C-N, C-C, phosphoric anhydride bonds, etc. Hydrolase is the systematic name for any enzyme of EC class 3.
    GO:0003676    nucleic acid binding    Interacting selectively and non-covalently with any nucleic acid.
    GO:0008233    peptidase activity    Catalysis of the hydrolysis of a peptide bond. A peptide bond is a covalent bond formed when the carbon atom from the carboxyl group of one amino acid shares electrons with the nitrogen atom from the amino group of a second amino acid.
biological process
    GO:0046080    dUTP metabolic process    The chemical reactions and pathways involving dUTP, deoxyuridine (5'-)triphosphate.
    GO:0006508    proteolysis    The hydrolysis of proteins into smaller polypeptides and/or amino acids by cleavage of their peptide bonds.

 Visualization

(-) Interactive Views

NMR Structure
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
(no "Ligands, Modified Residues, Ions" information available for 1nso)

  Sites
(no "Sites" information available for 1nso)

  Cis Peptide Bonds
(no "Cis Peptide Bonds" information available for 1nso)


(-) Still Images

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick

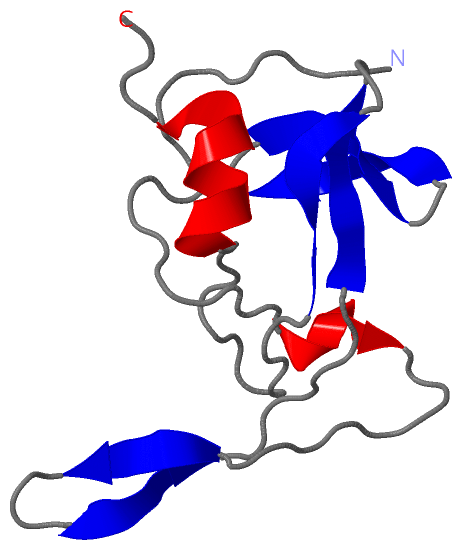

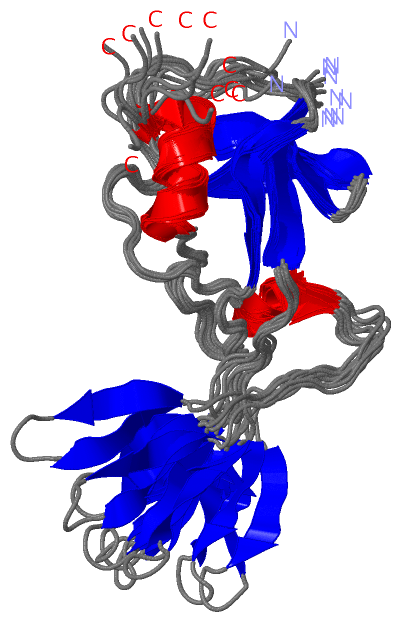

[ NMR Structure - model 1 PNG format | NMR Structure - all models PNG format ](automatic orientation, automatically generated)
