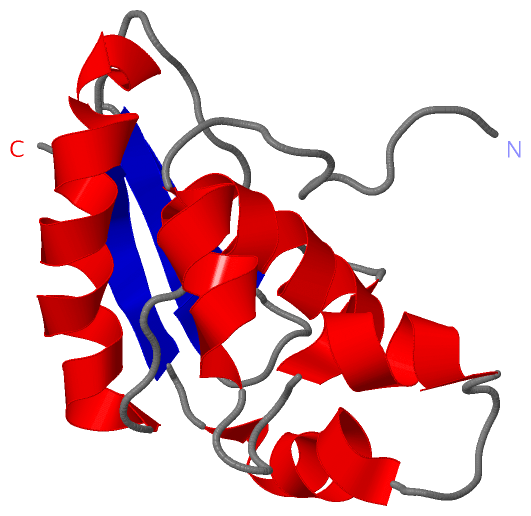

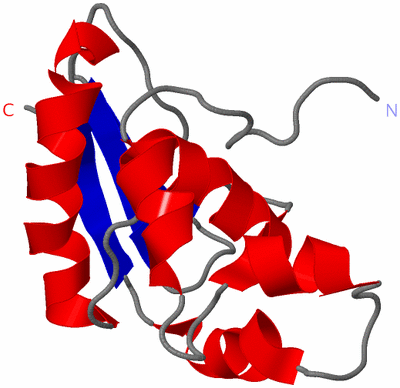

Image NMR Structure - model 1
NMR Structure - model 1  (Jmol Viewer)

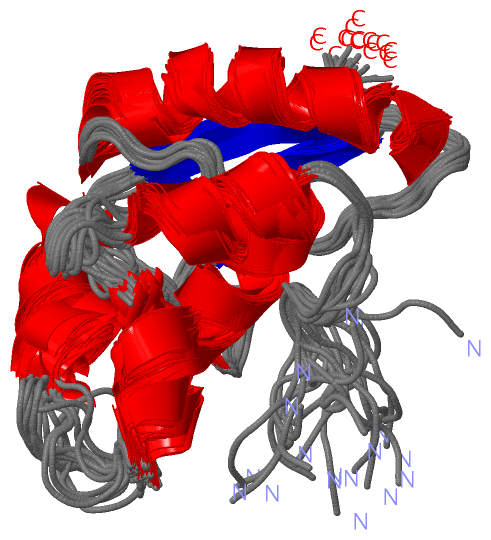

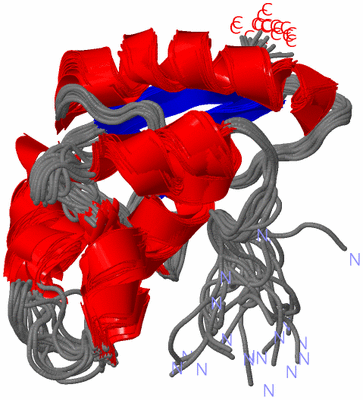

Image NMR Structure - all models
NMR Structure - all models  (Jmol Viewer)

(-) Description

Title :  SOLUTION STRUCTURE OF THE PROTEIN MTH0916: THE NORTHEAST STRUCTURAL GENOMICS CONSORTIUM TARGET TT212

Authors :  Y. Shen, G. Liu, R. Bhaskaran, A. Yee, C. Arrowsmith, T. Szyperski, Northeast Structural Genomics Consortium (Nesg)
Date :  23 Jan 03  (Deposition) - 10 Jun 03  (Release) - 24 Feb 09  (Revision)
Method :  SOLUTION NMR
Resolution :  NOT APPLICABLE
Chains :  NMR Structure  :  A  (20x)
Keywords :  Northeast Structural Genomics Consortium, Reduced- Dimensionality Nmr, Psi, Protein Structure Initiative, Nesg, Transcription (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  Y. Shen, G. Liu, R. Bhaskaran, A. Yee, C. Arrowsmith, T. Szyperski
Solution Structure Of The Protein Mth0916: The Northeast Structural Genomics Consortium Target Tt212
To Be Published
PubMed: search
(for further references see the PDB file header)

(-) Compounds

Molecule 1 - DNA-BINDING PROTEIN TFX
    Chains: A
    Engineered: YES
    Expression System: ESCHERICHIA COLI
    Expression System Taxid: 562
    Organism Scientific: METHANOTHERMOBACTER THERMAUTOTROPHICUS
    Organism Taxid: 145262
    Synonym: MTH0916

 Structural Features

(-) Chains, Units


NMR Structure (20x):

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (0, 0)

(no "Ligand,Modified Residues,Ions" information available for 1NR3)

(-) Sites  (0, 0)

(no "Site" information available for 1NR3)

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 1NR3)

(-) Cis Peptide Bonds  (0, 0)

(no "Cis Peptide Bond" information available for 1NR3)

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 1NR3)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 1NR3)

(-) Exons   (0, 0)

(no "Exon" information available for 1NR3)

(-) Sequences/Alignments

NMR Structure
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:122
 aligned with TFX_METTH | O27001 from UniProtKB/Swiss-Prot  Length:138

    Alignment length:122
                                    26        36        46        56        66        76        86        96       106       116       126       136
            TFX_METTH    17 MRERGWSQKKIARELKTTRQNVSAIERKAMENIEKSRNTLDFVKSLKSPVRILCRRGDTLDEIIKRLLEESNKEGIHVIHDSITLAFLIREKASHRIVHRVVKSDFEIGVTRDGEIIVDLNS 138
               SCOP domains d1nr3a_ A: DNA-binding protein Tfx                                                                                         SCOP domains
               CATH domains 1nr3A00 A:1-122  [code=3.30.1190.10, no name defined]                                                                      CATH domains
               Pfam domains Sigma70_r4-1nr3A01 A:1-35          --------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ..........hhhhhhhh.....hhhhhhhh......hhhhhhhhhh..eeeee.hhhhhhhhhhhhhhhhhhhh.....hhhhhhhhhhhhh............eeeee.....eeee... Sec.struct. author
                 SAPs(SNPs) -------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE -------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript -------------------------------------------------------------------------------------------------------------------------- Transcript
                 1nr3 A   1 MRERGWSQKKIARELKTTRQNVSAIERKAMENIEKSRNTLDFVKSLKSPVRILCRRGDTLDEIIKRLLEESNKEGIHVIHDSITLAFLIREKASHRIVHRVVKSDFEIGVTRDGEIIVDLNS 122
                                    10        20        30        40        50        60        70        80        90       100       110       120
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (1, 1)

NMR Structure
(-)
Class: Alpha and beta proteins (a+b) (23004)

(-) CATH Domains  (1, 1)

NMR Structure
(-)
Class: Alpha Beta (26913)

(-) Pfam Domains  (1, 1)

NMR Structure
(-)
Clan: HTH (544)

(-) Gene Ontology  (6, 6)

NMR Structure(hide GO term definitions)
Chain A   (TFX_METTH | O27001)
molecular function
    GO:0003677    DNA binding    Any molecular function by which a gene product interacts selectively and non-covalently with DNA (deoxyribonucleic acid).
    GO:0016987    sigma factor activity    A sigma factor is the promoter specificity subunit of eubacterial-type multisubunit RNA polymerases, those whose core subunit composition is often described as alpha(2)-beta-beta-prime. (This type of multisubunit RNA polymerase complex is known to be found in eubacteria and plant plastids). Although sigma does not bind DNA on its own, when combined with the core to form the holoenzyme, this binds specifically to promoter sequences, with the sigma factor making sequence specific contacts with the promoter elements. The sigma subunit is released from the elongating form of the polymerase and is thus free to act catalytically for multiple RNA polymerase core enzymes.
    GO:0003700    transcription factor activity, sequence-specific DNA binding    Interacting selectively and non-covalently with a specific DNA sequence in order to modulate transcription. The transcription factor may or may not also interact selectively with a protein or macromolecular complex.
biological process
    GO:0006352    DNA-templated transcription, initiation    Any process involved in the assembly of the RNA polymerase preinitiation complex (PIC) at the core promoter region of a DNA template, resulting in the subsequent synthesis of RNA from that promoter. The initiation phase includes PIC assembly and the formation of the first few bonds in the RNA chain, including abortive initiation, which occurs when the first few nucleotides are repeatedly synthesized and then released. The initiation phase ends just before and does not include promoter clearance, or release, which is the transition between the initiation and elongation phases of transcription.
    GO:0006355    regulation of transcription, DNA-templated    Any process that modulates the frequency, rate or extent of cellular DNA-templated transcription.
    GO:0006351    transcription, DNA-templated    The cellular synthesis of RNA on a template of DNA.

 Visualization

(-) Interactive Views

NMR Structure
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
(no "Ligands, Modified Residues, Ions" information available for 1nr3)

  Sites
(no "Sites" information available for 1nr3)

  Cis Peptide Bonds
(no "Cis Peptide Bonds" information available for 1nr3)


(-) Still Images

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick
[ NMR Structure - model 1 PNG format | NMR Structure - all models PNG format ](automatic orientation, automatically generated)
Molscript
  protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick
[ mono PDF format | stereo PDF format ](default orientation, automatically generated)

 Databases and Analysis Tools

(-) Databases

Access by PDB/NDB ID
  1nr3
    Family and Domain Information: ProDom | SYSTERS
    General Structural Information: GlycoscienceDB | MMDB | NDB | OCA | PDB | PDBe | PDBj | PDBsum | PDBWiki | PQS | PROTEOPEDIA
    Orientation in Membranes: OPM
    Protein Surface: SURFACE
    Secondary Structure: DSSP (structure derived) | HSSP (homology derived)
    Structural Genomics: GeneCensus
    Structural Neighbours: CE | VAST
    Structure Classification: CATH | Dali | SCOP
    Validation and Original Data: BMRB Data View | BMRB Restraints Grid | EDS | PROCHECK | RECOORD | WHAT_CHECK

Access by UniProt ID/Accession number
  TFX_METTH | O27001
    Comparative Protein Structure Models: ModBase
    Genomic Information: Ensembl
    Protein-protein Interaction: DIP
    Sequence, Family and Domain Information: InterPro | Pfam | SMART | UniProtKB/SwissProt

Access by Enzyme Classificator   (EC Number)
  (no 'Enzyme Classificator' available)
    General Enzyme Information: BRENDA | EC-PDB | Enzyme | IntEnz
    Pathway: KEGG | MetaCyc

Access by Disease Identifier   (MIM ID)
  (no 'MIM ID' available)
    Disease Information: OMIM

Access by GenAge ID
  (no 'GenAge ID' available)
    Age Related Information: GenAge

(-) Analysis Tools

Access by PDB/NDB ID
    Domain Information: XDom
    Interatomic Contacts of Structural Units: CSU
    Ligand-protein Contacts: LPC
    Protein Cavities: castP
    Sequence and Secondary Structure: PDBCartoon
    Structure Alignment: STRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    Structure and Sequence Browser: STING

Access by UniProt ID/Accession number
  TFX_METTH | O27001
    Protein Disorder Prediction: DisEMBL | FoldIndex | GLOBPLOT (for more information see DisProt)

 Related Entries

(-) Entries Sharing at Least One Protein Chain (UniProt ID)

(no "Entries Sharing at Least One Protein Chain" available for 1NR3)

(-) Related Entries Specified in the PDB File

5657 CHEMICAL SHIFT ASSIGNMENT RELATED ID: TT212 RELATED DB: TARGETDB
