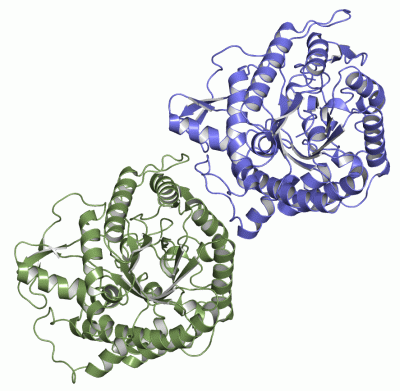

Image Asym.Unit - manually
Asym.Unit - manually  (Jmol Viewer)

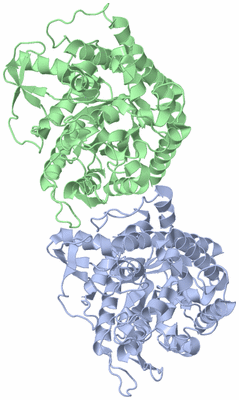

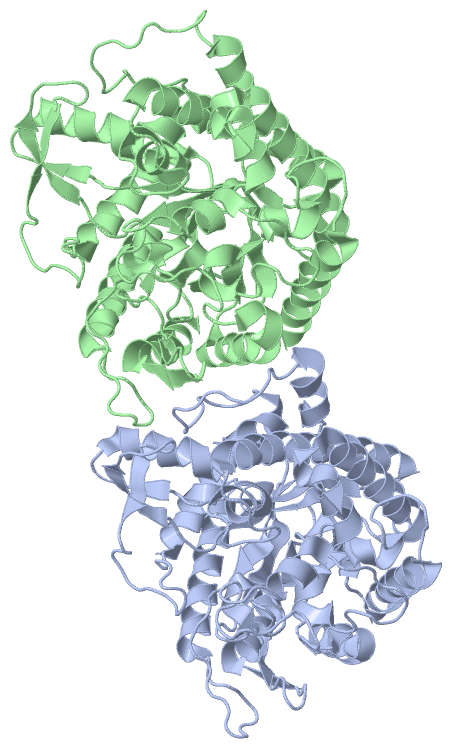

Image Asymmetric Unit
Asymmetric Unit  (Jmol Viewer)

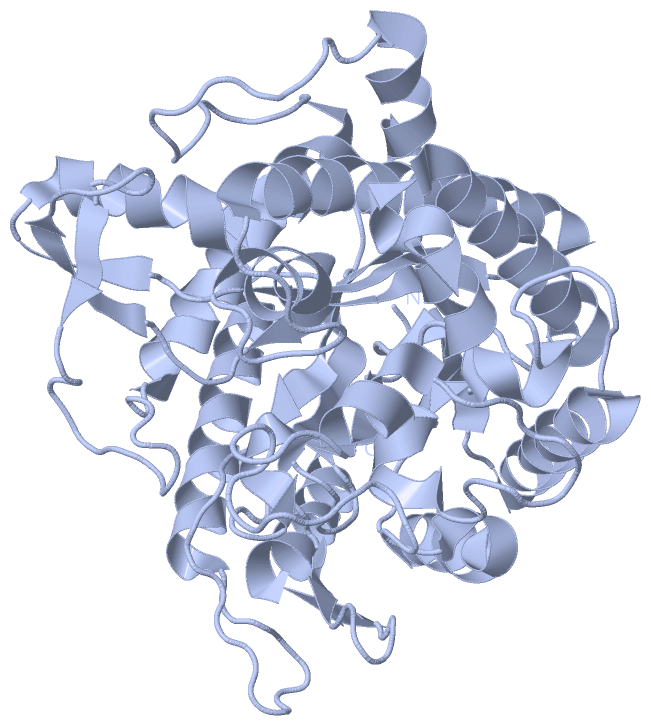

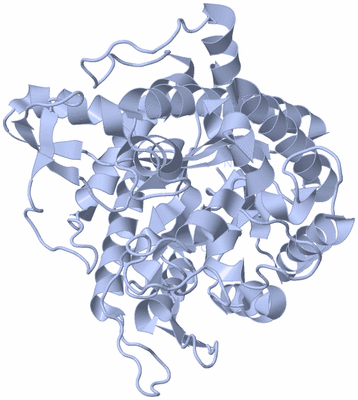

Image Biological Unit 1
Biological Unit 1  (Jmol Viewer)

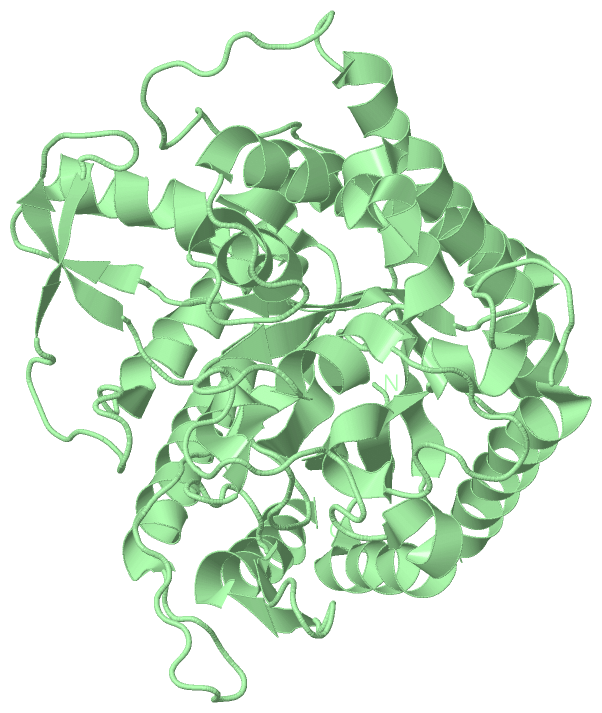

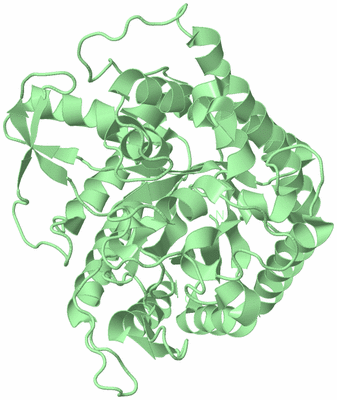

Image Biological Unit 2
Biological Unit 2  (Jmol Viewer)

(-) Description

Title :  CRYSTAL STRUCTURE OF THERMOSTABLE BETA-GLYCOSIDASE FROM THERMOPHILIC EUBACTERIUM THERMUS NONPROTEOLYTICUS HG102

Authors :  D. C. Liang, W. R. Chang, X. Q. Wang, X. Y. He
Date :  16 Jan 03  (Deposition) - 15 Jul 03  (Release) - 24 Feb 09  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  2.40
Chains :  Asym. Unit :  A,B
Biol. Unit 1:  A  (1x)
Biol. Unit 2:  B  (1x)
Keywords :  Tim Barrel, Hydrolase (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  X. Wang, X. He, S. Yang, X. An, W. Chang, D. Liang
Structural Basis For Thermostability Of Beta-Glycosidase From The Thermophilic Eubacterium Thermus Nonproteolyticus Hg102.
J. Bacteriol. V. 185 4248 2003
PubMed-ID: 12837801  |  Reference-DOI: 10.1128/JB.185.14.4248-4255.2003
(for further references see the PDB file header)

(-) Compounds

Molecule 1 - BETA-GLYCOSIDASE
    Chains: A, B
    EC Number: 3.2.1.21
    Engineered: YES
    Expression System: ESCHERICHIA COLI BL21(DE3)
    Expression System Plasmid: PET21A
    Expression System Strain: BL21(DE3)
    Expression System Taxid: 469008
    Expression System Vector Type: PLASMID
    Organism Scientific: THERMUS NONPROTEOLYTICUS
    Organism Taxid: 116039
    Strain: HG102

 Structural Features

(-) Chains, Units

  12
Asymmetric Unit : AB
Biological Unit 1 (1x): A
Biological Unit 2 (1x):  B

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (0, 0)

(no "Ligand,Modified Residues,Ions" information available for 1NP2)

(-) Sites  (0, 0)

(no "Site" information available for 1NP2)

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 1NP2)

(-) Cis Peptide Bonds  (4, 4)

Asymmetric Unit
No.Residues
1Glu A:50 -Pro A:51
2Ala A:179 -Pro A:180
3Glu B:50 -Pro B:51
4Ala B:179 -Pro B:180

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 1NP2)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 1NP2)

(-) Exons   (0, 0)

(no "Exon" information available for 1NP2)

(-) Sequences/Alignments

Asymmetric Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:426
 aligned with Q9L794_9DEIN | Q9L794 from UniProtKB/TrEMBL  Length:436

    Alignment length:426
                                    14        24        34        44        54        64        74        84        94       104       114       124       134       144       154       164       174       184       194       204       214       224       234       244       254       264       274       284       294       304       314       324       334       344       354       364       374       384       394       404       414       424
         Q9L794_9DEIN     5 AEKFLWGVATSAYQIEGATQEDGRGPSIWDTFARRPGAIRDGSTGEPACDHYHRYEEDIALMQSLGVGVYRFSVAWPRILPEGRGRINPKGLAFYDRLVDRLLAAGITPFLTLYHWDLPQALEDRGGWRSRETAFAFAEYAEAVARALADRVPFFATLNEPWCSAFLGHWTGEHAPGLRNLEAALRAAHHLLLGHGLAVEALRAAGARRVGIVLNFAPAYGEDPEAVDVADRYHNRYFLDPILGRGYPESPFQDPPPAPILSRDLEAIARPLDFLGVNYYAPVRVAPGTGPLPVRYLPPEGPVTAMGWEVYPEGLYHLLKRLGREVPWPLYITENGAAYPDLWTGEAVVEDPERVAYLEAHVEAALRAREEGVDLRGYFVWSLMDNFEWAFGYTRRFGLYYVDFPSQRRIPKRSALWYRERIARAQ 430
               SCOP domains d1np2a_ A: Beta-glucosidase A                                                                                                                                                                                                                                                                                                                                                                                                              SCOP domains
               CATH domains 1np2A00 A:5-430 Glycosidases                                                                                                                                                                                                                                                                                                                                                                                                               CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Pfam domains
         Sec.struct. author ....eeeee.hhhhhh..........hhhhhhh................hhhhhhhhhhhhhhh....eeeee.hhhhhh.......hhhhhhhhhhhhhhhhhh..eeeeeee....hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh....eeeeeehhhhhhhhhhh.........hhhhhhhhhhhhhhhhhhhhhhhhhh...eeeeeee...eee.hhhhhhhhhhhhhhhhhhhhhh................hhhhhhhhh....eeeee....eeeee......eee..............hhhhhhhhhhhhhhhh...eeeeee...............hhhhhhhhhhhhhhhhhhhhh...eeeeeee......hhhhh.......eee......eeehhhhhhhhhhhhhh. Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Transcript
                 1np2 A   5 AEKFLWGVATSAYQIEGATQEDGRGPSIWDTFARRPGAIRDGSTGEPACDHYHRYEEDIALMQSLGVGVYRFSVAWPRILPEGRGRINPKGLAFYDRLVDRLLAAGITPFLTLYHWDLPQALEDRGGWRSRETAFAFAEYAEAVARALADRVPFFATLNEPWCSAFLGHWTGEHAPGLRNLEAALRAAHHLLLGHGLAVEALRAAGARRVGIVLNFAPAYGEDPEAVDVADRYHNRYFLDPILGRGYPESPFQDPPPAPILSRDLEAIARPLDFLGVNYYAPVRVAPGTGPLPVRYLPPEGPVTAMGWEVYPEGLYHLLKRLGREVPWPLYITENGAAYPDLWTGEAVVEDPERVAYLEAHVEAALRAREEGVDLRGYFVWSLMDNFEWAFGYTRRFGLYYVDFPSQRRIPKRSALWYRERIARAQ 430
                                    14        24        34        44        54        64        74        84        94       104       114       124       134       144       154       164       174       184       194       204       214       224       234       244       254       264       274       284       294       304       314       324       334       344       354       364       374       384       394       404       414       424


Chain B from PDB  Type:PROTEIN  Length:426
 aligned with Q9L794_9DEIN | Q9L794 from UniProtKB/TrEMBL  Length:436

    Alignment length:426
                                    14        24        34        44        54        64        74        84        94       104       114       124       134       144       154       164       174       184       194       204       214       224       234       244       254       264       274       284       294       304       314       324       334       344       354       364       374       384       394       404       414       424
         Q9L794_9DEIN     5 AEKFLWGVATSAYQIEGATQEDGRGPSIWDTFARRPGAIRDGSTGEPACDHYHRYEEDIALMQSLGVGVYRFSVAWPRILPEGRGRINPKGLAFYDRLVDRLLAAGITPFLTLYHWDLPQALEDRGGWRSRETAFAFAEYAEAVARALADRVPFFATLNEPWCSAFLGHWTGEHAPGLRNLEAALRAAHHLLLGHGLAVEALRAAGARRVGIVLNFAPAYGEDPEAVDVADRYHNRYFLDPILGRGYPESPFQDPPPAPILSRDLEAIARPLDFLGVNYYAPVRVAPGTGPLPVRYLPPEGPVTAMGWEVYPEGLYHLLKRLGREVPWPLYITENGAAYPDLWTGEAVVEDPERVAYLEAHVEAALRAREEGVDLRGYFVWSLMDNFEWAFGYTRRFGLYYVDFPSQRRIPKRSALWYRERIARAQ 430
               SCOP domains d1np2b_ B: Beta-glucosidase A                                                                                                                                                                                                                                                                                                                                                                                                              SCOP domains
               CATH domains 1np2B00 B:5-430 Glycosidases                                                                                                                                                                                                                                                                                                                                                                                                               CATH domains
           Pfam domains (1) Glyco_hydro_1-1np2B01 B:5-430                                                                                                                                                                                                                                                                                                                                                                                                              Pfam domains (1)
           Pfam domains (2) Glyco_hydro_1-1np2B02 B:5-430                                                                                                                                                                                                                                                                                                                                                                                                              Pfam domains (2)
         Sec.struct. author ....eeeee.hhhhhh..........hhhhhhh................hhhhhhhhhhhhhhhhh..eeeee.hhhhhh.......hhhhhhhhhhhhhhhhhh..eeeeeee....hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh....eeeeeehhhhhhhhhhh.........hhhhhhhhhhhhhhhhhhhhhhhhhh...eeeeeee...ee..hhhhhhhhhhhhhhhhhhhhhh................hhhhhhhhh....eeeee....eeeee......eeee.............hhhhhhhhhhhhhhhh...eeeeee...............hhhhhhhhhhhhhhhhhhhhh...eeeeeee......hhhhh.......eee......eeehhhhhhhhhhhhhhh Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Transcript
                 1np2 B   5 AEKFLWGVATSAYQIEGATQEDGRGPSIWDTFARRPGAIRDGSTGEPACDHYHRYEEDIALMQSLGVGVYRFSVAWPRILPEGRGRINPKGLAFYDRLVDRLLAAGITPFLTLYHWDLPQALEDRGGWRSRETAFAFAEYAEAVARALADRVPFFATLNEPWCSAFLGHWTGEHAPGLRNLEAALRAAHHLLLGHGLAVEALRAAGARRVGIVLNFAPAYGEDPEAVDVADRYHNRYFLDPILGRGYPESPFQDPPPAPILSRDLEAIARPLDFLGVNYYAPVRVAPGTGPLPVRYLPPEGPVTAMGWEVYPEGLYHLLKRLGREVPWPLYITENGAAYPDLWTGEAVVEDPERVAYLEAHVEAALRAREEGVDLRGYFVWSLMDNFEWAFGYTRRFGLYYVDFPSQRRIPKRSALWYRERIARAQ 430
                                    14        24        34        44        54        64        74        84        94       104       114       124       134       144       154       164       174       184       194       204       214       224       234       244       254       264       274       284       294       304       314       324       334       344       354       364       374       384       394       404       414       424
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (1, 2)

Asymmetric Unit
(-)
Class: Alpha and beta proteins (a/b) (23833)

(-) CATH Domains  (1, 2)

Asymmetric Unit
(-)
Class: Alpha Beta (26913)

(-) Pfam Domains  (1, 2)

Asymmetric Unit
(-)
Clan: Glyco_hydro_tim (488)

(-) Gene Ontology  (8, 8)

Asymmetric Unit(hide GO term definitions)
Chain A,B   (Q9L794_9DEIN | Q9L794)
molecular function
    GO:0008422    beta-glucosidase activity    Catalysis of the hydrolysis of terminal, non-reducing beta-D-glucose residues with release of beta-D-glucose.
    GO:0016787    hydrolase activity    Catalysis of the hydrolysis of various bonds, e.g. C-O, C-N, C-C, phosphoric anhydride bonds, etc. Hydrolase is the systematic name for any enzyme of EC class 3.
    GO:0016798    hydrolase activity, acting on glycosyl bonds    Catalysis of the hydrolysis of any glycosyl bond.
    GO:0004553    hydrolase activity, hydrolyzing O-glycosyl compounds    Catalysis of the hydrolysis of any O-glycosyl bond.
    GO:0102483    scopolin beta-glucosidase activity    Catalysis of the reaction: H2O + scopolin <=> beta-D-glucose + scopoletin
biological process
    GO:0005975    carbohydrate metabolic process    The chemical reactions and pathways involving carbohydrates, any of a group of organic compounds based of the general formula Cx(H2O)y. Includes the formation of carbohydrate derivatives by the addition of a carbohydrate residue to another molecule.
    GO:0030245    cellulose catabolic process    The chemical reactions and pathways resulting in the breakdown of cellulose, a linear beta1-4 glucan of molecular mass 50-400 kDa with the pyranose units in the -4C1 conformation.
    GO:0008152    metabolic process    The chemical reactions and pathways, including anabolism and catabolism, by which living organisms transform chemical substances. Metabolic processes typically transform small molecules, but also include macromolecular processes such as DNA repair and replication, and protein synthesis and degradation.

 Visualization

(-) Interactive Views

Asymmetric Unit
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
(no "Ligands, Modified Residues, Ions" information available for 1np2)

  Sites
(no "Sites" information available for 1np2)

  Cis Peptide Bonds
    Ala A:179 - Pro A:180   [ RasMol ]
    Ala B:179 - Pro B:180   [ RasMol ]
    Glu A:50 - Pro A:51   [ RasMol ]
    Glu B:50 - Pro B:51   [ RasMol ]

Biological Units
  Complete Structure
    Biological Unit 1  [ Jena3D ]
    Biological Unit 2  [ Jena3D ]

(-) Still Images

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick
[ Asym. Unit PNG format | Biol. Unit 1 PNG format | Biol. Unit 2 PNG format ](automatic orientation, automatically generated)
Molscript
  protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick
[ mono PDF format | stereo PDF format ](default orientation, automatically generated)
