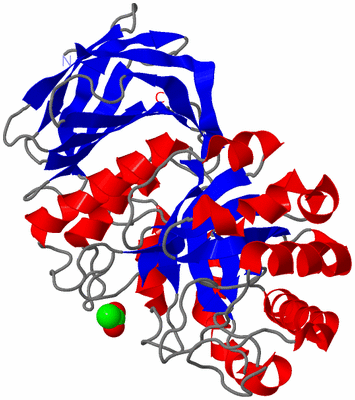

Image Asym./Biol. Unit
Asym./Biol. Unit  (Jmol Viewer)

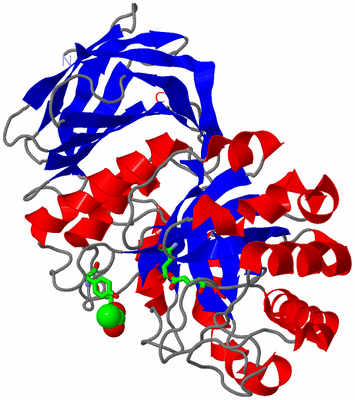

Image Asym./Biol. Unit - sites
Asym./Biol. Unit - sites  (Jmol Viewer)

(-) Description

Title :  THE FIRST CRYSTALLOGRAPHIC STRUCTURE OF A XYLANASE FROM GLYCOSYL HYDROLASE FAMILY 5: IMPLICATIONS FOR CATALYSIS

Authors :  S. B. Larson, J. Day, A. Mcpherson, A. P. Barba De La Rosa, N. T. Keen
Date :  16 Jan 03  (Deposition) - 16 Sep 03  (Release) - 08 Feb 12  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  1.42
Chains :  Asym./Biol. Unit :  A
Keywords :  Xylanase, Glycohydrolase Family 5, Carbohydrate-Binding Module, Catalytic Domain, Hydrolase (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  S. B. Larson, J. Day, A. P. Barba De La Rosa, N. T. Keen, A. Mcpherson
First Crystallographic Structure Of A Xylanase From Glycoside Hydrolase Family 5: Implications For Catalysis.
Biochemistry V. 42 8411 2003
PubMed-ID: 12859186  |  Reference-DOI: 10.1021/BI034144C
(for further references see the PDB file header)

(-) Compounds

Molecule 1 - XYLANASE
    Chains: A
    EC Number: 3.2.1.8
    Engineered: YES
    Expression System: ESCHERICHIA COLI
    Expression System Plasmid: PNTK136
    Expression System Strain: DH5ALPHA
    Expression System Taxid: 562
    Expression System Vector Type: PLASMID
    Gene: XYNA
    Organism Scientific: ERWINIA CHRYSANTHEMI
    Organism Taxid: 556

 Structural Features

(-) Chains, Units

  1
Asymmetric/Biological Unit : A

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (1, 1)

Asymmetric/Biological Unit (1, 1)
No.NameCountTypeFull Name
1ACT1Ligand/IonACETATE ION

(-) Sites  (3, 3)

Asymmetric Unit (3, 3)
No.NameEvidenceResiduesDescription
1AC1SOFTWAREARG A:293 , TYR A:295BINDING SITE FOR RESIDUE ACT A 501
2ACIAUTHORGLU A:165CATALYTIC ACID/BASE
3NUCAUTHORGLU A:253CATALYTIC NUCLEOPHILE

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 1NOF)

(-) Cis Peptide Bonds  (1, 1)

Asymmetric/Biological Unit
No.Residues
1Val A:200 -Ala A:201

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 1NOF)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 1NOF)

(-) Exons   (0, 0)

(no "Exon" information available for 1NOF)

(-) Sequences/Alignments

Asymmetric/Biological Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:383
 aligned with Q46961_DICCH | Q46961 from UniProtKB/TrEMBL  Length:413

    Alignment length:383
                                    40        50        60        70        80        90       100       110       120       130       140       150       160       170       180       190       200       210       220       230       240       250       260       270       280       290       300       310       320       330       340       350       360       370       380       390       400       410
         Q46961_DICCH    31 DTVKIDANVNYQIIQGFGGMSGVGWINDLTTEQINTAYGSGVGQIGLSIMRVRIDPDSSKWNIQLPSARQAVSLGAKIMATPWSPPAYMKSNNSLINGGRLLPANYSAYTSHLLDFSKYMQTNGAPLYAISIQNEPDWKPDYESCEWSGDEFKSYLKSQGSKFGSLKVIVAESLGFNPALTDPVLKDSDASKYVSIIGGHLYGTTPKPYPLAQNAGKQLWMTEHYVDSKQSANNWTSAIEVGTELNASMVSNYSAYVWWYIRRSYGLLTEDGKVSKRGYVMSQYARFVRPGALRIQATENPQSNVHLTAYKNTDGKMVIVAVNTNDSDQMLSLNISNANVTKFEKYSTSASLNVEYGGSSQVDSSGKATVWLNPLSVTTFVSK 413
               SCOP domains d1nofa1      d1nofa2 A:44-320 Glycosyl hydrolase family 5 xylanase, catalytic domain                                                                                                                                                                                                              d1nofa1 A:31-43,A:321-413 Glycosyl hydrolase family 5 xylanase                                SCOP domains
               CATH domains 1nofA01       1nofA02 A:45-320 Glycosidases                                                                                                                                                                                                                                                       1nofA01 A:31-44,A:321-413 Golgi alpha-mannosidase II                                          CATH domains
               Pfam domains ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .eeeeeeeeeeee..eeeee.........hhhhhhhhhh.........eeeee...hhhhhhhhhhhhhhhhhh..eeeee....hhhhh...........hhhhhhhhhhhhhhhhhhhhhh.....eee................hhhhhhhhhhhhhhhhh..eeeeeee...hhhhhhhhhhhhhhhh...eeeee........hhhhhhh..eeeeeee.........hhhhhhhhhhhhhhhhhh.eeeeeeee..............hhhhhhhhhhhh......eeeee.......eeeeeee.....eeeeeee.....eeeeeeee.....eeeeeee......eeeeeee.....eeeeee...eeeeeee. Sec.struct. author
                 SAPs(SNPs) ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 1nof A  31 DTVKIDANVNYQIIQGFGGMSGVGWINDLTTEQINTAYGSGVGQIGLSIMRVRIDPDSSKWNIQLPSARQAVSLGAKIMATPWSPPAYMKSNNSLINGGRLLPANYSAYTSHLLDFSKYMQTNGAPLYAISIQNEPDWKPDYESCEWSGDEFKSYLKSQGSKFGSLKVIVAESLGFNPALTDPVLKDSDASKYVSIIGGHLYGTTPKPYPLAQNAGKQLWMTEHYVDSKQSANNWTSAIEVGTELNASMVSNYSAYVWWYIRRSYGLLTEDGKVSKRGYVMSQYARFVRPGALRIQATENPQSNVHLTAYKNTDGKMVIVAVNTNDSDQMLSLNISNANVTKFEKYSTSASLNVEYGGSSQVDSSGKATVWLNPLSVTTFVSK 413
                                    40        50        60        70        80        90       100       110       120       130       140       150       160       170       180       190       200       210       220       230       240       250       260       270       280       290       300       310       320       330       340       350       360       370       380       390       400       410
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (2, 2)

Asymmetric/Biological Unit
(-)
Class: All beta proteins (24004)
(-)
Class: Alpha and beta proteins (a/b) (23833)

(-) CATH Domains  (2, 2)

Asymmetric/Biological Unit
(-)
Class: Alpha Beta (26913)
(-)
Class: Mainly Beta (13760)

(-) Pfam Domains  (0, 0)

(no "Pfam Domain" information available for 1NOF)

(-) Gene Ontology  (7, 7)

Asymmetric/Biological Unit(hide GO term definitions)
Chain A   (Q46961_DICCH | Q46961)
molecular function
    GO:0004348    glucosylceramidase activity    Catalysis of the reaction: D-glucosyl-N-acylsphingosine + H2O = D-glucose + N-acylsphingosine.
    GO:0016787    hydrolase activity    Catalysis of the hydrolysis of various bonds, e.g. C-O, C-N, C-C, phosphoric anhydride bonds, etc. Hydrolase is the systematic name for any enzyme of EC class 3.
    GO:0016798    hydrolase activity, acting on glycosyl bonds    Catalysis of the hydrolysis of any glycosyl bond.
biological process
    GO:0005975    carbohydrate metabolic process    The chemical reactions and pathways involving carbohydrates, any of a group of organic compounds based of the general formula Cx(H2O)y. Includes the formation of carbohydrate derivatives by the addition of a carbohydrate residue to another molecule.
    GO:0008152    metabolic process    The chemical reactions and pathways, including anabolism and catabolism, by which living organisms transform chemical substances. Metabolic processes typically transform small molecules, but also include macromolecular processes such as DNA repair and replication, and protein synthesis and degradation.
    GO:0006665    sphingolipid metabolic process    The chemical reactions and pathways involving sphingolipids, any of a class of lipids containing the long-chain amine diol sphingosine or a closely related base (a sphingoid).
    GO:0045493    xylan catabolic process    The chemical reactions and pathways resulting in the breakdown of xylan, a polymer containing a beta-1,4-linked D-xylose backbone.

 Visualization

(-) Interactive Views

Asymmetric/Biological Unit
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
    ACT  [ RasMol | Jena3D ]  +environment [ RasMol | Jena3D ]

  Sites
    AC1  [ RasMol ]  +environment [ RasMol ]
    ACI  [ RasMol ]  +environment [ RasMol ]
    NUC  [ RasMol ]  +environment [ RasMol ]

  Cis Peptide Bonds
    Val A:200 - Ala A:201   [ RasMol ]


(-) Still Images

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick

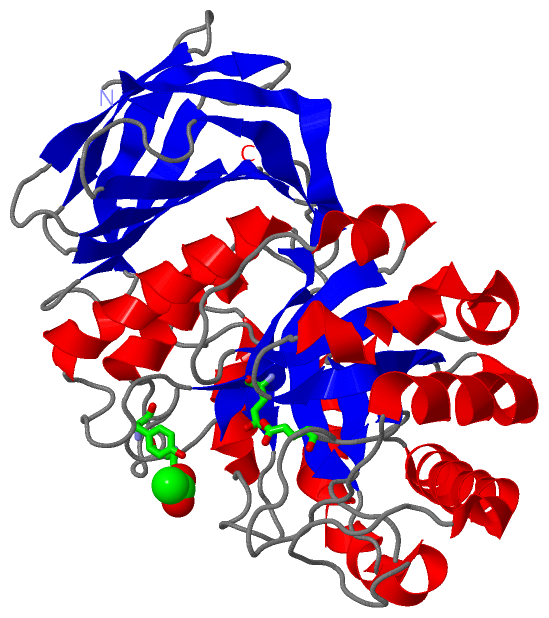

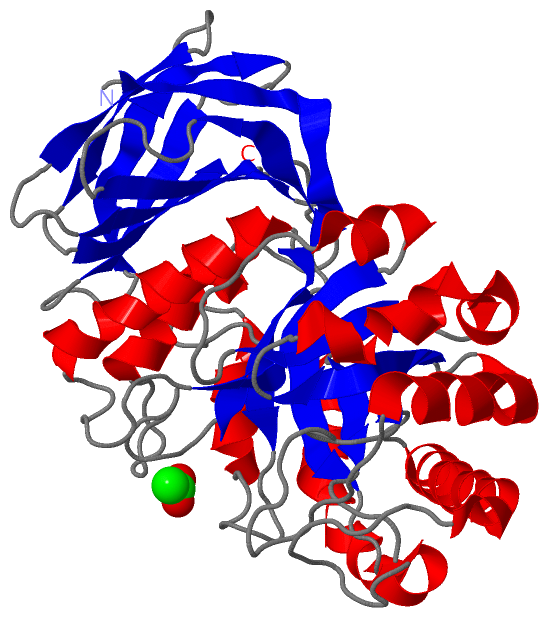

[ Asym./Biol. Unit PNG format | Asym./Biol. Unit - sites PNG format ](automatic orientation, automatically generated)
