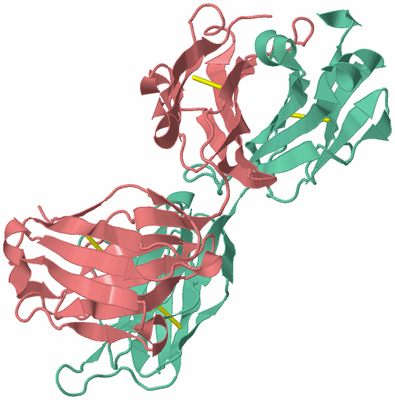

Image Asym./Biol. Unit
Asym./Biol. Unit  (Jmol Viewer)

(-) Description

Title :  CRYSTAL STRUCTURE OF ANTI-HCV MONOCLONAL ANTIBODY 19D9D6

Authors :  R. Menez, M. Bossus, B. Muller, G. Sibai, P. Dalbon, F. Ducancel, C. Joli Reynaud, E. Stura
Date :  07 Jan 03  (Deposition) - 25 Feb 03  (Release) - 18 Sep 13  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  1.60
Chains :  Asym./Biol. Unit :  H,L
Keywords :  Murine Monoclonal Antibody, Immune System (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  R. Menez, M. Bossus, B. H. Muller, G. Sibai, P. Dalbon, F. Ducancel, C. Jolivet-Reynaud, E. A. Stura
Crystal Structure Of A Hydrophobic Immunodominant Antigenic Site On Hepatitis C Virus Core Protein Complexed To Monoclonal Antibody 19D9D6.
J. Immunol. V. 170 1917 2003
PubMed-ID: 12574359

(-) Compounds

Molecule 1 - ANTIBODY 19D9D6 LIGHT CHAIN
    Chains: L
    Organism Common: MOUSE
    Organism Scientific: MUS MUSCULUS
    Organism Taxid: 10090

Molecule 2 - ANTIBODY 19D9D6 HEAVY CHAIN
    Chains: H
    Organism Common: MOUSE
    Organism Scientific: MUS MUSCULUS
    Organism Taxid: 10090

 Structural Features

(-) Chains, Units

  12
Asymmetric/Biological Unit : HL

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (0, 0)

(no "Ligand,Modified Residues,Ions" information available for 1NLB)

(-) Sites  (0, 0)

(no "Site" information available for 1NLB)

(-) SS Bonds  (4, 4)

Asymmetric/Biological Unit
No.Residues
1H:22 -H:92
2H:140 -H:195
3L:23 -L:88
4L:134 -L:194

(-) Cis Peptide Bonds  (6, 6)

Asymmetric/Biological Unit
No.Residues
1Ser L:7 -Pro L:8
2Pro L:94 -Pro L:95
3Tyr L:140 -Pro L:141
4Phe H:146 -Pro H:147
5Glu H:148 -Pro H:149
6Trp H:188 -Pro H:189

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 1NLB)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 1NLB)

(-) Exons   (0, 0)

(no "Exon" information available for 1NLB)

(-) Sequences/Alignments

Asymmetric/Biological Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain H from PDB  Type:PROTEIN  Length:218

               SCOP domains d1nlbh1 H:1-113 Immunoglobulin heavy chain variable domain, VH                                                        d1nlbh2 H:114-213 Immunoglobulin heavy chain gamma constant domain 1, CH1-gamma                      SCOP domains
               CATH domains 1nlbH01 H:1-113 Immunoglobulins                                                                                       1nlbH02 H:114-212 Immunoglobulins                                                                  - CATH domains
               Pfam domains -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ..eeee...eee.....eeeeeeee..hhhhh.eeeeee.....eeeeeee......eee.hhhh..eeeeeehhh.eeeeee...hhhhheeeeeeee............eeeee........eeeee..........eeeeeeeeeee.....eeee.hhh....eeeeeeeee..eeeeeeeeeee.........eeeeeehhhheeeeee.... Sec.struct. author
                 SAPs(SNPs) -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                1nlb H    1 QIQLVQSGPELKKPGETVKISCKASGYTFTDFSMHWVNQAPGKGLNWMGWVNTETGEPTYADDFKGRFAFSLETSASTAYLQINSLKNEDTATYFCARFLLRQYFDVWGAGTTVTVSSAKTTPPSVYPLAPGSAAQTNSMVTLGCLVKGYFPEPVTVTWNSGSLSSGVHTFPAVLQSDLYTLSSSVTVPSSTWPSETVTCNVAHPASSTKVDKKIVPR  213
                                    10        20        30        40        50  |     59        69        79   |||  86        96    |  105       115       125       135       145       155       165       175       185       195       205
                                                                              52A                            82A||               100A
                                                                                                              82B|
                                                                                                               82C


Chain L from PDB  Type:PROTEIN  Length:220

               SCOP domains d1nlbl1 L:1-107 Immunoglobulin light chain kappa variable domain, VL-kappa                                       d1nlbl2 L:108-214 Immunoglobulin light chain kappa constant domain, CL-kappa                                SCOP domains
               CATH domains 1nlbL01 L:1-108 Immunoglobulins                                                                                   1nlbL02 L:109-211 Immunoglobulins                                                                      --- CATH domains
               Pfam domains ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ...eeee..eeeee....eeeeeee..........ee.eeeeee......eeeee...ee.......eeeeee..eeeeee...hhhhheeeeeee......ee...eeeeee......eeeee..hhhhhhh.eeeeeeeeeee.....eeeeee..ee....eeeee.........eeeeeeeeeehhhhhhh.eeeeeee.......eeeeee.hhh Sec.struct. author
                 SAPs(SNPs) ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                1nlb L    1 DIVMSQSPSSLAVSAGEKVTMSCKSSQSLLNSRTRKNYLAWYQQKPGQSPKVLIYWASTRESGVPDRFTGRGSGTDFTLTISSVQAEDQAVYYCKQAYIPPLTFGAGTKLELKRADAAPTVSIFPPSSEQLTSGGASVVCFLNNFYPKDINVKWKIDGSERQNGVLNSWTDQDSKDSTYSMSSTLTLTKDEYERHNSYTCEATHKTSTSPIVKSFNRNEC  214
                                    10        20       27C|||     34        44        54        64        74        84        94       104       114       124       134       144       154       164       174       184       194       204       214
                                                     27A|||||
                                                      27B||||
                                                       27C|||
                                                        27D||
                                                         27E|
                                                          27F
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (4, 4)

Asymmetric/Biological Unit
(-)
Class: All beta proteins (24004)

(-) CATH Domains  (1, 4)

Asymmetric/Biological Unit
(-)
Class: Mainly Beta (13760)

(-) Pfam Domains  (0, 0)

(no "Pfam Domain" information available for 1NLB)

(-) Gene Ontology  (0, 0)

Asymmetric/Biological Unit(hide GO term definitions)
    (no "Gene Ontology" information available for 1NLB)

 Visualization

(-) Interactive Views

Asymmetric/Biological Unit
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
(no "Ligands, Modified Residues, Ions" information available for 1nlb)

  Sites
(no "Sites" information available for 1nlb)

  Cis Peptide Bonds
    Glu H:148 - Pro H:149   [ RasMol ]
    Phe H:146 - Pro H:147   [ RasMol ]
    Pro L:94 - Pro L:95   [ RasMol ]
    Ser L:7 - Pro L:8   [ RasMol ]
    Trp H:188 - Pro H:189   [ RasMol ]
    Tyr L:140 - Pro L:141   [ RasMol ]


(-) Still Images

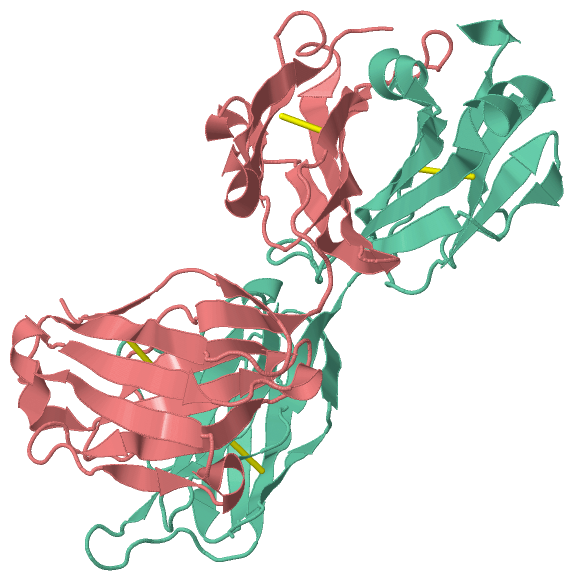

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick
[ Asym./Biol. Unit PNG format ](automatic orientation, automatically generated)
Molscript
  protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick
[ mono PDF format | stereo PDF format ](default orientation, automatically generated)

 Databases and Analysis Tools

(-) Databases

Access by PDB/NDB ID
  1nlb
    Family and Domain Information: ProDom | SYSTERS
    General Structural Information: GlycoscienceDB | MMDB | NDB | OCA | PDB | PDBe | PDBj | PDBsum | PDBWiki | PQS | PROTEOPEDIA
    Orientation in Membranes: OPM
    Protein Surface: SURFACE
    Secondary Structure: DSSP (structure derived) | HSSP (homology derived)
    Structural Genomics: GeneCensus
    Structural Neighbours: CE | VAST
    Structure Classification: CATH | Dali | SCOP
    Validation and Original Data: BMRB Data View | BMRB Restraints Grid | EDS | PROCHECK | RECOORD | WHAT_CHECK

Access by UniProt ID/Accession number
  (no 'UniProt ID/Accession number' available) |
    Comparative Protein Structure Models: ModBase
    Genomic Information: Ensembl
    Protein-protein Interaction: DIP
    Sequence, Family and Domain Information: InterPro | Pfam | SMART | UniProt

Access by Enzyme Classificator   (EC Number)
  (no 'Enzyme Classificator' available)
    General Enzyme Information: BRENDA | EC-PDB | Enzyme | IntEnz
    Pathway: KEGG | MetaCyc

Access by Disease Identifier   (MIM ID)
  (no 'MIM ID' available)
    Disease Information: OMIM

Access by GenAge ID
  (no 'GenAge ID' available)
    Age Related Information: GenAge

(-) Analysis Tools

Access by PDB/NDB ID
    Domain Information: XDom
    Interatomic Contacts of Structural Units: CSU
    Ligand-protein Contacts: LPC
    Protein Cavities: castP
    Sequence and Secondary Structure: PDBCartoon
    Structure Alignment: STRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    Structure and Sequence Browser: STING

Access by UniProt ID/Accession number
  (no 'UniProt ID/Accession number' available) |
    Protein Disorder Prediction: DisEMBL | FoldIndex | GLOBPLOT

 Related Entries

(-) Entries Sharing at Least One Protein Chain (UniProt ID)

(no "Entries Sharing at Least One Protein Chain" available for 1NLB)

(-) Related Entries Specified in the PDB File

1n64
