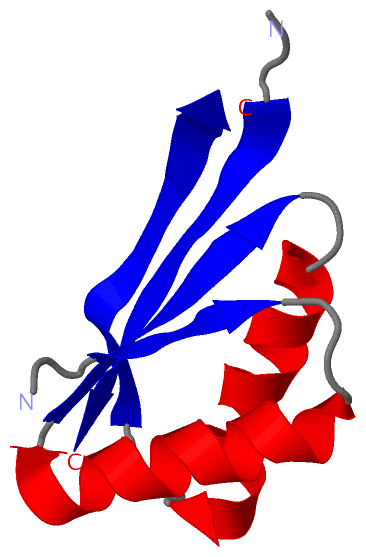

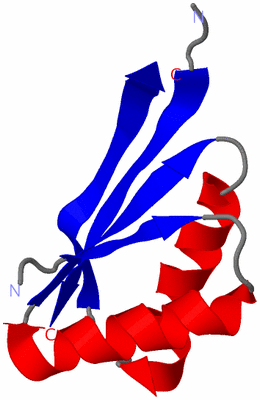

Image Asym./Biol. Unit
Asym./Biol. Unit  (Jmol Viewer)

(-) Description

Title :  CRYSTAL STRUCTURE OF A DNA BINDING PROTEIN MJA10B FROM THE HYPERTHERMOPHILE METHANOCOCCUS JANNASCHII

Authors :  G. Wang, M. Bartlam, R. Guo, H. Yang, H. Xue, Y. Liu, L. Huang, Z. Rao
Date :  19 Dec 02  (Deposition) - 23 Dec 03  (Release) - 24 Feb 09  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  2.00
Chains :  Asym./Biol. Unit :  A
Keywords :  Mja10B, Dna Binding Protein (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  G. Wang, R. Guo, M. Bartlam, H. Yang, H. Xue, Y. Liu, L. Huang, Z. Rao
Crystal Structure Of A Dna Binding Protein From The Hyperthermophilic Euryarchaeon Methanococcus Jannaschii
Protein Sci. V. 12 2815 2003
PubMed-ID: 14627741  |  Reference-DOI: 10.1110/PS.03325103
(for further references see the PDB file header)

(-) Compounds

Molecule 1 - DNA-BINDING PROTEIN ALBA
    Chains: A
    Engineered: YES
    Expression System: ESCHERICHIA COLI BL21(DE3)
    Expression System Plasmid: PET11A
    Expression System Strain: BL21(DE3)
    Expression System Taxid: 469008
    Expression System Vector Type: PLASMID
    Organism Scientific: METHANOCALDOCOCCUS JANNASCHII
    Organism Taxid: 2190
    Synonym: MJA10B

 Structural Features

(-) Chains, Units

  1
Asymmetric/Biological Unit : A

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (0, 0)

(no "Ligand,Modified Residues,Ions" information available for 1NH9)

(-) Sites  (0, 0)

(no "Site" information available for 1NH9)

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 1NH9)

(-) Cis Peptide Bonds  (0, 0)

(no "Cis Peptide Bond" information available for 1NH9)

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 1NH9)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 1NH9)

(-) Exons   (0, 0)

(no "Exon" information available for 1NH9)

(-) Sequences/Alignments

Asymmetric/Biological Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:80
 aligned with ALBA_METJA | Q57665 from UniProtKB/Swiss-Prot  Length:87

    Alignment length:87
                                    10        20        30        40        50        60        70        80
            ALBA_METJA    1 MDNVVLIGKKPVMNYVVAVLTQLTSNDEVIIKARGKAINKAVDVAEMIRNRFIKDIKIKKIEIGTDKVKNPDGREVNVSTIEIVLAK 87
               SCOP domains d1nh9a_ A: DNA-binding protein AlbA                                                     SCOP domains
               CATH domains 1nh9A00 A:1-87  [code=3.30.110.20, no name defined]                                     CATH domains
               Pfam domains --Alba-1nh9A01 A:3-65                                            ---------------------- Pfam domains
         Sec.struct. author ...eeee...hhhhhhhhhhhhhhhh.eeeeeee..hhhhhhhhhhhhhhhh....eeeeeeeeee.-------...eeeeeeeee. Sec.struct. author
                 SAPs(SNPs) --------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE --------------------------------------------------------------------------------------- PROSITE
                 Transcript --------------------------------------------------------------------------------------- Transcript
                  1nh9 A  1 MDNVVLIGKKPVMNYVVAVLTQLTSNDEVIIKARGKAINKAVDVAEMIRNRFIKDIKIKKIEIGTDK-------EVNVSTIEIVLAK 87
                                    10        20        30        40        50        60      |  -    |   80
                                                                                             67      75
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (1, 1)

Asymmetric/Biological Unit
(-)
Class: Alpha and beta proteins (a+b) (23004)

(-) CATH Domains  (1, 1)

Asymmetric/Biological Unit
(-)
Class: Alpha Beta (26913)

(-) Pfam Domains  (1, 1)

Asymmetric/Biological Unit
(-)
Clan: AlbA (7)

(-) Gene Ontology  (6, 6)

Asymmetric/Biological Unit(hide GO term definitions)
Chain A   (ALBA_METJA | Q57665)
molecular function
    GO:0003677    DNA binding    Any molecular function by which a gene product interacts selectively and non-covalently with DNA (deoxyribonucleic acid).
    GO:0003723    RNA binding    Interacting selectively and non-covalently with an RNA molecule or a portion thereof.
    GO:0003690    double-stranded DNA binding    Interacting selectively and non-covalently with double-stranded DNA.
    GO:0003676    nucleic acid binding    Interacting selectively and non-covalently with any nucleic acid.
cellular component
    GO:0005694    chromosome    A structure composed of a very long molecule of DNA and associated proteins (e.g. histones) that carries hereditary information.
    GO:0005737    cytoplasm    All of the contents of a cell excluding the plasma membrane and nucleus, but including other subcellular structures.

 Visualization

(-) Interactive Views

Asymmetric/Biological Unit
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
(no "Ligands, Modified Residues, Ions" information available for 1nh9)

  Sites
(no "Sites" information available for 1nh9)

  Cis Peptide Bonds
(no "Cis Peptide Bonds" information available for 1nh9)


(-) Still Images

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick
[ Asym./Biol. Unit PNG format ](automatic orientation, automatically generated)
Molscript
  protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick
[ mono PDF format | stereo PDF format ](default orientation, automatically generated)
