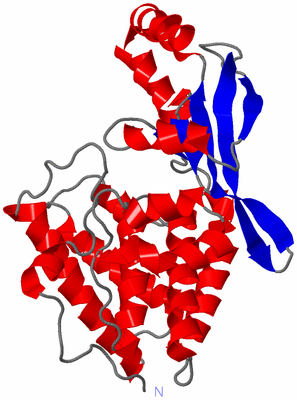

Image Asym./Biol. Unit
Asym./Biol. Unit  (Jmol Viewer)

(-) Description

Title :  CRYSTAL STRUCTURE OF THE TYPE III EFFECTOR AVRB FROM PSEUDOMONAS SYRINGAE.

Authors :  C. C. Lee, M. D. Wood, K. Ng, P. Luginbuhl, G. Spraggon, F. Katagiri
Date :  18 Dec 02  (Deposition) - 09 Mar 04  (Release) - 24 Feb 09  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  2.20
Chains :  Asym./Biol. Unit :  A
Keywords :  Helix Bundle, Avirulence Protein (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  C. C. Lee, M. D. Wood, K. Ng, P. Luginbuhl, G. Spraggon, F. Katagiri
Crystal Structure Of The Type Iii Effector Avrb From Pseudomonas Syringae.
Structure V. 12 487 2004
PubMed-ID: 15016364  |  Reference-DOI: 10.1016/J.STR.2004.02.013
(for further references see the PDB file header)

(-) Compounds

Molecule 1 - AVIRULENCE B PROTEIN
    Chains: A
    Engineered: YES
    Expression System: ESCHERICHIA COLI
    Expression System Cell Line: BL21 (DE3) PLYSS
    Expression System Plasmid: PET-27B(+)
    Expression System Taxid: 562
    Expression System Vector: PLASMID
    Gene: AVRB
    Organism Scientific: PSEUDOMONAS SYRINGAE
    Organism Taxid: 317

 Structural Features

(-) Chains, Units

  1
Asymmetric/Biological Unit : A

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (0, 0)

(no "Ligand,Modified Residues,Ions" information available for 1NH1)

(-) Sites  (0, 0)

(no "Site" information available for 1NH1)

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 1NH1)

(-) Cis Peptide Bonds  (1, 1)

Asymmetric/Biological Unit
No.Residues
1Lys A:129 -Pro A:130

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 1NH1)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 1NH1)

(-) Exons   (0, 0)

(no "Exon" information available for 1NH1)

(-) Sequences/Alignments

Asymmetric/Biological Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:290
 aligned with AVRB_PSESG | P13835 from UniProtKB/Swiss-Prot  Length:321

    Alignment length:290
                                    37        47        57        67        77        87        97       107       117       127       137       147       157       167       177       187       197       207       217       227       237       247       257       267       277       287       297       307       317
           AVRB_PSESG    28 ALPGPSQRQLEVYDQCLIGAARWPDDSSKSNTPENRAYCQSMYNSIRSAGDEISRGGITSFEELWGRATEWRLSKLQRGEPLYSAFASERTSDTDAVTPLVKPYKSVLARVVDHEDAHDEIMQDNLFGDLNVKVYRQTAYLHGNVIPLNTFRVATDTEYLRDRVAHLRTELGAKALKQHLQRYNPDRIDHTNASYLPIIKDHLNDLYRQAISSDLSQAELISLIARTHWWAASAMPDQRGSAAKAEFAARAIASAHGIELPPFRNGNVSDIEAMLSGEEEFVEKYRSLLD 317
               SCOP domains d1nh1a_ A: Type III effector AvrB                                                                                                                                                                                                                                                                  SCOP domains
               CATH domains -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains AvrB_AvrC-1nh1A01 A:28-317                                                                                                                                                                                                                                                                         Pfam domains
         Sec.struct. author ..........hhhhhh...............hhhhhhhhhhhhhhhhhhhhhhhh....hhhhhhhhhhhhhhhh......hhhhhh.........eee.....hhhhhhhhh....eeeee.......eeeeeeeeeeee..eeeeeeeeeee.hhhhhhhhhhhhhhhhhhhhhhhhhhhhh..eee..hhhhhhhhhhhhhhhhhhhh....hhhhhhhhhhhhhhhhhhhh....hhhhhhhhhhhhhhhhh...........hhhhhhhh.hhhhhhhhhhhhh. Sec.struct. author
                 SAPs(SNPs) -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 1nh1 A  28 ALPGPSQRQLEVYDQCLIGAARWPDDSSKSNTPENRAYCQSMYNSIRSAGDEISRGGITSFEELWGRATEWRLSKLQRGEPLYSAFASERTSDTDAVTPLVKPYKSVLARVVDHEDAHDEIMQDNLFGDLNVKVYRQTAYLHGNVIPLNTFRVATDTEYLRDRVAHLRTELGAKALKQHLQRYNPDRIDHTNASYLPIIKDHLNDLYRQAISSDLSQAELISLIARTHWWAASAMPDQRGSAAKAEFAARAIASAHGIELPPFRNGNVSDIEAMLSGEEEFVEKYRSLLD 317
                                    37        47        57        67        77        87        97       107       117       127       137       147       157       167       177       187       197       207       217       227       237       247       257       267       277       287       297       307       317
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (1, 1)

Asymmetric/Biological Unit
(-)
Class: Multi-domain proteins (alpha and beta) (2421)

(-) CATH Domains  (0, 0)

(no "CATH Domain" information available for 1NH1)

(-) Pfam Domains  (1, 1)

Asymmetric/Biological Unit
(-)
Clan: no clan defined [family: AvrB_AvrC] (2)

(-) Gene Ontology  (2, 2)

Asymmetric/Biological Unit(hide GO term definitions)
Chain A   (AVRB_PSESG | P13835)
biological process
    GO:0009405    pathogenesis    The set of specific processes that generate the ability of an organism to induce an abnormal, generally detrimental state in another organism.
cellular component
    GO:0005576    extracellular region    The space external to the outermost structure of a cell. For cells without external protective or external encapsulating structures this refers to space outside of the plasma membrane. This term covers the host cell environment outside an intracellular parasite.

 Visualization

(-) Interactive Views

Asymmetric/Biological Unit
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
(no "Ligands, Modified Residues, Ions" information available for 1nh1)

  Sites
(no "Sites" information available for 1nh1)

  Cis Peptide Bonds
    Lys A:129 - Pro A:130   [ RasMol ]


(-) Still Images

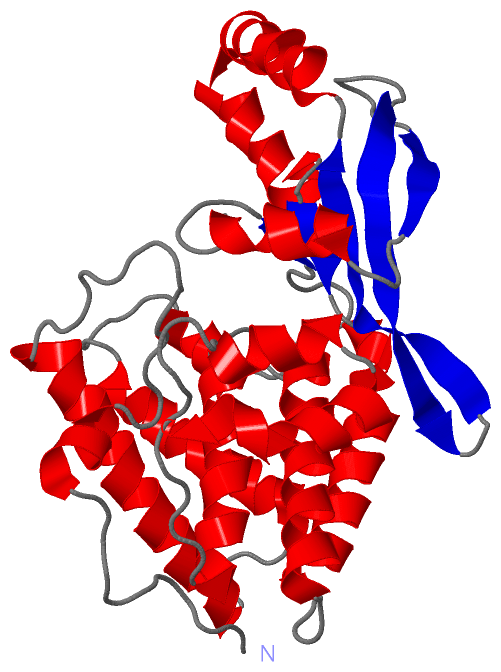

Jmol
