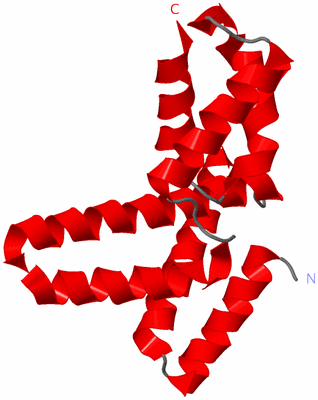

Image Asym./Biol. Unit
Asym./Biol. Unit  (Jmol Viewer)

(-) Description

Title :  STRUCTURE OF CYTOSOLIC PROTEIN OF UNKNOWN FUNCTION YQEY FROM BACILLUS SUBTILIS

Authors :  R. Zhang, I. Dementiva, E. Vinokour, F. Collart, A. Joachimiak, Midwest Center For Structural Genomics (Mcsg)
Date :  16 Dec 02  (Deposition) - 15 Jul 03  (Release) - 24 Feb 09  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  1.40
Chains :  Asym./Biol. Unit :  A
Keywords :  Structural Genomics, Domain Gatb/Yqey, Pfam02637, Duf186, Psi, Protein Structure Initiative, Midwest Center For Structural Genomics, Mcsg, Unknown Function (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  R. Zhang, I. Dementiva, E. Vinokour, F. Collart, A. Joachimiak
1. 4A Crystal Structure Of Hypothetical Cytosolic Protein Yqey
To Be Published
PubMed: search
(for further references see the PDB file header)

(-) Compounds

Molecule 1 - HYPOTHETICAL PROTEIN YQEY
    Chains: A
    Engineered: YES
    Expression System: ESCHERICHIA COLI
    Expression System Plasmid: MCSG7
    Expression System Strain: BL21-GOLD (DE3)
    Expression System Taxid: 562
    Expression System Vector Type: PLASMID
    Gene: YQEY
    Organism Scientific: BACILLUS SUBTILIS
    Organism Taxid: 1423

 Structural Features

(-) Chains, Units

  1
Asymmetric/Biological Unit : A

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (0, 0)

(no "Ligand,Modified Residues,Ions" information available for 1NG6)

(-) Sites  (0, 0)

(no "Site" information available for 1NG6)

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 1NG6)

(-) Cis Peptide Bonds  (0, 0)

(no "Cis Peptide Bond" information available for 1NG6)

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 1NG6)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 1NG6)

(-) Exons   (0, 0)

(no "Exon" information available for 1NG6)

(-) Sequences/Alignments

Asymmetric/Biological Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:148
 aligned with YQEY_BACSU | P54464 from UniProtKB/Swiss-Prot  Length:148

    Alignment length:148
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140
           YQEY_BACSU     1 MSLLERLNQDMKLYMKNREKDKLTVVRMVKASLQNEAIKLKKDSLTEDEELTVLSRELKQRKDSLQEFSNANRLDLVDKVQKELDILEVYLPEQLSEEELRTIVNETIAEVGASSKADMGKVMGAIMPKVKGKADGSLINKLVSSQLS 148
               SCOP domains d1ng6a_ A: Hypothetical protein YqeY                                                                                                                 SCOP domains
               CATH domains 1ng6A01 A:1-91  [code=1.10.1510.10, no name defined]                                       1ng6A02 A:92-148  [code=1.10.10.410, no name defined]     CATH domains
               Pfam domains ---YqeY-1ng6A01 A:4-147                                                                                                                            - Pfam domains
         Sec.struct. author .hhhhhhhhhhhhhhhh.hhhhhhhhhhhhhhhhhhhhhh.....hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh....hhhhhhhhhhhhhhhh...hhhhhhhhhhhhhhhhh...hhhhhhhhhhhhh. Sec.struct. author
                 SAPs(SNPs) ---------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ---------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ---------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 1ng6 A   1 MSLLERLNQDMKLYMKNREKDKLTVVRMVKASLQNEAIKLKKDSLTEDEELTVLSRELKQRKDSLQEFSNANRLDLVDKVQKELDILEVYLPEQLSEEELRTIVNETIAEVGASSKADMGKVMGAIMPKVKGKADGSLINKLVSSQLS 148
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (1, 1)

Asymmetric/Biological Unit
(-)
Class: All alpha proteins (14657)

(-) CATH Domains  (2, 2)

Asymmetric/Biological Unit
(-)
Class: Mainly Alpha (13335)

(-) Pfam Domains  (1, 1)

Asymmetric/Biological Unit
(-)
Clan: GatB_YqeY (3)

(-) Gene Ontology  (1, 1)

Asymmetric/Biological Unit(hide GO term definitions)
Chain A   (YQEY_BACSU | P54464)
molecular function
    GO:0016884    carbon-nitrogen ligase activity, with glutamine as amido-N-donor    Catalysis of the transfer of the amide nitrogen of glutamine to a variety of substrates. GATases catalyze two separate reactions at two active sites, which are located either on a single polypeptide chain or on different subunits. In the glutaminase reaction, glutamine is hydrolyzed to glutamate and ammonia, which is added to an acceptor substrate in the synthase reaction.

 Visualization

(-) Interactive Views

Asymmetric/Biological Unit
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
(no "Ligands, Modified Residues, Ions" information available for 1ng6)

  Sites
(no "Sites" information available for 1ng6)

  Cis Peptide Bonds
(no "Cis Peptide Bonds" information available for 1ng6)


(-) Still Images

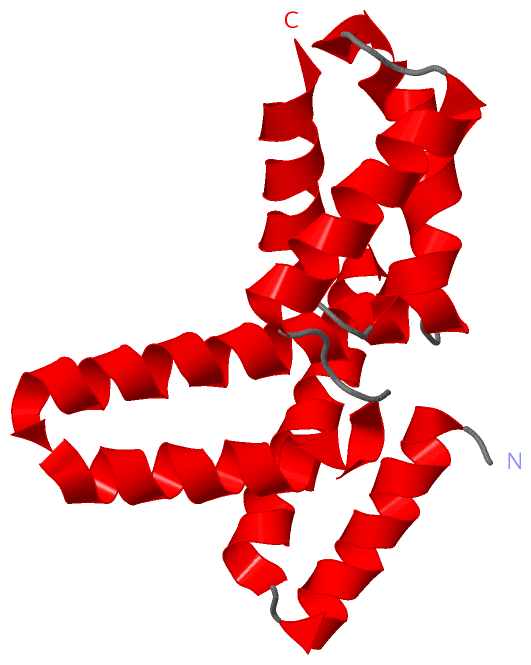

Jmol
