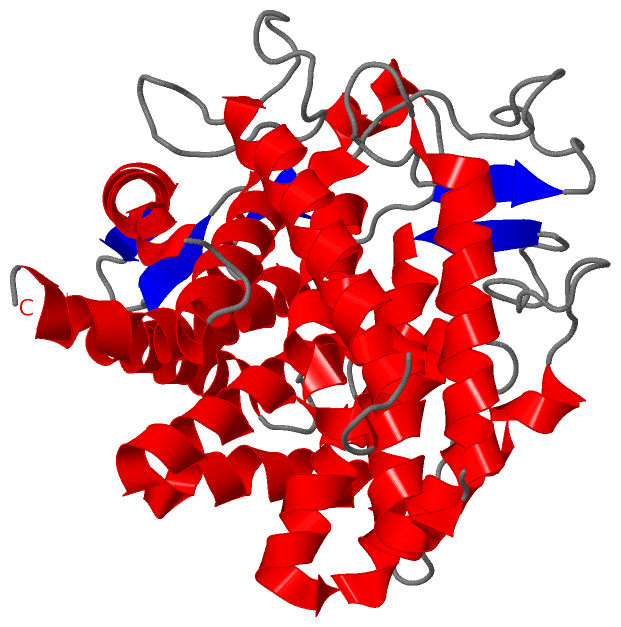

Image Asym./Biol. Unit
Asym./Biol. Unit  (Jmol Viewer)

(-) Description

Title :  STRUCTURE OF PROTEIN OF UNKNOWN FUNCTION OF YTER FROM BACILLUS SUBTILIS

Authors :  R. Zhang, L. Lozondra, S. Korolev, F. Collart, A. Joachimiak, Midwest Center For Structural Genomics (Mcsg)
Date :  04 Dec 02  (Deposition) - 15 Jul 03  (Release) - 24 Feb 09  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  1.60
Chains :  Asym./Biol. Unit :  A
Keywords :  Structural Genomics, Helix Barrel, Psi, Protein Structure Initiative, Midwest Center For Structural Genomics, Mcsg, Unknown Function (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  R. Zhang, T. Minh, L. Lezondra, S. Korolev, S. F. Moy, F. Collart, A. Joachimiak
1. 6 A Crystal Structure Of Yter Protein From Bacillus Subtilis, A Predicted Lyase.
Proteins V. 60 561 2005
PubMed-ID: 15906318  |  Reference-DOI: 10.1002/PROT.20410
(for further references see the PDB file header)

(-) Compounds

Molecule 1 - HYPOTHETICAL PROTEIN YTER
    Chains: A
    Engineered: YES
    Expression System: ESCHERICHIA COLI
    Expression System Plasmid: MSCG7
    Expression System Strain: BL21-GOLD(DE3)
    Expression System Taxid: 562
    Expression System Vector Type: PLASMID
    Gene: YTER
    Organism Scientific: BACILLUS SUBTILIS
    Organism Taxid: 1423

 Structural Features

(-) Chains, Units

  1
Asymmetric/Biological Unit : A

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (0, 0)

(no "Ligand,Modified Residues,Ions" information available for 1NC5)

(-) Sites  (0, 0)

(no "Site" information available for 1NC5)

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 1NC5)

(-) Cis Peptide Bonds  (1, 1)

Asymmetric/Biological Unit
No.Residues
1Pro A:34 -Pro A:35

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 1NC5)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 1NC5)

(-) Exons   (0, 0)

(no "Exon" information available for 1NC5)

(-) Sequences/Alignments

Asymmetric/Biological Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:363
 aligned with URHG2_BACSU | O34559 from UniProtKB/Swiss-Prot  Length:373

    Alignment length:363
                                    20        30        40        50        60        70        80        90       100       110       120       130       140       150       160       170       180       190       200       210       220       230       240       250       260       270       280       290       300       310       320       330       340       350       360       370
          URHG2_BACSU    11 KSPLTYAEALANTIMNTYTVEELPPANRWHYHQGVFLCGVLRLWEATGEKRYFEYAKAYADLLIDDNGNLLFRRDELDAIQAGLILFPLYEQTKDERYVKAAKRLRSLYGTLNRTSEGGFWHKDGYPYQMWLDGLYMGGPFALKYANLKQETELFDQVVLQESLMRKHTKDAKTGLFYHAWDEAKKMPWANEETGCSPEFWARSIGWYVMSLADMIEELPKKHPNRHVWKNTLQDMIKSICRYQDKETGLWYQIVDKGDRSDNWLESSGSCLYMYAIAKGINKGYLDRAYETTLLKAYQGLIQHKTETSEDGAFLVKDICVGTSAGFYDYYVSRERSTNDLHGAGAFILAMTELEPLFRSAGK 373
               SCOP domains d1nc5a_ A: Hypothetical protein YteR                                                                                                                                                                                                                                                                                                                                        SCOP domains
               CATH domains 1nc5A00 A:11-373  [code=1.50.10.10, no name defined]                                                                                                                                                                                                                                                                                                                        CATH domains
               Pfam domains -----Glyco_hydro_88-1nc5A01 A:16-368                                                                                                                                                                                                                                                                                                                                  ----- Pfam domains
         Sec.struct. author .hhhhhhhhhhhhhhhhh...........hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh...........hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh.................eeehhhhhhhhhhhhhhhhhhh.hhhhhhhhhhhhhhhhhhh.........eee..................hhhhhhhhhhhhhhhhhhh....hhhhhhhhhhhhhhhhhhh.......................hhhhhhhhhhhhhhhhhh...hhhhhhhhhhhhhhhhhhheee.....eee..ee......hhhhhhh..ee..hhhhhhhhhhhhhhhhhhhhhh.. Sec.struct. author
                 SAPs(SNPs) --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 1nc5 A  11 KSPLTYAEALANTIMNTYTVEELPPANRWHYHQGVFLCGVLRLWEATGEKRYFEYAKAYADLLIDDNGNLLFRRDELDAIQAGLILFPLYEQTKDERYVKAAKRLRSLYGTLNRTSEGGFWHKDGYPYQMWLDGLYMGGPFALKYANLKQETELFDQVVLQESLMRKHTKDAKTGLFYHAWDEAKKMPWANEETGCSPEFWARSIGWYVMSLADMIEELPKKHPNRHVWKNTLQDMIKSICRYQDKETGLWYQIVDKGDRSDNWLESSGSCLYMYAIAKGINKGYLDRAYETTLLKAYQGLIQHKTETSEDGAFLVKDICVGTSAGFYDYYVSRERSTNDLHGAGAFILAMTELEPLFRSAGK 373
                                    20        30        40        50        60        70        80        90       100       110       120       130       140       150       160       170       180       190       200       210       220       230       240       250       260       270       280       290       300       310       320       330       340       350       360       370
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (1, 1)

Asymmetric/Biological Unit
(-)
Class: All alpha proteins (14657)

(-) CATH Domains  (1, 1)

Asymmetric/Biological Unit
(-)
Class: Mainly Alpha (13335)

(-) Pfam Domains  (1, 1)

Asymmetric/Biological Unit
(-)
Clan: 6_Hairpin (120)

(-) Gene Ontology  (6, 6)

Asymmetric/Biological Unit(hide GO term definitions)
Chain A   (URHG2_BACSU | O34559)
molecular function
    GO:0003824    catalytic activity    Catalysis of a biochemical reaction at physiological temperatures. In biologically catalyzed reactions, the reactants are known as substrates, and the catalysts are naturally occurring macromolecular substances known as enzymes. Enzymes possess specific binding sites for substrates, and are usually composed wholly or largely of protein, but RNA that has catalytic activity (ribozyme) is often also regarded as enzymatic.
    GO:0016787    hydrolase activity    Catalysis of the hydrolysis of various bonds, e.g. C-O, C-N, C-C, phosphoric anhydride bonds, etc. Hydrolase is the systematic name for any enzyme of EC class 3.
    GO:0016798    hydrolase activity, acting on glycosyl bonds    Catalysis of the hydrolysis of any glycosyl bond.
    GO:0102211    unsaturated rhamnogalacturonyl hydrolase activity    Catalysis of the reaction: 2-O-(4-deoxy-beta-L-threo-hex-4-enopyranuronosyl)-alpha-L-rhamnopyranose(1-) + H2O <=> (4S,5S)-4,5-dihydroxy-2,6-dioxohexanoate + alpha-L-rhamnopyranose
biological process
    GO:0008152    metabolic process    The chemical reactions and pathways, including anabolism and catabolism, by which living organisms transform chemical substances. Metabolic processes typically transform small molecules, but also include macromolecular processes such as DNA repair and replication, and protein synthesis and degradation.
cellular component
    GO:0005737    cytoplasm    All of the contents of a cell excluding the plasma membrane and nucleus, but including other subcellular structures.

 Visualization

(-) Interactive Views

Asymmetric/Biological Unit
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
(no "Ligands, Modified Residues, Ions" information available for 1nc5)

  Sites
(no "Sites" information available for 1nc5)

  Cis Peptide Bonds
    Pro A:34 - Pro A:35   [ RasMol ]


(-) Still Images

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick
[ Asym./Biol. Unit PNG format ](automatic orientation, automatically generated)
Molscript
  protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick
[ mono PDF format | stereo PDF format ](default orientation, automatically generated)

 Databases and Analysis Tools

(-) Databases

Access by PDB/NDB ID
  1nc5
    Family and Domain Information: ProDom | SYSTERS
    General Structural Information: GlycoscienceDB | MMDB | NDB | OCA | PDB | PDBe | PDBj | PDBsum | PDBWiki | PQS | PROTEOPEDIA
    Orientation in Membranes: OPM
    Protein Surface: SURFACE
    Secondary Structure: DSSP (structure derived) | HSSP (homology derived)
    Structural Genomics: GeneCensus
    Structural Neighbours: CE | VAST
    Structure Classification: CATH | Dali | SCOP
    Validation and Original Data: BMRB Data View | BMRB Restraints Grid | EDS | PROCHECK | RECOORD | WHAT_CHECK

Access by UniProt ID/Accession number
  URHG2_BACSU | O34559
    Comparative Protein Structure Models: ModBase
    Genomic Information: Ensembl
    Protein-protein Interaction: DIP
    Sequence, Family and Domain Information: InterPro | Pfam | SMART | UniProtKB/SwissProt

Access by Enzyme Classificator   (EC Number)
  (no 'Enzyme Classificator' available)
    General Enzyme Information: BRENDA | EC-PDB | Enzyme | IntEnz
    Pathway: KEGG | MetaCyc

Access by Disease Identifier   (MIM ID)
  (no 'MIM ID' available)
    Disease Information: OMIM

Access by GenAge ID
  (no 'GenAge ID' available)
    Age Related Information: GenAge

(-) Analysis Tools

Access by PDB/NDB ID
    Domain Information: XDom
    Interatomic Contacts of Structural Units: CSU
    Ligand-protein Contacts: LPC
    Protein Cavities: castP
    Sequence and Secondary Structure: PDBCartoon
    Structure Alignment: STRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    Structure and Sequence Browser: STING

Access by UniProt ID/Accession number
  URHG2_BACSU | O34559
    Protein Disorder Prediction: DisEMBL | FoldIndex | GLOBPLOT (for more information see DisProt)

 Related Entries

(-) Entries Sharing at Least One Protein Chain (UniProt ID)

UniProtKB/Swiss-Prot
        URHG2_BACSU | O34559: 2d8l 2gh4

(-) Related Entries Specified in the PDB File

(no "Related Entries Specified in the PDB File" available for 1NC5)
