1N5L - JenaLib

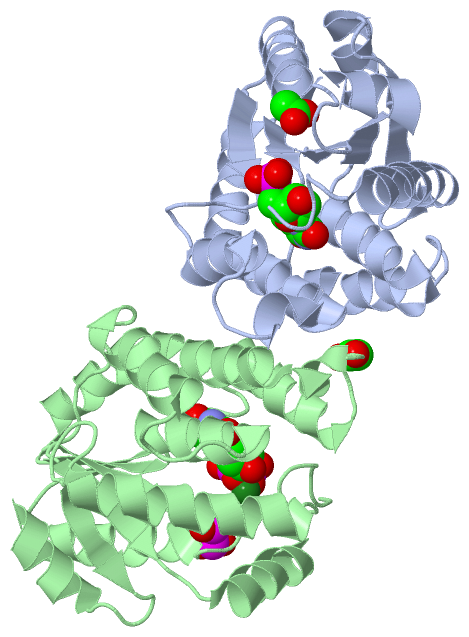

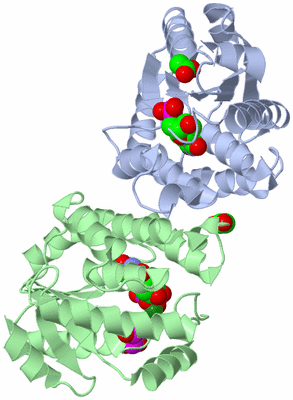

Asym./Biol. Unit (Jmol Viewer)

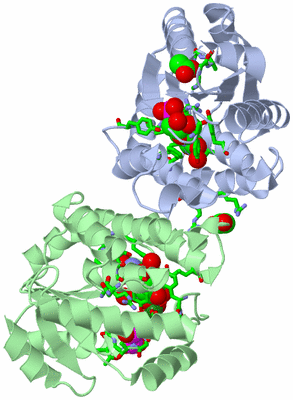

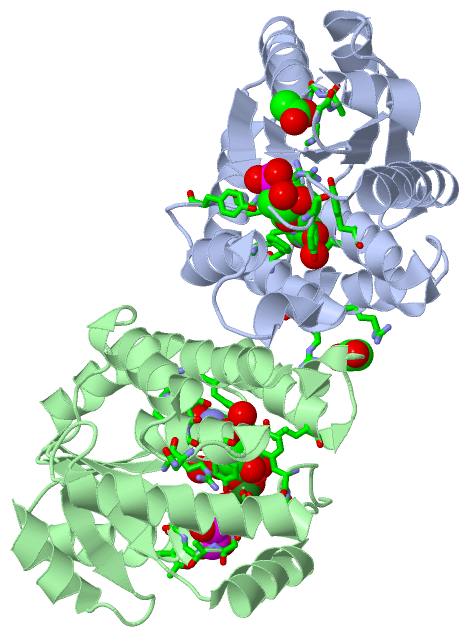

Asym./Biol. Unit - sites (Jmol Viewer)

Title :   CRYSTAL STRUCTURE OF MYCOBACTERIUM TUBERCULOSIS THYMIDYLATE KINASE CRYSTALLIZED IN SODIUM MALONATE, AFTER CATALYSIS IN THE CRYSTAL (2.3 A RESOLUTION)

Authors :   E. Fioravanti, A. Haouz, T. Ursby, H. Munier-Lehmann, M. Delarue, D. Bourgeois

Date :   06 Nov 02 (Deposition) - 15 Apr 03 (Release) - 24 Feb 09 (Revision)

Method :   X-RAY DIFFRACTION

Resolution :   2.30

Chains :   Asym./Biol. Unit : A,B

Keywords :   Transferase (Atp:Tmp Phosphotransferase), Kinase (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :   E. Fioravanti, A. Haouz, T. Ursby, H. Munier-Lehmann, M. Delarue, D. Bourgeois
Mycobacterium Tuberculosis Thymidylate Kinase: Structural Studies Of Intermediates Along The Reaction Pathway
J. Mol. Biol. V. 375 1077 2003
PubMed-ID: 12662932 | Reference-DOI: 10.1016/S0022-2836(03)00202-X
(for further references see the PDB file header)

Molecule 1 - THYMIDYLATE KINASE
	Chains	:	A, B
	EC Number	:	2.7.4.9
	Engineered	:	YES
	Expression System	:	ESCHERICHIA COLI
	Expression System Plasmid	:	PET22B
	Expression System Taxid	:	562
	Expression System Vector Type	:	PLASMID
	Organism Scientific	:	MYCOBACTERIUM TUBERCULOSIS
	Organism Taxid	:	1773

		1	2
Asymmetric/Biological Unit	:	A	B

Summary Information (see also Sequences/Alignments below)

Asymmetric/Biological Unit (5, 6)

No.	Name	Count	Type	Full Name
1	ACT	2	Ligand/Ion	ACETATE ION
2	DPO	1	Ligand/Ion	DIPHOSPHATE
3	MG	1	Ligand/Ion	MAGNESIUM ION
4	TMP	1	Ligand/Ion	THYMIDINE-5'-PHOSPHATE
5	TYD	1	Ligand/Ion	THYMIDINE-5'-DIPHOSPHATE

Asymmetric Unit (6, 6)

No.	Name	Evidence	Residues	Description
1	AC1	SOFTWARE	ASP B:9 , GLU B:166 , TYD B:216 , HOH B:469 , HOH B:502	BINDING SITE FOR RESIDUE MG B 215
2	AC2	SOFTWARE	ARG A:122 , ARG A:127 , ASN B:111	BINDING SITE FOR RESIDUE ACT A 412
3	AC3	SOFTWARE	GLY A:10 , ALA A:11 , GLY A:12 , LYS A:13	BINDING SITE FOR RESIDUE ACT A 413
4	AC4	SOFTWARE	PRO A:37 , TYR A:39 , PHE A:70 , ARG A:74 , ARG A:95 , ASN A:100 , TYR A:103 , TYR A:165 , HOH A:434 , HOH A:492	BINDING SITE FOR RESIDUE TMP A 409
5	AC5	SOFTWARE	ASP B:9 , PHE B:36 , PRO B:37 , TYR B:39 , LEU B:52 , PHE B:70 , ARG B:74 , ARG B:95 , SER B:99 , ASN B:100 , TYR B:103 , TYR B:165 , MG B:215 , HOH B:415 , HOH B:427 , HOH B:469 , HOH B:502	BINDING SITE FOR RESIDUE TYD B 216
6	AC6	SOFTWARE	GLY B:10 , ALA B:11 , GLY B:12 , LYS B:13 , ARG B:14 , THR B:15 , HOH B:502	BINDING SITE FOR RESIDUE DPO B 414

(no "SS Bond" information available for 1N5L)

Asymmetric/Biological Unit

No.	Residues
1	Phe A:36	-	Pro A:37
2	Phe B:36	-	Pro B:37

(no "SAP(SNP)/Variant" information available for 1N5L)

Asymmetric/Biological Unit (1, 2)

	PROSITE			UniProtKB		PDB
No.	ID	AC	Description	ID	Location	Count	Location
1	THYMIDYLATE_KINASE	PS01331	Thymidylate kinase signature.	KTHY_MYCTO	92-104	1	A:92-104
1	THYMIDYLATE_KINASE	PS01331	Thymidylate kinase signature.	KTHY_MYCTU	92-104	2	A:92-104 B:92-104

(no "Exon" information available for 1N5L)

Asymmetric/Biological Unit

Reformat:	Number of residues per line = ('0' or empty: single-line sequence representation)
	Number of residues per labelling interval =
	UniProt sequence: complete aligned part

Show mapping:	SCOP domains	CATH domains	Pfam domains	Secondary structure (by author)
	SAPs(SNPs)	PROSITE motifs	Exons
	(details for a mapped element are shown in a popup box when the mouse pointer rests over it)

Chain A from PDB  Type:PROTEIN  Length:195
 aligned with KTHY_MYCTO | P9WKE0 from UniProtKB/Swiss-Prot  Length:214

    Alignment length:208
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150       160       170       180       190       200
           KTHY_MYCTO     1 MLIAIEGVDGAGKRTLVEKLSGAFRAAGRSVATLAFPRYGQSVAADIAAEALHGEHGDLASSVYAMATLFALDRAGAVHTIQGLCRGYDVVILDRYVASNAAYSAARLHENAAGKAAAWVQRIEFARLGLPKPDWQVLLAVSAELAGERSRGRAQRDPGRARDNYERDAELQQRTGAVYAELAAQGWGGRWLVVGADVDPGRLAATLA 208
               SCOP domains d1n5la_ A: Thymidylate kinase                                                                                                                                                                                    SCOP domains
               CATH domains 1n5lA00 A:1-208 P-loop containing nucleotide triphosphate hydrolases                                                                                                                                             CATH domains
               Pfam domains ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .eeeee.....hhhhhhhhhhhhhhhh...eeeee......hhhhhhhhhhhh....hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh.eeeee.hhhhhhhhhhhhhh....hhhhhhhhhhhh.........eeeee..hhhhhhhh-------------.....hhhhhhhhhhhhhhhhhhh...eeeee....hhhhhhhhhh Sec.struct. author
                 SAPs(SNPs) ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                PROSITE (2) -------------------------------------------------------------------------------------------THYMIDYLATE_K-------------------------------------------------------------------------------------------------------- PROSITE (2)
                 Transcript ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 1n5l A   1 MLIAIEGVDGAGKRTLVEKLSGAFRAAGRSVATLAFPRYGQSVAADIAAEALHGEHGDLASSVYAMATLFALDRAGAVHTIQGLCRGYDVVILDRYVASNAAYSAARLHENAAGKAAAWVQRIEFARLGLPKPDWQVLLAVSAELAGER-------------DNYERDAELQQRTGAVYAELAAQGWGGRWLVVGADVDPGRLAATLA 208
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140        |-         -  |    170       180       190       200
                                                                                                                                                                              149           163

Chain A from PDB  Type:PROTEIN  Length:195
 aligned with KTHY_MYCTU | P9WKE1 from UniProtKB/Swiss-Prot  Length:214

    Alignment length:208
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150       160       170       180       190       200
           KTHY_MYCTU     1 MLIAIEGVDGAGKRTLVEKLSGAFRAAGRSVATLAFPRYGQSVAADIAAEALHGEHGDLASSVYAMATLFALDRAGAVHTIQGLCRGYDVVILDRYVASNAAYSAARLHENAAGKAAAWVQRIEFARLGLPKPDWQVLLAVSAELAGERSRGRAQRDPGRARDNYERDAELQQRTGAVYAELAAQGWGGRWLVVGADVDPGRLAATLA 208
               SCOP domains d1n5la_ A: Thymidylate kinase                                                                                                                                                                                    SCOP domains
               CATH domains 1n5lA00 A:1-208 P-loop containing nucleotide triphosphate hydrolases                                                                                                                                             CATH domains
               Pfam domains ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .eeeee.....hhhhhhhhhhhhhhhh...eeeee......hhhhhhhhhhhh....hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh.eeeee.hhhhhhhhhhhhhh....hhhhhhhhhhhh.........eeeee..hhhhhhhh-------------.....hhhhhhhhhhhhhhhhhhh...eeeee....hhhhhhhhhh Sec.struct. author
                 SAPs(SNPs) ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE -------------------------------------------------------------------------------------------THYMIDYLATE_K-------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 1n5l A   1 MLIAIEGVDGAGKRTLVEKLSGAFRAAGRSVATLAFPRYGQSVAADIAAEALHGEHGDLASSVYAMATLFALDRAGAVHTIQGLCRGYDVVILDRYVASNAAYSAARLHENAAGKAAAWVQRIEFARLGLPKPDWQVLLAVSAELAGER-------------DNYERDAELQQRTGAVYAELAAQGWGGRWLVVGADVDPGRLAATLA 208
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140        |-         -  |    170       180       190       200
                                                                                                                                                                              149           163

Chain B from PDB  Type:PROTEIN  Length:203
 aligned with KTHY_MYCTU | P9WKE1 from UniProtKB/Swiss-Prot  Length:214

    Alignment length:208
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150       160       170       180       190       200
           KTHY_MYCTU     1 MLIAIEGVDGAGKRTLVEKLSGAFRAAGRSVATLAFPRYGQSVAADIAAEALHGEHGDLASSVYAMATLFALDRAGAVHTIQGLCRGYDVVILDRYVASNAAYSAARLHENAAGKAAAWVQRIEFARLGLPKPDWQVLLAVSAELAGERSRGRAQRDPGRARDNYERDAELQQRTGAVYAELAAQGWGGRWLVVGADVDPGRLAATLA 208
               SCOP domains d1n5lb_ B: Thymidylate kinase                                                                                                                                                                                    SCOP domains
               CATH domains 1n5lB00 B:1-208 P-loop containing nucleotide triphosphate hydrolases                                                                                                                                             CATH domains
               Pfam domains ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .eeeee.....hhhhhhhhhhhhhhhh...eeeee......hhhhhhhhhhhh....hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh.eeeee.hhhhhhhhhhhhh.....hhhhhhhhhhhhh........eeeee..hhhhhhhhhhhh.-----........hhhhhhhhhhhhhhhhhh.....eeee....hhhhhhhhhh Sec.struct. author
                 SAPs(SNPs) ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE -------------------------------------------------------------------------------------------THYMIDYLATE_K-------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 1n5l B   1 MLIAIEGVDGAGKRTLVEKLSGAFRAAGRSVATLAFPRYGQSVAADIAAEALHGEHGDLASSVYAMATLFALDRAGAVHTIQGLCRGYDVVILDRYVASNAAYSAARLHENAAGKAAAWVQRIEFARLGLPKPDWQVLLAVSAELAGERSRGRA-----RARDNYERDAELQQRTGAVYAELAAQGWGGRWLVVGADVDPGRLAATLA 208
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150   |   160       170       180       190       200
                                                                                                                                                                                   154   160

Legend:		→ Mismatch	(orange background)
	-	→ Gap	(green background, '-', border residues have a numbering label)
		→ Modified Residue	(blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
	x	→ Chemical Group	(purple background, 'x', labelled with number + name, e.g. ACE or NH2)
	extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '\|'

Asymmetric/Biological Unit

Classes(

)

Folds(

)

Superfamilies( (-)

)

Families(

)

Protein Domains( (-)

)

Organisms( (-)

)

Class: Alpha and beta proteins (a/b) (23833)

Fold: P-loop containing nucleoside triphosphate hydrolases (2083)

Superfamily: P-loop containing nucleoside triphosphate hydrolases (2083)

Family: Nucleotide and nucleoside kinases (231)

Protein domain: Thymidylate kinase (34)

Mycobacterium tuberculosis [TaxId: 1773] (9)

1a	d1n5la_	A:
1b	d1n5lb_	B:

Asymmetric/Biological Unit

Classes(

)

Architectures( (-)

)

Topologies( (-)

)

Homologous Superfamilies( (-)

)

Organisms( (-)

)

Class: Alpha Beta (26913)

Architecture: 3-Layer(aba) Sandwich (12045)

Topology: Rossmann fold (7312)

Homologous Superfamily: P-loop containing nucleotide triphosphate hydrolases (1378)

Mycobacterium tuberculosis. Organism_taxid: 1773. (15)

1a	1n5lB00	B:1-208
1b	1n5lA00	A:1-208

(no "Pfam Domain" information available for 1N5L)

Asymmetric/Biological Unit(hide GO term definitions)

Chain A (KTHY_MYCTO | P9WKE0)

molecular function
	GO:0005524	ATP binding	Interacting selectively and non-covalently with ATP, adenosine 5'-triphosphate, a universally important coenzyme and enzyme regulator.
	GO:0016301	kinase activity	Catalysis of the transfer of a phosphate group, usually from ATP, to a substrate molecule.
	GO:0046872	metal ion binding	Interacting selectively and non-covalently with any metal ion.
	GO:0000166	nucleotide binding	Interacting selectively and non-covalently with a nucleotide, any compound consisting of a nucleoside that is esterified with (ortho)phosphate or an oligophosphate at any hydroxyl group on the ribose or deoxyribose.
	GO:0004798	thymidylate kinase activity	Catalysis of the reaction: ATP + thymidine 5'-phosphate = ADP + thymidine 5'-diphosphate.
	GO:0016740	transferase activity	Catalysis of the transfer of a group, e.g. a methyl group, glycosyl group, acyl group, phosphorus-containing, or other groups, from one compound (generally regarded as the donor) to another compound (generally regarded as the acceptor). Transferase is the systematic name for any enzyme of EC class 2.
biological process
	GO:0006233	dTDP biosynthetic process	The chemical reactions and pathways resulting in the formation of dTDP, deoxyribosylthymine diphosphate (2'-deoxyribosylthymine5'-diphosphate).
	GO:0006235	dTTP biosynthetic process	The chemical reactions and pathways resulting in the formation of dTTP, deoxyribosylthymine triphosphate.
	GO:0009165	nucleotide biosynthetic process	The chemical reactions and pathways resulting in the formation of nucleotides, any nucleoside that is esterified with (ortho)phosphate or an oligophosphate at any hydroxyl group on the glycose moiety; may be mono-, di- or triphosphate; this definition includes cyclic-nucleotides (nucleoside cyclic phosphates).
	GO:0046939	nucleotide phosphorylation	The process of introducing one or more phosphate groups into a nucleotide to produce a phosphorylated nucleoside.
	GO:0016310	phosphorylation	The process of introducing a phosphate group into a molecule, usually with the formation of a phosphoric ester, a phosphoric anhydride or a phosphoric amide.

Chain A,B (KTHY_MYCTU | P9WKE1)

molecular function
	GO:0005524	ATP binding	Interacting selectively and non-covalently with ATP, adenosine 5'-triphosphate, a universally important coenzyme and enzyme regulator.
	GO:0005525	GTP binding	Interacting selectively and non-covalently with GTP, guanosine triphosphate.
	GO:0016301	kinase activity	Catalysis of the transfer of a phosphate group, usually from ATP, to a substrate molecule.
	GO:0000287	magnesium ion binding	Interacting selectively and non-covalently with magnesium (Mg) ions.
	GO:0046872	metal ion binding	Interacting selectively and non-covalently with any metal ion.
	GO:0000166	nucleotide binding	Interacting selectively and non-covalently with a nucleotide, any compound consisting of a nucleoside that is esterified with (ortho)phosphate or an oligophosphate at any hydroxyl group on the ribose or deoxyribose.
	GO:0042803	protein homodimerization activity	Interacting selectively and non-covalently with an identical protein to form a homodimer.
	GO:0004798	thymidylate kinase activity	Catalysis of the reaction: ATP + thymidine 5'-phosphate = ADP + thymidine 5'-diphosphate.
	GO:0016740	transferase activity	Catalysis of the transfer of a group, e.g. a methyl group, glycosyl group, acyl group, phosphorus-containing, or other groups, from one compound (generally regarded as the donor) to another compound (generally regarded as the acceptor). Transferase is the systematic name for any enzyme of EC class 2.
	GO:0009041	uridylate kinase activity	Catalysis of the reaction: ATP + (d)UMP = ADP + (d)UDP.
biological process
	GO:0046044	TMP metabolic process	The chemical reactions and pathways involving TMP, ribosylthymine monophosphate.
	GO:0006233	dTDP biosynthetic process	The chemical reactions and pathways resulting in the formation of dTDP, deoxyribosylthymine diphosphate (2'-deoxyribosylthymine5'-diphosphate).
	GO:0006235	dTTP biosynthetic process	The chemical reactions and pathways resulting in the formation of dTTP, deoxyribosylthymine triphosphate.
	GO:0006227	dUDP biosynthetic process	The chemical reactions and pathways resulting in the formation of dUDP, deoxyuridine diphosphate (2'-deoxy-5'-uridylyl phosphate).
	GO:0009165	nucleotide biosynthetic process	The chemical reactions and pathways resulting in the formation of nucleotides, any nucleoside that is esterified with (ortho)phosphate or an oligophosphate at any hydroxyl group on the glycose moiety; may be mono-, di- or triphosphate; this definition includes cyclic-nucleotides (nucleoside cyclic phosphates).
	GO:0046939	nucleotide phosphorylation	The process of introducing one or more phosphate groups into a nucleotide to produce a phosphorylated nucleoside.
	GO:0016310	phosphorylation	The process of introducing a phosphate group into a molecule, usually with the formation of a phosphoric ester, a phosphoric anhydride or a phosphoric amide.
cellular component
	GO:0005737	cytoplasm	All of the contents of a cell excluding the plasma membrane and nucleus, but including other subcellular structures.

Asymmetric/Biological Unit
	Complete Structure
		Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
		WebMol \| AstexViewer[tm]@PDBe (Java Applets, require no local installation except for Java; loading may be slow)
		STRAP (Java WebStart application, automatic local installation, requires Java; full application with system access!)
		RasMol (require local installation)
		Molscript (VRML) (requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

	Ligands, Modified Residues, Ions
		ACT	[ RasMol \| Jena3D ]	+environment [ RasMol \| Jena3D ]
		DPO	[ RasMol \| Jena3D ]	+environment [ RasMol \| Jena3D ]
		MG	[ RasMol \| Jena3D ]	+environment [ RasMol \| Jena3D ]
		TMP	[ RasMol \| Jena3D ]	+environment [ RasMol \| Jena3D ]
		TYD	[ RasMol \| Jena3D ]	+environment [ RasMol \| Jena3D ]

	Sites
		AC1	[ RasMol ]	+environment [ RasMol ]
		AC2	[ RasMol ]	+environment [ RasMol ]
		AC3	[ RasMol ]	+environment [ RasMol ]
		AC4	[ RasMol ]	+environment [ RasMol ]
		AC5	[ RasMol ]	+environment [ RasMol ]
		AC6	[ RasMol ]	+environment [ RasMol ]

	Cis Peptide Bonds
		Phe A:36 - Pro A:37	[ RasMol ]
		Phe B:36 - Pro B:37	[ RasMol ]

Jmol
	protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick [ Asym./Biol. Unit PNG format \| Asym./Biol. Unit - sites PNG format ](automatic orientation, automatically generated)
Molscript
	protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick [ mono PDF format \| stereo PDF format ](default orientation, automatically generated)

Access by PDB/NDB ID
	1n5l
		Family and Domain Information	:	ProDom \| SYSTERS
		General Structural Information	:	GlycoscienceDB \| MMDB \| NDB \| OCA \| PDB \| PDBe \| PDBj \| PDBsum \| PDBWiki \| PQS \| PROTEOPEDIA
		Orientation in Membranes	:	OPM
		Protein Surface	:	SURFACE
		Secondary Structure	:	DSSP (structure derived) \| HSSP (homology derived)
		Structural Genomics	:	GeneCensus
		Structural Neighbours	:	CE \| VAST
		Structure Classification	:	CATH \| Dali \| SCOP
		Validation and Original Data	:	BMRB Data View \| BMRB Restraints Grid \| EDS \| PROCHECK \| RECOORD \| WHAT_CHECK

Access by UniProt ID/Accession number
	KTHY_MYCTO \| P9WKE0
		Comparative Protein Structure Models	:	ModBase
		Genomic Information	:	Ensembl
		Protein-protein Interaction	:	DIP
		Sequence, Family and Domain Information	:	InterPro \| Pfam \| SMART \| UniProtKB/SwissProt
	KTHY_MYCTU \| P9WKE1
		Comparative Protein Structure Models	:	ModBase
		Genomic Information	:	Ensembl
		Protein-protein Interaction	:	DIP
		Sequence, Family and Domain Information	:	InterPro \| Pfam \| SMART \| UniProtKB/SwissProt

Access by Enzyme Classificator (EC Number)
	2.7.4.9
		General Enzyme Information	:	BRENDA \| EC-PDB \| Enzyme \| IntEnz
		Pathway	:	KEGG \| MetaCyc

Access by Disease Identifier (MIM ID)
	(no 'MIM ID' available)
		Disease Information	:	OMIM

Access by GenAge ID
	(no 'GenAge ID' available)
		Age Related Information	:	GenAge

Access by PDB/NDB ID
		Domain Information	:	XDom
		Interatomic Contacts of Structural Units	:	CSU
		Ligand-protein Contacts	:	LPC
		Protein Cavities	:	castP
		Sequence and Secondary Structure	:	PDBCartoon
		Structure Alignment	:	STRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
		Structure and Sequence Browser	:	STING

Access by UniProt ID/Accession number
	KTHY_MYCTO \| P9WKE0
		Protein Disorder Prediction	:	DisEMBL \| FoldIndex \| GLOBPLOT (for more information see DisProt)
	KTHY_MYCTU \| P9WKE1
		Protein Disorder Prediction	:	DisEMBL \| FoldIndex \| GLOBPLOT (for more information see DisProt)

1gtv	CRYSTAL STRUCTURE OF MYCOBACTERIUM TUBERCULOSIS THYMIDYLATE KINASE COMPLEXED WITH THYMIDINE-5'-DIPHOSPHATE (TDP)
1n5i	CRYSTAL STRUCTURE OF INACTIVE MYCOBACTERIUM TUBERCULOSIS THYMIDYLATE KINASE COMPLEXED WITH THYMIDINE MONOPHOSPHATE (TMP) AT PH 4.6 (RESOLUTION 1.85 A)
1n5j	CRYSTAL STRUCTURE OF MYCOBACTERIUM TUBERCULOSIS THYMIDYLATE KINASE COMPLEXED WITH THYMIDINE DIPHOSPHATE (TDP) AND THYMIDINE TRIPHOSPHATE (TTP) AT PH 5.4 (RESOLUTION 1.85 A)
1n5k	CRYSTAL STRUCTURE OF MYCOBACTERIUM TUBERCULOSIS THYMIDYLATE KINASE CRYSTALLIZED IN SODIUM MALONATE (2.1 A RESOLUTION)

Description

Compounds

Structural Features

Chains, Units

Ligands, Modified Residues, Ions (5, 6)

Sites (6, 6)

SS Bonds (0, 0)

Cis Peptide Bonds (2, 2)

Sequence-Structure Mapping

SAPs(SNPs)/Variants (0, 0)

PROSITE Motifs (1, 2)

Exons (0, 0)

Sequences/Alignments

Classification and Annotation

SCOP Domains (1, 2)

CATH Domains (1, 2)

Pfam Domains (0, 0)

Gene Ontology (18, 29)

Visualization

Interactive Views

Still Images

Databases and Analysis Tools

Databases

Analysis Tools

Related Entries

Entries Sharing at Least One Protein Chain (UniProt ID)

Related Entries Specified in the PDB File
