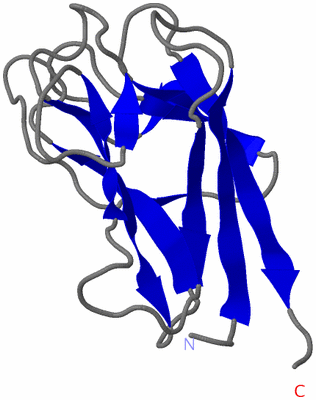

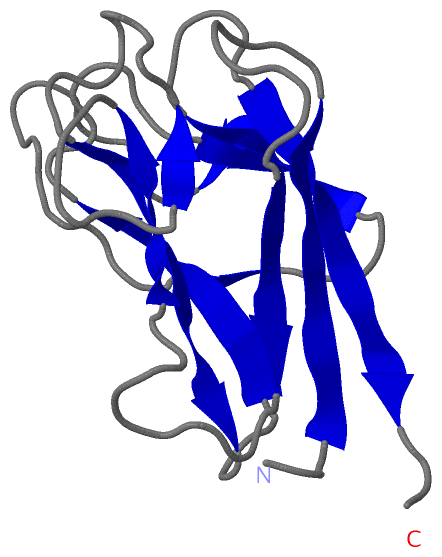

Image NMR Structure - model 1
NMR Structure - model 1  (Jmol Viewer)

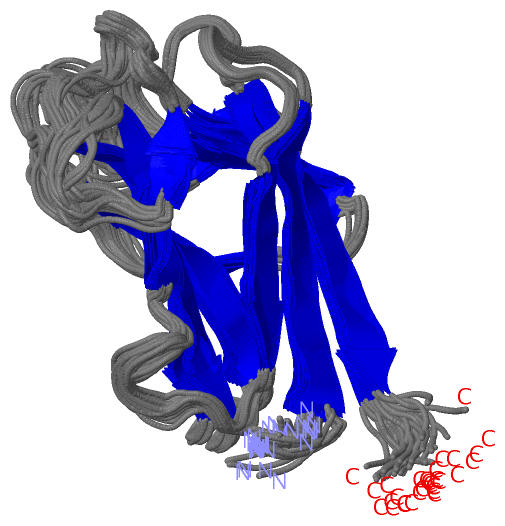

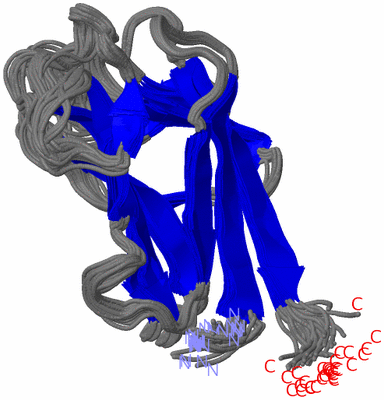

Image NMR Structure - all models
NMR Structure - all models  (Jmol Viewer)

(-) Description

Title :  NMR STRUCTURE OF KINASE-INTERACTING FHA DOMAIN OF KINASE ASSOCIATED PROTEIN PHOSPHATASE, KAPP IN ARABIDOPSIS

Authors :  G. Lee, Z. Ding, J. C. Walker, S. R. Van Doren
Date :  08 Oct 02  (Deposition) - 09 Sep 03  (Release) - 24 Feb 09  (Revision)
Method :  SOLUTION NMR
Resolution :  NOT APPLICABLE
Chains :  NMR Structure  :  A  (30x)
Keywords :  Beta Sandwich, Hydrolase (Keyword Search: [Gene Ontology, PubMed, Web (Google))

Reference :  G. Lee, Z. Ding, J. C. Walker, S. R. Van Doren
Nmr Structure Of The Forkhead-Associated Domain From The Arabidopsis Receptor Kinase-Associated Protein Phosphatase.
Proc. Natl. Acad. Sci. Usa V. 100 11261 2003
PubMed-ID: 14500786  |  Reference-DOI: 10.1073/PNAS.2031918100
(for further references see the PDB file header)

(-) Compounds

Molecule 1 - KINASE ASSOCIATED PROTEIN PHOSPHATASE
    ChainsA
    EC Number3.1.3.16
    EngineeredYES
    Expression SystemESCHERICHIA COLI
    Expression System PlasmidPGEX6P-1
    Expression System StrainDH5ALPHA
    Expression System Taxid562
    Expression System Vector TypePLASMID
    FragmentKINASE INTERACTION DOMAIN
    GeneKAPP
    Organism CommonTHALE CRESS
    Organism ScientificARABIDOPSIS THALIANA
    Organism Taxid3702
    StrainCOLUMBIA

 Structural Features

(-) Chains, Units


NMR Structure (30x)

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (0, 0)

(no "Ligand,Modified Residues,Ions" information available for 1MZK)

(-) Sites  (0, 0)

(no "Site" information available for 1MZK)

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 1MZK)

(-) Cis Peptide Bonds  (0, 0)

(no "Cis Peptide Bond" information available for 1MZK)

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 1MZK)

(-) PROSITE Motifs  (1, 1)

NMR Structure (1, 1)
 PROSITEUniProtKBPDB
No.IDACDescriptionIDLocationCountLocation
1FHA_DOMAINPS50006 Forkhead-associated (FHA) domain profile.P2C70_ARATH208-259  1A:208-259

(-) Exons   (0, 0)

(no "Exon" information available for 1MZK)

(-) Sequences/Alignments

NMR Structure
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:122
 aligned with P2C70_ARATH | P46014 from UniProtKB/Swiss-Prot  Length:581

    Alignment length:129
                                   179       189       199       209       219       229       239       249       259       269       279       289
          P2C70_ARATH   170 LSPRLVEDQRSWLFLEVIAGPAIGLQHAVNSTSSSKLPVKLGRVSPSDLALKDSEVSGKHAQITWNSTKFKWELVDMGSLNGTLVNSHSISHPDLGSRKWGNPVELASDDIITLGTTTKVYVRISSQNE 298
               SCOP domains d1       mzka_ A: Kinase associated protein phosphatase                                                                           SCOP domains
               CATH domains 1m       zkA00 A:177-298  [code=2.60.200.20, no name defined]                                                                     CATH domains
               Pfam domains --------------------------------------FHA-1mzkA01 A:208-284                                                        -------------- Pfam domains
         Sec.struct. author ..-------.eeeeeee........eeee.........eeee......ee........eeeeeeee....eeeeee.......ee..ee..............ee....eeee.....eeeeeeee... Sec.struct. author
                 SAPs(SNPs) --------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE --------------------------------------FHA_DOMAIN  PDB: A:208-259 UniProt: 208-259         --------------------------------------- PROSITE
                 Transcript --------------------------------------------------------------------------------------------------------------------------------- Transcript
                 1mzk A 177 LG-------SSWLFLEVIAGPAIGLQHAVNSTSSSKLPVKLGRVSPSDLALKDSEVSGKHAQITWNSTKFKWELVDMGSLNGTLVNSHSISHPDLGSRKWGNPVELASDDIITLGTTTKVYVRISSQNE 298
                             |     179       189       199       209       219       229       239       249       259       269       279       289
                             |     179
                           178

   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (1, 1)

NMR Structure

(-) CATH Domains  (1, 1)

NMR Structure
(-)
Class: Mainly Beta (13760)

(-) Pfam Domains  (1, 1)

NMR Structure
(-)
Clan: SMAD-FHA (27)

(-) Gene Ontology  (12, 12)

NMR Structure(hide GO term definitions)
Chain A   (P2C70_ARATH | P46014)
molecular function
    GO:0050408    [pyruvate kinase]-phosphatase activity    Catalysis of the reaction: [pyruvate kinase] phosphate + H2O = [pyruvate kinase] + phosphate.
    GO:0003824    catalytic activity    Catalysis of a biochemical reaction at physiological temperatures. In biologically catalyzed reactions, the reactants are known as substrates, and the catalysts are naturally occurring macromolecular substances known as enzymes. Enzymes possess specific binding sites for substrates, and are usually composed wholly or largely of protein, but RNA that has catalytic activity (ribozyme) is often also regarded as enzymatic.
    GO:0043169    cation binding    Interacting selectively and non-covalently with cations, charged atoms or groups of atoms with a net positive charge.
    GO:0016787    hydrolase activity    Catalysis of the hydrolysis of various bonds, e.g. C-O, C-N, C-C, phosphoric anhydride bonds, etc. Hydrolase is the systematic name for any enzyme of EC class 3.
    GO:0046872    metal ion binding    Interacting selectively and non-covalently with any metal ion.
    GO:0004721    phosphoprotein phosphatase activity    Catalysis of the reaction: a phosphoprotein + H2O = a protein + phosphate. Together with protein kinases, these enzymes control the state of phosphorylation of cell proteins and thereby provide an important mechanism for regulating cellular activity.
    GO:0005515    protein binding    Interacting selectively and non-covalently with any protein or protein complex (a complex of two or more proteins that may include other nonprotein molecules).
    GO:0004722    protein serine/threonine phosphatase activity    Catalysis of the reaction: protein serine phosphate + H2O = protein serine + phosphate, and protein threonine phosphate + H2O = protein threonine + phosphate.
biological process
    GO:0006470    protein dephosphorylation    The process of removing one or more phosphoric residues from a protein.
cellular component
    GO:0016021    integral component of membrane    The component of a membrane consisting of the gene products and protein complexes having at least some part of their peptide sequence embedded in the hydrophobic region of the membrane.
    GO:0016020    membrane    A lipid bilayer along with all the proteins and protein complexes embedded in it an attached to it.
    GO:0005886    plasma membrane    The membrane surrounding a cell that separates the cell from its external environment. It consists of a phospholipid bilayer and associated proteins.

 Visualization

(-) Interactive Views

NMR Structure
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
(no "Ligands, Modified Residues, Ions" information available for 1mzk)

  Sites
(no "Sites" information available for 1mzk)

  Cis Peptide Bonds
(no "Cis Peptide Bonds" information available for 1mzk)


(-) Still Images

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick
Molscript
  protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick

 Databases and Analysis Tools

(-) Databases

Access by PDB/NDB ID
  1mzk
    Family and Domain InformationProDom | SYSTERS
    General Structural InformationGlycoscienceDB | MMDB | NDB | OCA | PDB | PDBe | PDBj | PDBsum | PDBWiki | PQS | PROTEOPEDIA
    Orientation in MembranesOPM
    Protein SurfaceSURFACE
    Secondary StructureDSSP (structure derived) | HSSP (homology derived)
    Structural GenomicsGeneCensus
    Structural NeighboursCE | VAST
    Structure ClassificationCATH | Dali | SCOP
    Validation and Original DataBMRB Data View | BMRB Restraints Grid | EDS | PROCHECK | RECOORD | WHAT_CHECK

Access by UniProt ID/Accession number
  P2C70_ARATH | P46014
    Comparative Protein Structure ModelsModBase
    Genomic InformationEnsembl
    Protein-protein InteractionDIP
    Sequence, Family and Domain InformationInterPro | Pfam | SMART | UniProtKB/SwissProt

Access by Enzyme Classificator   (EC Number)
  3.1.3.16
    General Enzyme InformationBRENDA | EC-PDB | Enzyme | IntEnz
    PathwayKEGG | MetaCyc

Access by Disease Identifier   (MIM ID)
  (no 'MIM ID' available)
    Disease InformationOMIM

Access by GenAge ID
  (no 'GenAge ID' available)
    Age Related InformationGenAge

(-) Analysis Tools

Access by PDB/NDB ID
    Domain InformationXDom
    Interatomic Contacts of Structural UnitsCSU
    Ligand-protein ContactsLPC
    Protein CavitiescastP
    Sequence and Secondary StructurePDBCartoon
    Structure AlignmentSTRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    Structure and Sequence BrowserSTING

Access by UniProt ID/Accession number
  P2C70_ARATH | P46014
    Protein Disorder PredictionDisEMBL | FoldIndex | GLOBPLOT (for more information see DisProt)

 Related Entries

(-) Entries Sharing at Least One Protein Chain (UniProt ID)

(no "Entries Sharing at Least One Protein Chain" available for 1MZK)

(-) Related Entries Specified in the PDB File

(no "Related Entries Specified in the PDB File" available for 1MZK)
