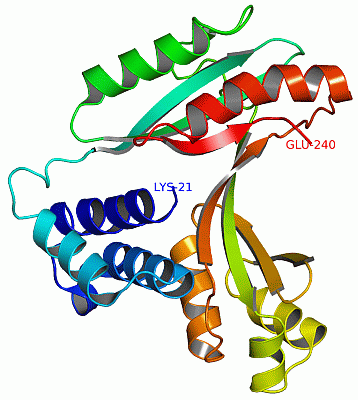

Image Asym./Biol. Unit - manually
Asym./Biol. Unit - manually  (Jmol Viewer)

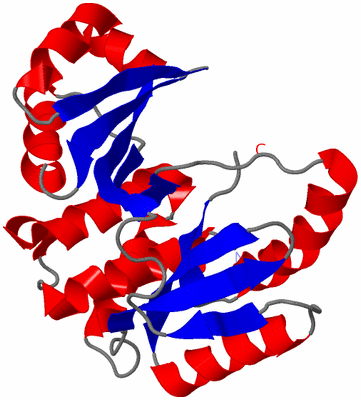

Image Asym./Biol. Unit
Asym./Biol. Unit  (Jmol Viewer)

(-) Description

Title :  X-RAY STRUCTURE OF Y162_HELPY NORTHEAST STRUCTURAL GENOMICS CONSORTIUM TARGET PR6

Authors :  A. Kuzin, J. Shen, J. P. Keller, R. Xiao, B. Rost, G. Montelione, J. F. Hunt, Northeast Structural Genomics Consortium (Nesg)
Date :  27 Sep 02  (Deposition) - 28 Jan 03  (Release) - 24 Feb 09  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  2.00
Chains :  Asym./Biol. Unit :  A
Keywords :  Structural Genomics, Psi, Protein Structure Initiative, Northeast Structural Genomics Consortium, Nesg, Unknown Function (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  A. Kuzin, J. Shen, J. P. Keller, R. Xiao, B. Rost, G. Montelione, J. F. Hunt
X-Ray Structure Of Y162_helpy Northeast Structural Genomics Consortium Target Pr6
To Be Published
PubMed: search
(for further references see the PDB file header)

(-) Compounds

Molecule 1 - HYPOTHETICAL PROTEIN HP0162
    Chains: A
    Engineered: YES
    Expression System: ESCHERICHIA COLI
    Expression System Taxid: 562
    Organism Scientific: HELICOBACTER PYLORI
    Organism Taxid: 210
    Synonym: HYPOTHETICAL PROTEIN PR6

 Structural Features

(-) Chains, Units

  1
Asymmetric/Biological Unit : A

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (0, 0)

(no "Ligand,Modified Residues,Ions" information available for 1MW7)

(-) Sites  (0, 0)

(no "Site" information available for 1MW7)

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 1MW7)

(-) Cis Peptide Bonds  (0, 0)

(no "Cis Peptide Bond" information available for 1MW7)

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 1MW7)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 1MW7)

(-) Exons   (0, 0)

(no "Exon" information available for 1MW7)

(-) Sequences/Alignments

Asymmetric/Biological Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:220
 aligned with Y162_HELPY | O24970 from UniProtKB/Swiss-Prot  Length:240

    Alignment length:220
                                    30        40        50        60        70        80        90       100       110       120       130       140       150       160       170       180       190       200       210       220       230       240
           Y162_HELPY    21 KVFPKLAKAITLAAKDGGSEPDTNAKLRTAILNAKAQNMPKDNIDAAIKRASSKEGNLSEITYEGKANFGVLIIMECMTDNPTRTIANLKSYFNKTQGASIVPNGSLEFMFNRKSVFECLKNEVENLKLSLEDLEFALIDYGLEELEEVEDKIIIRGDYNSFKLLNEGFESLKLPILKASLQRIATTPIELNDEQMELTEKLLDRIEDDDDVVALYTNIE 240
               SCOP domains d1mw7a_ A: Hypothetical protein HP0162                                                                                                                                                                                       SCOP domains
               CATH domains 1mw7A01 A:21-78  [code=1.10.10.200, no name defined]      1mw7A02 A:79-130,A:206-240                          1mw7A03 A:131-205  [code=3.30.70.980, no name defined]                     1mw7A02 A:79-130,A:206-240          CATH domains
               Pfam domains Transcrip_reg-1mw7A01 A:21-240                                                                                                                                                                                               Pfam domains
         Sec.struct. author .hhhhhhhhhhhhhhh...hhhhhhhhhhhhhhhhhhh.hhhhhhhhhhhh.......eeeeeeeee...eeeeeeeee.hhhhhhhhhhhhhh.....eee........eeeeeeeeeehhhhhhh..hhhhhhhhhh...eeeeeee..eeeeeee..hhhhhhhhhhhh.....eeeeeeee......hhhhhhhhhhhhhhhhh...eeeeee... Sec.struct. author
                 SAPs(SNPs) ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 1mw7 A  21 KVFPKLAKAITLAAKDGGSEPDTNAKLRTAILNAKAQNMPKDNIDAAIKRASSKEGNLSEITYEGKANFGVLIIMECMTDNPTRTIANLKSYFNKTQGASIVPNGSLEFMFNRKSVFECLKNEVENLKLSLEDLEFALIDYGLEELEEVEDKIIIRGDYNSFKLLNEGFESLKLPILKASLQRIATTPIELNDEQMELTEKLLDRIEDDDDVVALYTNIE 240
                                    30        40        50        60        70        80        90       100       110       120       130       140       150       160       170       180       190       200       210       220       230       240
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (1, 1)

Asymmetric/Biological Unit
(-)
Class: Multi-domain proteins (alpha and beta) (2421)

(-) CATH Domains  (3, 3)

Asymmetric/Biological Unit
(-)
Class: Alpha Beta (26913)
(-)
Class: Mainly Alpha (13335)

(-) Pfam Domains  (1, 1)

Asymmetric/Biological Unit
(-)
Clan: no clan defined [family: Transcrip_reg] (3)

(-) Gene Ontology  (4, 4)

Asymmetric/Biological Unit(hide GO term definitions)
Chain A   (Y162_HELPY | O24970)
molecular function
    GO:0003677    DNA binding    Any molecular function by which a gene product interacts selectively and non-covalently with DNA (deoxyribonucleic acid).
biological process
    GO:0006355    regulation of transcription, DNA-templated    Any process that modulates the frequency, rate or extent of cellular DNA-templated transcription.
    GO:0006351    transcription, DNA-templated    The cellular synthesis of RNA on a template of DNA.
cellular component
    GO:0005737    cytoplasm    All of the contents of a cell excluding the plasma membrane and nucleus, but including other subcellular structures.

 Visualization

(-) Interactive Views

Asymmetric/Biological Unit
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
(no "Ligands, Modified Residues, Ions" information available for 1mw7)

  Sites
(no "Sites" information available for 1mw7)

  Cis Peptide Bonds
(no "Cis Peptide Bonds" information available for 1mw7)


(-) Still Images

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick

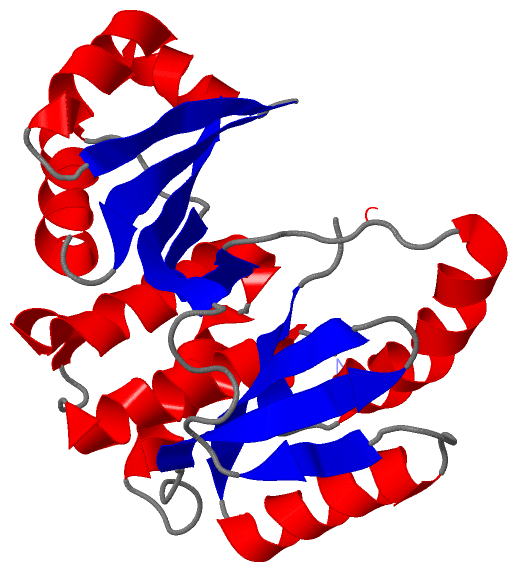

[ Asym./Biol. Unit PNG format ](automatic orientation, automatically generated)
Molscript
  protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick
[ mono PDF format | stereo PDF format ](default orientation, automatically generated)

 Databases and Analysis Tools

(-) Databases

Access by PDB/NDB ID
  1mw7
    Family and Domain Information: ProDom | SYSTERS
    General Structural Information: GlycoscienceDB | MMDB | NDB | OCA | PDB | PDBe | PDBj | PDBsum | PDBWiki | PQS | PROTEOPEDIA
    Orientation in Membranes: OPM
    Protein Surface: SURFACE
    Secondary Structure: DSSP (structure derived) | HSSP (homology derived)
    Structural Genomics: GeneCensus
    Structural Neighbours: CE | VAST
    Structure Classification: CATH | Dali | SCOP
    Validation and Original Data: BMRB Data View | BMRB Restraints Grid | EDS | PROCHECK | RECOORD | WHAT_CHECK

Access by UniProt ID/Accession number
  Y162_HELPY | O24970
    Comparative Protein Structure Models: ModBase
    Genomic Information: Ensembl
    Protein-protein Interaction: DIP
    Sequence, Family and Domain Information: InterPro | Pfam | SMART | UniProtKB/SwissProt

Access by Enzyme Classificator   (EC Number)
  (no 'Enzyme Classificator' available)
    General Enzyme Information: BRENDA | EC-PDB | Enzyme | IntEnz
    Pathway: KEGG | MetaCyc

Access by Disease Identifier   (MIM ID)
  (no 'MIM ID' available)
    Disease Information: OMIM

Access by GenAge ID
  (no 'GenAge ID' available)
    Age Related Information: GenAge

(-) Analysis Tools

Access by PDB/NDB ID
    Domain Information: XDom
    Interatomic Contacts of Structural Units: CSU
    Ligand-protein Contacts: LPC
    Protein Cavities: castP
    Sequence and Secondary Structure: PDBCartoon
    Structure Alignment: STRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    Structure and Sequence Browser: STING

Access by UniProt ID/Accession number
  Y162_HELPY | O24970
    Protein Disorder Prediction: DisEMBL | FoldIndex | GLOBPLOT (for more information see DisProt)

 Related Entries

(-) Entries Sharing at Least One Protein Chain (UniProt ID)

UniProtKB/Swiss-Prot
        Y162_HELPY | O24970: 1mhf
