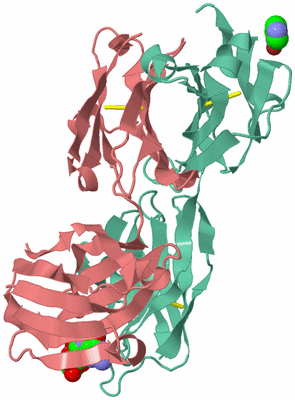

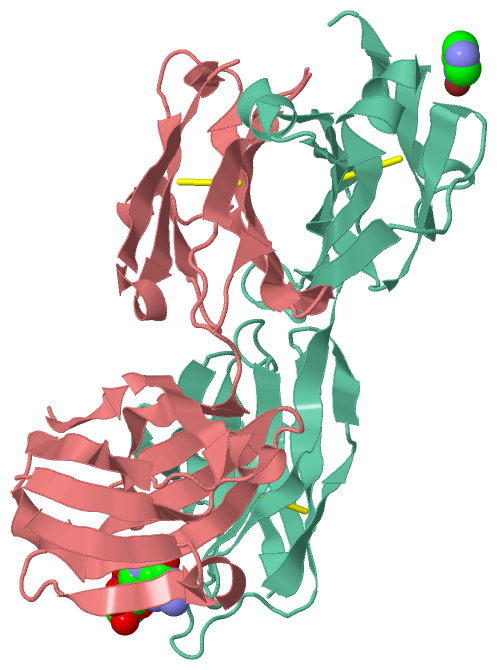

Image Asym./Biol. Unit
Asym./Biol. Unit  (Jmol Viewer)

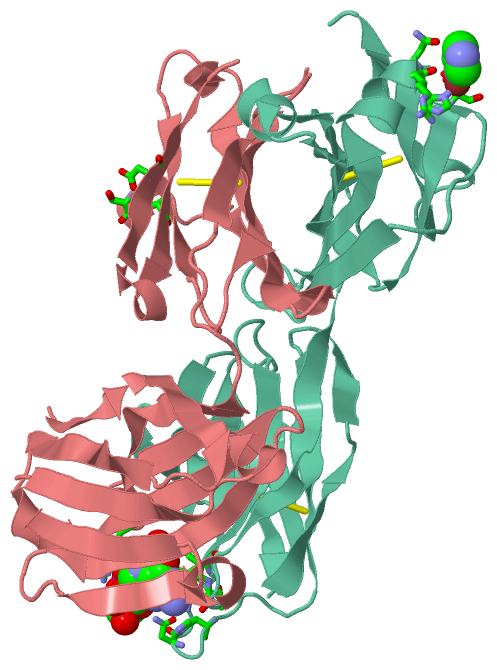

Image Asym./Biol. Unit - sites
Asym./Biol. Unit - sites  (Jmol Viewer)

(-) Description

Title :  PREPARATION, CHARACTERIZATION AND CRYSTALLIZATION OF AN ANTIBODY FAB FRAGMENT THAT RECOGNIZES RNA. CRYSTAL STRUCTURES OF NATIVE FAB AND THREE FAB-MONONUCLEOTIDE COMPLEXES

Authors :  P. R. Pokkuluri, M. Cygler
Date :  13 Jun 94  (Deposition) - 14 Feb 95  (Release) - 25 Aug 09  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  2.30
Chains :  Asym./Biol. Unit :  H,L
Keywords :  Immunoglobulin (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  P. R. Pokkuluri, F. Bouthillier, Y. Li, A. Kuderova, J. Lee, M. Cygler
Preparation, Characterization And Crystallization Of An Antibody Fab Fragment That Recognizes Rna. Crystal Structures Of Native Fab And Three Fab-Mononucleotide Complexes.
J. Mol. Biol. V. 243 283 1994
PubMed-ID: 7523684  |  Reference-DOI: 10.1006/JMBI.1994.1654
(for further references see the PDB file header)

(-) Compounds

Molecule 1 - IGG2B-KAPPA JEL103 FAB (LIGHT CHAIN)
    Chains: L
    Engineered: YES
    Organism Common: HOUSE MOUSE
    Organism Scientific: MUS MUSCULUS
    Organism Taxid: 10090

Molecule 2 - IGG2B-KAPPA JEL103 FAB (HEAVY CHAIN)
    Chains: H
    Engineered: YES
    Organism Common: HOUSE MOUSE
    Organism Scientific: MUS MUSCULUS
    Organism Taxid: 10090

 Structural Features

(-) Chains, Units

  12
Asymmetric/Biological Unit : HL

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (3, 3)

Asymmetric/Biological Unit (3, 3)
No.NameCountTypeFull Name
1GDP1Ligand/IonGUANOSINE-5'-DIPHOSPHATE
2IMD1Ligand/IonIMIDAZOLE
3ZN1Ligand/IonZINC ION

(-) Sites  (3, 3)

Asymmetric Unit (3, 3)
No.NameEvidenceResiduesDescription
1AC1SOFTWAREASP H:220 , ASP L:151 , HIS L:189 , IMD L:902BINDING SITE FOR RESIDUE ZN L 600
2AC2SOFTWARESER H:163 , SER H:209 , ASP H:220 , ASP L:151 , ARG L:188 , HIS L:189 , ASN L:190 , ZN L:600BINDING SITE FOR RESIDUE IMD L 902
3AC3SOFTWAREARG H:96 , HIS L:27D , ASN L:28 , ASN L:30 , TYR L:32 , LYS L:50 , SER L:91 , THR L:92 , HOH L:670BINDING SITE FOR RESIDUE GDP L 901

(-) SS Bonds  (4, 4)

Asymmetric/Biological Unit
No.Residues
1H:22 -H:92
2H:142 -H:208
3L:23 -L:88
4L:134 -L:194

(-) Cis Peptide Bonds  (6, 6)

Asymmetric/Biological Unit
No.Residues
1Thr L:7 -Pro L:8
2Val L:94 -Pro L:95
3Tyr L:140 -Pro L:141
4Phe H:148 -Pro H:149
5Glu H:150 -Ser H:151
6Trp H:199 -Pro H:200

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 1MRE)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 1MRE)

(-) Exons   (0, 0)

(no "Exon" information available for 1MRE)

(-) Sequences/Alignments

Asymmetric/Biological Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain H from PDB  Type:PROTEIN  Length:208

               SCOP domains d1mreh1 H:1-115 Immunoglobulin heavy chain variable domain, VH                                                     d1mreh2 H:116-227 Immunoglobulin heavy chain gamma constant domain 1, CH1-gamma               SCOP domains
               CATH domains 1mreH01 H:1-113 Immunoglobulins                                                                                  1mreH02 H:114-223 Immunoglobulins                                                            -- CATH domains
               Pfam domains ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
     Sec.struct. author (1) .eeeeeeeeeeeee...eeeeeeee..hhhhh--------....eeeeeeee....eeeeehhhh..eeeeee.eeeeeee..hhhhheeeeeee......eeeeeeeeeee.......eeeee......eeeeeeeeee......eeeeehhh....eeeeeeeee..eeeeeeeeeee.hhh....eeeeeeehhhheeeeeee.. Sec.struct. author (1)
     Sec.struct. author (2) -------------------------------eeeeeeeee------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Sec.struct. author (2)
                 SAPs(SNPs) ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 1mre H   1 QVQLQQSGAELVKPGASVKLSCKASGYTFTSYWMQWVKQRPGQGLEWIGEIDPSDSYTNYNQKFKGKATLTVDSTAYMQLSSLTSEDSAVYYCANLRGYFDYWGQGTTLTVSSAKTTPPSVYPLAPGTGSSVTLGCLVKGYFPESVTVTWNSGSLSSSVHTFPALLQSGLYTMSSSVTVPSSTWPSQTVTCSVAHPASSTTVDKKLEP 227
                                    10        20        30        40        50  |     59        69  ||    82|||     89        99|      110       120      |136       146       157|      172       184       194 || || 206|      217     ||
                                                                              52A                  72|    82A||               99|                       127|                 154|||    169|      180|          196| || 206|            223|
                                                                                                    76     82B|               101                        134                  156||     171       183           198 ||  208             226
                                                                                                            82C                                                                157|                               200|
                                                                                                                                                                                162                                202


Chain L from PDB  Type:PROTEIN  Length:218

               SCOP domains d1mrel1 L:1-108 Immunoglobulin light chain kappa variable domain, VL-kappa                                       d1mrel2 L:109-213 Immunoglobulin light chain kappa constant domain, CL-kappa                              SCOP domains
               CATH domains 1mreL01 L:1-108 Immunoglobulins                                                                                  1mreL02 L:109-211 Immunoglobulins                                                                      -- CATH domains
               Pfam domains -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
     Sec.struct. author (1) .eeeeee..eeee...eeeeeeeee...........eeeeeee...eeeeeeeee..eeee.....eeeeee..eeeeee........eeeeeee......eeeeeeeeeee......-------hhhhhh..eeeeeeeeeeee..eeeeeeeee.......eeeeeeeee....eeeeeeeeeeehhhhhh.eeeeeeeee....eeeeeeeee.. Sec.struct. author (1)
     Sec.struct. author (2) ----------------------------------------------------------------------------------------------------------------------eeeeeeee-------------------------------------------------------------------------------------------- Sec.struct. author (2)
                 SAPs(SNPs) -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 1mre L   1 DVVMTQTPLSLPVSLGDQASISCRSSQSLVHSNGNTYLHWYLQKPGQSPKLLIYKVSNRFSGVPDRFSGSGSGTDFTLKISRVEAEDLGVYFCSQSTHVPRTFGGGTKLEIKRADAAPTVSIFPPSSEQLTSGGASVVCFLNNFYPKDINVKWKIDGKERQNGVLNSWTDQNSKDSTYSMSSTLTLTKDEYERHNSYTCEATHKTSTSPIVKSFNRNE 213
                                    10        20       27C||      35        45        55        65        75        85        95       105       115       125       135       145       155       165       175       185       195       205
                                                     27A||||
                                                      27B|||
                                                       27C||
                                                        27D|
                                                         27E
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (4, 4)

Asymmetric/Biological Unit
(-)
Class: All beta proteins (24004)

(-) CATH Domains  (1, 4)

Asymmetric/Biological Unit
(-)
Class: Mainly Beta (13760)

(-) Pfam Domains  (0, 0)

(no "Pfam Domain" information available for 1MRE)

(-) Gene Ontology  (0, 0)

Asymmetric/Biological Unit(hide GO term definitions)
    (no "Gene Ontology" information available for 1MRE)
