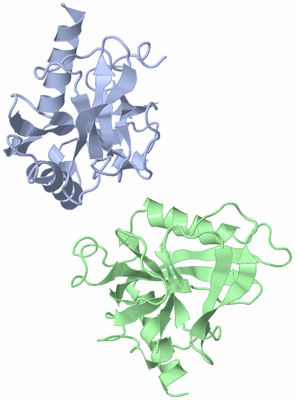

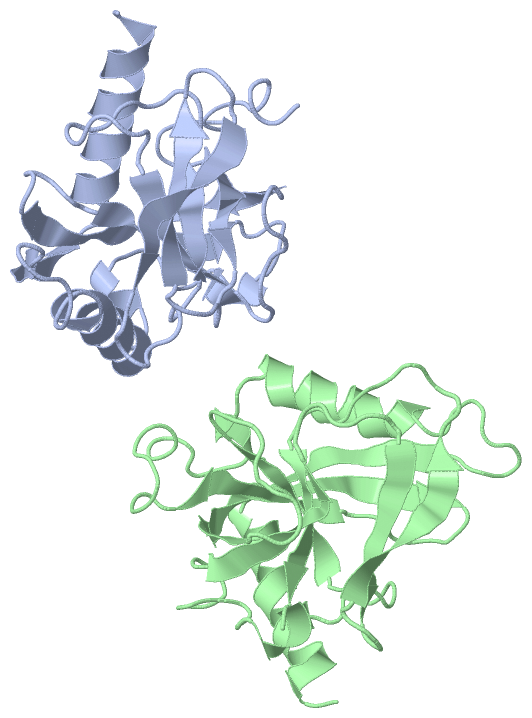

Image Asymmetric Unit
Asymmetric Unit  (Jmol Viewer)

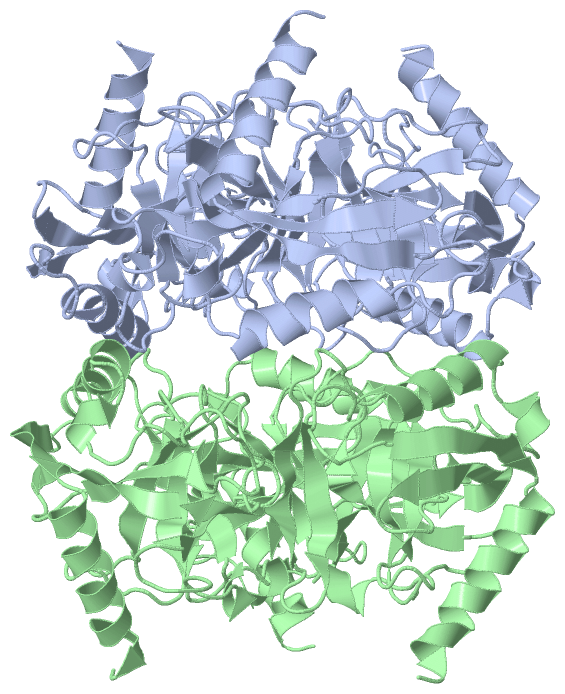

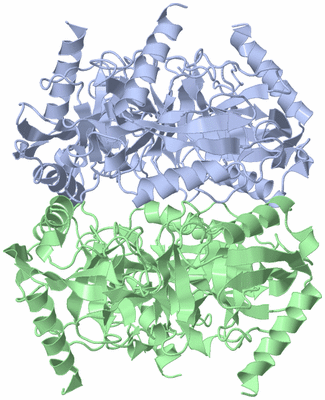

Image Biological Unit 1
Biological Unit 1  (Jmol Viewer)

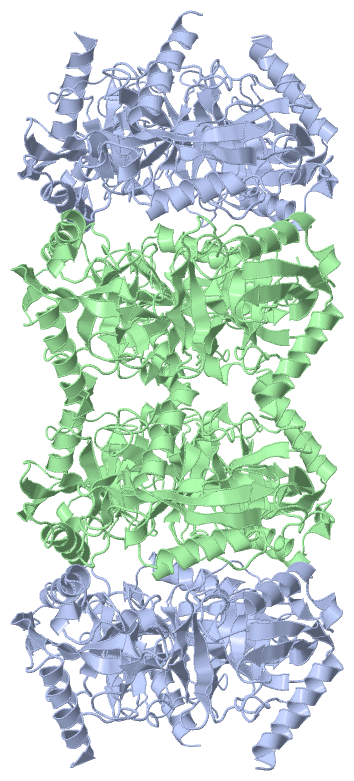

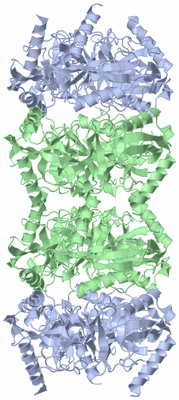

Image Biological Unit 2
Biological Unit 2  (Jmol Viewer)

(-) Description

Title :  STRUCTURE OF INORGANIC PYROPHOSPHATASE MUTANT D70N

Authors :  V. Oganesyan, E. H. Harutyunyan, S. M. Avaeva, R. Huber
Date :  08 Feb 97  (Deposition) - 03 Dec 97  (Release) - 16 Nov 11  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  2.10
Chains :  Asym. Unit :  A,B
Biol. Unit 1:  A,B  (3x)
Biol. Unit 2:  A,B  (6x)
Keywords :  Hydrolase, Acid Anhydride Hydrolase, Mutation (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  S. M. Avaeva, E. V. Rodina, N. N. Vorobyeva, S. A. Kurilova, T. I. Nazarova, V. A. Sklyankina, V. Y. Oganessyan, V. R. Samygina, E. H. Harutyunyan
Three-Dimensional Structures Of Mutant Forms Of E. Coli Inorganic Pyrophosphatase With Asp-->Asn Single Substitutio In Positions 42, 65, 70, And 97.
Biochemistry Mosc. V. 63 671 1998
PubMed-ID: 9668207
(for further references see the PDB file header)

(-) Compounds

Molecule 1 - INORGANIC PYROPHOSPHATASE
    Chains: A, B
    EC Number: 3.6.1.1
    Engineered: YES
    Expression System: ESCHERICHIA COLI
    Expression System Gene: PYROPHOSPHATASE FROM ESCHERICHIA COLI
    Expression System Plasmid: PUC19
    Expression System Taxid: 562
    Mutation: YES
    Organism Scientific: ESCHERICHIA COLI
    Organism Taxid: 562
    Strain: JM109
    Synonym: PYROPHOSPHATE HYDROLASE

 Structural Features

(-) Chains, Units

  12
Asymmetric Unit : AB
Biological Unit 1 (3x): AB
Biological Unit 2 (6x): AB

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (0, 0)

(no "Ligand,Modified Residues,Ions" information available for 1MJY)

(-) Sites  (0, 0)

(no "Site" information available for 1MJY)

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 1MJY)

(-) Cis Peptide Bonds  (2, 2)

Asymmetric Unit
No.Residues
1Leu A:11 -Pro A:12
2Leu B:11 -Pro B:12

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 1MJY)

(-) PROSITE Motifs  (1, 2)

Asymmetric Unit (1, 2)
 PROSITEUniProtKBPDB
No.IDACDescriptionIDLocationCountLocation
1PPASEPS00387 Inorganic pyrophosphatase signature.IPYR_ECOLI66-72
 		  2A:65-71
B:65-71
Biological Unit 1 (1, 6)
 PROSITEUniProtKBPDB
No.IDACDescriptionIDLocationCountLocation
1PPASEPS00387 Inorganic pyrophosphatase signature.IPYR_ECOLI66-72
 		  6A:65-71
B:65-71
Biological Unit 2 (1, 12)
 PROSITEUniProtKBPDB
No.IDACDescriptionIDLocationCountLocation
1PPASEPS00387 Inorganic pyrophosphatase signature.IPYR_ECOLI66-72
 		  12A:65-71
B:65-71

(-) Exons   (0, 0)

(no "Exon" information available for 1MJY)

(-) Sequences/Alignments

Asymmetric Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:175
 aligned with IPYR_ECOLI | P0A7A9 from UniProtKB/Swiss-Prot  Length:176

    Alignment length:175
                                    11        21        31        41        51        61        71        81        91       101       111       121       131       141       151       161       171
           IPYR_ECOLI     2 SLLNVPAGKDLPEDIYVVIEIPANADPIKYEIDKESGALFVDRFMSTAMFYPCNYGYINHTLSLDGDPVDVLVPTPYPLQPGSVIRCRPVGVLKMTDEAGEDAKLVAVPHSKLSKEYDHIKDVNDLPELLKAQIAHFFEHYKDLEKGKWVKVEGWENAEAAKAEIVASFERAKNK 176
               SCOP domains d1mjya_ A: Inorganic pyrophosphatase                                                                                                                                            SCOP domains
               CATH domains 1mjyA00 A:1-175 Inorganic Pyrophosphatase                                                                                                                                       CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ..............eeeeeee......eeeeee....eeeeeee.........eeee............eeeee.........eeeeeeeeeeeeee......eeeeee.....hhh.....hhh..hhhhhhhhhhhhh.........eeeeeee.hhhhhhhhhhhhhhhh.. Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ----------------------------------------------------------------PPASE  -------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 1mjy A   1 SLLNVPAGKDLPEDIYVVIEIPANADPIKYEIDKESGALFVDRFMSTAMFYPCNYGYINHTLSLDGDPVNVLVPTPYPLQPGSVTRCRPVGVLKMTDEAGEDAKLVAVPHSKLSKEYDHIKDVNDLPELLKAQIAHFFEHYKDLEKGKWVKVEGWENAEAAKAEIVASFERAKNK 175
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150       160       170


Chain B from PDB  Type:PROTEIN  Length:175
 aligned with IPYR_ECOLI | P0A7A9 from UniProtKB/Swiss-Prot  Length:176

    Alignment length:175
                                    11        21        31        41        51        61        71        81        91       101       111       121       131       141       151       161       171
           IPYR_ECOLI     2 SLLNVPAGKDLPEDIYVVIEIPANADPIKYEIDKESGALFVDRFMSTAMFYPCNYGYINHTLSLDGDPVDVLVPTPYPLQPGSVIRCRPVGVLKMTDEAGEDAKLVAVPHSKLSKEYDHIKDVNDLPELLKAQIAHFFEHYKDLEKGKWVKVEGWENAEAAKAEIVASFERAKNK 176
               SCOP domains d1mjyb_ B: Inorganic pyrophosphatase                                                                                                                                            SCOP domains
               CATH domains 1mjyB00 B:1-175 Inorganic Pyrophosphatase                                                                                                                                       CATH domains
           Pfam domains (1) ---------------Pyrophosphatase-1mjyB01 B:16-174                                                                                                                               - Pfam domains (1)
           Pfam domains (2) ---------------Pyrophosphatase-1mjyB02 B:16-174                                                                                                                               - Pfam domains (2)
         Sec.struct. author .hhh..........eeeeeee......eeeeee....eeeeeee.........eeeee..........eeeeee.........eeeeeeeeeeeeee......eeeeee.............hhh..hhhhhhhhhhhhh.........eeeeeee.hhhhhhhhhhhhhhhh.. Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ----------------------------------------------------------------PPASE  -------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 1mjy B   1 SLLNVPAGKDLPEDIYVVIEIPANADPIKYEIDKESGALFVDRFMSTAMFYPCNYGYINHTLSLDGDPVNVLVPTPYPLQPGSVTRCRPVGVLKMTDEAGEDAKLVAVPHSKLSKEYDHIKDVNDLPELLKAQIAHFFEHYKDLEKGKWVKVEGWENAEAAKAEIVASFERAKNK 175
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150       160       170
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (1, 2)

Asymmetric Unit
(-)
Class: All beta proteins (24004)

(-) CATH Domains  (1, 2)

Asymmetric Unit
(-)
Class: Alpha Beta (26913)

(-) Pfam Domains  (1, 2)

Asymmetric Unit
(-)
Clan: no clan defined [family: Pyrophosphatase] (19)

(-) Gene Ontology  (11, 11)

Asymmetric Unit(hide GO term definitions)
Chain A,B   (IPYR_ECOLI | P0A7A9)
molecular function
    GO:0016787    hydrolase activity    Catalysis of the hydrolysis of various bonds, e.g. C-O, C-N, C-C, phosphoric anhydride bonds, etc. Hydrolase is the systematic name for any enzyme of EC class 3.
    GO:0004427    inorganic diphosphatase activity    Catalysis of the reaction: diphosphate + H(2)O = H(+) + 2 phosphate.
    GO:0000287    magnesium ion binding    Interacting selectively and non-covalently with magnesium (Mg) ions.
    GO:0046872    metal ion binding    Interacting selectively and non-covalently with any metal ion.
    GO:0005515    protein binding    Interacting selectively and non-covalently with any protein or protein complex (a complex of two or more proteins that may include other nonprotein molecules).
    GO:0050355    triphosphatase activity    Catalysis of the reaction: H(2)O + triphosphate = diphosphate + phosphate.
    GO:0008270    zinc ion binding    Interacting selectively and non-covalently with zinc (Zn) ions.
biological process
    GO:0006796    phosphate-containing compound metabolic process    The chemical reactions and pathways involving the phosphate group, the anion or salt of any phosphoric acid.
cellular component
    GO:0005737    cytoplasm    All of the contents of a cell excluding the plasma membrane and nucleus, but including other subcellular structures.
    GO:0005829    cytosol    The part of the cytoplasm that does not contain organelles but which does contain other particulate matter, such as protein complexes.
    GO:0016020    membrane    A lipid bilayer along with all the proteins and protein complexes embedded in it an attached to it.

 Visualization

(-) Interactive Views

Asymmetric Unit
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
(no "Ligands, Modified Residues, Ions" information available for 1mjy)

  Sites
(no "Sites" information available for 1mjy)

  Cis Peptide Bonds
    Leu A:11 - Pro A:12   [ RasMol ]
    Leu B:11 - Pro B:12   [ RasMol ]

Biological Units
  Complete Structure
    Biological Unit 1  [ Jena3D ]
    Biological Unit 2  [ Jena3D ]
