1MJT - JenaLib

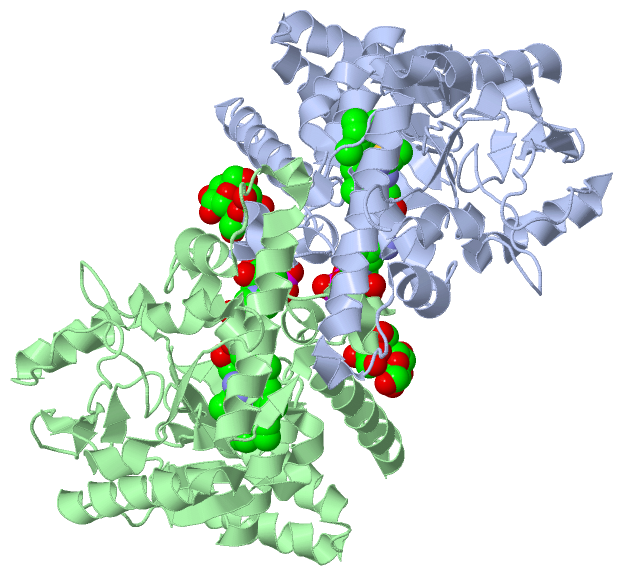

Asym./Biol. Unit (Jmol Viewer)

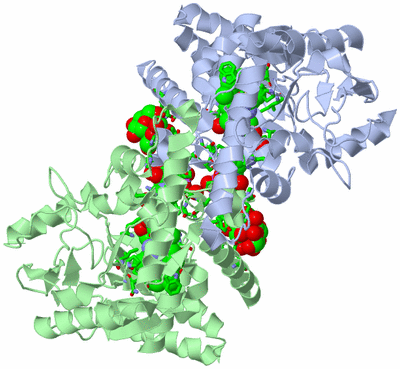

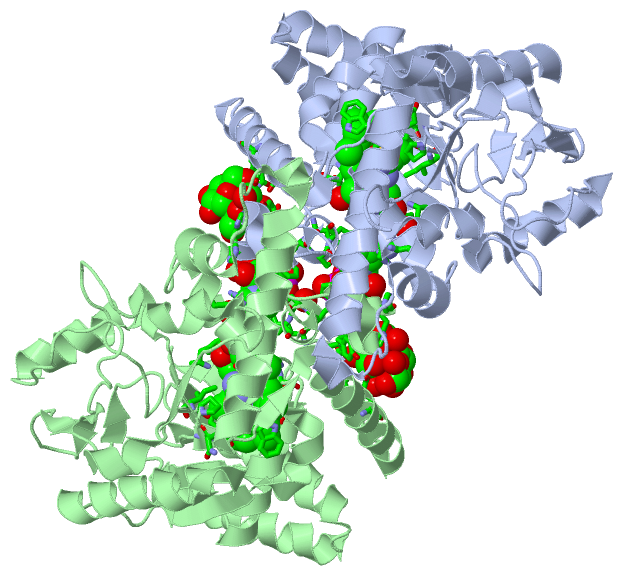

Asym./Biol. Unit - sites (Jmol Viewer)

Title :   CRYSTAL STRUCTURE OF SANOS, A BACTERIAL NITRIC OXIDE SYNTHASE OXYGENASE PROTEIN, IN COMPLEX WITH NAD+ AND SEITU

Authors :   L. E. Bird, J. Ren, D. K. Stammers

Date :   28 Aug 02 (Deposition) - 07 Jan 03 (Release) - 24 Feb 09 (Revision)

Method :   X-RAY DIFFRACTION

Resolution :   2.40

Chains :   Asym./Biol. Unit : A,B

Keywords :   Sanos, No, Nos, Bacterial, Staphylococcus Aureus, Synthase, Mrsa, Seitu, Oxidoreductase (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :   L. E. Bird, J. Ren, J. Zhang, N. Foxwell, A. R. Hawkins, I. G. Charles, D. K. Stammers
Crystal Structure Of Sanos, A Bacterial Nitric Oxide Synthase Oxygenase Protein From Staphylococcus Aureus
Structure V. 10 1687 2002
PubMed-ID: 12467576 | Reference-DOI: 10.1016/S0969-2126(02)00911-5
(for further references see the PDB file header)

Molecule 1 - NITRIC-OXIDE SYNTHASE HOMOLOG
	Chains	:	A, B
	EC Number	:	1.14.13.39
	Engineered	:	YES
	Expression System	:	ESCHERICHIA COLI BL21
	Expression System Plasmid	:	PCWORI
	Expression System Strain	:	BL21
	Expression System Taxid	:	511693
	Expression System Vector Type	:	PLASMID
	Gene	:	SANOS
	Organism Scientific	:	STAPHYLOCOCCUS AUREUS
	Organism Taxid	:	1280
	Strain	:	MRSA
	Synonym	:	NITRIC OXIDE SYNTHASE OXYGENASE PROTEIN

		1	2
Asymmetric/Biological Unit	:	A	B

Summary Information (see also Sequences/Alignments below)

Asymmetric/Biological Unit (4, 8)

No.	Name	Count	Type	Full Name
1	HEM	2	Ligand/Ion	PROTOPORPHYRIN IX CONTAINING FE
2	ITU	2	Ligand/Ion	ETHYLISOTHIOUREA
3	NAD	2	Ligand/Ion	NICOTINAMIDE-ADENINE-DINUCLEOTIDE
4	SUC	2	Ligand/Ion	SUCROSE

Asymmetric Unit (8, 8)

No.	Name	Evidence	Residues	Description
1	AC1	SOFTWARE	GLU B:300 , VAL B:310 , HIS B:331 , GLY B:332 , TYR B:333 , ASP B:334 , HOH B:1045 , HOH B:1123 , HOH B:1173	BINDING SITE FOR RESIDUE SUC B 600
2	AC2	SOFTWARE	GLU A:300 , GLN A:309 , VAL A:310 , HIS A:331 , GLY A:332 , TYR A:333 , ASP A:334	BINDING SITE FOR RESIDUE SUC A 601
3	AC3	SOFTWARE	TRP A:56 , SER A:59 , ARG A:61 , CYS A:62 , PHE A:222 , ASN A:223 , GLY A:224 , TRP A:225 , GLU A:230 , TRP A:316 , PHE A:342 , TYR A:344 , NAD A:700 , ITU A:800 , HOH A:1010 , HOH A:1043	BINDING SITE FOR RESIDUE HEM A 500
4	AC4	SOFTWARE	PRO A:203 , ILE A:205 , PHE A:222 , TRP A:225 , GLU A:230 , HEM A:500	BINDING SITE FOR RESIDUE ITU A 800
5	AC5	SOFTWARE	ARG A:234 , LYS A:313 , SER A:315 , TRP A:316 , HEM A:500 , TRP B:314 , TYR B:329 , HIS B:330 , HIS B:331 , GLY B:332	BINDING SITE FOR RESIDUE NAD A 700
6	AC6	SOFTWARE	NAD A:701 , TRP B:56 , SER B:59 , ARG B:61 , CYS B:62 , PHE B:222 , ASN B:223 , GLY B:224 , TRP B:225 , GLU B:230 , TRP B:316 , PHE B:342 , TYR B:344 , ITU B:801	BINDING SITE FOR RESIDUE HEM B 501
7	AC7	SOFTWARE	PRO B:203 , ILE B:205 , PHE B:222 , TRP B:225 , GLU B:230 , HEM B:501	BINDING SITE FOR RESIDUE ITU B 801
8	AC8	SOFTWARE	TRP A:314 , TYR A:329 , HIS A:330 , HIS A:331 , GLY A:332 , HOH A:1200 , HOH A:1259 , ARG B:234 , LYS B:313 , SER B:315 , TRP B:316 , HEM B:501 , HOH B:1012	BINDING SITE FOR RESIDUE NAD A 701

(no "SS Bond" information available for 1MJT)

Asymmetric/Biological Unit

No.	Residues
1	Asp A:339	-	Pro A:340
2	Asp B:339	-	Pro B:340

(no "SAP(SNP)/Variant" information available for 1MJT)

Asymmetric/Biological Unit (1, 2)

	PROSITE			UniProtKB		PDB
No.	ID	AC	Description	ID	Location	Count	Location
1	NOS	PS60001	Nitric oxide synthase (NOS) signature.	NOSO_STAAU	61-68	2	A:61-68 B:61-68

(no "Exon" information available for 1MJT)

Asymmetric/Biological Unit

Reformat:	Number of residues per line = ('0' or empty: single-line sequence representation)
	Number of residues per labelling interval =
	UniProt sequence: complete aligned part

Show mapping:	SCOP domains	CATH domains	Pfam domains	Secondary structure (by author)
	SAPs(SNPs)	PROSITE motifs	Exons
	(details for a mapped element are shown in a popup box when the mouse pointer rests over it)

Chain A from PDB  Type:PROTEIN  Length:346
 aligned with NOSO_STAAU | P0A004 from UniProtKB/Swiss-Prot  Length:358

    Alignment length:346
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150       160       170       180       190       200       210       220       230       240       250       260       270       280       290       300       310       320       330       340
           NOSO_STAAU     1 MLFKEAQAFIENMYKECHYETQIINKRLHDIELEIKETGTYTHTEEELIYGAKMAWRNSNRCIGRLFWDSLNVIDARDVTDEASFLSSITYHITQATNEGKLKPYITIYAPKDGPKIFNNQLIRYAGYDNCGDPAEKEVTRLANHLGWKGKGTNFDVLPLIYQLPNESVKFYEYPTSLIKEVPIEHNHYPKLRKLNLKWYAVPIISNMDLKIGGIVYPTAPFNGWYMVTEIGVRNFIDDYRYNLLEKVADAFEFDTLKNNSFNKDRALVELNYAVYHSFKKEGVSIVDHLTAAKQFELFERNEAQQGRQVTGKWSWLAPPLSPTLTSNYHHGYDNTVKDPNFFYKK 346
               SCOP domains d1mjta_ A: Nitric oxide (NO) synthase oxygenase domain                                                                                                                                                                                                                                                                                                     SCOP domains
               CATH domains 1mjtA01 A:1-77,A:104-114,A:209-223,A:293-317                                 1mjtA02                   1mjtA01    1mjtA02 A:78-103,A:115-180,A:344-346                              1mjtA03                -----1mjtA01        --1mjtA03 A:181-203,A:226-291                                       -1mjtA01                  --------------------------1mj CATH domains
               Pfam domains ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author hhhhhhhhhhhhhhhhh..hhhhhhhhhhhhhhhhhhh.....hhhhhhhhhhhhhhh.....hhhhhhhheeeee....hhhhhhhhhhhhhhhhhhhhh...eeeee......ee...............hhhhhhhhhhhhhhh............eeee......eee..hhhhh.eee.....hhhhhhhh.eee...ee..eeeee..eee....ee...hhhhhhhhhhhh.....hhhhhhhhh.....hhhhhhhhhhhhhhhhhhhhhhhhh.....hhhhhhhhhhhhhhhhhh.......hhhhhh...hhhhhhhhhh.........eeee.. Sec.struct. author
                 SAPs(SNPs) ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ------------------------------------------------------------NOS     -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 1mjt A   1 HLFKEAQAFIENMYKECHYETQIINKRLHDIELEIKETGTYTHTEEELIYGAKMAWRNSNRCIGRLFWDSLNVIDARDVTDEASFLSSITYHITQATNEGKLKPYITIYAPKDGPKIFNNQLIRYAGYDNCGDPAEKEVTRLANHLGWKGKGTNFDVLPLIYQLPNESVKFYEYPTSLIKEVPIEHNHYPKLRKLNLKWYAVPIISNMDLKIGGIVYPTAPFNGWYMVTEIGVRNFIDDYRYNLLEKVADAFEFDTLKNNSFNKDRALVELNYAVYHSFKKEGVSIVDHLTAAKQFELFERNEAQQGRQVTGKWSWLAPPLSPTLTSNYHHGYDNTVKDPNFFYKK 346
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150       160       170       180       190       200       210       220       230       240       250       260       270       280       290       300       310       320       330       340

Chain B from PDB  Type:PROTEIN  Length:347
 aligned with NOSO_STAAU | P0A004 from UniProtKB/Swiss-Prot  Length:358

    Alignment length:347
                             1
                             |       9        19        29        39        49        59        69        79        89        99       109       119       129       139       149       159       169       179       189       199       209       219       229       239       249       259       269       279       289       299       309       319       329       339
           NOSO_STAAU     - -MLFKEAQAFIENMYKECHYETQIINKRLHDIELEIKETGTYTHTEEELIYGAKMAWRNSNRCIGRLFWDSLNVIDARDVTDEASFLSSITYHITQATNEGKLKPYITIYAPKDGPKIFNNQLIRYAGYDNCGDPAEKEVTRLANHLGWKGKGTNFDVLPLIYQLPNESVKFYEYPTSLIKEVPIEHNHYPKLRKLNLKWYAVPIISNMDLKIGGIVYPTAPFNGWYMVTEIGVRNFIDDYRYNLLEKVADAFEFDTLKNNSFNKDRALVELNYAVYHSFKKEGVSIVDHLTAAKQFELFERNEAQQGRQVTGKWSWLAPPLSPTLTSNYHHGYDNTVKDPNFFYKK 346
               SCOP domains d1mjtb_ B: Nitric oxide (NO) synthase oxygenase domain                                                                                                                                                                                                                                                                                                      SCOP domains
               CATH domains 1mjtB01 B:0-77,B:104-114,B:209-223,B:293-317                                  1mjtB02                   1mjtB01    1mjtB02 B:78-103,B:115-180,B:344-346                              1mjtB03                -----1mjtB01        --1mjtB03 B:181-203,B:226-291                                       -1mjtB01                  --------------------------1mj CATH domains
           Pfam domains (1) --NO_synthase-1mjtB01 B:2-346                                                                                                                                                                                                                                                                                                                               Pfam domains (1)
           Pfam domains (2) --NO_synthase-1mjtB02 B:2-346                                                                                                                                                                                                                                                                                                                               Pfam domains (2)
         Sec.struct. author hhhhhhhhhhhhhhhhhh..hhhhhhhhhhhhhhhhhhhh....hhhhhhhhhhhhhhh.....hhhhhhhheeeee....hhhhhhhhhhhhhhhhhhhhh...eeeee......ee...............hhhhhhhhhhhhhh.............eeee......eee..hhhhh.eee.....hhhhhhhh.eee...ee..eeeee..eee....ee..eehhhhhhhhhhh.....hhhhhhhhh.....hhhhhhhhhhhhhhhhhhhhhhhhh...eehhhhhhhhhhhhhhhhhhh......hhhhhh...hhhhhhhhhh.........eeee.. Sec.struct. author
                 SAPs(SNPs) ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE -------------------------------------------------------------NOS     -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 1mjt B   0 HHLFKEAQAFIENMYKECHYETQIINKRLHDIELEIKETGTYTHTEEELIYGAKMAWRNSNRCIGRLFWDSLNVIDARDVTDEASFLSSITYHITQATNEGKLKPYITIYAPKDGPKIFNNQLIRYAGYDNCGDPAEKEVTRLANHLGWKGKGTNFDVLPLIYQLPNESVKFYEYPTSLIKEVPIEHNHYPKLRKLNLKWYAVPIISNMDLKIGGIVYPTAPFNGWYMVTEIGVRNFIDDYRYNLLEKVADAFEFDTLKNNSFNKDRALVELNYAVYHSFKKEGVSIVDHLTAAKQFELFERNEAQQGRQVTGKWSWLAPPLSPTLTSNYHHGYDNTVKDPNFFYKK 346
                                     9        19        29        39        49        59        69        79        89        99       109       119       129       139       149       159       169       179       189       199       209       219       229       239       249       259       269       279       289       299       309       319       329       339

Legend:		→ Mismatch	(orange background)
	-	→ Gap	(green background, '-', border residues have a numbering label)
		→ Modified Residue	(blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
	x	→ Chemical Group	(purple background, 'x', labelled with number + name, e.g. ACE or NH2)
	extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '\|'

Asymmetric/Biological Unit

Classes(

)

Folds(

)

Superfamilies( (-)

)

Families(

)

Protein Domains( (-)

)

Organisms( (-)

)

Class: Alpha and beta proteins (a+b) (23004)

Fold: Nitric oxide (NO) synthase oxygenase domain (313)

Superfamily: Nitric oxide (NO) synthase oxygenase domain (313)

Family: Nitric oxide (NO) synthase oxygenase domain (313)

Protein domain: Nitric oxide (NO) synthase oxygenase domain (298)

Staphylococcus aureus [TaxId: 1280] (1)

1a	d1mjta_	A:
1b	d1mjtb_	B:

Asymmetric/Biological Unit

Clans(

)

Families(

)

Organisms( (-)

)

Clan: no clan defined [family: NO_synthase] (140)

Family: NO_synthase (140)

Staphylococcus aureus (1)

1a	NO_synthase-1mjtB01	B:2-346
1b	NO_synthase-1mjtB02	B:2-346

Asymmetric/Biological Unit(hide GO term definitions)

Chain A,B (NOSO_STAAU | P0A004)

molecular function
	GO:0020037	heme binding	Interacting selectively and non-covalently with heme, any compound of iron complexed in a porphyrin (tetrapyrrole) ring.
	GO:0046872	metal ion binding	Interacting selectively and non-covalently with any metal ion.
	GO:0004517	nitric-oxide synthase activity	Catalysis of the reaction: L-arginine + n NADPH + n H+ + m O2 = citrulline + nitric oxide + n NADP+.
	GO:0016491	oxidoreductase activity	Catalysis of an oxidation-reduction (redox) reaction, a reversible chemical reaction in which the oxidation state of an atom or atoms within a molecule is altered. One substrate acts as a hydrogen or electron donor and becomes oxidized, while the other acts as hydrogen or electron acceptor and becomes reduced.
biological process
	GO:0006809	nitric oxide biosynthetic process	The chemical reactions and pathways resulting in the formation of nitric oxide, nitrogen monoxide (NO), a colorless gas only slightly soluble in water.
	GO:0055114	oxidation-reduction process	A metabolic process that results in the removal or addition of one or more electrons to or from a substance, with or without the concomitant removal or addition of a proton or protons.

Asymmetric/Biological Unit
	Complete Structure
		Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
		WebMol \| AstexViewer[tm]@PDBe (Java Applets, require no local installation except for Java; loading may be slow)
		STRAP (Java WebStart application, automatic local installation, requires Java; full application with system access!)
		RasMol (require local installation)
		Molscript (VRML) (requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

	Ligands, Modified Residues, Ions
		HEM	[ RasMol \| Jena3D ]	+environment [ RasMol \| Jena3D ]
		ITU	[ RasMol \| Jena3D ]	+environment [ RasMol \| Jena3D ]
		NAD	[ RasMol \| Jena3D ]	+environment [ RasMol \| Jena3D ]
		SUC	[ RasMol \| Jena3D ]	+environment [ RasMol \| Jena3D ]

	Sites
		AC1	[ RasMol ]	+environment [ RasMol ]
		AC2	[ RasMol ]	+environment [ RasMol ]
		AC3	[ RasMol ]	+environment [ RasMol ]
		AC4	[ RasMol ]	+environment [ RasMol ]
		AC5	[ RasMol ]	+environment [ RasMol ]
		AC6	[ RasMol ]	+environment [ RasMol ]
		AC7	[ RasMol ]	+environment [ RasMol ]
		AC8	[ RasMol ]	+environment [ RasMol ]

	Cis Peptide Bonds
		Asp A:339 - Pro A:340	[ RasMol ]
		Asp B:339 - Pro B:340	[ RasMol ]

Jmol
	protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick [ Asym./Biol. Unit PNG format \| Asym./Biol. Unit - sites PNG format ](automatic orientation, automatically generated)
Molscript
	protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick [ mono PDF format \| stereo PDF format ](default orientation, automatically generated)

Access by PDB/NDB ID
	1mjt
		Family and Domain Information	:	ProDom \| SYSTERS
		General Structural Information	:	GlycoscienceDB \| MMDB \| NDB \| OCA \| PDB \| PDBe \| PDBj \| PDBsum \| PDBWiki \| PQS \| PROTEOPEDIA
		Orientation in Membranes	:	OPM
		Protein Surface	:	SURFACE
		Secondary Structure	:	DSSP (structure derived) \| HSSP (homology derived)
		Structural Genomics	:	GeneCensus
		Structural Neighbours	:	CE \| VAST
		Structure Classification	:	CATH \| Dali \| SCOP
		Validation and Original Data	:	BMRB Data View \| BMRB Restraints Grid \| EDS \| PROCHECK \| RECOORD \| WHAT_CHECK

Access by UniProt ID/Accession number
	NOSO_STAAU \| P0A004
		Comparative Protein Structure Models	:	ModBase
		Genomic Information	:	Ensembl
		Protein-protein Interaction	:	DIP
		Sequence, Family and Domain Information	:	InterPro \| Pfam \| SMART \| UniProtKB/SwissProt

Access by Enzyme Classificator (EC Number)
	1.14.13.39
		General Enzyme Information	:	BRENDA \| EC-PDB \| Enzyme \| IntEnz
		Pathway	:	KEGG \| MetaCyc

Access by Disease Identifier (MIM ID)
	(no 'MIM ID' available)
		Disease Information	:	OMIM

Access by GenAge ID
	(no 'GenAge ID' available)
		Age Related Information	:	GenAge

Access by PDB/NDB ID
		Domain Information	:	XDom
		Interatomic Contacts of Structural Units	:	CSU
		Ligand-protein Contacts	:	LPC
		Protein Cavities	:	castP
		Sequence and Secondary Structure	:	PDBCartoon
		Structure Alignment	:	STRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
		Structure and Sequence Browser	:	STING

Access by UniProt ID/Accession number
	NOSO_STAAU \| P0A004
		Protein Disorder Prediction	:	DisEMBL \| FoldIndex \| GLOBPLOT (for more information see DisProt)
