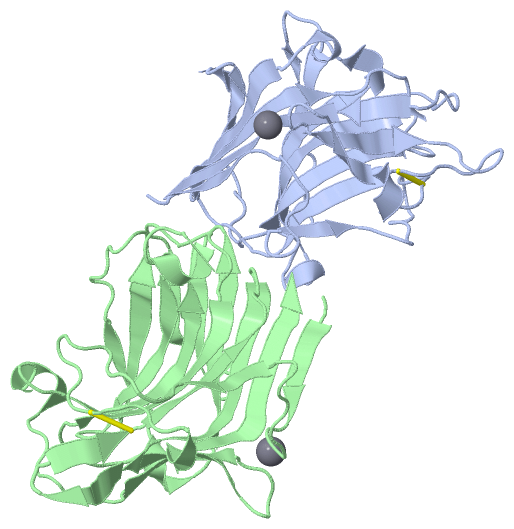

Asymmetric Unit (Jmol Viewer)

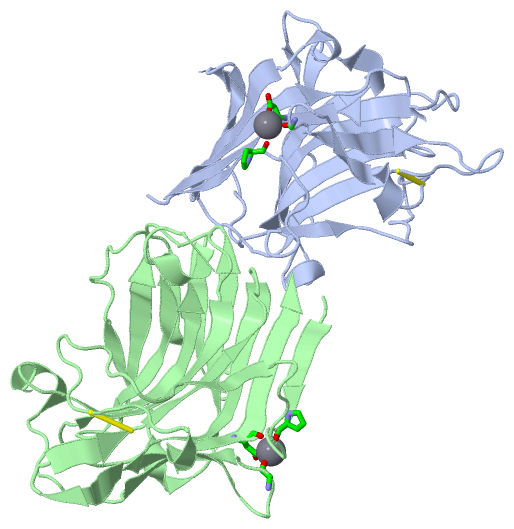

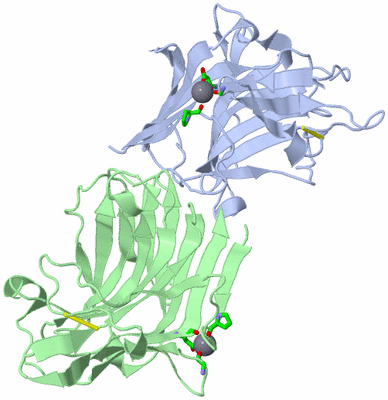

Asym. Unit - sites (Jmol Viewer)

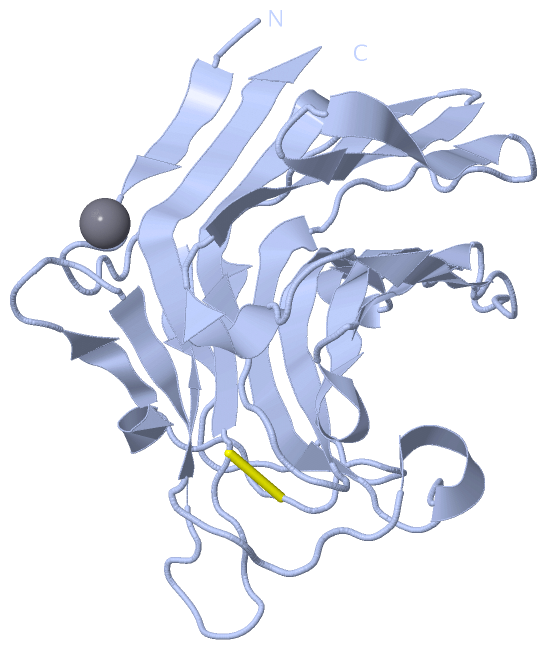

Biological Unit 1 (Jmol Viewer)

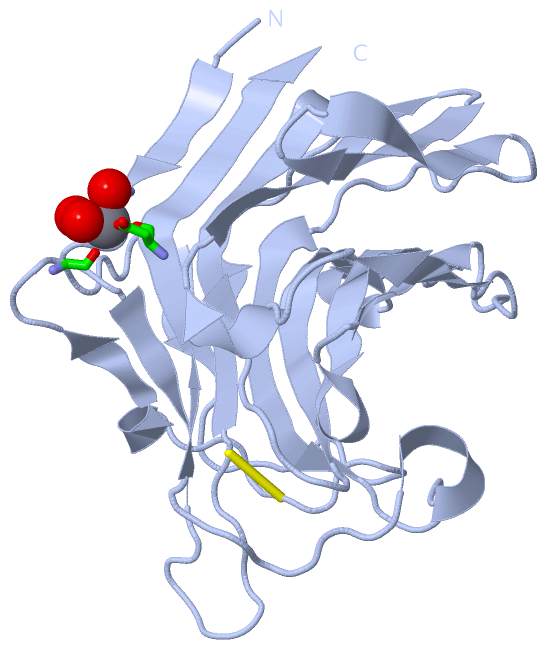

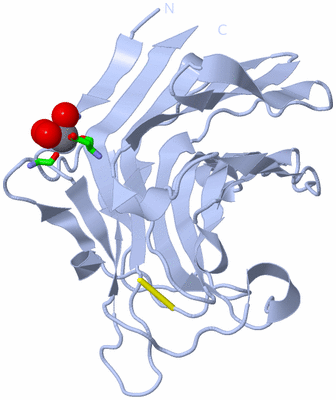

Biol. Unit 1 - sites (Jmol Viewer)

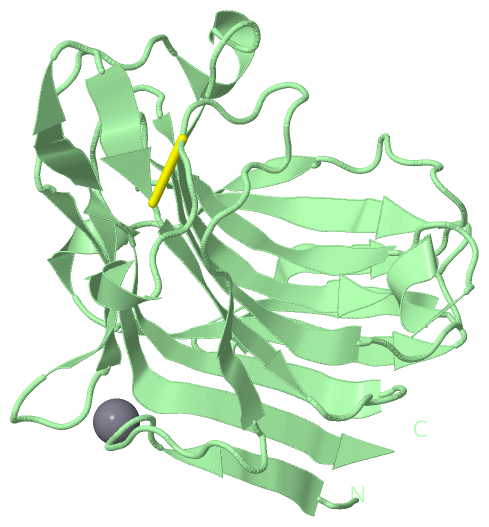

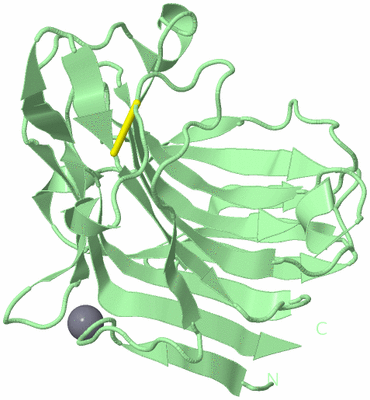

Biological Unit 2 (Jmol Viewer)

Title :   CRYSTAL STRUCTURE AND SITE-DIRECTED MUTAGENESIS OF BACILLUS MACERANS ENDO-1,3-1,4-BETA-GLUCANASE

Authors :   M. Hahn, U. Heinemann

Date :   22 Dec 94 (Deposition) - 27 Feb 95 (Release) - 24 Feb 09 (Revision)

Method :   X-RAY DIFFRACTION

Resolution :   2.30

Chains :   Asym. Unit : A,B
Biol. Unit 1: A  (1x)
Biol. Unit 2: B  (1x)

Keywords :   Hydrolase (Glucanase) (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :   M. Hahn, O. Olsen, O. Politz, R. Borriss, U. Heinemann
Crystal Structure And Site-Directed Mutagenesis Of Bacillus Macerans Endo-1, 3-1, 4-Beta-Glucanase.
J. Biol. Chem. V. 270 3081 1995
PubMed-ID: 7852389 | Reference-DOI: 10.1074/JBC.270.7.3081
(for further references see the PDB file header)

Molecule 1 - 1,3-1,4-BETA-D-GLUCAN 4-GLUCANOHYDROLASE
	Chains	:	A, B
	EC Number	:	3.2.1.73
	Engineered	:	YES
	Expression System	:	ESCHERICHIA COLI
	Expression System Plasmid	:	PBR322 PUC19
	Expression System Taxid	:	562
	Organism Scientific	:	PAENIBACILLUS MACERANS
	Organism Taxid	:	44252

		1	2
Asymmetric Unit	:	A	B
Biological Unit 1 (1x)	:	A
Biological Unit 2 (1x)	:		B

Summary Information (see also Sequences/Alignments below)

Asymmetric Unit (1, 2)

No.	Name	Count	Type	Full Name
1	CA	2	Ligand/Ion	CALCIUM ION

Biological Unit 1 (0, 0)

No.	Name	Count	Type	Full Name
1	CA	-1	Ligand/Ion	CALCIUM ION

Biological Unit 2 (0, 0)

No.	Name	Count	Type	Full Name
1	CA	-1	Ligand/Ion	CALCIUM ION

Asymmetric Unit (2, 2)

No.	Name	Evidence	Residues	Description
1	AC1	SOFTWARE	PRO A:7 , GLY A:43 , ASP A:205 , HOH A:238 , HOH A:325 , HOH A:378	BINDING SITE FOR RESIDUE CA A 388
2	AC2	SOFTWARE	PRO B:7 , GLY B:43 , ASP B:205 , HOH B:381 , HOH B:386	BINDING SITE FOR RESIDUE CA B 389

Asymmetric Unit

No.	Residues
1	A:30	-	A:59
2	B:30	-	B:59

Asymmetric Unit

No.	Residues
1	Asn A:198	-	Pro A:199
2	Asn B:198	-	Pro B:199

(no "SAP(SNP)/Variant" information available for 1MAC)

Asymmetric Unit (2, 4)

	PROSITE			UniProtKB		PDB
No.	ID	AC	Description	ID	Location	Count	Location
1	GH16_2	PS51762	Glycosyl hydrolases family 16 (GH16) domain profile.	GUB_PAEMA	28-237	2	A:3-212 B:3-212
2	GH16_1	PS01034	Glycosyl hydrolases family 16 active sites.	GUB_PAEMA	128-138	2	A:103-113 B:103-113

Biological Unit 1 (2, 2)

	PROSITE			UniProtKB		PDB
No.	ID	AC	Description	ID	Location	Count	Location
1	GH16_2	PS51762	Glycosyl hydrolases family 16 (GH16) domain profile.	GUB_PAEMA	28-237	1	A:3-212 -
2	GH16_1	PS01034	Glycosyl hydrolases family 16 active sites.	GUB_PAEMA	128-138	1	A:103-113 -

Biological Unit 2 (2, 2)

	PROSITE			UniProtKB		PDB
No.	ID	AC	Description	ID	Location	Count	Location
1	GH16_2	PS51762	Glycosyl hydrolases family 16 (GH16) domain profile.	GUB_PAEMA	28-237	1	- B:3-212
2	GH16_1	PS01034	Glycosyl hydrolases family 16 active sites.	GUB_PAEMA	128-138	1	- B:103-113

(no "Exon" information available for 1MAC)

Asymmetric Unit

Reformat:	Number of residues per line = ('0' or empty: single-line sequence representation)
	Number of residues per labelling interval =
	UniProt sequence: complete aligned part

Show mapping:	SCOP domains	CATH domains	Pfam domains	Secondary structure (by author)
	SAPs(SNPs)	PROSITE motifs	Exons
	(details for a mapped element are shown in a popup box when the mouse pointer rests over it)

Chain A from PDB  Type:PROTEIN  Length:212
 aligned with GUB_PAEMA | P23904 from UniProtKB/Swiss-Prot  Length:237

    Alignment length:212
                                    35        45        55        65        75        85        95       105       115       125       135       145       155       165       175       185       195       205       215       225       235
            GUB_PAEMA    26 GSVFWEPLSYFNRSTWEKADGYSNGGVFNCTWRANNVNFTNDGKLKLGLTSSAYNKFDCAEYRSTNIYGYGLYEVSMKPAKNTGIVSSFFTYTGPAHGTQWDEIDIEFLGKDTTKVQFNYYTNGVGGHEKVISLGFDASKGFHTYAFDWQPGYIKWYVDGVLKHTATANIPSTPGKIMMNLWNGTGVDDWLGSYNGANPLYAEYDWVKYTSN 237
               SCOP domains d1maca_ A: Bacillus 1-3,1-4-beta-glucanase                                                                                                                                                                           SCOP domains
               CATH domains 1macA00 A:1-212  [code=2.60.120.200, no name defined]                                                                                                                                                                CATH domains
               Pfam domains -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ..eeee.........eee...............hhheee.....eeeee..........eeeee......eeeeeeee......eeeeeeeee.hhh....eeeeeeeehhh..eeeeeee........eeee....hhh..eeeeeeee..eeeeee..eeeeee.........eeeeeeee....hhhh........eeeeeeeeeeee. Sec.struct. author
                 SAPs(SNPs) -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                PROSITE (1) --GH16_2  PDB: A:3-212 UniProt: 28-237                                                                                                                                                                               PROSITE (1)
                PROSITE (2) ------------------------------------------------------------------------------------------------------GH16_1     --------------------------------------------------------------------------------------------------- PROSITE (2)
                 Transcript -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 1mac A   1 GSVFWEPLSYFNPSTWEKADGYSNGGVFNCTWRANNVNFTNDGKLKLGLTSSAYNKFDCAEYRSTNIYGYGLYEVSMKPAKNTGIVSSFFTYTGPAHGTQWDEIDIEFLGKDTTKVQFNYYTNGVGGHEKVISLGFDASKGFHTYAFDWQPGYIKWYVDGVLKHTATANIPSTPGKIMMNLWNGTGVDDWLGSYNGANPLYAEYDWVKYTSN 212
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150       160       170       180       190       200       210

Chain B from PDB  Type:PROTEIN  Length:212
 aligned with GUB_PAEMA | P23904 from UniProtKB/Swiss-Prot  Length:237

    Alignment length:212
                                    35        45        55        65        75        85        95       105       115       125       135       145       155       165       175       185       195       205       215       225       235
            GUB_PAEMA    26 GSVFWEPLSYFNRSTWEKADGYSNGGVFNCTWRANNVNFTNDGKLKLGLTSSAYNKFDCAEYRSTNIYGYGLYEVSMKPAKNTGIVSSFFTYTGPAHGTQWDEIDIEFLGKDTTKVQFNYYTNGVGGHEKVISLGFDASKGFHTYAFDWQPGYIKWYVDGVLKHTATANIPSTPGKIMMNLWNGTGVDDWLGSYNGANPLYAEYDWVKYTSN 237
               SCOP domains d1macb_ B: Bacillus 1-3,1-4-beta-glucanase                                                                                                                                                                           SCOP domains
               CATH domains 1macB00 B:1-212  [code=2.60.120.200, no name defined]                                                                                                                                                                CATH domains
           Pfam domains (1) -----------------------Glyco_hydro_16-1macB01 B:24-208                                                                                                                                                          ---- Pfam domains (1)
           Pfam domains (2) -----------------------Glyco_hydro_16-1macB02 B:24-208                                                                                                                                                          ---- Pfam domains (2)
         Sec.struct. author ..eeee.........eee...............hhheee.....eeeeeeeee..eee.eeeee......eeeeeeee......eeeeeeee.hhhh.....eeeeeee.....eeeeeee........eeee....hhh..eeeeeeee..eeeeee..eeeeee.........eeeeeeee....hhhh........eeeeeeeeeeee. Sec.struct. author
                 SAPs(SNPs) -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                PROSITE (1) --GH16_2  PDB: B:3-212 UniProt: 28-237                                                                                                                                                                               PROSITE (1)
                PROSITE (2) ------------------------------------------------------------------------------------------------------GH16_1     --------------------------------------------------------------------------------------------------- PROSITE (2)
                 Transcript -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 1mac B   1 GSVFWEPLSYFNPSTWEKADGYSNGGVFNCTWRANNVNFTNDGKLKLGLTSSAYNKFDCAEYRSTNIYGYGLYEVSMKPAKNTGIVSSFFTYTGPAHGTQWDEIDIEFLGKDTTKVQFNYYTNGVGGHEKVISLGFDASKGFHTYAFDWQPGYIKWYVDGVLKHTATANIPSTPGKIMMNLWNGTGVDDWLGSYNGANPLYAEYDWVKYTSN 212
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150       160       170       180       190       200       210

Legend:		→ Mismatch	(orange background)
	-	→ Gap	(green background, '-', border residues have a numbering label)
		→ Modified Residue	(blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
	x	→ Chemical Group	(purple background, 'x', labelled with number + name, e.g. ACE or NH2)
	extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '\|'

Asymmetric Unit

Classes(

)

Folds(

)

Superfamilies( (-)

)

Families(

)

Protein Domains( (-)

)

Organisms( (-)

)

Class: All beta proteins (24004)

Fold: Concanavalin A-like lectins/glucanases (797)

Superfamily: Concanavalin A-like lectins/glucanases (797)

Family: Glycosyl hydrolases family 16 (29)

Protein domain: Bacillus 1-3,1-4-beta-glucanase (15)

Bacillus macerans [TaxId: 44252] (6)

1a	d1maca_	A:
1b	d1macb_	B:

Asymmetric Unit

Classes(

)

Architectures( (-)

)

Topologies( (-)

)

Homologous Superfamilies( (-)

)

Organisms( (-)

)

Class: Mainly Beta (13760)

Architecture: Sandwich (5577)

Topology: Jelly Rolls (1293)

Homologous Superfamily: [code=2.60.120.200, no name defined] (421)

Paenibacillus macerans. Organism_taxid: 44252. (3)

1a	1macA00	A:1-212
1b	1macB00	B:1-212

Asymmetric Unit

Clans(

)

Families(

)

Organisms( (-)

)

Clan: Concanavalin (293)

Family: Glyco_hydro_16 (16)

Paenibacillus macerans (Bacillus macerans) (2)

1a	Glyco_hydro_16-1macB01	B:24-208
1b	Glyco_hydro_16-1macB02	B:24-208

Asymmetric Unit(hide GO term definitions)

Chain A,B (GUB_PAEMA | P23904)

molecular function
	GO:0016787	hydrolase activity	Catalysis of the hydrolysis of various bonds, e.g. C-O, C-N, C-C, phosphoric anhydride bonds, etc. Hydrolase is the systematic name for any enzyme of EC class 3.
	GO:0016798	hydrolase activity, acting on glycosyl bonds	Catalysis of the hydrolysis of any glycosyl bond.
	GO:0004553	hydrolase activity, hydrolyzing O-glycosyl compounds	Catalysis of the hydrolysis of any O-glycosyl bond.
	GO:0042972	licheninase activity	Catalysis of the hydrolysis of (1->4)-beta-D-glucosidic linkages in beta-D-glucans containing (1->3) and (1->4) bonds.
biological process
	GO:0005975	carbohydrate metabolic process	The chemical reactions and pathways involving carbohydrates, any of a group of organic compounds based of the general formula Cx(H2O)y. Includes the formation of carbohydrate derivatives by the addition of a carbohydrate residue to another molecule.
	GO:0008152	metabolic process	The chemical reactions and pathways, including anabolism and catabolism, by which living organisms transform chemical substances. Metabolic processes typically transform small molecules, but also include macromolecular processes such as DNA repair and replication, and protein synthesis and degradation.

Asymmetric Unit
	Complete Structure
		Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
		WebMol \| AstexViewer[tm]@PDBe (Java Applets, require no local installation except for Java; loading may be slow)
		STRAP (Java WebStart application, automatic local installation, requires Java; full application with system access!)
		RasMol (require local installation)
		Molscript (VRML) (requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

	Ligands, Modified Residues, Ions
		CA	[ RasMol \| Jena3D ]	+environment [ RasMol \| Jena3D ]

	Sites
		AC1	[ RasMol ]	+environment [ RasMol ]
		AC2	[ RasMol ]	+environment [ RasMol ]

	Cis Peptide Bonds
		Asn A:198 - Pro A:199	[ RasMol ]
		Asn B:198 - Pro B:199	[ RasMol ]

Biological Units
	Complete Structure
		Biological Unit 1	[ Jena3D ]
		Biological Unit 2	[ Jena3D ]

Jmol
	protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick [ Asym. Unit PNG format \| Asym. Unit - sites PNG format \| Biol. Unit 1 PNG format \| Biol. Unit 1 - sites PNG format \| Biol. Unit 2 PNG format ](automatic orientation, automatically generated)
Molscript
	protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick [ mono PDF format \| stereo PDF format ](default orientation, automatically generated)

Access by PDB/NDB ID
	1mac
		Family and Domain Information	:	ProDom \| SYSTERS
		General Structural Information	:	GlycoscienceDB \| MMDB \| NDB \| OCA \| PDB \| PDBe \| PDBj \| PDBsum \| PDBWiki \| PQS \| PROTEOPEDIA
		Orientation in Membranes	:	OPM
		Protein Surface	:	SURFACE
		Secondary Structure	:	DSSP (structure derived) \| HSSP (homology derived)
		Structural Genomics	:	GeneCensus
		Structural Neighbours	:	CE \| VAST
		Structure Classification	:	CATH \| Dali \| SCOP
		Validation and Original Data	:	BMRB Data View \| BMRB Restraints Grid \| EDS \| PROCHECK \| RECOORD \| WHAT_CHECK

Access by UniProt ID/Accession number
	GUB_PAEMA \| P23904
		Comparative Protein Structure Models	:	ModBase
		Genomic Information	:	Ensembl
		Protein-protein Interaction	:	DIP
		Sequence, Family and Domain Information	:	InterPro \| Pfam \| SMART \| UniProtKB/SwissProt

Access by Enzyme Classificator (EC Number)
	3.2.1.73
		General Enzyme Information	:	BRENDA \| EC-PDB \| Enzyme \| IntEnz
		Pathway	:	KEGG \| MetaCyc

Access by Disease Identifier (MIM ID)
	(no 'MIM ID' available)
		Disease Information	:	OMIM

Access by GenAge ID
	(no 'GenAge ID' available)
		Age Related Information	:	GenAge

Access by PDB/NDB ID
		Domain Information	:	XDom
		Interatomic Contacts of Structural Units	:	CSU
		Ligand-protein Contacts	:	LPC
		Protein Cavities	:	castP
		Sequence and Secondary Structure	:	PDBCartoon
		Structure Alignment	:	STRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
		Structure and Sequence Browser	:	STING

Access by UniProt ID/Accession number
	GUB_PAEMA \| P23904
		Protein Disorder Prediction	:	DisEMBL \| FoldIndex \| GLOBPLOT (for more information see DisProt)

UniProtKB/Swiss-Prot
	GUB_PAEMA \| P23904	:	1ajk 1ajo 1axk 1byh 1cpm 1cpn 1glh 1u0a 2ayh
