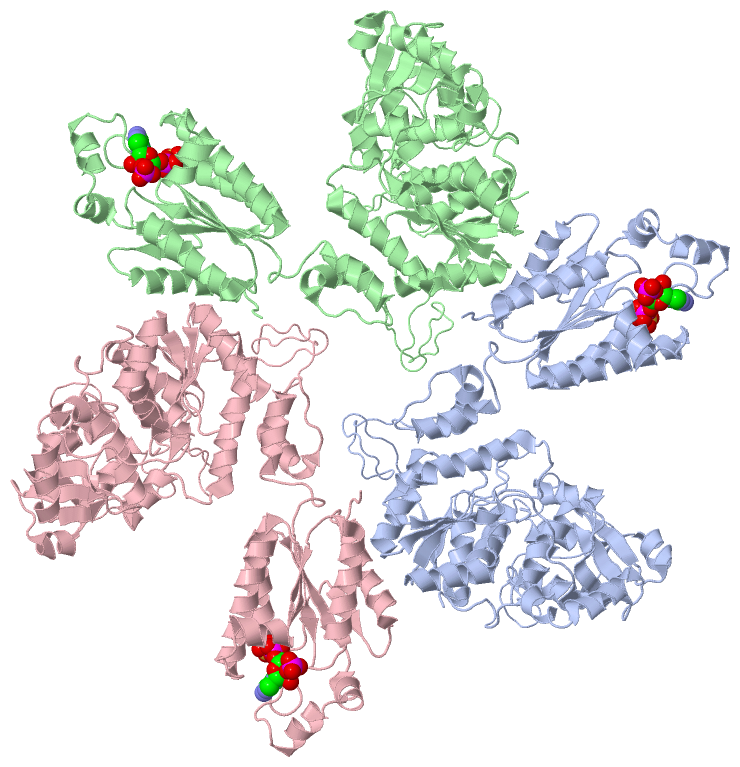

Image Asymmetric Unit
Asymmetric Unit  (Jmol Viewer)

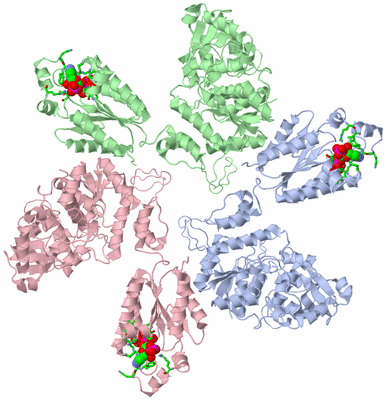

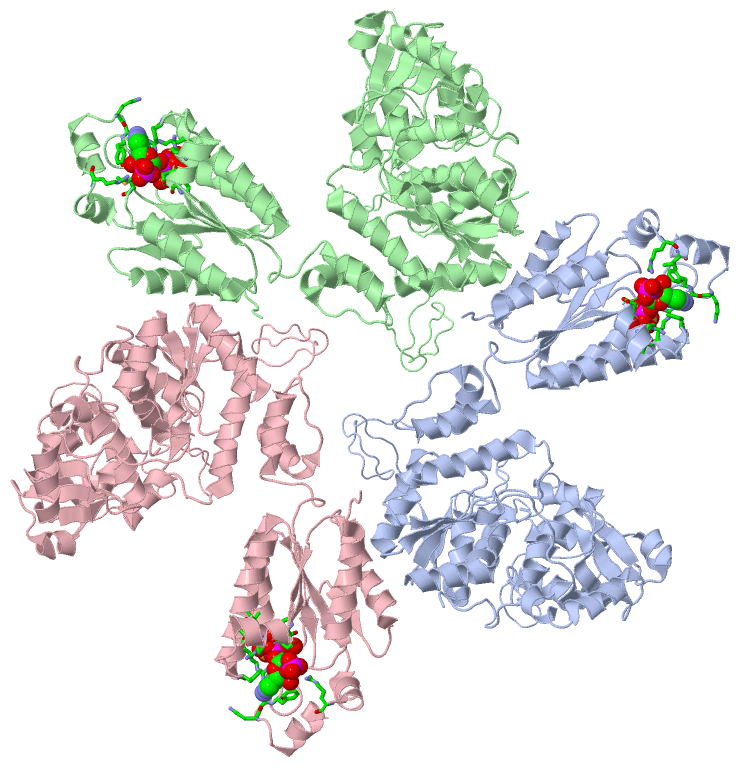

Image Asym. Unit - sites
Asym. Unit - sites  (Jmol Viewer)

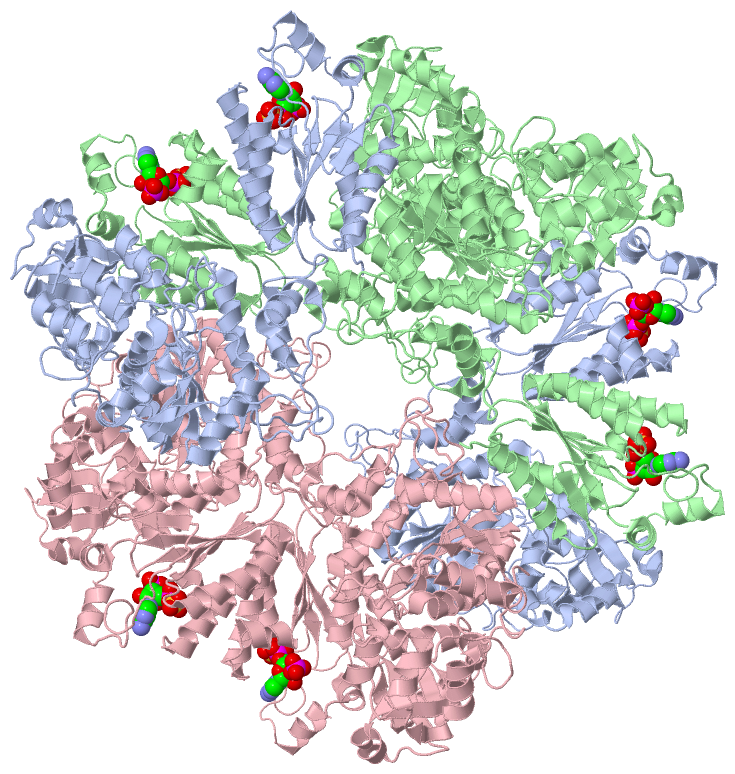

Image Biological Unit 1
Biological Unit 1  (Jmol Viewer)

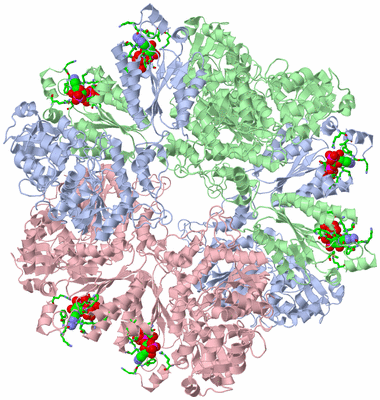

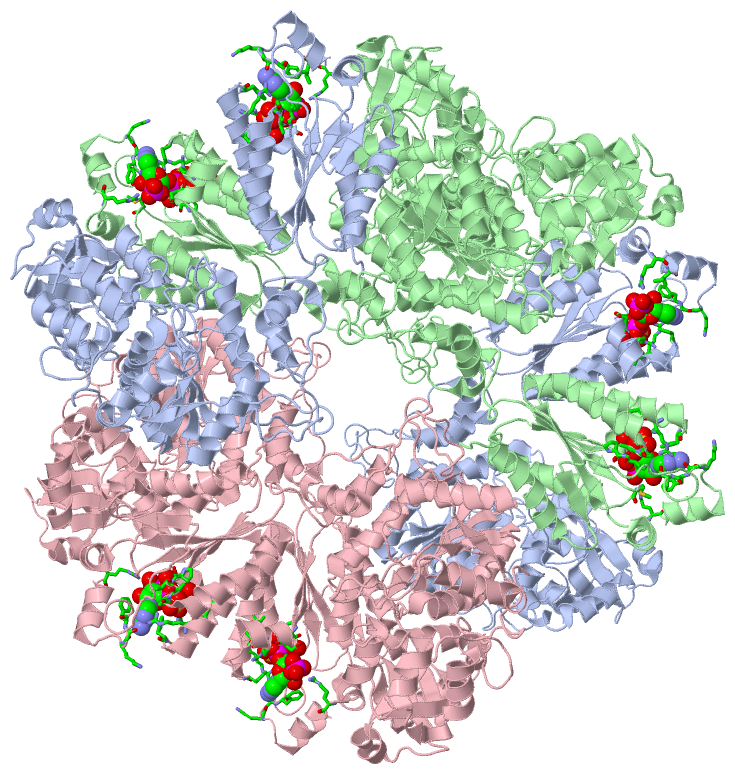

Image Biol. Unit 1 - sites
Biol. Unit 1 - sites  (Jmol Viewer)

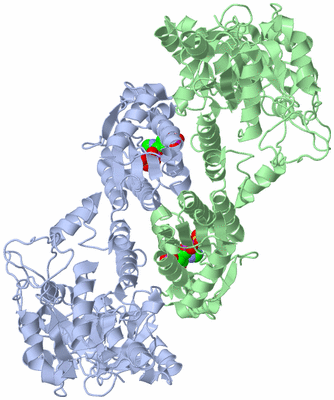

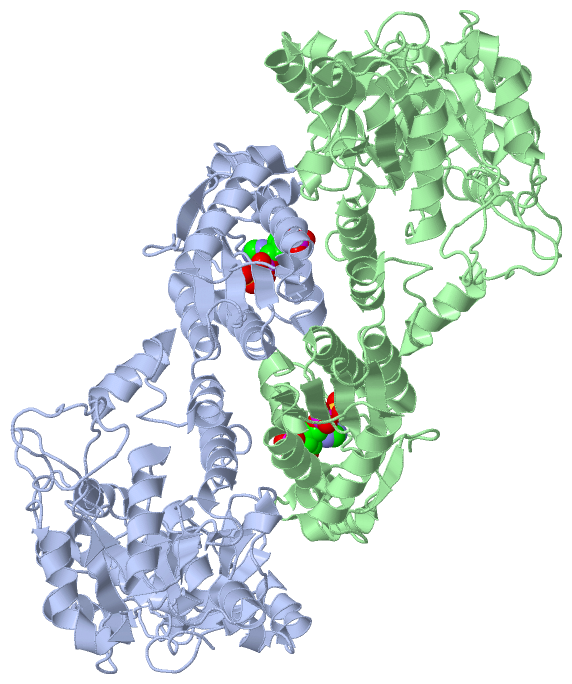

Image Biological Unit 2
Biological Unit 2  (Jmol Viewer)

(-) Description

Title :  CRYSTAL STRUCTURE OF P. CHRYSOGENUM ATP SULFURYLASE IN THE T-STATE

Authors :  I. J. Macrae, I. H. Segel, A. J. Fisher
Date :  25 Jul 02  (Deposition) - 27 Nov 02  (Release) - 13 Jul 11  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  2.60
Chains :  Asym. Unit :  A,B,C
Biol. Unit 1:  A,B,C  (2x)
Biol. Unit 2:  A (1x),B (1x)
Keywords :  Rossmann Fold, Phosphosulfate Binding, T-State, Transferase (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  I. J. Macrae, I. H. Segel, A. J. Fisher
Allosteric Inhibition Via R-State Destabilization In Atp Sulfurylase From Penicillium Chrysogenum
Nat. Struct. Biol. V. 9 945 2002
PubMed-ID: 12426581  |  Reference-DOI: 10.1038/NSB868

(-) Compounds

Molecule 1 - SULFATE ADENYLYLTRANSFERASE
    Chains: A, B, C
    EC Number: 2.7.7.4
    Engineered: YES
    Expression System: ESCHERICHIA COLI BL21(DE3)
    Expression System Plasmid: PET-23A(+)
    Expression System Strain: BL21(DE3)
    Expression System Taxid: 469008
    Expression System Vector Type: PLASMID
    Organism Scientific: PENICILLIUM CHRYSOGENUM
    Organism Taxid: 5076
    Synonym: ATP-SULFURYLASE, SULFATE ADENYLATE TRANSFERASE, SAT

 Structural Features

(-) Chains, Units

  123
Asymmetric Unit : ABC
Biological Unit 1 (2x): ABC
Biological Unit 2 (1x): A (1x)B (1x)

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (1, 3)

Asymmetric Unit (1, 3)
No.NameCountTypeFull Name
1PPS3Ligand/Ion3'-PHOSPHATE-ADENOSINE-5'-PHOSPHATE SULFATE
Biological Unit 1 (1, 6)
No.NameCountTypeFull Name
1PPS6Ligand/Ion3'-PHOSPHATE-ADENOSINE-5'-PHOSPHATE SULFATE
Biological Unit 2 (1, 1)
No.NameCountTypeFull Name
1PPS1Ligand/Ion3'-PHOSPHATE-ADENOSINE-5'-PHOSPHATE SULFATE

(-) Sites  (3, 3)

Asymmetric Unit (3, 3)
No.NameEvidenceResiduesDescription
1AC1SOFTWAREASP A:434 , ARG A:437 , PHE A:446 , ARG A:451 , ASN A:454 , ILE A:477 , ALA A:478 , PRO A:479 , ARG A:515 , ILE A:517 , LYS A:527 , GLY A:528 , PHE A:529 , HOH A:612BINDING SITE FOR RESIDUE PPS A 574
2AC2SOFTWAREMET B:405 , ASP B:434 , ARG B:437 , PHE B:446 , ARG B:451 , ASN B:454 , PRO B:476 , ILE B:477 , ALA B:478 , PRO B:479 , ARG B:515 , LYS B:527 , GLY B:528 , PHE B:529 , THR B:530 , HOH B:604 , HOH B:669BINDING SITE FOR RESIDUE PPS B 575
3AC3SOFTWAREASP C:434 , ARG C:437 , PHE C:446 , ARG C:451 , ASN C:454 , ILE C:455 , PRO C:476 , ILE C:477 , ALA C:478 , PRO C:479 , ARG C:515 , LYS C:527 , GLY C:528 , PHE C:529 , HOH C:699 , HOH C:740BINDING SITE FOR RESIDUE PPS C 576

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 1M8P)

(-) Cis Peptide Bonds  (3, 3)

Asymmetric Unit
No.Residues
1Ser A:53 -Pro A:54
2Ser B:53 -Pro B:54
3Ser C:53 -Pro C:54

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 1M8P)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 1M8P)

(-) Exons   (0, 0)

(no "Exon" information available for 1M8P)

(-) Sequences/Alignments

Asymmetric Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:573
 aligned with MET3_PENCH | Q12650 from UniProtKB/Swiss-Prot  Length:572

    Alignment length:573
                                                                                                                                                                                                                                                                                                                                                                                                           369
                                                                                                                                                                                                                                                                                                                                                                                                         368 |
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150       160       170       180       190       200       210       220       230       240       250       260       270       280       290       300       310       320       330       340       350       360       369       379       389       399       409       419       429       439       449       459       469       479       489       499       509       519       529       539       549       559       569
           MET3_PENCH     1 MANAPHGGVLKDLLARDAPRQAELAAEAESLPAVTLTERQLCDLELIMNGGFSPLEGFMNQADYDRVCEDNRLADGNVFSMPITLDASQEVIDEKKLQAASRITLRDFRDDRNLAILTIDDIYRPDKTKEAKLVFGGDPEHPAIVYLNNTVKEFYIGGKIEAVNKLNHYDYVALRYTPAELRVHFDKLGWSRVVAFQTRNPMHRAHRELTVRAARSRQANVLIHPVVGLTKPGDIDHFTRVRAYQALLPRYPNGMAVLGLLGLAMRMGGPREAIWHAIIRKNHGATHFIVGRDHAGPGSNSKGEDFYGPYDAQHAVEKYKDELGIEVVEFQMVTYLPDTDEYRPVDQVPAGVKTLNISGTELRRRLRS-AHIPEWFSYPEVVKILRESNPPRATQGFTIFLTGYMNSGKDAIARALQVTLNQQGGRSVSLLLGDTVRHELSSELGFTREDRHTNIQRIAFVATELTRAGAAVIAAPIAPYEESRKFARDAVSQAGSFFLVHVATPLEHCEQSDKRGIYAAARRGEIKGFTGVDDPYETPEKADLVVDFSKQSVRSIVHEIILVLESQGFLERQ 572
               SCOP domains d1m8pa1 A:1-170 ATP sulfurylase N-terminal domain                                                                                                                         d1m8pa2 A:171-390 ATP sulfurylase catalytic domain                                                                                                                                                                          d1m8pa3 A:391-573 ATP sulfurylase C-terminal domain                                                                                                                                     SCOP domains
               CATH domains -1m8pA02 A:2-189 Sulfate adenylyltransferase                                                                                                                                                 1m8pA01 A:190-389 Tyrosyl-Transfer RNA Synthetase , subunit E, domain 1                                                                                                                                 1m8pA03 A:390-573 P-loop containing nucleotide triphosphate hydrolases                                                                                                                   CATH domains
               Pfam domains --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ...........hhhhhh..hhhhhhhhhh...eeeehhhhhhhhhhhhh.......ee.hhhhhhhhhhhh..............eehhhhhhhh......eeeeee.....eeeeeee......hhhhhhhhh......hhhhhhhhhh...ee..eeeee........hhhhh.hhhhhhhhhhhh....eeee......hhhhhhhhhhhhhhh..eeee..........hhhhhhhhhhhhhhhhhh....eee.........hhhhhhhhhhhhhhhhh..eeee...................hhhhhhhhhhhhhhh.eeee............................hhhhhhhhhhhh........hhhhhhhhhh.........eeeeee.....hhhhhhhhhhhhhhhhh...eeeeehhhhhhhh......hhhhhhhhhhhhhhhhhhhhhh..eeeee....hhhhhhhhhhhhhh..eeeeeee..hhhhhhhhh..hhhhhhhh....................eee.....hhhhhhhhhhhhhhhh...... Sec.struct. author
                 SAPs(SNPs) --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 1m8p A   1 MANAPHGGVLKDLLARDAPRQAELAAEAESLPAVTLTERQLCDLELIMNGGFSPLEGFMNQADYDRVCEDNRLADGNVFSMPITLDASQEVIDEKKLQAASRITLRDFRDDRNLAILTIDDIYRPDKTKEAKLVFGGDPEHPAIVYLNNTVKEFYIGGKIEAVNKLNHYDYVALRYTPAELRVHFDKLGWSRVVAFQTRNPMHRAHRELTVRAARSRQANVLIHPVVGLTKPGDIDHFTRVRAYQALLPRYPNGMAVLGLLGLAMRMGGPREAIWHAIIRKNHGATHFIVGRDHAGPGSNSKGEDFYGPYDAQHAVEKYKDELGIEVVEFQMVTYLPDTDEYRPVDQVPAGVKTLNISGTELRRRLRSGAHIPEWFSYPEVVKILRESNPPRATQGFTIFLTGYMNSGKDAIARALQVTLNQQGGRSVSLLLGDTVRHELSSELGFTREDRHTNIQRIAFVATELTRAGAAVIAAPIAPYEESRKFARDAVSQAGSFFLVHVATPLEHCEQSDKRGIYAAARRGEIKGFTGVDDPYETPEKADLVVDFSKQSVRSIVHEIILVLESQGFLERQ 573
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150       160       170       180       190       200       210       220       230       240       250       260       270       280       290       300       310       320       330       340       350       360       370       380       390       400       410       420       430       440       450       460       470       480       490       500       510       520       530       540       550       560       570


Chain B from PDB  Type:PROTEIN  Length:573
 aligned with MET3_PENCH | Q12650 from UniProtKB/Swiss-Prot  Length:572

    Alignment length:573
                                                                                                                                                                                                                                                                                                                                                                                                           369
                                                                                                                                                                                                                                                                                                                                                                                                         368 |
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150       160       170       180       190       200       210       220       230       240       250       260       270       280       290       300       310       320       330       340       350       360       369       379       389       399       409       419       429       439       449       459       469       479       489       499       509       519       529       539       549       559       569
           MET3_PENCH     1 MANAPHGGVLKDLLARDAPRQAELAAEAESLPAVTLTERQLCDLELIMNGGFSPLEGFMNQADYDRVCEDNRLADGNVFSMPITLDASQEVIDEKKLQAASRITLRDFRDDRNLAILTIDDIYRPDKTKEAKLVFGGDPEHPAIVYLNNTVKEFYIGGKIEAVNKLNHYDYVALRYTPAELRVHFDKLGWSRVVAFQTRNPMHRAHRELTVRAARSRQANVLIHPVVGLTKPGDIDHFTRVRAYQALLPRYPNGMAVLGLLGLAMRMGGPREAIWHAIIRKNHGATHFIVGRDHAGPGSNSKGEDFYGPYDAQHAVEKYKDELGIEVVEFQMVTYLPDTDEYRPVDQVPAGVKTLNISGTELRRRLRS-AHIPEWFSYPEVVKILRESNPPRATQGFTIFLTGYMNSGKDAIARALQVTLNQQGGRSVSLLLGDTVRHELSSELGFTREDRHTNIQRIAFVATELTRAGAAVIAAPIAPYEESRKFARDAVSQAGSFFLVHVATPLEHCEQSDKRGIYAAARRGEIKGFTGVDDPYETPEKADLVVDFSKQSVRSIVHEIILVLESQGFLERQ 572
               SCOP domains d1m8pb1 B:1-170 ATP sulfurylase N-terminal domain                                                                                                                         d1m8pb2 B:171-390 ATP sulfurylase catalytic domain                                                                                                                                                                          d1m8pb3 B:391-573 ATP sulfurylase C-terminal domain                                                                                                                                     SCOP domains
               CATH domains -1m8pB02 B:2-189 Sulfate adenylyltransferase                                                                                                                                                 1m8pB01 B:190-389 Tyrosyl-Transfer RNA Synthetase , subunit E, domain 1                                                                                                                                 1m8pB03 B:390-572 P-loop containing nucleotide triphosphate hydrolases                                                                                                                 - CATH domains
               Pfam domains --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ...........hhhhhhh.hhhhhhhhhhhh.eeeehhhhhhhhhhhhh.......ee.hhhhhhhhhhhh..............eehhhhhhhh......eeeeee.....eeeeeeeeeee..hhhhhhhhhhh....hhhhhhhh.....eeeeeeeee........hhhhh.hhhhhhhhhhhh....eeeeee....hhhhhhhhhhhhhhh..eeeeeeee......hhhhhhhhhhhhhhhhhh....eee..ee.....hhhhhhhhhhhhhhhh...eeee...................hhhhhhhhhhhhhhh.eeee............................hhhhhhhhhhhh........hhhhhhhhhh.........eeeeee.....hhhhhhhhhhhhhhhhh...eeeeehhhhhhhh......hhhhhhhhhhhhhhhhhhhhhh..eeeee....hhhhhhhhhhhhhh..eeeeeee..hhhhhhhhh..hhhhhhhh....................eee.....hhhhhhhhhhhhhhhh...... Sec.struct. author
                 SAPs(SNPs) --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 1m8p B   1 MANAPHGGVLKDLLARDAPRQAELAAEAESLPAVTLTERQLCDLELIMNGGFSPLEGFMNQADYDRVCEDNRLADGNVFSMPITLDASQEVIDEKKLQAASRITLRDFRDDRNLAILTIDDIYRPDKTKEAKLVFGGDPEHPAIVYLNNTVKEFYIGGKIEAVNKLNHYDYVALRYTPAELRVHFDKLGWSRVVAFQTRNPMHRAHRELTVRAARSRQANVLIHPVVGLTKPGDIDHFTRVRAYQALLPRYPNGMAVLGLLGLAMRMGGPREAIWHAIIRKNHGATHFIVGRDHAGPGSNSKGEDFYGPYDAQHAVEKYKDELGIEVVEFQMVTYLPDTDEYRPVDQVPAGVKTLNISGTELRRRLRSGAHIPEWFSYPEVVKILRESNPPRATQGFTIFLTGYMNSGKDAIARALQVTLNQQGGRSVSLLLGDTVRHELSSELGFTREDRHTNIQRIAFVATELTRAGAAVIAAPIAPYEESRKFARDAVSQAGSFFLVHVATPLEHCEQSDKRGIYAAARRGEIKGFTGVDDPYETPEKADLVVDFSKQSVRSIVHEIILVLESQGFLERQ 573
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150       160       170       180       190       200       210       220       230       240       250       260       270       280       290       300       310       320       330       340       350       360       370       380       390       400       410       420       430       440       450       460       470       480       490       500       510       520       530       540       550       560       570


Chain C from PDB  Type:PROTEIN  Length:573
 aligned with MET3_PENCH | Q12650 from UniProtKB/Swiss-Prot  Length:572

    Alignment length:573
                                                                                                                                                                                                                                                                                                                                                                                                           369
                                                                                                                                                                                                                                                                                                                                                                                                         368 |
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150       160       170       180       190       200       210       220       230       240       250       260       270       280       290       300       310       320       330       340       350       360       369       379       389       399       409       419       429       439       449       459       469       479       489       499       509       519       529       539       549       559       569
           MET3_PENCH     1 MANAPHGGVLKDLLARDAPRQAELAAEAESLPAVTLTERQLCDLELIMNGGFSPLEGFMNQADYDRVCEDNRLADGNVFSMPITLDASQEVIDEKKLQAASRITLRDFRDDRNLAILTIDDIYRPDKTKEAKLVFGGDPEHPAIVYLNNTVKEFYIGGKIEAVNKLNHYDYVALRYTPAELRVHFDKLGWSRVVAFQTRNPMHRAHRELTVRAARSRQANVLIHPVVGLTKPGDIDHFTRVRAYQALLPRYPNGMAVLGLLGLAMRMGGPREAIWHAIIRKNHGATHFIVGRDHAGPGSNSKGEDFYGPYDAQHAVEKYKDELGIEVVEFQMVTYLPDTDEYRPVDQVPAGVKTLNISGTELRRRLRS-AHIPEWFSYPEVVKILRESNPPRATQGFTIFLTGYMNSGKDAIARALQVTLNQQGGRSVSLLLGDTVRHELSSELGFTREDRHTNIQRIAFVATELTRAGAAVIAAPIAPYEESRKFARDAVSQAGSFFLVHVATPLEHCEQSDKRGIYAAARRGEIKGFTGVDDPYETPEKADLVVDFSKQSVRSIVHEIILVLESQGFLERQ 572
               SCOP domains d1m8pc1 C:1-170 ATP sulfurylase N-terminal domain                                                                                                                         d1m8pc2 C:171-390 ATP sulfurylase catalytic domain                                                                                                                                                                          d1m8pc3 C:391-573 ATP sulfurylase C-terminal domain                                                                                                                                     SCOP domains
               CATH domains -1m8pC02 C:2-189 Sulfate adenylyltransferase                                                                                                                                                 1m8pC01 C:190-389 Tyrosyl-Transfer RNA Synthetase , subunit E, domain 1                                                                                                                                 1m8pC03 C:390-573 P-loop containing nucleotide triphosphate hydrolases                                                                                                                   CATH domains
           Pfam domains (1) --PUA_2-1m8pC07 C:3-165                                                                                                                                              -----ATP-sulfurylase-1m8pC01 C:171-389                                                                                                                                                                                          -----APS_kinase-1m8pC04 C:395-553                                                                                                                                   -------------------- Pfam domains (1)
           Pfam domains (2) --PUA_2-1m8pC08 C:3-165                                                                                                                                              -----ATP-sulfurylase-1m8pC02 C:171-389                                                                                                                                                                                          -----APS_kinase-1m8pC05 C:395-553                                                                                                                                   -------------------- Pfam domains (2)
           Pfam domains (3) --PUA_2-1m8pC09 C:3-165                                                                                                                                              -----ATP-sulfurylase-1m8pC03 C:171-389                                                                                                                                                                                          -----APS_kinase-1m8pC06 C:395-553                                                                                                                                   -------------------- Pfam domains (3)
         Sec.struct. author ...........hhhhhhh.hhhhhhhhhhhh.eee.hhhhhhhhhhhhh.......ee.hhhhhhhhhhhh.............eeehhhhhhhh......eeeee......eeeeeeeeeee..hhhhhhhhh......hhhhhhhhhh...eeeeeeeee........hhhhh.hhhhhhhhhhhh....eeee......hhhhhhhhhhhhhhh..eeee..ee......hhhhhhhhhhhhhhhhhh....eee..ee.....hhhhhhhhhhhhhhhh...eeee...................hhhhhhhhhhhhhhh.eeee............................hhhhhhhhhhhh........hhhhhhhhhh.........eeeeee.....hhhhhhhhhhhhhhhhh...eeeeehhhhhhhh......hhhhhhhhhhhhhhhhhhhhhh..eeeee....hhhhhhhhhhhhhh..eeeeeee..hhhhhhhhh..hhhhhhhh....................eee.....hhhhhhhhhhhhhhh....... Sec.struct. author
                 SAPs(SNPs) --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 1m8p C   1 MANAPHGGVLKDLLARDAPRQAELAAEAESLPAVTLTERQLCDLELIMNGGFSPLEGFMNQADYDRVCEDNRLADGNVFSMPITLDASQEVIDEKKLQAASRITLRDFRDDRNLAILTIDDIYRPDKTKEAKLVFGGDPEHPAIVYLNNTVKEFYIGGKIEAVNKLNHYDYVALRYTPAELRVHFDKLGWSRVVAFQTRNPMHRAHRELTVRAARSRQANVLIHPVVGLTKPGDIDHFTRVRAYQALLPRYPNGMAVLGLLGLAMRMGGPREAIWHAIIRKNHGATHFIVGRDHAGPGSNSKGEDFYGPYDAQHAVEKYKDELGIEVVEFQMVTYLPDTDEYRPVDQVPAGVKTLNISGTELRRRLRSGAHIPEWFSYPEVVKILRESNPPRATQGFTIFLTGYMNSGKDAIARALQVTLNQQGGRSVSLLLGDTVRHELSSELGFTREDRHTNIQRIAFVATELTRAGAAVIAAPIAPYEESRKFARDAVSQAGSFFLVHVATPLEHCEQSDKRGIYAAARRGEIKGFTGVDDPYETPEKADLVVDFSKQSVRSIVHEIILVLESQGFLERQ 573
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150       160       170       180       190       200       210       220       230       240       250       260       270       280       290       300       310       320       330       340       350       360       370       380       390       400       410       420       430       440       450       460       470       480       490       500       510       520       530       540       550       560       570
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (3, 9)

Asymmetric Unit
(-)
Class: All beta proteins (24004)
(-)
Class: Alpha and beta proteins (a/b) (23833)

(-) CATH Domains  (3, 9)

Asymmetric Unit
(-)
Class: Alpha Beta (26913)

(-) Pfam Domains  (3, 9)

Asymmetric Unit
(-)
Clan: HUP (230)
(-)
Clan: P-loop_NTPase (1112)
(-)
Clan: PUA (42)

(-) Gene Ontology  (16, 16)

Asymmetric Unit(hide GO term definitions)
Chain A,B,C   (MET3_PENCH | Q12650)
molecular function
    GO:0005524    ATP binding    Interacting selectively and non-covalently with ATP, adenosine 5'-triphosphate, a universally important coenzyme and enzyme regulator.
    GO:0004020    adenylylsulfate kinase activity    Catalysis of the reaction: ATP + adenylylsulfate = ADP + 3'-phosphoadenosine 5'-phosphosulfate.
    GO:0003824    catalytic activity    Catalysis of a biochemical reaction at physiological temperatures. In biologically catalyzed reactions, the reactants are known as substrates, and the catalysts are naturally occurring macromolecular substances known as enzymes. Enzymes possess specific binding sites for substrates, and are usually composed wholly or largely of protein, but RNA that has catalytic activity (ribozyme) is often also regarded as enzymatic.
    GO:0000166    nucleotide binding    Interacting selectively and non-covalently with a nucleotide, any compound consisting of a nucleoside that is esterified with (ortho)phosphate or an oligophosphate at any hydroxyl group on the ribose or deoxyribose.
    GO:0016779    nucleotidyltransferase activity    Catalysis of the transfer of a nucleotidyl group to a reactant.
    GO:0004781    sulfate adenylyltransferase (ATP) activity    Catalysis of the reaction: ATP + sulfate = diphosphate + adenylylsulfate.
    GO:0016740    transferase activity    Catalysis of the transfer of a group, e.g. a methyl group, glycosyl group, acyl group, phosphorus-containing, or other groups, from one compound (generally regarded as the donor) to another compound (generally regarded as the acceptor). Transferase is the systematic name for any enzyme of EC class 2.
biological process
    GO:0008652    cellular amino acid biosynthetic process    The chemical reactions and pathways resulting in the formation of amino acids, organic acids containing one or more amino substituents.
    GO:0019344    cysteine biosynthetic process    The chemical reactions and pathways resulting in the formation of cysteine, 2-amino-3-mercaptopropanoic acid.
    GO:0070814    hydrogen sulfide biosynthetic process    The chemical reactions and pathways resulting in the formation of hydrogen sulfide, H2S.
    GO:0008152    metabolic process    The chemical reactions and pathways, including anabolism and catabolism, by which living organisms transform chemical substances. Metabolic processes typically transform small molecules, but also include macromolecular processes such as DNA repair and replication, and protein synthesis and degradation.
    GO:0009086    methionine biosynthetic process    The chemical reactions and pathways resulting in the formation of methionine (2-amino-4-(methylthio)butanoic acid), a sulfur-containing, essential amino acid found in peptide linkage in proteins.
    GO:0016310    phosphorylation    The process of introducing a phosphate group into a molecule, usually with the formation of a phosphoric ester, a phosphoric anhydride or a phosphoric amide.
    GO:0000103    sulfate assimilation    The pathways by which inorganic sulfate is processed and incorporated into sulfated compounds.
    GO:0000096    sulfur amino acid metabolic process    The chemical reactions and pathways involving amino acids containing sulfur, comprising cysteine, homocysteine, methionine and selenocysteine.
cellular component
    GO:0005737    cytoplasm    All of the contents of a cell excluding the plasma membrane and nucleus, but including other subcellular structures.

 Visualization

(-) Interactive Views

Asymmetric Unit
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
    PPS  [ RasMol | Jena3D ]  +environment [ RasMol | Jena3D ]

  Sites
    AC1  [ RasMol ]  +environment [ RasMol ]
    AC2  [ RasMol ]  +environment [ RasMol ]
    AC3  [ RasMol ]  +environment [ RasMol ]

  Cis Peptide Bonds
    Ser A:53 - Pro A:54   [ RasMol ]
    Ser B:53 - Pro B:54   [ RasMol ]
    Ser C:53 - Pro C:54   [ RasMol ]

Biological Units
  Complete Structure
    Biological Unit 1  [ Jena3D ]
    Biological Unit 2  [ Jena3D ]

(-) Still Images

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick
[ Asym. Unit PNG format | Asym. Unit - sites PNG format | Biol. Unit 1 PNG format | Biol. Unit 1 - sites PNG format | Biol. Unit 2 PNG format ](automatic orientation, automatically generated)
Molscript
  protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick
[ mono PDF format | stereo PDF format ](default orientation, automatically generated)

 Databases and Analysis Tools

(-) Databases

Access by PDB/NDB ID
  1m8p
    Family and Domain Information: ProDom | SYSTERS
    General Structural Information: GlycoscienceDB | MMDB | NDB | OCA | PDB | PDBe | PDBj | PDBsum | PDBWiki | PQS | PROTEOPEDIA
    Orientation in Membranes: OPM
    Protein Surface: SURFACE
    Secondary Structure: DSSP (structure derived) | HSSP (homology derived)
    Structural Genomics: GeneCensus
    Structural Neighbours: CE | VAST
    Structure Classification: CATH | Dali | SCOP
    Validation and Original Data: BMRB Data View | BMRB Restraints Grid | EDS | PROCHECK | RECOORD | WHAT_CHECK

Access by UniProt ID/Accession number
  MET3_PENCH | Q12650
    Comparative Protein Structure Models: ModBase
    Genomic Information: Ensembl
    Protein-protein Interaction: DIP
    Sequence, Family and Domain Information: InterPro | Pfam | SMART | UniProtKB/SwissProt

Access by Enzyme Classificator   (EC Number)
  2.7.7.4
    General Enzyme Information: BRENDA | EC-PDB | Enzyme | IntEnz
    Pathway: KEGG | MetaCyc

Access by Disease Identifier   (MIM ID)
  (no 'MIM ID' available)
    Disease Information: OMIM

Access by GenAge ID
  (no 'GenAge ID' available)
    Age Related Information: GenAge

(-) Analysis Tools

Access by PDB/NDB ID
    Domain Information: XDom
    Interatomic Contacts of Structural Units: CSU
    Ligand-protein Contacts: LPC
    Protein Cavities: castP
    Sequence and Secondary Structure: PDBCartoon
    Structure Alignment: STRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    Structure and Sequence Browser: STING

Access by UniProt ID/Accession number
  MET3_PENCH | Q12650
    Protein Disorder Prediction: DisEMBL | FoldIndex | GLOBPLOT (for more information see DisProt)

 Related Entries

(-) Entries Sharing at Least One Protein Chain (UniProt ID)

UniProtKB/Swiss-Prot
        MET3_PENCH | Q12650: 1i2d

(-) Related Entries Specified in the PDB File

1g8g ATP SULFURYLASE FROM S. CEREVISIAE: THE BINARY PRODUCT COMPLEX WITH APS
1i2d CRYSTAL STRUCTURE OF P. CHRYSOGENUM ATP SULFURYLASE IN THE R-STATE
1jhd CRYSTAL STRUCTURE OF BACTERIAL ATP SULFURYLASE FROM THE RIFTIA PACHYPTILA SYMBIONT
