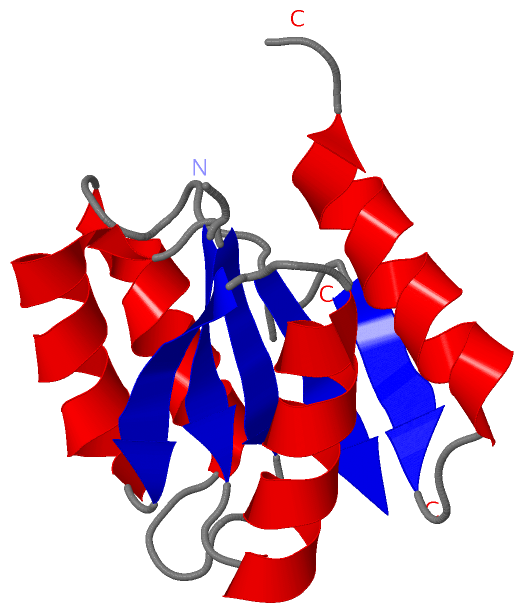

Image Asym./Biol. Unit
Asym./Biol. Unit  (Jmol Viewer)

(-) Description

Title :  CRYSTAL STRUCTURE OF THE RESPONSE REGULATOR DIVK. STRUCTURE AT PH 8.0 IN THE APO-FORM

Authors :  V. Guillet, N. Ohta, S. Cabantous, A. Newton, J. -P. Samama, Structural Proteomics In Europe (Spine)
Date :  10 Jul 02  (Deposition) - 15 Nov 02  (Release) - 24 Feb 09  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  1.87
Chains :  Asym./Biol. Unit :  A
Keywords :  Response Regulator, Signal Transduction Protein, Structural Proteomics In Europe, Spine, Structural Genomics, Signaling Protein, Cell Cycle (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  V. Guillet, N. Ohta, S. Cabantous, A. Newton, J. -P. Samama
Crystallographic And Biochemical Studies Of Divk Reveal Novel Features Of An Essential Response Regulator In Caulobacter Crescentus
J. Biol. Chem. V. 277 42003 2002
PubMed-ID: 12176983  |  Reference-DOI: 10.1074/JBC.M204789200
(for further references see the PDB file header)

(-) Compounds

Molecule 1 - CELL DIVISION RESPONSE REGULATOR DIVK
    Chains: A
    Engineered: YES
    Expression System: ESCHERICHIA COLI
    Expression System Plasmid: PT7-7 PZHF55
    Expression System Strain: BL21-DE3-PLYSS
    Expression System Taxid: 562
    Expression System Vector Type: PLASMID
    Gene: DIVK
    Organism Scientific: CAULOBACTER VIBRIOIDES
    Organism Taxid: 155892
    Other Details: STRUCTURE AT PH 8.0 IN THE APO-FORM
    Synonym: POLAR DIFFERENTIATION RESPONSE REGULATOR

 Structural Features

(-) Chains, Units

  1
Asymmetric/Biological Unit : A

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (0, 0)

(no "Ligand,Modified Residues,Ions" information available for 1M5U)

(-) Sites  (0, 0)

(no "Site" information available for 1M5U)

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 1M5U)

(-) Cis Peptide Bonds  (1, 1)

Asymmetric/Biological Unit
No.Residues
1Lys A:105 -Pro A:106

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 1M5U)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 1M5U)

(-) Exons   (0, 0)

(no "Exon" information available for 1M5U)

(-) Sequences/Alignments

Asymmetric/Biological Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:113
 aligned with Q9A5I4_CAUCR | Q9A5I4 from UniProtKB/TrEMBL  Length:130

    Alignment length:123
                                    16        26        36        46        56        66        76        86        96       106       116       126
         Q9A5I4_CAUCR     7 TKKVLIVEDNELNMKLFHDLLEAQGYETLQTREGLSALSIARENKPDLILMDIQLPEISGLEVTKWLKEDDDLAHIPVVAVTAFAMKGDEERIREGGCEAYISKPISVVHFLETIKRLLERQP 129
               SCOP domains d1m5ua_ A: Cell division response regulator DivK                                                                            SCOP domains
               CATH domains 1m5uA00 A:2-124  [code=3.40.50.2300, no name defined]                                                                       CATH domains
               Pfam domains ---Response_reg-1m5uA01 A:5-117                                                                                     ------- Pfam domains
         Sec.struct. author ..eeeee..hhhhhhhhhhhhhh...eeeee.hhhhhhhhhhhhh..eeeee......hhhhhhhhhhhh.......eeeee.---------..-....eeee...hhhhhhhhhhhhhh... Sec.struct. author
                 SAPs(SNPs) --------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE --------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript --------------------------------------------------------------------------------------------------------------------------- Transcript
                 1m5u A   2 TKKVLIVEDNELNMKLFHDLLEAQGYETLQTREGLSALSIARENKPDLILMDIQLPEISGLEVTKWLKEDDDLAHIPVVAVTA---------IR-GGCEAYISKPISVVHFLETIKRLLERQP 124
                                    11        21        31        41        51        61        71        81  |      -  || | 101       111       121
                                                                                                             84        94| |
                                                                                                                        95 |
                                                                                                                          97
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (1, 1)

Asymmetric/Biological Unit
(-)
Class: Alpha and beta proteins (a/b) (23833)

(-) CATH Domains  (1, 1)

Asymmetric/Biological Unit
(-)
Class: Alpha Beta (26913)

(-) Pfam Domains  (1, 1)

Asymmetric/Biological Unit
(-)
Clan: CheY (97)

(-) Gene Ontology  (3, 3)

Asymmetric/Biological Unit(hide GO term definitions)
Chain A   (Q9A5I4_CAUCR | Q9A5I4)
molecular function
    GO:0046872    metal ion binding    Interacting selectively and non-covalently with any metal ion.
biological process
    GO:0000160    phosphorelay signal transduction system    A conserved series of molecular signals found in prokaryotes and eukaryotes; involves autophosphorylation of a histidine kinase and the transfer of the phosphate group to an aspartate that then acts as a phospho-donor to response regulator proteins.
cellular component
    GO:0005622    intracellular    The living contents of a cell; the matter contained within (but not including) the plasma membrane, usually taken to exclude large vacuoles and masses of secretory or ingested material. In eukaryotes it includes the nucleus and cytoplasm.

 Visualization

(-) Interactive Views

Asymmetric/Biological Unit
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
(no "Ligands, Modified Residues, Ions" information available for 1m5u)

  Sites
(no "Sites" information available for 1m5u)

  Cis Peptide Bonds
    Lys A:105 - Pro A:106   [ RasMol ]


(-) Still Images

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick
[ Asym./Biol. Unit PNG format ](automatic orientation, automatically generated)
Molscript
  protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick
[ mono PDF format | stereo PDF format ](default orientation, automatically generated)

 Databases and Analysis Tools

(-) Databases

Access by PDB/NDB ID
  1m5u
    Family and Domain Information: ProDom | SYSTERS
    General Structural Information: GlycoscienceDB | MMDB | NDB | OCA | PDB | PDBe | PDBj | PDBsum | PDBWiki | PQS | PROTEOPEDIA
    Orientation in Membranes: OPM
    Protein Surface: SURFACE
    Secondary Structure: DSSP (structure derived) | HSSP (homology derived)
    Structural Genomics: GeneCensus
    Structural Neighbours: CE | VAST
    Structure Classification: CATH | Dali | SCOP
    Validation and Original Data: BMRB Data View | BMRB Restraints Grid | EDS | PROCHECK | RECOORD | WHAT_CHECK

Access by UniProt ID/Accession number
  Q9A5I4_CAUCR | Q9A5I4
    Comparative Protein Structure Models: ModBase
    Genomic Information: Ensembl
    Protein-protein Interaction: DIP
    Sequence, Family and Domain Information: InterPro | Pfam | SMART | UniProtKB/TrEMBL

Access by Enzyme Classificator   (EC Number)
  (no 'Enzyme Classificator' available)
    General Enzyme Information: BRENDA | EC-PDB | Enzyme | IntEnz
    Pathway: KEGG | MetaCyc

Access by Disease Identifier   (MIM ID)
  (no 'MIM ID' available)
    Disease Information: OMIM

Access by GenAge ID
  (no 'GenAge ID' available)
    Age Related Information: GenAge

(-) Analysis Tools

Access by PDB/NDB ID
    Domain Information: XDom
    Interatomic Contacts of Structural Units: CSU
    Ligand-protein Contacts: LPC
    Protein Cavities: castP
    Sequence and Secondary Structure: PDBCartoon
    Structure Alignment: STRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    Structure and Sequence Browser: STING

Access by UniProt ID/Accession number
  Q9A5I4_CAUCR | Q9A5I4
    Protein Disorder Prediction: DisEMBL | FoldIndex | GLOBPLOT (for more information see DisProt)

 Related Entries

(-) Entries Sharing at Least One Protein Chain (UniProt ID)

UniProtKB/TrEMBL
        Q9A5I4_CAUCR | Q9A5I4: 1m5t 1mav 1mb0 1mb3

(-) Related Entries Specified in the PDB File

1m5t THE SAME PROTEIN AT PH 6.0 RELATED ID: IGBMC-1121-000 RELATED DB: TARGETDB
