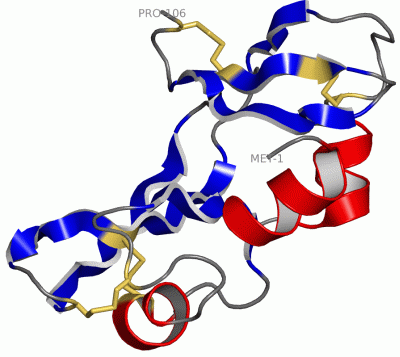

Image NMR Structure - manually
NMR Structure - manually  (Jmol Viewer)

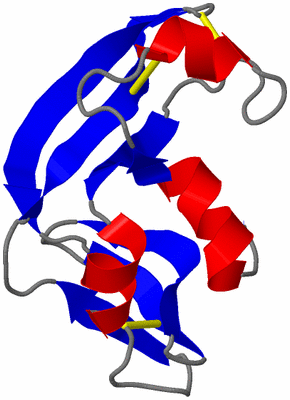

Image NMR Structure - model 1
NMR Structure - model 1  (Jmol Viewer)

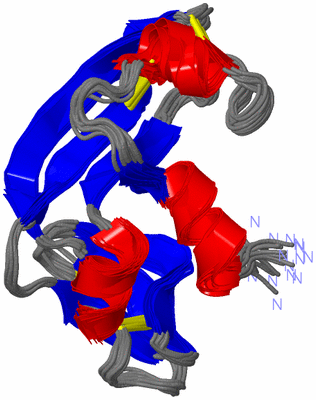

Image NMR Structure - all models
NMR Structure - all models  (Jmol Viewer)

(-) Description

Title :  SOLUTION STRUCTURE OF CYTOTOXIC RC-RNASE2

Authors :  C. -H. Hsu, Y. -D. Liao, S. -H. Wu, C. Chen
Date :  09 Jul 02  (Deposition) - 09 Jan 03  (Release) - 24 Feb 09  (Revision)
Method :  SOLUTION NMR
Resolution :  NOT APPLICABLE
Chains :  NMR Structure  :  A  (15x)
Keywords :  Bullfrog, Cytotoxicity, Ribonuclease, Nmr, Hydrolase (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  C. H. Hsu, L. W. Chen, Y. D. Liao, S. H. Wu, C. Chen
1H, 15N And 13C Resonance Assignments And Secondary Structure Determination Of The Rc-Rnase 2 From Oocytes Of Bullfrog Rana Catesbeiana.
J. Biomol. Nmr V. 19 87 2001
PubMed-ID: 11246862  |  Reference-DOI: 10.1023/A:1008348302036
(for further references see the PDB file header)

(-) Compounds

Molecule 1 - RC-RNASE2 RIBONUCLEASE
    Chains: A
    Engineered: YES
    Expression System: ESCHERICHIA COLI BL21(DE3)
    Expression System Plasmid: PET-11D
    Expression System Strain: BL21 (DE3)
    Expression System Taxid: 469008
    Expression System Vector Type: PLASMID
    Mutation: YES
    Organism Common: BULLFROG
    Organism Scientific: RANA CATESBEIANA
    Organism Taxid: 8400

 Structural Features

(-) Chains, Units


NMR Structure (15x):

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (0, 0)

(no "Ligand,Modified Residues,Ions" information available for 1M58)

(-) Sites  (0, 0)

(no "Site" information available for 1M58)

(-) SS Bonds  (4, 4)

NMR Structure
No.Residues
1A:20 -A:69
2A:31 -A:76
3A:49 -A:91
4A:88 -A:105

(-) Cis Peptide Bonds  (1, 15)

NMR Structure
No.ModelResidues
11, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 15Leu A:74 -Pro A:75

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 1M58)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 1M58)

(-) Exons   (0, 0)

(no "Exon" information available for 1M58)

(-) Sequences/Alignments

NMR Structure
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:106
 aligned with Q9DFY8_LITCT | Q9DFY8 from UniProtKB/TrEMBL  Length:128

    Alignment length:106
                                    32        42        52        62        72        82        92       102       112       122
         Q9DFY8_LITCT    23 CQNWETFQKKHLTDTRDVKCDAEMKKALFDCKQKNTFIYARPGRVQALCKNIIVSKNVLSTDEFYLSDCNRIKLPCHYKLKKSSNTICITCENKLPVHFVAVEECP 128
               SCOP domains d1m58a_ A: Amphibian cytotoxic ribonuclease                                                                SCOP domains
               CATH domains 1m58A00 A:1-106 P-30 Protein                                                                               CATH domains
               Pfam domains ---------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ..hhhhhhhhhee.....hhhhhhh.........eeeee.hhhhhhh........eeee....eeeeeeeeee...eeeeeeeee..eeeee..eeeeeee..... Sec.struct. author
                 SAPs(SNPs) ---------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ---------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ---------------------------------------------------------------------------------------------------------- Transcript
                 1m58 A   1 MQNWETFQKKHLTDTRDVKCDAEMKKALFDCKQKNTFIYARPGRVQALCKNIIVSKNVLSTDEFYLSDCNRIKLPCHYKLKKSSNTICITCENKLPVHFVAVEECP 106
                                    10        20        30        40        50        60        70        80        90       100
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (1, 1)

NMR Structure
(-)
Class: Alpha and beta proteins (a+b) (23004)

(-) CATH Domains  (1, 1)

NMR Structure
(-)
Class: Alpha Beta (26913)

(-) Pfam Domains  (0, 0)

(no "Pfam Domain" information available for 1M58)

(-) Gene Ontology  (5, 5)

NMR Structure(hide GO term definitions)
Chain A   (Q9DFY8_LITCT | Q9DFY8)
molecular function
    GO:0004519    endonuclease activity    Catalysis of the hydrolysis of ester linkages within nucleic acids by creating internal breaks.
    GO:0016787    hydrolase activity    Catalysis of the hydrolysis of various bonds, e.g. C-O, C-N, C-C, phosphoric anhydride bonds, etc. Hydrolase is the systematic name for any enzyme of EC class 3.
    GO:0004518    nuclease activity    Catalysis of the hydrolysis of ester linkages within nucleic acids.
    GO:0003676    nucleic acid binding    Interacting selectively and non-covalently with any nucleic acid.
biological process
    GO:0090305    nucleic acid phosphodiester bond hydrolysis    The nucleic acid metabolic process in which the phosphodiester bonds between nucleotides are cleaved by hydrolysis.

 Visualization

(-) Interactive Views

NMR Structure
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
(no "Ligands, Modified Residues, Ions" information available for 1m58)

  Sites
(no "Sites" information available for 1m58)

  Cis Peptide Bonds
    Leu A:74 - Pro A:75   [ RasMol ]


(-) Still Images

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick

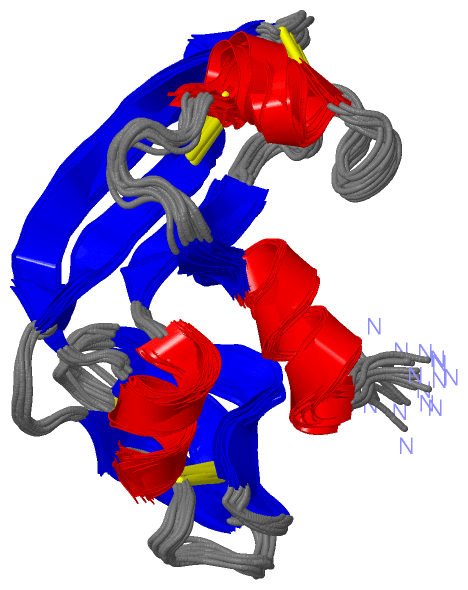

[ NMR Structure - model 1 PNG format | NMR Structure - all models PNG format ](automatic orientation, automatically generated)
