1M4J - JenaLib

Title :   CRYSTAL STRUCTURE OF THE N-TERMINAL ADF-H DOMAIN OF MOUSE TWINFILIN ISOFORM-1

Authors :   V. O. Paavilainen, M. C. Merckel, S. Falck, P. J. Ojala, E. Pohl, M. Wilmanns, P. Lappalainen

Date :   03 Jul 02 (Deposition) - 13 Nov 02 (Release) - 24 Feb 09 (Revision)

Method :   X-RAY DIFFRACTION

Resolution :   1.60

Chains :   Asym. Unit : A,B
Biol. Unit 1: A,B  (1x)
Biol. Unit 2: B  (1x)

Keywords :   Mixed Beta-Sheet, Pair Of Alpha-Helices, Structural Protein (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :   V. O. Paavilainen, M. C. Merckel, S. Falck, P. J. Ojala, E. Pohl, M. Wilmanns, P. Lappalainen
Structural Conservation Between The Actin Monomer-Binding Sites Of Twinfilin And Actin-Depolymerizing Factor (Adf)/Cofilin
J. Biol. Chem. V. 277 43089 2002
PubMed-ID: 12207032 | Reference-DOI: 10.1074/JBC.M208225200
(for further references see the PDB file header)

Compounds

Structural Features

Chains, Units

Ligands, Modified Residues, Ions (0, 0)

Sites (0, 0)

SS Bonds (0, 0)

Cis Peptide Bonds (0, 0)

Sequence-Structure Mapping

SAPs(SNPs)/Variants (1, 2)

PROSITE Motifs (0, 0)

Exons (0, 0)

Sequences/Alignments

Asymmetric Unit

Reformat:	Number of residues per line = ('0' or empty: single-line sequence representation)
	Number of residues per labelling interval =
	UniProt sequence: complete aligned part

Show mapping:	SCOP domains	CATH domains	Pfam domains	Secondary structure (by author)
	SAPs(SNPs)	PROSITE motifs	Exons
	(details for a mapped element are shown in a popup box when the mouse pointer rests over it)

Chain A from PDB  Type:PROTEIN  Length:133
 aligned with TWF1_MOUSE | Q91YR1 from UniProtKB/Swiss-Prot  Length:350

    Alignment length:133
                                    16        26        36        46        56        66        76        86        96       106       116       126       136
           TWF1_MOUSE     7 IQASEDVKEIFARARNGKYRLLKISIENEQLVVGSCSPPSDSWEQDYDSFVLPLLEDKQPCYVLFRLDSQNAQGYEWIFIAWSPDHSHVRQKMLYAATRATLKKEFGGGHIKDEVFGTVKEDVSLHGYKKYLL 139
               SCOP domains d1m4ja_ A: Adf-H domain of twinfilin isoform-1                                                                                        SCOP domains
               CATH domains 1m4jA00 A:7-139 Severin                                                                                                               CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ...hhhhhhhhhhhhh....eeeeee....eeeeeee....hhhhhhhhhhhhhh.....eeeeeeeeeee..eeeeeeeee.....hhhhhhhhhhhhhhhhhhhh...eeeeeee.hhhhhhhhhhhhhhh Sec.struct. author
                 SAPs(SNPs) --------------------------------------------H---------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 1m4j A   7 IQASEDVKEIFARARNGKYRLLKISIENEQLVVGSCSPPSDSWEQDYDSFVLPLLEDKQPCYVLFRLDSQNAQGYEWIFIAWSPDHSHVRQKMLYAATRATLKKEFGGGHIKDEVFGTVKEDVSLHGYKKYLL 139
                                    16        26        36        46        56        66        76        86        96       106       116       126       136

Chain B from PDB  Type:PROTEIN  Length:133
 aligned with TWF1_MOUSE | Q91YR1 from UniProtKB/Swiss-Prot  Length:350

    Alignment length:133
                                    16        26        36        46        56        66        76        86        96       106       116       126       136
           TWF1_MOUSE     7 IQASEDVKEIFARARNGKYRLLKISIENEQLVVGSCSPPSDSWEQDYDSFVLPLLEDKQPCYVLFRLDSQNAQGYEWIFIAWSPDHSHVRQKMLYAATRATLKKEFGGGHIKDEVFGTVKEDVSLHGYKKYLL 139
               SCOP domains d1m4jb_ B: Adf-H domain of twinfilin isoform-1                                                                                        SCOP domains
               CATH domains 1m4jB00 B:7-139 Severin                                                                                                               CATH domains
           Pfam domains (1) --Cofilin_ADF-1m4jB01 B:9-139                                                                                                         Pfam domains (1)
           Pfam domains (2) --Cofilin_ADF-1m4jB02 B:9-139                                                                                                         Pfam domains (2)
         Sec.struct. author .eehhhhhhhhhhhhh....eeeeee...eeeeeeee....hhhhhhhhhhhhhh.....eeeeeeeeeee..eeeeeeeee.....hhhhhhhhhhhhhhhhhhhh...eeeeeee.hhhhhhhhhhhhhhh Sec.struct. author
                 SAPs(SNPs) --------------------------------------------H---------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 1m4j B   7 IQASEDVKEIFARARNGKYRLLKISIENEQLVVGSCSPPSDSWEQDYDSFVLPLLEDKQPCYVLFRLDSQNAQGYEWIFIAWSPDHSHVRQKMLYAATRATLKKEFGGGHIKDEVFGTVKEDVSLHGYKKYLL 139
                                    16        26        36        46        56        66        76        86        96       106       116       126       136

Legend:		→ Mismatch	(orange background)
	-	→ Gap	(green background, '-', border residues have a numbering label)
		→ Modified Residue	(blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
	x	→ Chemical Group	(purple background, 'x', labelled with number + name, e.g. ACE or NH2)
	extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '\|'

Classification and Annotation

SCOP Domains (1, 2)

CATH Domains (1, 2)

Pfam Domains (1, 2)

Gene Ontology (21, 21)

Asymmetric Unit(hide GO term definitions)

Chain A,B (TWF1_MOUSE | Q91YR1)

molecular function
	GO:0005524	ATP binding	Interacting selectively and non-covalently with ATP, adenosine 5'-triphosphate, a universally important coenzyme and enzyme regulator.
	GO:0003779	actin binding	Interacting selectively and non-covalently with monomeric or multimeric forms of actin, including actin filaments.
	GO:0003785	actin monomer binding	Interacting selectively and non-covalently with monomeric actin, also known as G-actin.
	GO:0005546	phosphatidylinositol-4,5-bisphosphate binding	Interacting selectively and non-covalently with phosphatidylinositol-4,5-bisphosphate, a derivative of phosphatidylinositol in which the inositol ring is phosphorylated at the 4' and 5' positions.
	GO:0032403	protein complex binding	Interacting selectively and non-covalently with any protein complex (a complex of two or more proteins that may include other nonprotein molecules).
	GO:0004713	protein tyrosine kinase activity	Catalysis of the reaction: ATP + a protein tyrosine = ADP + protein tyrosine phosphate.
biological process
	GO:0051016	barbed-end actin filament capping	The binding of a protein or protein complex to the barbed (or plus) end of an actin filament, thus preventing the addition, exchange or removal of further actin subunits.
	GO:0030837	negative regulation of actin filament polymerization	Any process that stops, prevents, or reduces the frequency, rate or extent of actin polymerization.
	GO:0018108	peptidyl-tyrosine phosphorylation	The phosphorylation of peptidyl-tyrosine to form peptidyl-O4'-phospho-L-tyrosine.
	GO:0043538	regulation of actin phosphorylation	Any process that modulates the frequency, rate or extent of the transfer of one or more phosphate groups to an actin molecule.
	GO:0042989	sequestering of actin monomers	The selective interaction of actin monomers with specific molecules that inhibit their polymerization by preventing their access to other monomers.
cellular component
	GO:0015629	actin cytoskeleton	The part of the cytoskeleton (the internal framework of a cell) composed of actin and associated proteins. Includes actin cytoskeleton-associated complexes.
	GO:0005911	cell-cell junction	A cell junction that forms a connection between two or more cells in a multicellular organism; excludes direct cytoplasmic junctions such as ring canals.
	GO:0005737	cytoplasm	All of the contents of a cell excluding the plasma membrane and nucleus, but including other subcellular structures.
	GO:0005856	cytoskeleton	Any of the various filamentous elements that form the internal framework of cells, and typically remain after treatment of the cells with mild detergent to remove membrane constituents and soluble components of the cytoplasm. The term embraces intermediate filaments, microfilaments, microtubules, the microtrabecular lattice, and other structures characterized by a polymeric filamentous nature and long-range order within the cell. The various elements of the cytoskeleton not only serve in the maintenance of cellular shape but also have roles in other cellular functions, including cellular movement, cell division, endocytosis, and movement of organelles.
	GO:0030175	filopodium	Thin, stiff, actin-based protrusion extended by the leading edge of a motile cell such as a crawling fibroblast or amoeba, or an axonal or dendritic growth cone, or a dendritic shaft.
	GO:0005925	focal adhesion	Small region on the surface of a cell that anchors the cell to the extracellular matrix and that forms a point of termination of actin filaments.
	GO:0005622	intracellular	The living contents of a cell; the matter contained within (but not including) the plasma membrane, usually taken to exclude large vacuoles and masses of secretory or ingested material. In eukaryotes it includes the nucleus and cytoplasm.
	GO:0030016	myofibril	The contractile element of skeletal and cardiac muscle; a long, highly organized bundle of actin, myosin, and other proteins that contracts by a sliding filament mechanism.
	GO:0048471	perinuclear region of cytoplasm	Cytoplasm situated near, or occurring around, the nucleus.
	GO:0032587	ruffle membrane	The portion of the plasma membrane surrounding a ruffle.

Visualization

Interactive Views

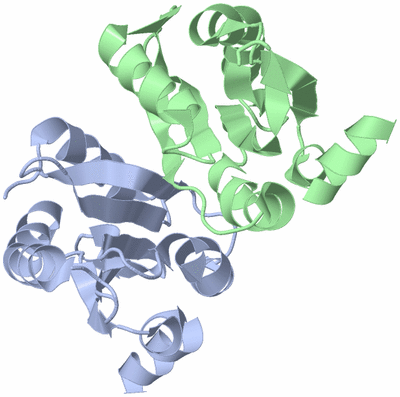

Asymmetric Unit
	Complete Structure
		Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
		WebMol \| AstexViewer[tm]@PDBe (Java Applets, require no local installation except for Java; loading may be slow)
		STRAP (Java WebStart application, automatic local installation, requires Java; full application with system access!)
		RasMol (require local installation)
		Molscript (VRML) (requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

	Ligands, Modified Residues, Ions
(no "Ligands, Modified Residues, Ions" information available for 1m4j)

	Sites
(no "Sites" information available for 1m4j)

	Cis Peptide Bonds
(no "Cis Peptide Bonds" information available for 1m4j)

Biological Units
	Complete Structure

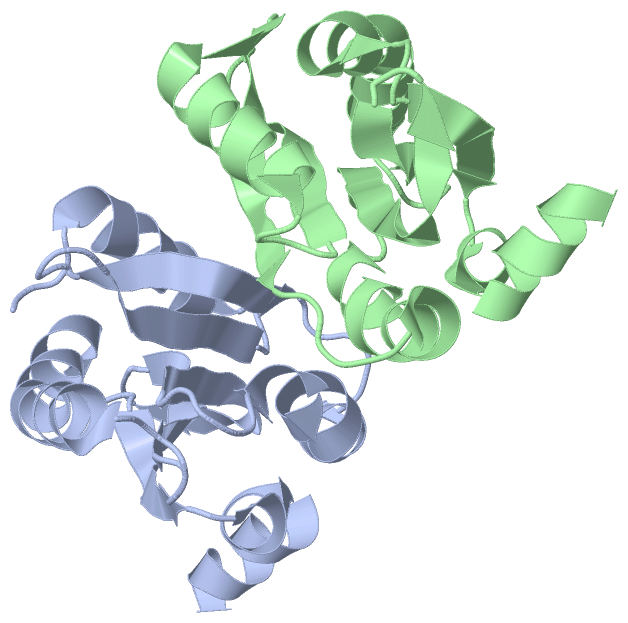

		Biological Unit 1	[ Jena3D ]

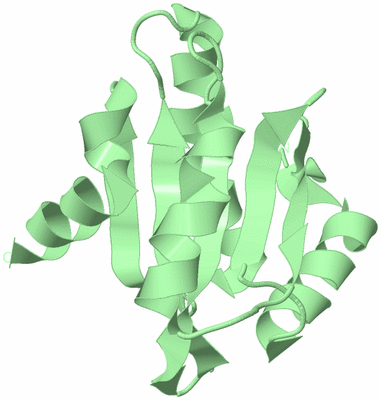

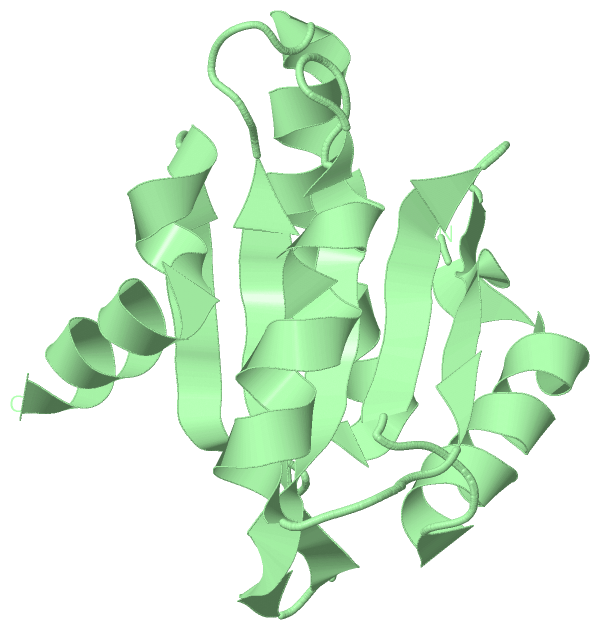

		Biological Unit 2	[ Jena3D ]

Still Images

Databases and Analysis Tools

Databases

Access by PDB/NDB ID
	1m4j
		Family and Domain Information	:	ProDom \| SYSTERS
		General Structural Information	:	GlycoscienceDB \| MMDB \| NDB \| OCA \| PDB \| PDBe \| PDBj \| PDBsum \| PDBWiki \| PQS \| PROTEOPEDIA
		Orientation in Membranes	:	OPM
		Protein Surface	:	SURFACE
		Secondary Structure	:	DSSP (structure derived) \| HSSP (homology derived)
		Structural Genomics	:	GeneCensus
		Structural Neighbours	:	CE \| VAST
		Structure Classification	:	CATH \| Dali \| SCOP
		Validation and Original Data	:	BMRB Data View \| BMRB Restraints Grid \| EDS \| PROCHECK \| RECOORD \| WHAT_CHECK

Access by UniProt ID/Accession number
	TWF1_MOUSE \| Q91YR1
		Comparative Protein Structure Models	:	ModBase
		Genomic Information	:	Ensembl
		Protein-protein Interaction	:	DIP
		Sequence, Family and Domain Information	:	InterPro \| Pfam \| SMART \| UniProtKB/SwissProt

Access by Enzyme Classificator (EC Number)
	(no 'Enzyme Classificator' available)
		General Enzyme Information	:	BRENDA \| EC-PDB \| Enzyme \| IntEnz
		Pathway	:	KEGG \| MetaCyc

Access by Disease Identifier (MIM ID)
	(no 'MIM ID' available)
		Disease Information	:	OMIM

Access by GenAge ID
	(no 'GenAge ID' available)
		Age Related Information	:	GenAge
