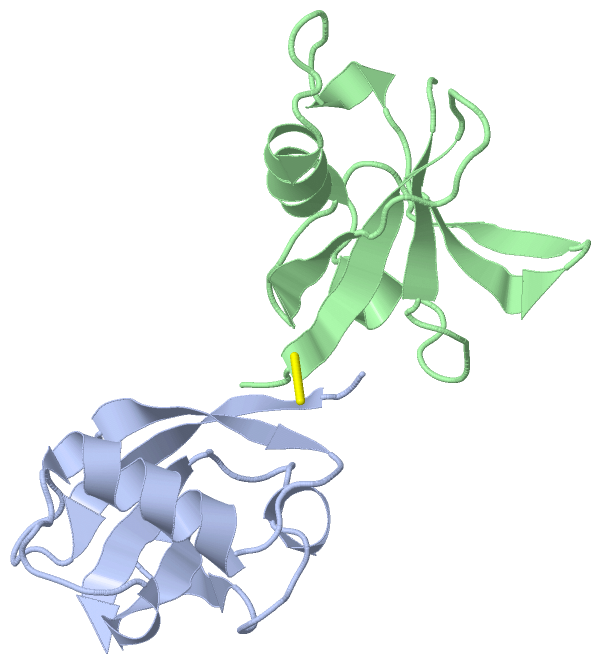

Image Asym./Biol. Unit
Asym./Biol. Unit  (Jmol Viewer)

(-) Description

Title :  CRYSTAL STRUCTURE OF THE RAS INTERACTING DOMAIN OF RALGDS, A GUANINE NUCLEOTIDE DISSOCIATION STIMULATOR OF RAL PROTEIN

Authors :  L. Huang, X. W. Weng, F. Hofer, G. S. Martin, S. H. Kim
Date :  05 Mar 97  (Deposition) - 11 Mar 98  (Release) - 24 Feb 09  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  2.40
Chains :  Asym./Biol. Unit :  A,B
Keywords :  Phosphorylation, Ralgds, Ras Binding, Ubiquitin Fold, Cdc25 Family, Signal Transduction, Cross-Talk (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  L. Huang, X. Weng, F. Hofer, G. S. Martin, S. H. Kim
Three-Dimensional Structure Of The Ras-Interacting Domain Of Ralgds.
Nat. Struct. Biol. V. 4 609 1997
PubMed-ID: 9253406  |  Reference-DOI: 10.1038/NSB0897-609
(for further references see the PDB file header)

(-) Compounds

Molecule 1 - RALGDSB
    Chains: A, B
    Engineered: YES
    Expression System: ESCHERICHIA COLI
    Expression System Gene: C-TERMINAL DOMAIN OF RALGDS FUSED TO GLUTATHIONINE S TRANSFERASE
    Expression System Plasmid: PGEX98 FROM PGEX2T
    Expression System Strain: DH5-ALPHA
    Expression System Taxid: 562
    Fragment: C-TERMINAL DOMAIN WHICH BINDS TO ACTIVE RAS
    Gene: RALGDS C-TERMINAL DOMAIN
    Mutation: YES
    Organism Common: NORWAY RAT
    Organism Scientific: RATTUS NORVEGICUS
    Organism Taxid: 10116

 Structural Features

(-) Chains, Units

  12
Asymmetric/Biological Unit : AB

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (0, 0)

(no "Ligand,Modified Residues,Ions" information available for 1LXD)

(-) Sites  (0, 0)

(no "Site" information available for 1LXD)

(-) SS Bonds  (1, 1)

Asymmetric/Biological Unit
No.Residues
1A:16 -B:16

(-) Cis Peptide Bonds  (1, 1)

Asymmetric/Biological Unit
No.Residues
1Leu B:65 -Leu B:66

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 1LXD)

(-) PROSITE Motifs  (1, 2)

Asymmetric/Biological Unit (1, 2)
 PROSITEUniProtKBPDB
No.IDACDescriptionIDLocationCountLocation
1RAPS50200 Ras-associating (RA) domain profile.GNDS_RAT779-866
 		  2A:15-100
B:15-100

(-) Exons   (0, 0)

(no "Exon" information available for 1LXD)

(-) Sequences/Alignments

Asymmetric/Biological Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:87
 aligned with GNDS_RAT | Q03386 from UniProtKB/Swiss-Prot  Length:895

    Alignment length:87
                                   787       797       807       817       827       837       847       857
             GNDS_RAT   778 GDCCIIRVSLDVDNGNMYKSILVTSQDKAPTVIRKAMDKHNLDEDEPEDYELLQIISEDHKLKIPENANVFYAMNSAANYDFILKKR 864
               SCOP domains d1lxda_ A: Ral guanosine-nucleotide exchange factor, RalGDS                             SCOP domains
               CATH domains 1lxdA00 A:14-100 Phosphatidylinositol 3-kinase Catalytic Subunit; Chain A, domain 1     CATH domains
               Pfam domains --------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ..eeeeeeee........eeeeee....hhhhhhhhhhhh......hhheeeeeeee..eeee......hhhh.......eeeeee. Sec.struct. author
                 SAPs(SNPs) --------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE -RA  PDB: A:15-100 UniProt: 779-866                                                     PROSITE
                 Transcript --------------------------------------------------------------------------------------- Transcript
                 1lxd A  14 GDCCIIRVSLDVDNGNMYKSILVTSQDKAPTVIRKAMDKHNLDEDEPEDYELLQIISEDHKLKIPENANVFYAMNSAANYDFILKKR 100
                                    23        33        43        53        63        73        83        93


Chain B from PDB  Type:PROTEIN  Length:87
 aligned with GNDS_RAT | Q03386 from UniProtKB/Swiss-Prot  Length:895

    Alignment length:87
                                   787       797       807       817       827       837       847       857
             GNDS_RAT   778 GDCCIIRVSLDVDNGNMYKSILVTSQDKAPTVIRKAMDKHNLDEDEPEDYELLQIISEDHKLKIPENANVFYAMNSAANYDFILKKR 864
               SCOP domains d1lxdb_ B: Ral guanosine-nucleotide exchange factor, RalGDS                             SCOP domains
               CATH domains 1lxdB00 B:14-100 Phosphatidylinositol 3-kinase Catalytic Subunit; Chain A, domain 1     CATH domains
               Pfam domains --------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ..eeeeeeee........eeeeee....hhhhhhhhhhh.......hhh...eeeee..eeee......hhhh.......eeee... Sec.struct. author
                 SAPs(SNPs) --------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE -RA  PDB: B:15-100 UniProt: 779-866                                                     PROSITE
                 Transcript --------------------------------------------------------------------------------------- Transcript
                 1lxd B  14 GDCCIIRVSLDVDNGNMYKSILVTSQDKAPTVIRKAMDKHNLDEDEPEDYELLQIISEDHKLKIPENANVFYAMNSAANYDFILKKR 100
                                    23        33        43        53        63        73        83        93
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (1, 2)

Asymmetric/Biological Unit
(-)
Class: Alpha and beta proteins (a+b) (23004)

(-) CATH Domains  (1, 2)

Asymmetric/Biological Unit
(-)
Class: Alpha Beta (26913)

(-) Pfam Domains  (0, 0)

(no "Pfam Domain" information available for 1LXD)

(-) Gene Ontology  (7, 7)

Asymmetric/Biological Unit(hide GO term definitions)
Chain A,B   (GNDS_RAT | Q03386)
molecular function
    GO:0008321    Ral guanyl-nucleotide exchange factor activity    Stimulates the exchange of guanyl nucleotides associated with a GTPase of the Ral family. Under normal cellular physiological conditions, the concentration of GTP is higher than that of GDP, favoring the replacement of GDP by GTP in association with the GTPase.
    GO:0005085    guanyl-nucleotide exchange factor activity    Stimulates the exchange of guanyl nucleotides associated with a GTPase. Under normal cellular physiological conditions, the concentration of GTP is higher than that of GDP, favoring the replacement of GDP by GTP in association with the GTPase.
biological process
    GO:0007265    Ras protein signal transduction    A series of molecular signals within the cell that are mediated by a member of the Ras superfamily of proteins switching to a GTP-bound active state.
    GO:0043547    positive regulation of GTPase activity    Any process that activates or increases the activity of a GTPase.
    GO:0007165    signal transduction    The cellular process in which a signal is conveyed to trigger a change in the activity or state of a cell. Signal transduction begins with reception of a signal (e.g. a ligand binding to a receptor or receptor activation by a stimulus such as light), or for signal transduction in the absence of ligand, signal-withdrawal or the activity of a constitutively active receptor. Signal transduction ends with regulation of a downstream cellular process, e.g. regulation of transcription or regulation of a metabolic process. Signal transduction covers signaling from receptors located on the surface of the cell and signaling via molecules located within the cell. For signaling between cells, signal transduction is restricted to events at and within the receiving cell.
    GO:0007264    small GTPase mediated signal transduction    Any series of molecular signals in which a small monomeric GTPase relays one or more of the signals.
cellular component
    GO:0005829    cytosol    The part of the cytoplasm that does not contain organelles but which does contain other particulate matter, such as protein complexes.

 Visualization

(-) Interactive Views

Asymmetric/Biological Unit
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
(no "Ligands, Modified Residues, Ions" information available for 1lxd)

  Sites
(no "Sites" information available for 1lxd)

  Cis Peptide Bonds
    Leu B:65 - Leu B:66   [ RasMol ]


(-) Still Images

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick
[ Asym./Biol. Unit PNG format ](automatic orientation, automatically generated)
Molscript
  protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick
[ mono PDF format | stereo PDF format ](default orientation, automatically generated)
