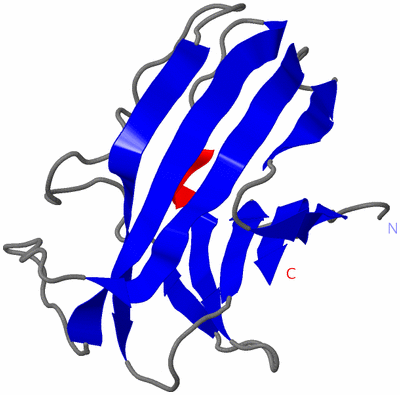

Image Asym./Biol. Unit
Asym./Biol. Unit  (Jmol Viewer)

(-) Description

Title :  1.5 ANGSTROM RESOLUTION CRYSTAL STRUCTURE OF A SECRETED PROTEIN FROM MYCOBACTERIUM TUBERCULOSIS-MPT63

Authors :  C. W. Goulding, A. Parseghian, M. R. Sawaya, D. Cascio, M. Apostol, M. L. Gennaro, D. Eisenberg, Tb Structural Genomics Consortium (Tbsgc)
Date :  01 May 02  (Deposition) - 04 Dec 02  (Release) - 24 Feb 09  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  1.50
Chains :  Asym./Biol. Unit :  A
Keywords :  Beta-Sandwich, Structural Genomics, Psi, Protein Structure Initiative, Tb Structural Genomics Consortium, Tbsgc, Immune System (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  C. W. Goulding, A. Parseghian, M. R. Sawaya, D. Cascio, M. Apostol, M. L. Gennaro, D. Eisenberg
Crystal Structure Of A Major Secreted Protein Of Mycobacterium Tuberculosis-Mpt63 At 1. 5-A Resolution
Protein Sci. V. 11 2887 2002
PubMed-ID: 12441386  |  Reference-DOI: 10.1110/PS.0219002
(for further references see the PDB file header)

(-) Compounds

Molecule 1 - IMMUNOGENIC PROTEIN MPT63/MPB63
    Chains: A
    Engineered: YES
    Expression System: ESCHERICHIA COLI K12
    Expression System Plasmid: PQE30
    Expression System Strain: K12
    Expression System Taxid: 83333
    Expression System Vector Type: PLASMID
    Gene: RV1926C, MPT63
    Organism Scientific: MYCOBACTERIUM TUBERCULOSIS
    Organism Taxid: 1773
    Synonym: ANTIGEN MPT63/MPB63, 16KDA IMMUNOPROTECTIVE EXTRACELLULAR PROTEIN
    Tissue: H37RV

 Structural Features

(-) Chains, Units

  1
Asymmetric/Biological Unit : A

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (0, 0)

(no "Ligand,Modified Residues,Ions" information available for 1LMI)

(-) Sites  (0, 0)

(no "Site" information available for 1LMI)

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 1LMI)

(-) Cis Peptide Bonds  (1, 1)

Asymmetric/Biological Unit
No.Residues
1Tyr A:3 -Pro A:4

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 1LMI)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 1LMI)

(-) Exons   (0, 0)

(no "Exon" information available for 1LMI)

(-) Sequences/Alignments

Asymmetric/Biological Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:131
 aligned with MP63_MYCTU | P9WIP1 from UniProtKB/Swiss-Prot  Length:159

    Alignment length:131
                                    38        48        58        68        78        88        98       108       118       128       138       148       158
           MP63_MYCTU    29 AAYPITGKLGSELTMTDTVGQVVLGWKVSDLKSSTAVIPGYPVAGQVWEATATVNAIRGSVTPAVSQFNARTADGINYRVLWQAAGPDTISGATIPQGEQSTGKIYFDVTGPSPTIVAMNNGMEDLLIWEP 159
               SCOP domains d1lmia_ A: Antigen MPT63/MPB63 (immunoprotective extracellular protein)                                                             SCOP domains
               CATH domains 1lmiA00 A:1-131  [code=2.60.40.1240, no name defined]                                                                               CATH domains
               Pfam domains -DUF1942-1lmiA01 A:2-129                                                                                                         -- Pfam domains
         Sec.struct. author ....eeee...eeeeee....eeeeeeeeeeee............eeeeeeeeeeeee.....hhh.eeee.....eee....................eeeeeeeeee......eeeee....eeeeee. Sec.struct. author
                 SAPs(SNPs) ----------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ----------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ----------------------------------------------------------------------------------------------------------------------------------- Transcript
                 1lmi A   1 SAYPITGKLGSELTMTDTVGQVVLGWKVSDLKSSTAVIPGYPVAGQVWEATATVNAIRGSVTPAVSQFNARTADGINYRVLWQAAGPDTISGATIPQGEQSTGKIYFDVTGPSPTIVAMNNGMEDLLIWEP 131
                                    10        20        30        40        50        60        70        80        90       100       110       120       130
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (1, 1)

Asymmetric/Biological Unit
(-)
Class: All beta proteins (24004)

(-) CATH Domains  (1, 1)

Asymmetric/Biological Unit
(-)
Class: Mainly Beta (13760)

(-) Pfam Domains  (1, 1)

Asymmetric/Biological Unit
(-)
Clan: no clan defined [family: DUF1942] (1)

(-) Gene Ontology  (5, 5)

Asymmetric/Biological Unit(hide GO term definitions)
Chain A   (MP63_MYCTU | P9WIP1)
cellular component
    GO:0005618    cell wall    The rigid or semi-rigid envelope lying outside the cell membrane of plant, fungal, most prokaryotic cells and some protozoan parasites, maintaining their shape and protecting them from osmotic lysis. In plants it is made of cellulose and, often, lignin; in fungi it is composed largely of polysaccharides; in bacteria it is composed of peptidoglycan; in protozoan parasites such as Giardia species, it's made of carbohydrates and proteins.
    GO:0005576    extracellular region    The space external to the outermost structure of a cell. For cells without external protective or external encapsulating structures this refers to space outside of the plasma membrane. This term covers the host cell environment outside an intracellular parasite.
    GO:0005615    extracellular space    That part of a multicellular organism outside the cells proper, usually taken to be outside the plasma membranes, and occupied by fluid.

 Visualization

(-) Interactive Views

Asymmetric/Biological Unit
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
(no "Ligands, Modified Residues, Ions" information available for 1lmi)

  Sites
(no "Sites" information available for 1lmi)

  Cis Peptide Bonds
    Tyr A:3 - Pro A:4   [ RasMol ]


(-) Still Images

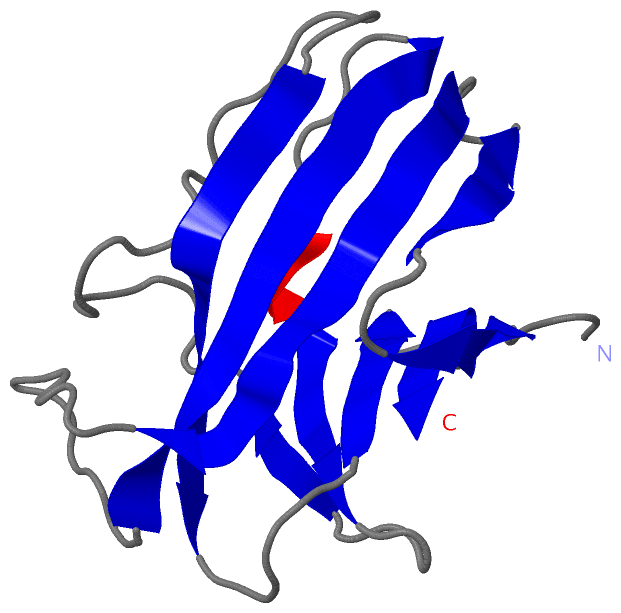

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick
[ Asym./Biol. Unit PNG format ](automatic orientation, automatically generated)
Molscript
  protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick
[ mono PDF format | stereo PDF format ](default orientation, automatically generated)
