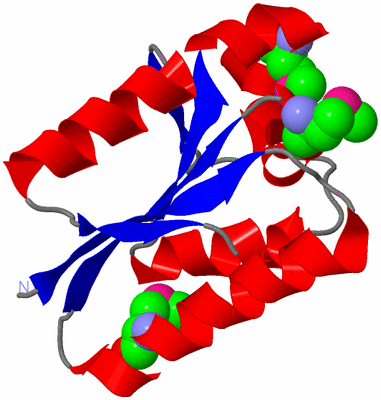

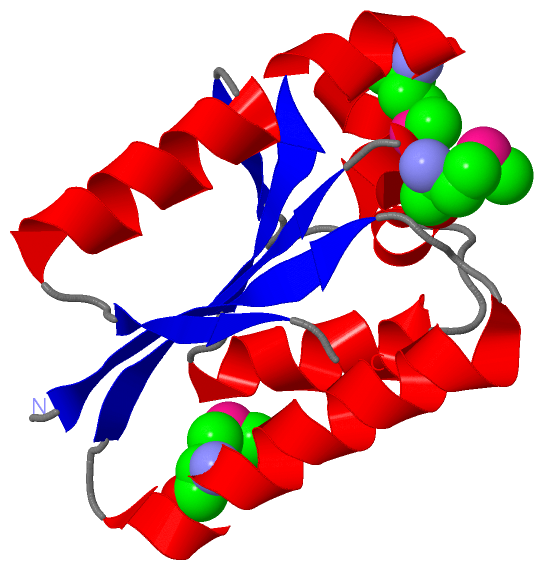

Image Asymmetric Unit
Asymmetric Unit  (Jmol Viewer)

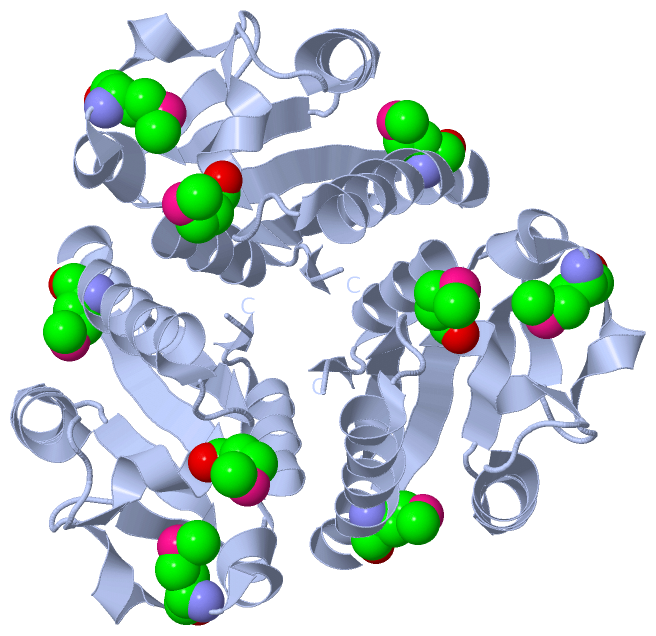

Image Biological Unit 1
Biological Unit 1  (Jmol Viewer)

(-) Description

Title :  STRUCTURE OF PROTEIN OF UNKNOWN FUNCTION MTH1491 FROM METHANOBACTERIUM THERMOAUTOTROPHICUM

Authors :  D. Christendat, V. Saridakis, Y. Kim, P. A. Kumar, X. Xu, A. Semesi, A. Jo C. H. Arrowsmith, A. M. Edwards, Midwest Center For Structural Ge (Mcsg)
Date :  19 Feb 02  (Deposition) - 29 May 02  (Release) - 13 Jul 11  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  2.30
Chains :  Asym. Unit :  A
Biol. Unit 1:  A  (3x)
Keywords :  Structural Genomics, Hypothetical Protein, Psi, Protein Structure Initiative, Midwest Center For Structural Genomics, Mcsg, Unknown Function (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  D. Christendat, V. Saridakis, Y. Kim, P. A. Kumar, X. Xu, A. Semesi, A. Joachimiak, C. H. Arrowsmith, A. M. Edwards
The Crystal Structure Of Hypothetical Protein Mth1491 From Methanobacterium Thermoautotrophicum.
Protein Sci. V. 11 1409 2002
PubMed-ID: 12021439  |  Reference-DOI: 10.1110/PS.4720102

(-) Compounds

Molecule 1 - HYPOTHETICAL PROTEIN MTH1491
    Chains: A
    Engineered: YES
    Expression System: ESCHERICHIA COLI BL21(DE3)
    Expression System Plasmid: PET15B
    Expression System Strain: BL21(DE3)
    Expression System Taxid: 469008
    Expression System Vector Type: PLASMID
    Gene: ORF1491
    Organism Scientific: METHANOTHERMOBACTER THERMAUTOTROPHICUS
    Organism Taxid: 145262

 Structural Features

(-) Chains, Units

  1
Asymmetric Unit : A
Biological Unit 1 (3x): A

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (1, 3)

Asymmetric Unit (1, 3)
No.NameCountTypeFull Name
1MSE3Mod. Amino AcidSELENOMETHIONINE
Biological Unit 1 (1, 9)
No.NameCountTypeFull Name
1MSE9Mod. Amino AcidSELENOMETHIONINE

(-) Sites  (0, 0)

(no "Site" information available for 1L1S)

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 1L1S)

(-) Cis Peptide Bonds  (0, 0)

(no "Cis Peptide Bond" information available for 1L1S)

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 1L1S)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 1L1S)

(-) Exons   (0, 0)

(no "Exon" information available for 1L1S)

(-) Sequences/Alignments

Asymmetric Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:111
 aligned with O27535_METTH | O27535 from UniProtKB/TrEMBL  Length:113

    Alignment length:111
                                    12        22        32        42        52        62        72        82        92       102       112
         O27535_METTH     3 DYRVVFHIDEDDESRVLLLISNVRNLMADLESVRIEVVAYSMGVNVLRRDSEYSGDVSELTGQGVRFCACSNTLRASGMDGDDLLEGVDVVSSGVGHIVRRQTEGWAYIRP 113
               SCOP domains d1l1sa_ A: Hypothetical protein MTH1491                                                                         SCOP domains
               CATH domains 1l1sA00 A:3-113  [code=3.40.1260.10, no name defined]                                                           CATH domains
               Pfam domains --DrsE-1l1sA01 A:5-113                                                                                          Pfam domains
         Sec.struct. author .eeeeeee...hhhhhhhhhhhhhhhhhhh..eeeeeee.hhhhhhhh....hhhhhhhhhhh..eeeeehhhhhhh..hhhhh....eee.hhhhhhhhhhhh..eee.. Sec.struct. author
                 SAPs(SNPs) --------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE --------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript --------------------------------------------------------------------------------------------------------------- Transcript
                 1l1s A   3 DYRVVFHIDEDDESRVLLLISNVRNLmADLESVRIEVVAYSmGVNVLRRDSEYSGDVSELTGQGVRFCACSNTLRASGmDGDDLLEGVDVVSSGVGHIVRRQTEGWAYIRP 113
                                    12        22      | 32        42 |      52        62        72        82        92       102       112
                                                     29-MSE         44-MSE                               81-MSE
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (1, 1)

Asymmetric Unit
(-)
Class: Alpha and beta proteins (a/b) (23833)

(-) CATH Domains  (1, 1)

Asymmetric Unit
(-)
Class: Alpha Beta (26913)

(-) Pfam Domains  (1, 1)

Asymmetric Unit
(-)
Clan: DsrEFH-like (7)

(-) Gene Ontology  (0, 0)

Asymmetric Unit(hide GO term definitions)
    (no "Gene Ontology" information available for 1L1S)

 Visualization

(-) Interactive Views

Asymmetric Unit
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
    MSE  [ RasMol | Jena3D ]  +environment [ RasMol | Jena3D ]

  Sites
(no "Sites" information available for 1l1s)

  Cis Peptide Bonds
(no "Cis Peptide Bonds" information available for 1l1s)

Biological Unit
  Complete Structure
    Biological Unit 1  [ Jena3D ]

(-) Still Images

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick
[ Asym. Unit PNG format | Biol. Unit 1 PNG format ](automatic orientation, automatically generated)
Molscript
  protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick
[ mono PDF format | stereo PDF format ](default orientation, automatically generated)
