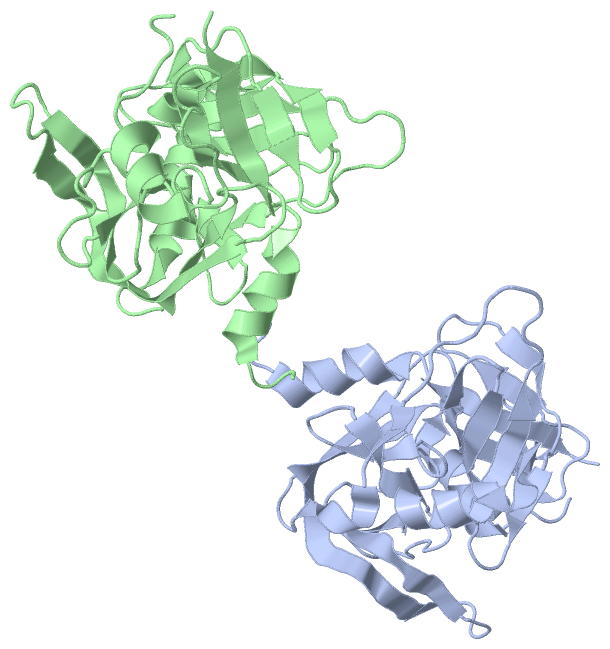

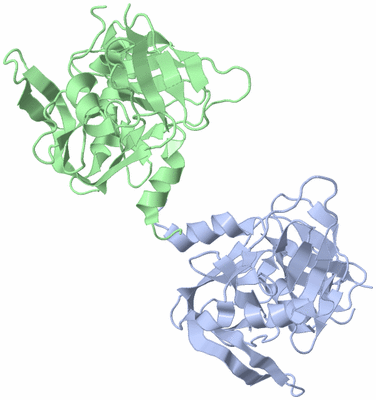

Image Asymmetric Unit
Asymmetric Unit  (Jmol Viewer)

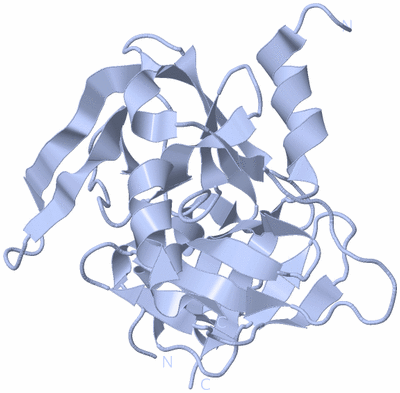

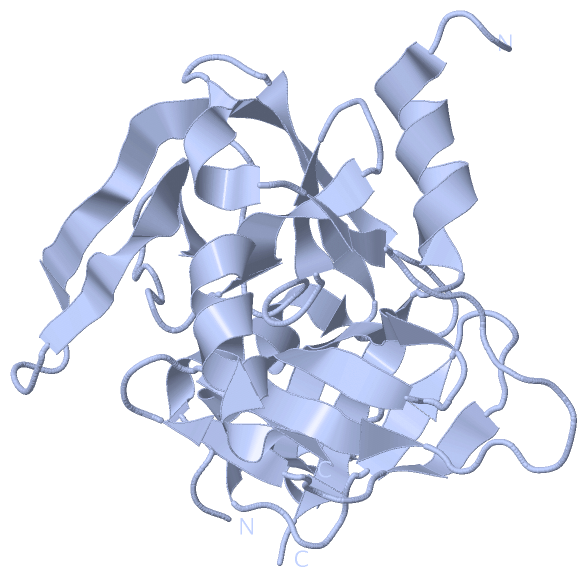

Image Biological Unit 1
Biological Unit 1  (Jmol Viewer)

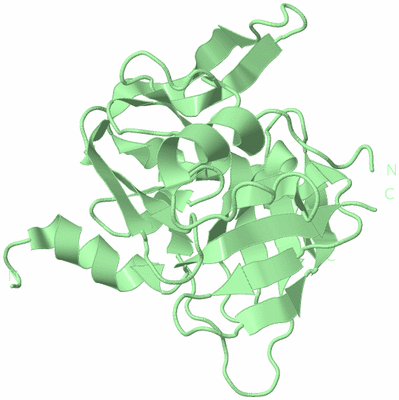

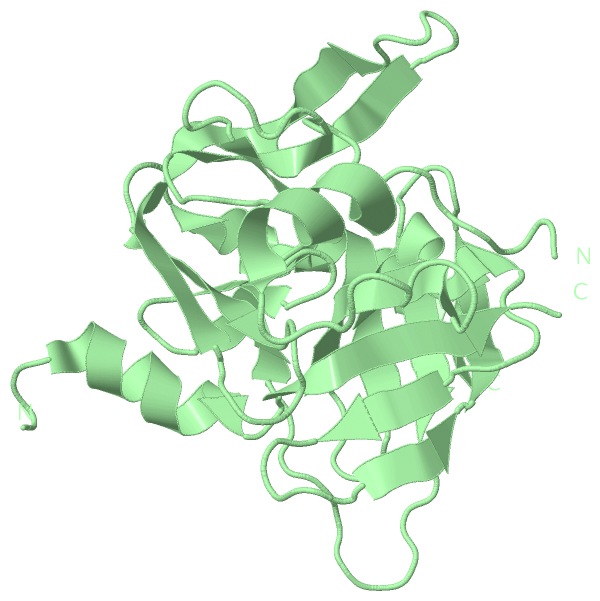

Image Biological Unit 2
Biological Unit 2  (Jmol Viewer)

(-) Description

Title :  CRYSTAL STRUCTURE OF THE PROTEASE DOMAIN OF AN ATP-INDEPENDENT HEAT SHOCK PROTEASE HTRA

Authors :  D. Y. Kim, D. R. Kim, S. C. Ha, N. K. Lokanath, H. Y. Hwang, K. K. Kim
Date :  18 Feb 02  (Deposition) - 01 Apr 03  (Release) - 24 Feb 09  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  2.80
Chains :  Asym. Unit :  A,B
Biol. Unit 1:  A  (1x)
Biol. Unit 2:  B  (1x)
Keywords :  Hydrolase, Serine Proteinase (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  D. Y. Kim, D. R. Kim, S. C. Ha, N. K. Lokanath, C. J. Lee, H. Y. Hwang, K. K. Kim
Crystal Structure Of The Protease Domain Of A Heat-Shock Protein Htra From Thermotoga Maritima
J. Biol. Chem. V. 278 6543 2003
PubMed-ID: 12458220  |  Reference-DOI: 10.1074/JBC.M208148200
(for further references see the PDB file header)

(-) Compounds

Molecule 1 - HEAT SHOCK PROTEASE HTRA
    Chains: A, B
    EC Number: 3.4.21.-
    Engineered: YES
    Expression System: ESCHERICHIA COLI
    Expression System Plasmid: PET-22B
    Expression System Taxid: 562
    Expression System Vector Type: PLASMID
    Fragment: PROTEASE DOMAIN
    Organism Scientific: THERMOTOGA MARITIMA
    Organism Taxid: 2336
    Synonym: HEAT SHOCK SERINE PROTEASE, PERIPLASMIC

 Structural Features

(-) Chains, Units

  12
Asymmetric Unit : AB
Biological Unit 1 (1x): A
Biological Unit 2 (1x):  B

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (0, 0)

(no "Ligand,Modified Residues,Ions" information available for 1L1J)

(-) Sites  (0, 0)

(no "Site" information available for 1L1J)

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 1L1J)

(-) Cis Peptide Bonds  (1, 1)

Asymmetric Unit
No.Residues
1Asn A:226 -Pro A:227

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 1L1J)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 1L1J)

(-) Exons   (0, 0)

(no "Exon" information available for 1L1J)

(-) Sequences/Alignments

Asymmetric Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:226
 aligned with Q9WZ41_THEMA | Q9WZ41 from UniProtKB/TrEMBL  Length:459

    Alignment length:228
                                    33        43        53        63        73        83        93       103       113       123       133       143       153       163       173       183       193       203       213       223       233       243
         Q9WZ41_THEMA    24 DYESPIVNVVEACAPAVVKIDVVKTVKTSFFDPYFEQFFKKWFGELPPGFERQVASLGSGFIFDPEGYILTNYHVVGGADNITVTMLDGSKYDAEYIGGDEELDIAVIKIKASDKKFPYLEFGDSDKVKIGEWAIAIGNPLGFQHTVTVGVVSATNRRIPKPDGSGYYVGLIQTDAAINPGNSGGPLLNIHGEVIGINTAIVNPQEAVNLGFAIPINTVKKFLDTILT 251
               SCOP domains d1l1ja_ A: Protease Do (D  egP, HtrA), catalytic domain                                                                                                                                                                              SCOP domains
               CATH domains 1l1jA01 A:24-143 Trypsin-  like serine proteases                                                                        1l1jA02 A:144-251 Trypsin-like serine proteases                                                              CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Pfam domains
         Sec.struct. author ...hhhhhhhhhhh..eeeeeee..--....hhhhhhhhhhhh.....hhhhheeeeeeeeeee...eeeeehhhhh.....eee.....eee....eee....eeeee...........ee.hhhhh....eeeeee.......eeeeeeeeeeeeeee......eeeeeeee...........eee....eeeeee............eeeeehhhhhhhhhhhh. Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Transcript
                 1l1j A  24 DYESPIVNVVEACAPAVVKIDVVKT--TSFFDPYFEQFFKKWFGELPPGFERQVASLGSGFIFDPEGYILTNYHVVGGADNITVTMLDGSKYDAEYIGGDEELDIAVIKIKASDKKFPYLEFGDSDKVKIGEWAIAIGNPLGFQHTVTVGVVSATNRRIPKPDGSGYYVGLIQTDAAINPGNSGGPLLNIHGEVIGINTAIVNPQEAVNLGFAIPINTVKKFLDTILT 251
                                    33        43    |  |53        63        73        83        93       103       113       123       133       143       153       163       173       183       193       203       213       223       233       243
                                                   48 51


Chain B from PDB  Type:PROTEIN  Length:226
 aligned with Q9WZ41_THEMA | Q9WZ41 from UniProtKB/TrEMBL  Length:459

    Alignment length:228
                                    33        43        53        63        73        83        93       103       113       123       133       143       153       163       173       183       193       203       213       223       233       243
         Q9WZ41_THEMA    24 DYESPIVNVVEACAPAVVKIDVVKTVKTSFFDPYFEQFFKKWFGELPPGFERQVASLGSGFIFDPEGYILTNYHVVGGADNITVTMLDGSKYDAEYIGGDEELDIAVIKIKASDKKFPYLEFGDSDKVKIGEWAIAIGNPLGFQHTVTVGVVSATNRRIPKPDGSGYYVGLIQTDAAINPGNSGGPLLNIHGEVIGINTAIVNPQEAVNLGFAIPINTVKKFLDTILT 251
               SCOP domains d1l1jb_ B: Protease Do (D  egP, HtrA), catalytic domain                                                                                                                                                                              SCOP domains
               CATH domains 1l1jB01 B:24-143 Trypsin-  like serine proteases                                                                        1l1jB02 B:144-251 Trypsin-like serine proteases                                                              CATH domains
           Pfam domains (1) ---------------------------------------------------------Trypsin_2-1l1jB01 B:81-220                                                                                                                  ------------------------------- Pfam domains (1)
           Pfam domains (2) ---------------------------------------------------------Trypsin_2-1l1jB02 B:81-220                                                                                                                  ------------------------------- Pfam domains (2)
         Sec.struct. author ...hhhhhhhhhhh..eeeeeee..--......hhhhhhhhhh..........eeeeeeeee.....eeeehhhhhh.....eee.....eee.eeeee......eeee...........ee.hhhhh....eeeeee.......eeeeeeeeeeeeeee......eeeeeeee...........eee....eeeeeee...........eeeeehhhhhhhhhhhh. Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Transcript
                 1l1j B  24 DYESPIVNVVEACAPAVVKIDVVKT--TSFFDPYFEQFFKKWFGELPPGFERQVASLGSGFIFDPEGYILTNYHVVGGADNITVTMLDGSKYDAEYIGGDEELDIAVIKIKASDKKFPYLEFGDSDKVKIGEWAIAIGNPLGFQHTVTVGVVSATNRRIPKPDGSGYYVGLIQTDAAINPGNSGGPLLNIHGEVIGINTAIVNPQEAVNLGFAIPINTVKKFLDTILT 251
                                    33        43    |  |53        63        73        83        93       103       113       123       133       143       153       163       173       183       193       203       213       223       233       243
                                                   48 51
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (1, 2)

Asymmetric Unit
(-)
Class: All beta proteins (24004)

(-) CATH Domains  (1, 4)

Asymmetric Unit
(-)
Class: Mainly Beta (13760)

(-) Pfam Domains  (1, 2)

Asymmetric Unit
(-)
Clan: Peptidase_PA (797)

(-) Gene Ontology  (3, 3)

Asymmetric Unit(hide GO term definitions)
Chain A,B   (Q9WZ41_THEMA | Q9WZ41)
molecular function
    GO:0008233    peptidase activity    Catalysis of the hydrolysis of a peptide bond. A peptide bond is a covalent bond formed when the carbon atom from the carboxyl group of one amino acid shares electrons with the nitrogen atom from the amino group of a second amino acid.
    GO:0004252    serine-type endopeptidase activity    Catalysis of the hydrolysis of internal, alpha-peptide bonds in a polypeptide chain by a catalytic mechanism that involves a catalytic triad consisting of a serine nucleophile that is activated by a proton relay involving an acidic residue (e.g. aspartate or glutamate) and a basic residue (usually histidine).
biological process
    GO:0006508    proteolysis    The hydrolysis of proteins into smaller polypeptides and/or amino acids by cleavage of their peptide bonds.
