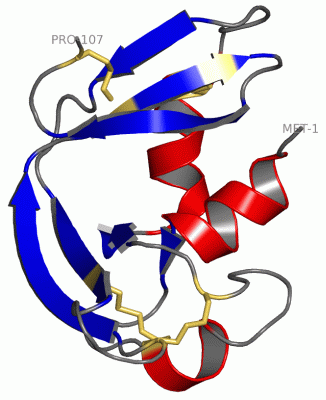

Image NMR Structure - manually
NMR Structure - manually  (Jmol Viewer)

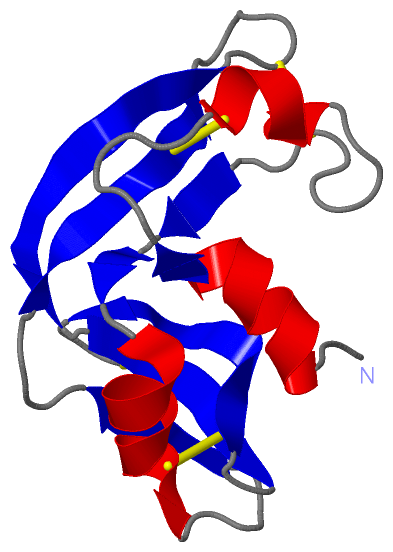

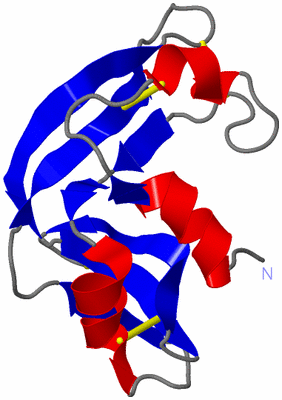

Image NMR Structure - model 1
NMR Structure - model 1  (Jmol Viewer)

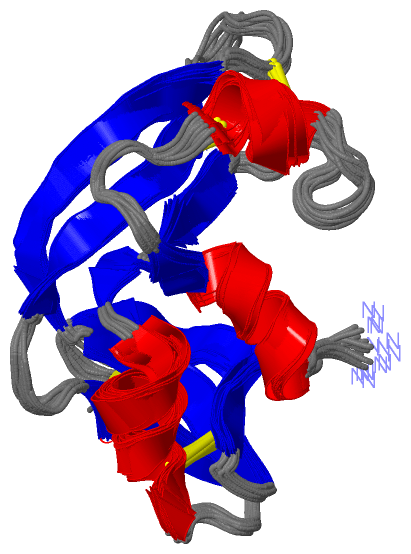

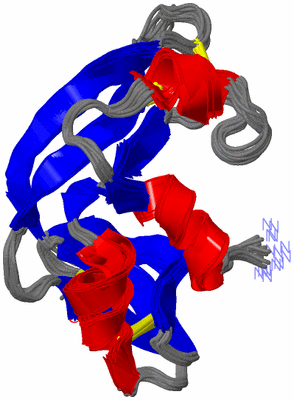

Image NMR Structure - all models
NMR Structure - all models  (Jmol Viewer)

(-) Description

Title :  SOLUTION STRUCTURE OF CYTOTOXIC RC-RNASE4

Authors :  C. -H. Hsu, Y. -D. Liao, L. -W. Chen, S. -H. Wu, C. Chen
Date :  28 Jan 02  (Deposition) - 28 Jul 02  (Release) - 24 Feb 09  (Revision)
Method :  SOLUTION NMR
Resolution :  NOT APPLICABLE
Chains :  NMR Structure  :  A  (15x)
Keywords :  Antitumor, Bullfrog, Cytotoxicity, Ribonuclease, Nmr, Structure From Molmol, Hydrolase (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  C. -H. Hsu, Y. -D. Liao, Y. -R. Pan, L. -W. Chen, S. -H. Wu, Y. -J. Leu, C. Chen
Solution Structure Of The Cytotoxic Rnase 4 From The Oocytes Of Bullfrog Rana Catesbeiana
J. Mol. Biol. V. 326 1189 2003
PubMed-ID: 12589762  |  Reference-DOI: 10.1016/S0022-2836(02)01472-9
(for further references see the PDB file header)

(-) Compounds

Molecule 1 - RC-RNASE4
    Chains: A
    Engineered: YES
    Expression System: ESCHERICHIA COLI BL21(DE3)
    Expression System Plasmid: PET-11D
    Expression System Strain: BL21(DE3)
    Expression System Taxid: 469008
    Expression System Vector Type: PLASMID
    Gene: OOCYTES
    Organism Common: BULLFROG
    Organism Scientific: RANA CATESBEIANA
    Organism Taxid: 8400

 Structural Features

(-) Chains, Units


NMR Structure (15x):

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (0, 0)

(no "Ligand,Modified Residues,Ions" information available for 1KVZ)

(-) Sites  (0, 0)

(no "Site" information available for 1KVZ)

(-) SS Bonds  (4, 4)

NMR Structure
No.Residues
1A:20 -A:69
2A:31 -A:77
3A:49 -A:92
4A:89 -A:106

(-) Cis Peptide Bonds  (0, 0)

(no "Cis Peptide Bond" information available for 1KVZ)

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 1KVZ)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 1KVZ)

(-) Exons   (0, 0)

(no "Exon" information available for 1KVZ)

(-) Sequences/Alignments

NMR Structure
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:107
 aligned with Q9DFY6_LITCT | Q9DFY6 from UniProtKB/TrEMBL  Length:129

    Alignment length:107
                                    32        42        52        62        72        82        92       102       112       122
         Q9DFY6_LITCT    23 CQDWATFKKKHLTDTWDVDCDNLMPTSLFDCKDKNTFIYSLPGPVKALCRGVIFSADVLSNSEFYLAECNVKPRKPCKYKLKKSSNRICIRCEHELPVHFAGVGICP 129
               SCOP domains d1kvza_ A: Amphibian cytotoxic ribonuclease                                                                 SCOP domains
               CATH domains 1kvzA00 A:1-107 P-30 Protein                                                                                CATH domains
               Pfam domains ----------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ..hhhhhhhhhee.....hhhhhh.........eee.ee.hhhhhhhhhh.....eeee....eeeeeeee.......eeeeeeee.eeeeee..eeeeeeee.... Sec.struct. author
                 SAPs(SNPs) ----------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ----------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ----------------------------------------------------------------------------------------------------------- Transcript
                 1kvz A   1 MQDWATFKKKHLTDTWDVDCDNLMPTSLFDCKDKNTFIYSLPGPVKALCRGVIFSADVLSNSEFYLAECNVKPRKPCKYKLKKSSNRICIRCEHELPVHFAGVGICP 107
                                    10        20        30        40        50        60        70        80        90       100
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (1, 1)

NMR Structure
(-)
Class: Alpha and beta proteins (a+b) (23004)

(-) CATH Domains  (1, 1)

NMR Structure
(-)
Class: Alpha Beta (26913)

(-) Pfam Domains  (0, 0)

(no "Pfam Domain" information available for 1KVZ)

(-) Gene Ontology  (5, 5)

NMR Structure(hide GO term definitions)
Chain A   (Q9DFY6_LITCT | Q9DFY6)
molecular function
    GO:0004519    endonuclease activity    Catalysis of the hydrolysis of ester linkages within nucleic acids by creating internal breaks.
    GO:0016787    hydrolase activity    Catalysis of the hydrolysis of various bonds, e.g. C-O, C-N, C-C, phosphoric anhydride bonds, etc. Hydrolase is the systematic name for any enzyme of EC class 3.
    GO:0004518    nuclease activity    Catalysis of the hydrolysis of ester linkages within nucleic acids.
    GO:0003676    nucleic acid binding    Interacting selectively and non-covalently with any nucleic acid.
biological process
    GO:0090305    nucleic acid phosphodiester bond hydrolysis    The nucleic acid metabolic process in which the phosphodiester bonds between nucleotides are cleaved by hydrolysis.
