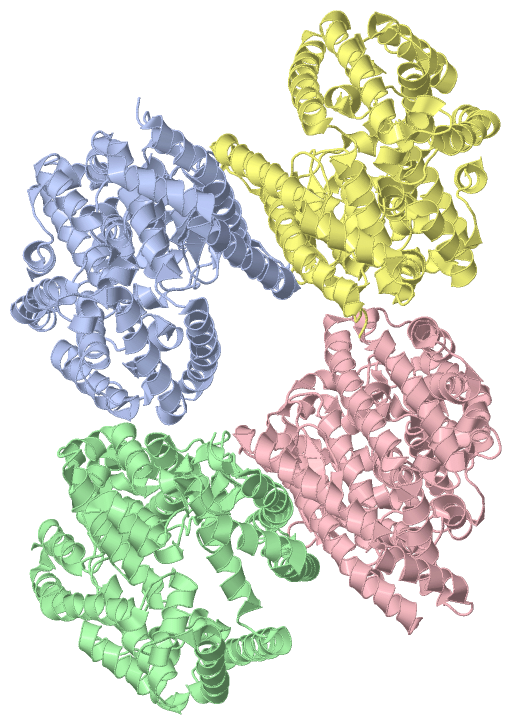

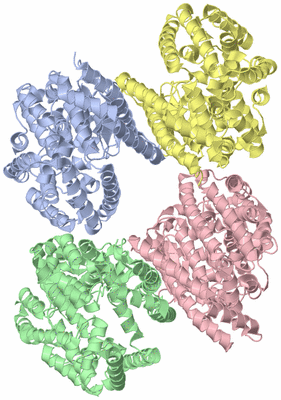

Image Asymmetric Unit
Asymmetric Unit  (Jmol Viewer)

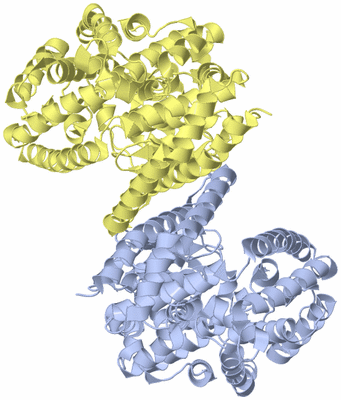

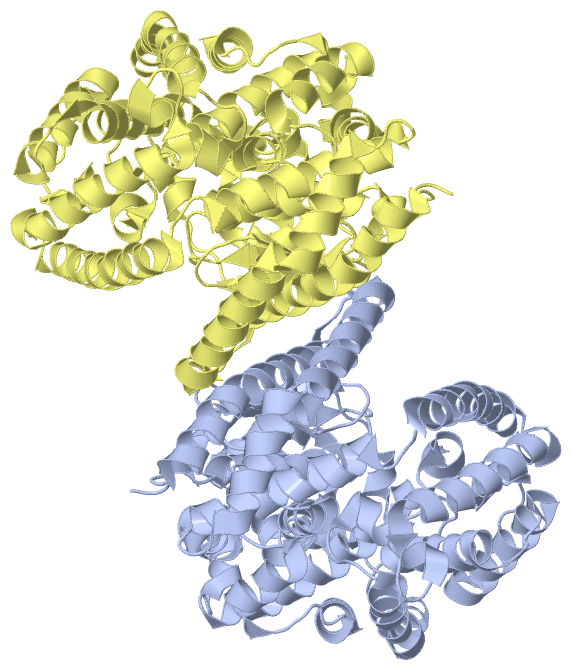

Image Biological Unit 1
Biological Unit 1  (Jmol Viewer)

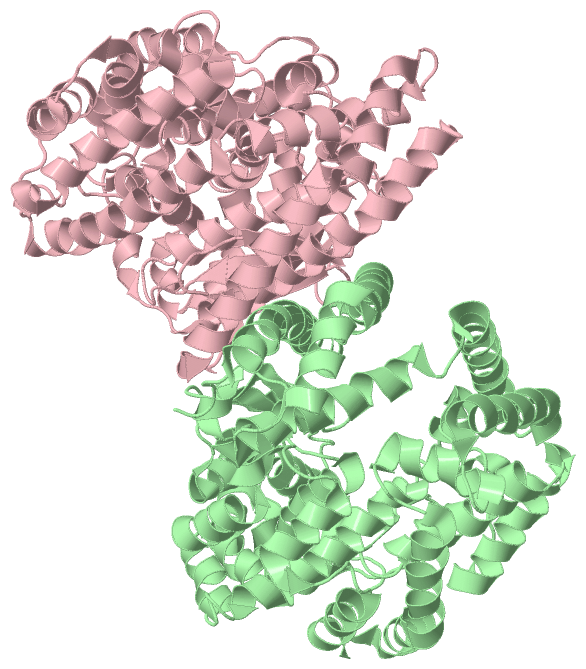

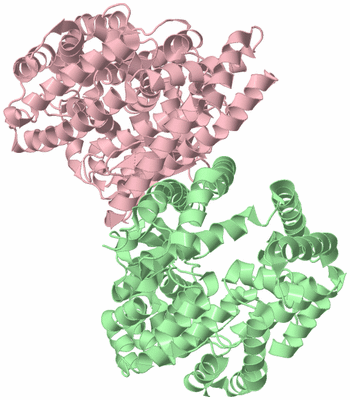

Image Biological Unit 2
Biological Unit 2  (Jmol Viewer)

(-) Description

Title :  STRUCTURE OF PYROCOCCUS FURIOSUS CARBOXYPEPTIDASE APO-YB

Authors :  J. W. Arndt, B. Hao, V. Ramakrishnan, T. Cheng, S. I. Chan, M. K. Chan
Date :  31 Oct 01  (Deposition) - 06 Nov 02  (Release) - 09 Mar 11  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  2.30
Chains :  Asym. Unit :  A,B,C,D
Biol. Unit 1:  A,D  (1x)
Biol. Unit 2:  B,C  (1x)
Keywords :  Hexxh Motif, M32 Family, Metallopeptidase, Carboxypeptidase (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  J. W. Arndt, B. Hao, V. Ramakrishnan, T. Cheng, S. I. Chan, M. K. Chan
Crystal Structure Of A Novel Carboxypeptidase From The Hyperthermophilic Archaeon Pyrococcus Furiosus
Structure V. 10 215 2002
PubMed-ID: 11839307  |  Reference-DOI: 10.1016/S0969-2126(02)00698-6

(-) Compounds

Molecule 1 - M32 CARBOXYPEPTIDASE
    Chains: A, B, C, D
    Organism Scientific: PYROCOCCUS FURIOSUS
    Organism Taxid: 2261

 Structural Features

(-) Chains, Units

  1234
Asymmetric Unit : ABCD
Biological Unit 1 (1x): A  D
Biological Unit 2 (1x):  BC

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (0, 0)

(no "Ligand,Modified Residues,Ions" information available for 1K9X)

(-) Sites  (0, 0)

(no "Site" information available for 1K9X)

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 1K9X)

(-) Cis Peptide Bonds  (0, 0)

(no "Cis Peptide Bond" information available for 1K9X)

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 1K9X)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 1K9X)

(-) Exons   (0, 0)

(no "Exon" information available for 1K9X)

(-) Sequences/Alignments

Asymmetric Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:497
 aligned with CBP1_PYRFU | Q8U3L0 from UniProtKB/Swiss-Prot  Length:499

    Alignment length:497
                                    12        22        32        42        52        62        72        82        92       102       112       122       132       142       152       162       172       182       192       202       212       222       232       242       252       262       272       282       292       302       312       322       332       342       352       362       372       382       392       402       412       422       432       442       452       462       472       482       492
           CBP1_PYRFU     3 EVFQNETIKQILAKYRRIWAIGHAQSVLGWDLEVNMPKEGILERSVAQGELSVLSHELLLHPEFVNLVEKAKGLENLNEYERGIVRVLDRSIRIARAFPPEFIREVSETTSLATKAWEEAKAKDDFSKFEPWLDKIISLAKRAAEYLGYEEEPYDALLDLYEEGLRTRDVEKMFEVLEKKLKPLLDKILEEGKVPREHPLEKEKYEREWMERVNLWILQKFGFPLGTRARLDVSAHPFTTEFGIRDVRITTRYEGYDFRRTILSTVHEFGHALYELQQDERFMFTPIAGGVSLGIHESQSRFWENIIGRSKEFVELIYPVLKENLPFMSNYTPEDVYLYFNIVRPDFIRTEADVVTYNFHILLRFKLERLMVSEEIKAKDLPEMWNDEMERLLGIRPRKYSEGILQDIHWAHGSIGYFPTYTIGTLLSAQLYYHIKKDIPDFEEKVAKAEFDPIKAWLREKIHRWGSIYPPKELLKKAIGEDMDAEYFVRWVKEKYL 499
               SCOP domains d1k9xa_ A: Thermostable carboxypeptidase 1                                                                                                                                                                                                                                                                                                                                                                                                                                                                        SCOP domains
               CATH domains ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ....hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh.hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh...hhhhhhhhhhhhhhhhhhh..hhhhhhhhhhhhhhhhhhhhhhhhh.hhhhhhhhhhhhhhhhhhhhhhhh...hhhhhhhhhhh...hhhhhhhhhhhhhhhhhhhhhhhhhhh.....hhhhh...hhhhhhhhhhhhhhhhh......eeeee.....eeeee..eeeeee......hhhhhhhhhhhhhhhhhhhh.hhhhh........hhhhhhhhhhhhhh....hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh......hhhhh...hhhhhhhhhhhhhhhhhhh..hhhhhhhhhhhhhhhhhh....hhhhh....hhhhhh....hhhhhhhhhhhhhhhhhhhh...hhhhhhhhh.hhhhhhhhhhhhhhhh...hhhhhhhhhhh....hhhhhhhhhhhhh Sec.struct. author
                 SAPs(SNPs) ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 1k9x A   3 EVFQNETIKQILAKYRRIWAIGHAQSVLGWDLEVNMPKEGILERSVAQGELSVLSHELLLHPEFVNLVEKAKGLENLNEYERGIVRVLDRSIRIARAFPPEFIREVSETTSLATKAWEEAKAKDDFSKFEPWLDKIISLAKRAAEYLGYEEEPYDALLDLYEEGLRTRDVEKMFEVLEKKLKPLLDKILEEGKVPREHPLEKEKYEREWMERVNLWILQKFGFPLGTRARLDVSAHPFTTEFGIRDVRITTRYEGYDFRRTILSTVHEFGHALYELQQDERFMFTPIAGGVSLGIHESQSRFWENIIGRSKEFVELIYPVLKENLPFMSNYTPEDVYLYFNIVRPDFIRTEADVVTYNFHILLRFKLERLMVSEEIKAKDLPEMWNDEMERLLGIRPRKYSEGILQDIHWAHGSIGYFPTYTIGTLLSAQLYYHIKKDIPDFEEKVAKAEFDPIKAWLREKIHRWGSIYPPKELLKKAIGEDMDAEYFVRWVKEKYL 499
                                    12        22        32        42        52        62        72        82        92       102       112       122       132       142       152       162       172       182       192       202       212       222       232       242       252       262       272       282       292       302       312       322       332       342       352       362       372       382       392       402       412       422       432       442       452       462       472       482       492


Chain B from PDB  Type:PROTEIN  Length:497
 aligned with CBP1_PYRFU | Q8U3L0 from UniProtKB/Swiss-Prot  Length:499

    Alignment length:497
                                    12        22        32        42        52        62        72        82        92       102       112       122       132       142       152       162       172       182       192       202       212       222       232       242       252       262       272       282       292       302       312       322       332       342       352       362       372       382       392       402       412       422       432       442       452       462       472       482       492
           CBP1_PYRFU     3 EVFQNETIKQILAKYRRIWAIGHAQSVLGWDLEVNMPKEGILERSVAQGELSVLSHELLLHPEFVNLVEKAKGLENLNEYERGIVRVLDRSIRIARAFPPEFIREVSETTSLATKAWEEAKAKDDFSKFEPWLDKIISLAKRAAEYLGYEEEPYDALLDLYEEGLRTRDVEKMFEVLEKKLKPLLDKILEEGKVPREHPLEKEKYEREWMERVNLWILQKFGFPLGTRARLDVSAHPFTTEFGIRDVRITTRYEGYDFRRTILSTVHEFGHALYELQQDERFMFTPIAGGVSLGIHESQSRFWENIIGRSKEFVELIYPVLKENLPFMSNYTPEDVYLYFNIVRPDFIRTEADVVTYNFHILLRFKLERLMVSEEIKAKDLPEMWNDEMERLLGIRPRKYSEGILQDIHWAHGSIGYFPTYTIGTLLSAQLYYHIKKDIPDFEEKVAKAEFDPIKAWLREKIHRWGSIYPPKELLKKAIGEDMDAEYFVRWVKEKYL 499
               SCOP domains d1k9xb_ B: Thermostable carboxypeptidase 1                                                                                                                                                                                                                                                                                                                                                                                                                                                                        SCOP domains
               CATH domains ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ....hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh.hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh...hhhhhhhhhhhhhhhhhhh..hhhhhhhhhhhhhhhhhhhhhhhhh.hhhhhhhhhhhhhhhhhhhhhhhh...hhhhhhhhhhh...hhhhhhhhhhhhhhhhhhhhhhhhhhh.....hhhhh...hhhhhhhhhhhhhhhhh......eeeee.....eeeee..eeeeee......hhhhhhhhhhhhhhhhhhhh.hhhhh........hhhhhhhhhhhhhh....hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh......hhhhh...hhhhhhhhhhhhhhhhhhh..hhhhhhhhhhhhhhhhhh....hhhhh....hhhhhh....hhhhhhhhhhhhhhhhhhh....hhhhhhhhh.hhhhhhhhhhhhhhhh...hhhhhhhhhhh....hhhhhhhhhhhhh Sec.struct. author
                 SAPs(SNPs) ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 1k9x B   3 EVFQNETIKQILAKYRRIWAIGHAQSVLGWDLEVNMPKEGILERSVAQGELSVLSHELLLHPEFVNLVEKAKGLENLNEYERGIVRVLDRSIRIARAFPPEFIREVSETTSLATKAWEEAKAKDDFSKFEPWLDKIISLAKRAAEYLGYEEEPYDALLDLYEEGLRTRDVEKMFEVLEKKLKPLLDKILEEGKVPREHPLEKEKYEREWMERVNLWILQKFGFPLGTRARLDVSAHPFTTEFGIRDVRITTRYEGYDFRRTILSTVHEFGHALYELQQDERFMFTPIAGGVSLGIHESQSRFWENIIGRSKEFVELIYPVLKENLPFMSNYTPEDVYLYFNIVRPDFIRTEADVVTYNFHILLRFKLERLMVSEEIKAKDLPEMWNDEMERLLGIRPRKYSEGILQDIHWAHGSIGYFPTYTIGTLLSAQLYYHIKKDIPDFEEKVAKAEFDPIKAWLREKIHRWGSIYPPKELLKKAIGEDMDAEYFVRWVKEKYL 499
                                    12        22        32        42        52        62        72        82        92       102       112       122       132       142       152       162       172       182       192       202       212       222       232       242       252       262       272       282       292       302       312       322       332       342       352       362       372       382       392       402       412       422       432       442       452       462       472       482       492


Chain C from PDB  Type:PROTEIN  Length:497
 aligned with CBP1_PYRFU | Q8U3L0 from UniProtKB/Swiss-Prot  Length:499

    Alignment length:497
                                    12        22        32        42        52        62        72        82        92       102       112       122       132       142       152       162       172       182       192       202       212       222       232       242       252       262       272       282       292       302       312       322       332       342       352       362       372       382       392       402       412       422       432       442       452       462       472       482       492
           CBP1_PYRFU     3 EVFQNETIKQILAKYRRIWAIGHAQSVLGWDLEVNMPKEGILERSVAQGELSVLSHELLLHPEFVNLVEKAKGLENLNEYERGIVRVLDRSIRIARAFPPEFIREVSETTSLATKAWEEAKAKDDFSKFEPWLDKIISLAKRAAEYLGYEEEPYDALLDLYEEGLRTRDVEKMFEVLEKKLKPLLDKILEEGKVPREHPLEKEKYEREWMERVNLWILQKFGFPLGTRARLDVSAHPFTTEFGIRDVRITTRYEGYDFRRTILSTVHEFGHALYELQQDERFMFTPIAGGVSLGIHESQSRFWENIIGRSKEFVELIYPVLKENLPFMSNYTPEDVYLYFNIVRPDFIRTEADVVTYNFHILLRFKLERLMVSEEIKAKDLPEMWNDEMERLLGIRPRKYSEGILQDIHWAHGSIGYFPTYTIGTLLSAQLYYHIKKDIPDFEEKVAKAEFDPIKAWLREKIHRWGSIYPPKELLKKAIGEDMDAEYFVRWVKEKYL 499
               SCOP domains d1k9xc_ C: Thermostable carboxypeptidase 1                                                                                                                                                                                                                                                                                                                                                                                                                                                                        SCOP domains
               CATH domains ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ....hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh.hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh...hhhhhhhhhhhhhhhhhhh..hhhhhhhhhhhhhhhhhhhhhhhhh.hhhhhhhhhhhhhhhhhhhhhhhh...hhhhhhhhhhh...hhhhhhhhhhhhhhhhhhhhhhhhhhh.....hhhhhh..hhhhhhhhhhhhhhhhh......eeeee.....eeeee..eeeeee......hhhhhhhhhhhhhhhhhhhh.hhhhh........hhhhhhhhhhhhhhh...hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh......hhhhhhhhhhhhhhhhhhhhhhhhhhh..hhhhhhhhhhhhhhhhhh.............hhhhhh....hhhhhhhhhhhhhhhhhhh....hhhhhhhh..hhhhhhhhhhhhhhhh...hhhhhhhhhhh....hhhhhhhhhhhhh Sec.struct. author
                 SAPs(SNPs) ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 1k9x C   3 EVFQNETIKQILAKYRRIWAIGHAQSVLGWDLEVNMPKEGILERSVAQGELSVLSHELLLHPEFVNLVEKAKGLENLNEYERGIVRVLDRSIRIARAFPPEFIREVSETTSLATKAWEEAKAKDDFSKFEPWLDKIISLAKRAAEYLGYEEEPYDALLDLYEEGLRTRDVEKMFEVLEKKLKPLLDKILEEGKVPREHPLEKEKYEREWMERVNLWILQKFGFPLGTRARLDVSAHPFTTEFGIRDVRITTRYEGYDFRRTILSTVHEFGHALYELQQDERFMFTPIAGGVSLGIHESQSRFWENIIGRSKEFVELIYPVLKENLPFMSNYTPEDVYLYFNIVRPDFIRTEADVVTYNFHILLRFKLERLMVSEEIKAKDLPEMWNDEMERLLGIRPRKYSEGILQDIHWAHGSIGYFPTYTIGTLLSAQLYYHIKKDIPDFEEKVAKAEFDPIKAWLREKIHRWGSIYPPKELLKKAIGEDMDAEYFVRWVKEKYL 499
                                    12        22        32        42        52        62        72        82        92       102       112       122       132       142       152       162       172       182       192       202       212       222       232       242       252       262       272       282       292       302       312       322       332       342       352       362       372       382       392       402       412       422       432       442       452       462       472       482       492


Chain D from PDB  Type:PROTEIN  Length:497
 aligned with CBP1_PYRFU | Q8U3L0 from UniProtKB/Swiss-Prot  Length:499

    Alignment length:497
                                    12        22        32        42        52        62        72        82        92       102       112       122       132       142       152       162       172       182       192       202       212       222       232       242       252       262       272       282       292       302       312       322       332       342       352       362       372       382       392       402       412       422       432       442       452       462       472       482       492
           CBP1_PYRFU     3 EVFQNETIKQILAKYRRIWAIGHAQSVLGWDLEVNMPKEGILERSVAQGELSVLSHELLLHPEFVNLVEKAKGLENLNEYERGIVRVLDRSIRIARAFPPEFIREVSETTSLATKAWEEAKAKDDFSKFEPWLDKIISLAKRAAEYLGYEEEPYDALLDLYEEGLRTRDVEKMFEVLEKKLKPLLDKILEEGKVPREHPLEKEKYEREWMERVNLWILQKFGFPLGTRARLDVSAHPFTTEFGIRDVRITTRYEGYDFRRTILSTVHEFGHALYELQQDERFMFTPIAGGVSLGIHESQSRFWENIIGRSKEFVELIYPVLKENLPFMSNYTPEDVYLYFNIVRPDFIRTEADVVTYNFHILLRFKLERLMVSEEIKAKDLPEMWNDEMERLLGIRPRKYSEGILQDIHWAHGSIGYFPTYTIGTLLSAQLYYHIKKDIPDFEEKVAKAEFDPIKAWLREKIHRWGSIYPPKELLKKAIGEDMDAEYFVRWVKEKYL 499
               SCOP domains d1k9xd_ D: Thermostable carboxypeptidase 1                                                                                                                                                                                                                                                                                                                                                                                                                                                                        SCOP domains
               CATH domains ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ....hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh.hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh....hhhhhhhhhhhhhhhhhhh..hhhhhhhhhhhhhhhhhhhhhhhhh.hhhhhhhhhhhhhhhhhhhhhhhh...hhhhhhhhhhh...hhhhhhhhhhhhhhhhhhhhhhhhhhh.....hhhhh...hhhhhhhhhhhhhhhhh......eeeee.....eeeee..eeeeee......hhhhhhhhhhhhhhhhhhhh.hhhhh........hhhhhhhhhhhhhh....hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh......hhhhhhhhhhhhhhhhhhhhhhhhhhh..hhhhhhhhhhhhhhhhhh....hhhhh....hhhhhh....hhhhhhhhhhhhhhhhhhhhhh.hhhhhhhh..hhhhhhhhhhhhhhhh...hhhhhhhhhhh....hhhhhhhhhhhhh Sec.struct. author
                 SAPs(SNPs) ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 1k9x D   3 EVFQNETIKQILAKYRRIWAIGHAQSVLGWDLEVNMPKEGILERSVAQGELSVLSHELLLHPEFVNLVEKAKGLENLNEYERGIVRVLDRSIRIARAFPPEFIREVSETTSLATKAWEEAKAKDDFSKFEPWLDKIISLAKRAAEYLGYEEEPYDALLDLYEEGLRTRDVEKMFEVLEKKLKPLLDKILEEGKVPREHPLEKEKYEREWMERVNLWILQKFGFPLGTRARLDVSAHPFTTEFGIRDVRITTRYEGYDFRRTILSTVHEFGHALYELQQDERFMFTPIAGGVSLGIHESQSRFWENIIGRSKEFVELIYPVLKENLPFMSNYTPEDVYLYFNIVRPDFIRTEADVVTYNFHILLRFKLERLMVSEEIKAKDLPEMWNDEMERLLGIRPRKYSEGILQDIHWAHGSIGYFPTYTIGTLLSAQLYYHIKKDIPDFEEKVAKAEFDPIKAWLREKIHRWGSIYPPKELLKKAIGEDMDAEYFVRWVKEKYL 499
                                    12        22        32        42        52        62        72        82        92       102       112       122       132       142       152       162       172       182       192       202       212       222       232       242       252       262       272       282       292       302       312       322       332       342       352       362       372       382       392       402       412       422       432       442       452       462       472       482       492
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (1, 4)

Asymmetric Unit
(-)
Class: Alpha and beta proteins (a+b) (23004)

(-) CATH Domains  (0, 0)

(no "CATH Domain" information available for 1K9X)

(-) Pfam Domains  (0, 0)

(no "Pfam Domain" information available for 1K9X)

(-) Gene Ontology  (8, 8)

Asymmetric Unit(hide GO term definitions)
Chain A,B,C,D   (CBP1_PYRFU | Q8U3L0)
molecular function
    GO:0004180    carboxypeptidase activity    Catalysis of the hydrolysis of the terminal or penultimate peptide bond at the C-terminal end of a peptide or polypeptide.
    GO:0050897    cobalt ion binding    Interacting selectively and non-covalently with a cobalt (Co) ion.
    GO:0016787    hydrolase activity    Catalysis of the hydrolysis of various bonds, e.g. C-O, C-N, C-C, phosphoric anhydride bonds, etc. Hydrolase is the systematic name for any enzyme of EC class 3.
    GO:0046872    metal ion binding    Interacting selectively and non-covalently with any metal ion.
    GO:0004181    metallocarboxypeptidase activity    Catalysis of the hydrolysis of C-terminal amino acid residues from a polypeptide chain by a mechanism in which water acts as a nucleophile, one or two metal ions hold the water molecule in place, and charged amino acid side chains are ligands for the metal ions.
    GO:0008237    metallopeptidase activity    Catalysis of the hydrolysis of peptide bonds by a mechanism in which water acts as a nucleophile, one or two metal ions hold the water molecule in place, and charged amino acid side chains are ligands for the metal ions.
    GO:0008233    peptidase activity    Catalysis of the hydrolysis of a peptide bond. A peptide bond is a covalent bond formed when the carbon atom from the carboxyl group of one amino acid shares electrons with the nitrogen atom from the amino group of a second amino acid.
biological process
    GO:0006508    proteolysis    The hydrolysis of proteins into smaller polypeptides and/or amino acids by cleavage of their peptide bonds.

 Visualization

(-) Interactive Views

Asymmetric Unit
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
(no "Ligands, Modified Residues, Ions" information available for 1k9x)

  Sites
(no "Sites" information available for 1k9x)

  Cis Peptide Bonds
(no "Cis Peptide Bonds" information available for 1k9x)

Biological Units
  Complete Structure
    Biological Unit 1  [ Jena3D ]
    Biological Unit 2  [ Jena3D ]

(-) Still Images

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick
[ Asym. Unit PNG format | Biol. Unit 1 PNG format | Biol. Unit 2 PNG format ](automatic orientation, automatically generated)
Molscript
  protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick
[ mono PDF format | stereo PDF format ](default orientation, automatically generated)

 Databases and Analysis Tools

(-) Databases

Access by PDB/NDB ID
  1k9x
    Family and Domain Information: ProDom | SYSTERS
    General Structural Information: GlycoscienceDB | MMDB | NDB | OCA | PDB | PDBe | PDBj | PDBsum | PDBWiki | PQS | PROTEOPEDIA
    Orientation in Membranes: OPM
    Protein Surface: SURFACE
    Secondary Structure: DSSP (structure derived) | HSSP (homology derived)
    Structural Genomics: GeneCensus
    Structural Neighbours: CE | VAST
    Structure Classification: CATH | Dali | SCOP
    Validation and Original Data: BMRB Data View | BMRB Restraints Grid | EDS | PROCHECK | RECOORD | WHAT_CHECK

Access by UniProt ID/Accession number
  CBP1_PYRFU | Q8U3L0
    Comparative Protein Structure Models: ModBase
    Genomic Information: Ensembl
    Protein-protein Interaction: DIP
    Sequence, Family and Domain Information: InterPro | Pfam | SMART | UniProtKB/SwissProt

Access by Enzyme Classificator   (EC Number)
  (no 'Enzyme Classificator' available)
    General Enzyme Information: BRENDA | EC-PDB | Enzyme | IntEnz
    Pathway: KEGG | MetaCyc

Access by Disease Identifier   (MIM ID)
  (no 'MIM ID' available)
    Disease Information: OMIM

Access by GenAge ID
  (no 'GenAge ID' available)
    Age Related Information: GenAge

(-) Analysis Tools

Access by PDB/NDB ID
    Domain Information: XDom
    Interatomic Contacts of Structural Units: CSU
    Ligand-protein Contacts: LPC
    Protein Cavities: castP
    Sequence and Secondary Structure: PDBCartoon
    Structure Alignment: STRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    Structure and Sequence Browser: STING

Access by UniProt ID/Accession number
  CBP1_PYRFU | Q8U3L0
    Protein Disorder Prediction: DisEMBL | FoldIndex | GLOBPLOT (for more information see DisProt)

 Related Entries

(-) Entries Sharing at Least One Protein Chain (UniProt ID)

UniProtKB/Swiss-Prot
        CBP1_PYRFU | Q8U3L0: 1ka2 1ka4

(-) Related Entries Specified in the PDB File

1ka2 STRUCTURE OF PYROCOCCUS FURIOSUS CARBOXYPEPTIDASE APO-MG
1ka4 STRUCTURE OF PYROCOCCUS FURIOSUS CARBOXYPEPTIDASE NAT-PB
