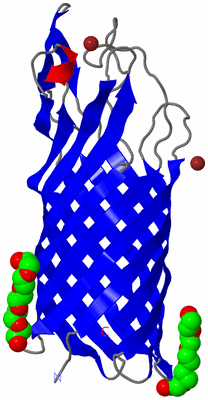

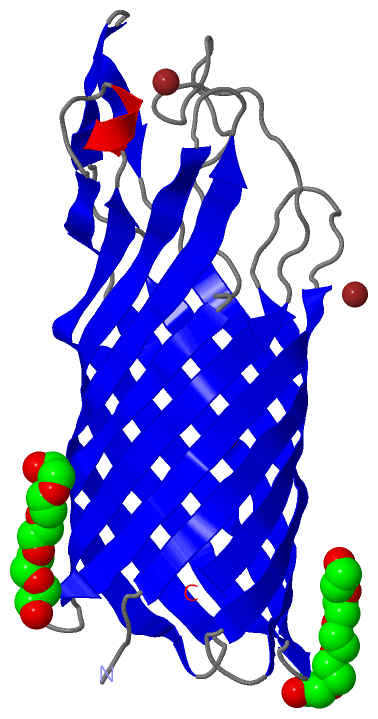

Image Asymmetric Unit
Asymmetric Unit  (Jmol Viewer)

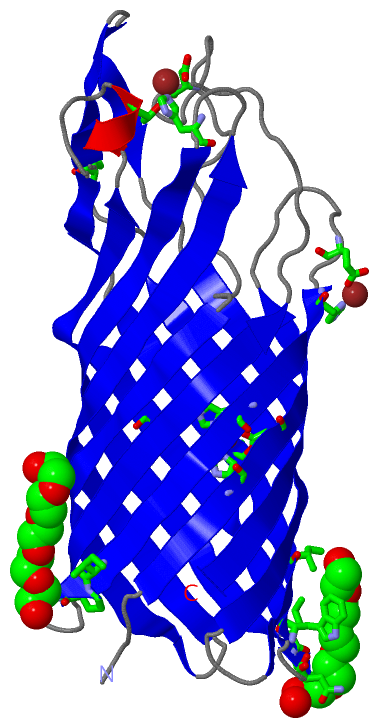

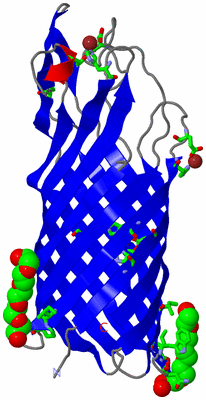

Image Asym. Unit - sites
Asym. Unit - sites  (Jmol Viewer)

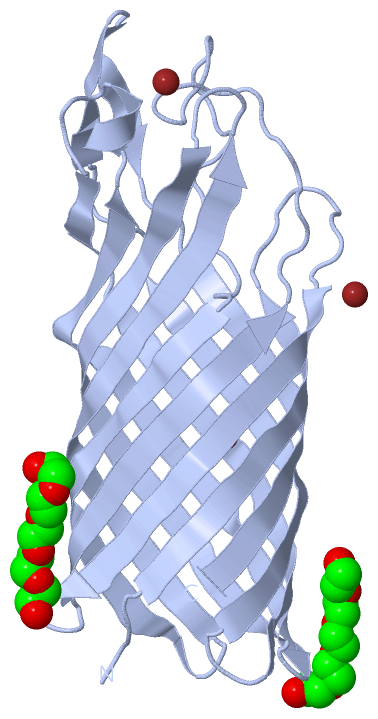

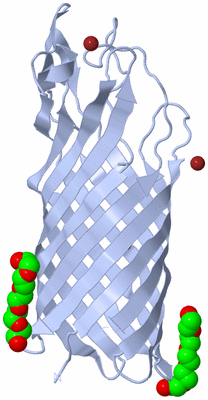

Image Biological Unit 1
Biological Unit 1  (Jmol Viewer)
Image Biol. Unit 1 - sites
Biol. Unit 1 - sites  (Jmol Viewer)

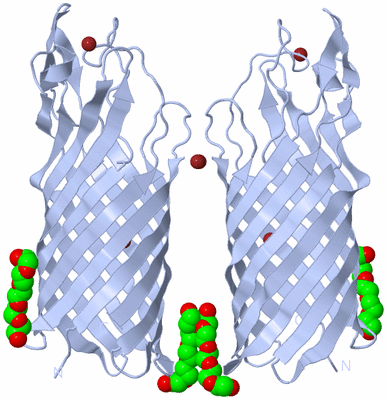

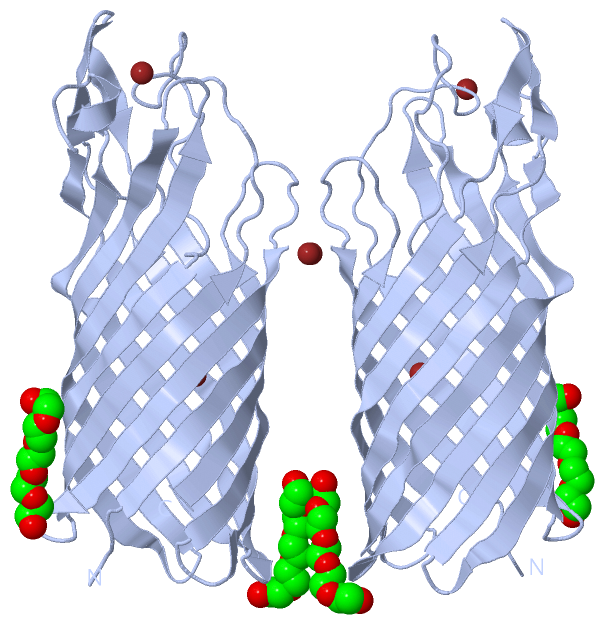

Image Biological Unit 2
Biological Unit 2  (Jmol Viewer)

(-) Description

Title :  CRYSTAL STRUCTURE OF THE OPCA OUTER MEMBRANE ADHESIN/INVASIN FROM NEISSERIA MENINGITIDIS

Authors :  S. M. Prince, M. Achtman, J. P. Derrick
Date :  26 Sep 01  (Deposition) - 27 Mar 02  (Release) - 13 Jul 11  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  2.03
Chains :  Asym. Unit :  A
Biol. Unit 1:  A  (1x)
Biol. Unit 2:  A  (2x)
Keywords :  Adhesin, Invasin, Membrane Protein, Outer Membrane, Beta Barrel (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  S. M. Prince, M. Achtman, J. P. Derrick
Crystal Structure Of The Opca Integral Membrane Adhesin Fro Neisseria Meningitidis.
Proc. Natl. Acad. Sci. Usa V. 99 3417 2002
PubMed-ID: 11891340  |  Reference-DOI: 10.1073/PNAS.062630899
(for further references see the PDB file header)

(-) Compounds

Molecule 1 - OUTER MEMBRANE PROTEIN
    Chains: A
    Organism Scientific: NEISSERIA MENINGITIDIS
    Organism Taxid: 487
    Other Details: OUTER MEMBRANE
    Synonym: OPCA PROTEIN

 Structural Features

(-) Chains, Units

  1
Asymmetric Unit : A
Biological Unit 1 (1x): A
Biological Unit 2 (2x): A

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (2, 5)

Asymmetric Unit (2, 5)
No.NameCountTypeFull Name
11PE2Ligand/IonPENTAETHYLENE GLYCOL
2ZN3Ligand/IonZINC ION
Biological Unit 1 (1, 2)
No.NameCountTypeFull Name
11PE2Ligand/IonPENTAETHYLENE GLYCOL
2ZN-1Ligand/IonZINC ION
Biological Unit 2 (1, 4)
No.NameCountTypeFull Name
11PE4Ligand/IonPENTAETHYLENE GLYCOL
2ZN-1Ligand/IonZINC ION

(-) Sites  (5, 5)

Asymmetric Unit (5, 5)
No.NameEvidenceResiduesDescription
1AC1SOFTWAREHIS A:13 , ASP A:15 , HIS A:35 , HOH A:408BINDING SITE FOR RESIDUE ZN A 401
2AC2SOFTWAREGLU A:28 , HIS A:30BINDING SITE FOR RESIDUE ZN A 402
3AC3SOFTWAREASP A:69 , HIS A:128 , THR A:176 , GLU A:223BINDING SITE FOR RESIDUE ZN A 403
4AC4SOFTWARELEU A:149 , GLY A:150 , ASN A:151 , TRP A:153 , ILE A:197 , HOH A:535BINDING SITE FOR RESIDUE 1PE A 301
5AC5SOFTWAREILE A:42 , PRO A:43 , PHE A:44 , VAL A:161 , LEU A:193BINDING SITE FOR RESIDUE 1PE A 302

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 1K24)

(-) Cis Peptide Bonds  (1, 1)

Asymmetric Unit
No.Residues
1Lys A:80 -Leu A:81

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 1K24)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 1K24)

(-) Exons   (0, 0)

(no "Exon" information available for 1K24)

(-) Sequences/Alignments

Asymmetric Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:249
 aligned with Q51227_NEIME | Q51227 from UniProtKB/TrEMBL  Length:272

    Alignment length:249
                                    33        43        53        63        73        83        93       103       113       123       133       143       153       163       173       183       193       203       213       223       233       243       253       263
         Q51227_NEIME    24 QTANEFTVHTDLSSISSTRAFLKEKHKAAKHIGVRADIPFDANQGIRLEAGFGRSKKNIINLETDENKLGKTKNVKLPTGVPENRIDLYTGYTYTQTLSDSLNFRVGAGLGFESSKDSIKTTKHTLHSSRQSWLAKVHADLLSQLGNGWYINPWSEVKFDLNSRYKLNTGVTNLKKDINQKTNGWGFGLGANIGKKLGESASIEAGPFYKQRTYKESGEFSVTTKSGDVSLTIPKTSIREYGLRVGIKF 272
               SCOP domains d1k24a_ A: Outer membrane adhesin/invasin OpcA                                                                                                                                                                                                            SCOP domains
               CATH domains 1k24A00 A:5-253 OPCA outer membrane adhesin/invasin                                                                                                                                                                                                       CATH domains
               Pfam domains OpcA-1k24A01 A:5-245                                                                                                                                                                                                                             -------- Pfam domains
         Sec.struct. author ....eeeeeeeeeeee.........eeeeeeeeeeeeee....eeeeeeeeeeee............................eeeeeeeeeeeeeeee..eeeeeeeeeeeeeeeeeee....eeeeeeeeeeeeeeeeeeeeee..eeeeeeeeeeeeeeeeeee.hhhh.....eeee..eeeeeeeeeeeeee...eeeeeeeeeeeeee.....eeeee..eeeee....eeeeeeeeeeeeee Sec.struct. author
                 SAPs(SNPs) --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 1k24 A   5 QTANEFTVHTDLSSISSTRAFLKEKHKAAKHIGVRADIPFDANQGIRLEAGFGRSKKNIINLETDENKLGKTKNVKLPTGVPENRIDLYTGYTYTQTLSDSLNFRVGAGLGFESSKDSIKTTKHTLHSSRQSWLAKVHADLLSQLGNGWYINPWSEVKFDLNSRYKLNTGVTNLKKDINQKTNGWGFGLGANIGKKLGESASIEAGPFYKQRTYKESGEFSVTTKSGDVSLTIPKTSIREYGLRVGIKF 253
                                    14        24        34        44        54        64        74        84        94       104       114       124       134       144       154       164       174       184       194       204       214       224       234       244


Chain A from PDB  Type:PROTEIN  Length:249
 aligned with Q9AE79_NEIME | Q9AE79 from UniProtKB/TrEMBL  Length:252

    Alignment length:249
                                                                                                                                                                                                                                                                                 252
                                    14        24        34        44        54        64        74        84        94       104       114       124       134       144       154       164       174       184       194       204       214       224       234       244       |
         Q9AE79_NEIME     5 QTANEFTVHTDLSSISSTRAFLKEKHKAAKHISVRADIPFDANQGIRLEAGFGRSKKNIINLETDENKLGKTKNVKLPTGVPENRIDLYTGYTYTQTLSDSLNFRVGAGLGFESSKDSIKTTKHTLHSSRQSWLAKVHADLLSQLGNGWYINPWSEVKFDLNSRYKLNTGVTNLKKDINQKTNGWGFGLGANIGKKLGESASIEAGPFYKQRTYKESGEFSVTTKSGDVSLTIPKTSIREYGLRVGIK-   -
               SCOP domains d1k24a_ A: Outer membrane adhesin/invasin OpcA                                                                                                                                                                                                            SCOP domains
               CATH domains 1k24A00 A:5-253 OPCA outer membrane adhesin/invasin                                                                                                                                                                                                       CATH domains
               Pfam domains OpcA-1k24A01 A:5-245                                                                                                                                                                                                                             -------- Pfam domains
         Sec.struct. author ....eeeeeeeeeeee.........eeeeeeeeeeeeee....eeeeeeeeeeee............................eeeeeeeeeeeeeeee..eeeeeeeeeeeeeeeeeee....eeeeeeeeeeeeeeeeeeeeee..eeeeeeeeeeeeeeeeeee.hhhh.....eeee..eeeeeeeeeeeeee...eeeeeeeeeeeeee.....eeeee..eeeee....eeeeeeeeeeeeee Sec.struct. author
                 SAPs(SNPs) --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 1k24 A   5 QTANEFTVHTDLSSISSTRAFLKEKHKAAKHIGVRADIPFDANQGIRLEAGFGRSKKNIINLETDENKLGKTKNVKLPTGVPENRIDLYTGYTYTQTLSDSLNFRVGAGLGFESSKDSIKTTKHTLHSSRQSWLAKVHADLLSQLGNGWYINPWSEVKFDLNSRYKLNTGVTNLKKDINQKTNGWGFGLGANIGKKLGESASIEAGPFYKQRTYKESGEFSVTTKSGDVSLTIPKTSIREYGLRVGIKF 253
                                    14        24        34        44        54        64        74        84        94       104       114       124       134       144       154       164       174       184       194       204       214       224       234       244
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (1, 1)

Asymmetric Unit
(-)
Class: Membrane and cell surface proteins and peptides (2046)

(-) CATH Domains  (1, 1)

Asymmetric Unit
(-)
Class: Mainly Beta (13760)

(-) Pfam Domains  (1, 1)

Asymmetric Unit
(-)
Clan: MBB (97)

(-) Gene Ontology  (3, 5)

Asymmetric Unit(hide GO term definitions)
Chain A   (Q51227_NEIME | Q51227)
molecular function
    GO:0004190    aspartic-type endopeptidase activity    Catalysis of the hydrolysis of internal, alpha-peptide bonds in a polypeptide chain by a mechanism in which a water molecule bound by the side chains of aspartic residues at the active center acts as a nucleophile.
    GO:0046872    metal ion binding    Interacting selectively and non-covalently with any metal ion.
biological process
    GO:0006508    proteolysis    The hydrolysis of proteins into smaller polypeptides and/or amino acids by cleavage of their peptide bonds.

Chain A   (Q9AE79_NEIME | Q9AE79)
molecular function
    GO:0004190    aspartic-type endopeptidase activity    Catalysis of the hydrolysis of internal, alpha-peptide bonds in a polypeptide chain by a mechanism in which a water molecule bound by the side chains of aspartic residues at the active center acts as a nucleophile.
biological process
    GO:0006508    proteolysis    The hydrolysis of proteins into smaller polypeptides and/or amino acids by cleavage of their peptide bonds.

 Visualization

(-) Interactive Views

Asymmetric Unit
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
    1PE  [ RasMol | Jena3D ]  +environment [ RasMol | Jena3D ]
    ZN  [ RasMol | Jena3D ]  +environment [ RasMol | Jena3D ]

  Sites
    AC1  [ RasMol ]  +environment [ RasMol ]
    AC2  [ RasMol ]  +environment [ RasMol ]
    AC3  [ RasMol ]  +environment [ RasMol ]
    AC4  [ RasMol ]  +environment [ RasMol ]
    AC5  [ RasMol ]  +environment [ RasMol ]

  Cis Peptide Bonds
    Lys A:80 - Leu A:81   [ RasMol ]

Biological Units
  Complete Structure
    Biological Unit 1  [ Jena3D ]
    Biological Unit 2  [ Jena3D ]

(-) Still Images

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick
[ Asym. Unit PNG format | Asym. Unit - sites PNG format | Biol. Unit 1 PNG format | Biol. Unit 1 - sites PNG format | Biol. Unit 2 PNG format ](automatic orientation, automatically generated)
Molscript
  protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick
[ mono PDF format | stereo PDF format ](default orientation, automatically generated)

 Databases and Analysis Tools

(-) Databases

Access by PDB/NDB ID
  1k24
    Family and Domain Information: ProDom | SYSTERS
    General Structural Information: GlycoscienceDB | MMDB | NDB | OCA | PDB | PDBe | PDBj | PDBsum | PDBWiki | PQS | PROTEOPEDIA
    Orientation in Membranes: OPM
    Protein Surface: SURFACE
    Secondary Structure: DSSP (structure derived) | HSSP (homology derived)
    Structural Genomics: GeneCensus
    Structural Neighbours: CE | VAST
    Structure Classification: CATH | Dali | SCOP
    Validation and Original Data: BMRB Data View | BMRB Restraints Grid | EDS | PROCHECK | RECOORD | WHAT_CHECK

Access by UniProt ID/Accession number
  Q51227_NEIME | Q51227
    Comparative Protein Structure Models: ModBase
    Genomic Information: Ensembl
    Protein-protein Interaction: DIP
    Sequence, Family and Domain Information: InterPro | Pfam | SMART | UniProtKB/TrEMBL
  Q9AE79_NEIME | Q9AE79
    Comparative Protein Structure Models: ModBase
    Genomic Information: Ensembl
    Protein-protein Interaction: DIP
    Sequence, Family and Domain Information: InterPro | Pfam | SMART | UniProtKB/SwissProt

Access by Enzyme Classificator   (EC Number)
  (no 'Enzyme Classificator' available)
    General Enzyme Information: BRENDA | EC-PDB | Enzyme | IntEnz
    Pathway: KEGG | MetaCyc

Access by Disease Identifier   (MIM ID)
  (no 'MIM ID' available)
    Disease Information: OMIM

Access by GenAge ID
  (no 'GenAge ID' available)
    Age Related Information: GenAge

(-) Analysis Tools

Access by PDB/NDB ID
    Domain Information: XDom
    Interatomic Contacts of Structural Units: CSU
    Ligand-protein Contacts: LPC
    Protein Cavities: castP
    Sequence and Secondary Structure: PDBCartoon
    Structure Alignment: STRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    Structure and Sequence Browser: STING

Access by UniProt ID/Accession number
  Q51227_NEIME | Q51227
    Protein Disorder Prediction: DisEMBL | FoldIndex | GLOBPLOT (for more information see DisProt)
  Q9AE79_NEIME | Q9AE79
    Protein Disorder Prediction: DisEMBL | FoldIndex | GLOBPLOT (for more information see DisProt)

 Related Entries

(-) Entries Sharing at Least One Protein Chain (UniProt ID)

UniProtKB/TrEMBL
        Q9AE79_NEIME | Q9AE79: 2vdf

(-) Related Entries Specified in the PDB File

(no "Related Entries Specified in the PDB File" available for 1K24)
