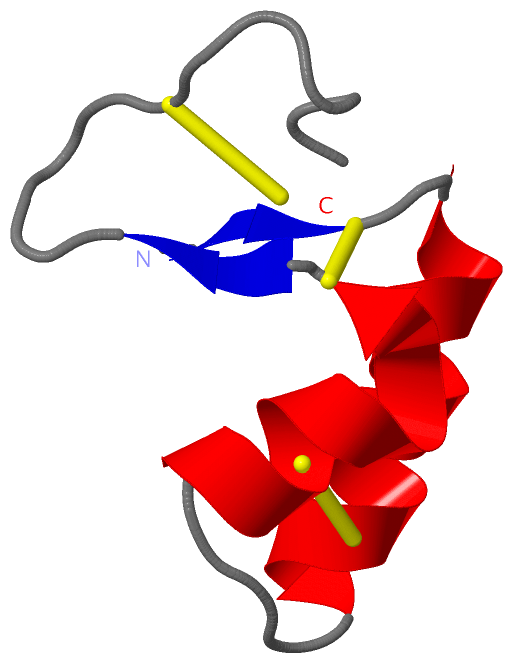

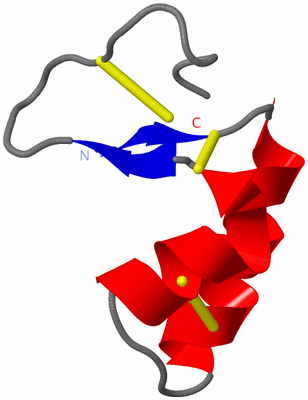

Image NMR Structure - model 1
NMR Structure - model 1  (Jmol Viewer)

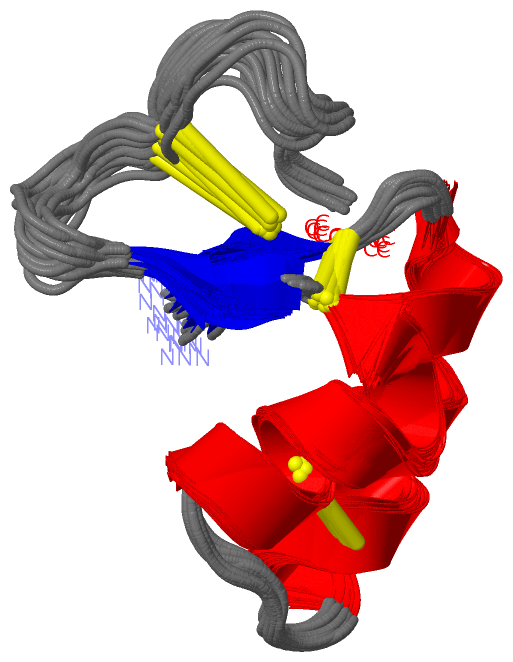

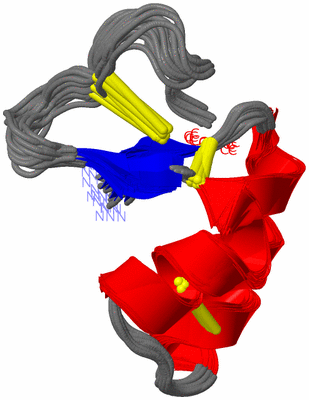

Image NMR Structure - all models
NMR Structure - all models  (Jmol Viewer)

(-) Description

Title :  SOLUTION STRUCTURE OF THE VISCOTOXIN A2

Authors :  A. Mosbah, A. Coulon, C. Bernard, K. Urech, P. Rouge, H. Darbon
Date :  19 Jul 01  (Deposition) - 24 Jun 03  (Release) - 24 Feb 09  (Revision)
Method :  SOLUTION NMR
Resolution :  NOT APPLICABLE
Chains :  NMR Structure  :  A  (20x)
Keywords :  Thionin, Nmr, Viscotoxin, Viscum Album (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  A. Mosbah, A. Coulon, C. Bernard, K. Urech, P. Rouge, H. Darbon
Solution Structure Of The Viscotoxin A2
To Be Published
PubMed: search
(for further references see the PDB file header)

(-) Compounds

Molecule 1 - VISCOTOXIN A2
    Chains: A
    Engineered: YES
    Expression System: ESCHERICHIA COLI
    Expression System Taxid: 562
    Organism Common: EUROPEAN MISTLETOE
    Organism Scientific: VISCUM ALBUM
    Organism Taxid: 3972

 Structural Features

(-) Chains, Units


NMR Structure (20x):

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (0, 0)

(no "Ligand,Modified Residues,Ions" information available for 1JMN)

(-) Sites  (0, 0)

(no "Site" information available for 1JMN)

(-) SS Bonds  (3, 3)

NMR Structure
No.Residues
1A:3 -A:40
2A:4 -A:32
3A:16 -A:26

(-) Cis Peptide Bonds  (0, 0)

(no "Cis Peptide Bond" information available for 1JMN)

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 1JMN)

(-) PROSITE Motifs  (1, 1)

NMR Structure (1, 1)
 PROSITEUniProtKBPDB
No.IDACDescriptionIDLocationCountLocation
1THIONINPS00271 Plant thionins signature.THN2_VISAL3-16  1A:3-16

(-) Exons   (0, 0)

(no "Exon" information available for 1JMN)

(-) Sequences/Alignments

NMR Structure
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:46
 aligned with THN2_VISAL | P32880 from UniProtKB/Swiss-Prot  Length:46

    Alignment length:46
                                                                      43
                                                                    42 |
                                    10        20        30        40 | |
            THN2_VISAL    1 KSCCPNTTGRNIYNTCRFGGGSREVCASLSGCKIISASTCPS-YPD 45
               SCOP domains d1jmna_ A: Viscotoxin a2                       SCOP domains
               CATH domains 1jmnA00 A:1-46                                 CATH domains
               Pfam domains Thionin-1jmnA01 A:1-42                    ---- Pfam domains
         Sec.struct. author .ee..hhhhhhhhhhhhh....hhhhhhhhh.ee............ Sec.struct. author
                 SAPs(SNPs) ---------------------------------------------- SAPs(SNPs)
                    PROSITE --THIONIN       ------------------------------ PROSITE
                 Transcript ---------------------------------------------- Transcript
                  1jmn A  1 KSCCPNTTGRNIYNTCRFGGGSRQVCASLSGCKIISASTCPSDYPK 46
                                    10        20        30        40
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (1, 1)

NMR Structure
(-)
Class: Small proteins (3458)

(-) CATH Domains  (1, 1)

NMR Structure
(-)
Class: Alpha Beta (26913)

(-) Pfam Domains  (1, 1)

NMR Structure
(-)
Clan: no clan defined [family: Thionin] (10)

(-) Gene Ontology  (2, 2)

NMR Structure(hide GO term definitions)
Chain A   (THN2_VISAL | P32880)
biological process
    GO:0006952    defense response    Reactions, triggered in response to the presence of a foreign body or the occurrence of an injury, which result in restriction of damage to the organism attacked or prevention/recovery from the infection caused by the attack.
cellular component
    GO:0005576    extracellular region    The space external to the outermost structure of a cell. For cells without external protective or external encapsulating structures this refers to space outside of the plasma membrane. This term covers the host cell environment outside an intracellular parasite.

 Visualization

(-) Interactive Views

NMR Structure
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
(no "Ligands, Modified Residues, Ions" information available for 1jmn)

  Sites
(no "Sites" information available for 1jmn)

  Cis Peptide Bonds
(no "Cis Peptide Bonds" information available for 1jmn)


(-) Still Images

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick
[ NMR Structure - model 1 PNG format | NMR Structure - all models PNG format ](automatic orientation, automatically generated)
Molscript
  protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick
[ mono PDF format | stereo PDF format ](default orientation, automatically generated)
