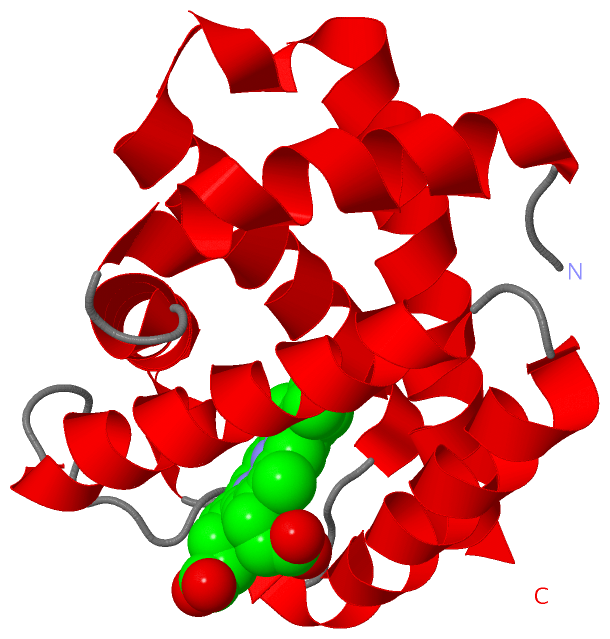

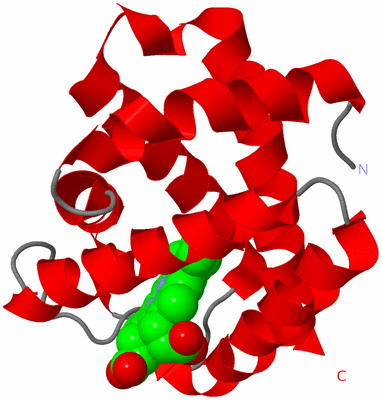

Image Asym./Biol. Unit
Asym./Biol. Unit  (Jmol Viewer)

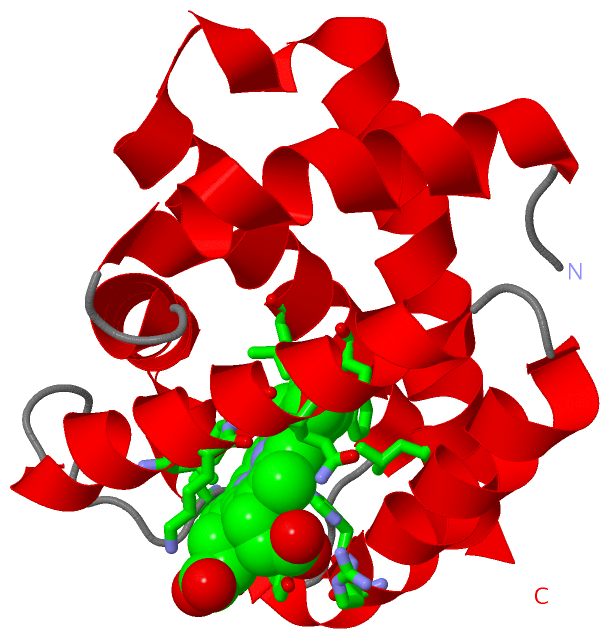

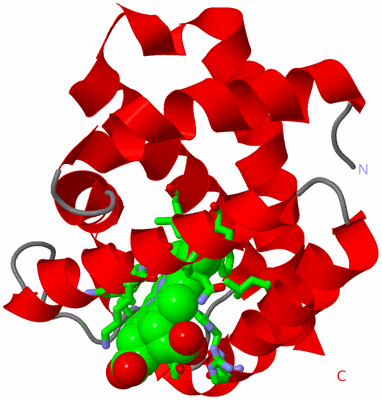

Image Asym./Biol. Unit - sites
Asym./Biol. Unit - sites  (Jmol Viewer)

(-) Description

Title :  CRYSTAL STRUCTURE OF COMPONENT III GLYCERA DIBRANCHIATA MONOMERIC HEMOGLOBIN

Authors :  H. J. Park, C. Yang, N. Treff, J. D. Satterlee, C. H. Kang
Date :  20 Jun 01  (Deposition) - 20 Jun 02  (Release) - 24 Feb 09  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  1.40
Chains :  Asym./Biol. Unit :  A
Keywords :  Glycera, Monomer Hemoglobin, Oxygen Storage/Transport Complex (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  H. J. Park, C. Yang, N. Treff, J. D. Satterlee, C. Kang
Crystal Structures Of Unligated And Cn-Ligated Glycera Dibranchiata Monomer Ferric Hemoglobin Components Iii And Iv
Proteins V. 49 49 2002
PubMed-ID: 12211015  |  Reference-DOI: 10.1002/PROT.10199
(for further references see the PDB file header)

(-) Compounds

Molecule 1 - MONOMER HEMOGLOBIN COMPONENT III
    Chains: A
    Organism Scientific: GLYCERA DIBRANCHIATA
    Organism Taxid: 6350

 Structural Features

(-) Chains, Units

  1
Asymmetric/Biological Unit : A

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (1, 1)

Asymmetric/Biological Unit (1, 1)
No.NameCountTypeFull Name
1HEM1Ligand/IonPROTOPORPHYRIN IX CONTAINING FE

(-) Sites  (1, 1)

Asymmetric Unit (1, 1)
No.NameEvidenceResiduesDescription
1AC1SOFTWAREPHE A:45 , LEU A:58 , LYS A:61 , VAL A:62 , GLN A:65 , ARG A:89 , HIS A:90 , TYR A:93 , GLY A:94 , PHE A:103 , LEU A:106 , LEU A:141BINDING SITE FOR RESIDUE HEM A 148

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 1JF3)

(-) Cis Peptide Bonds  (0, 0)

(no "Cis Peptide Bond" information available for 1JF3)

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 1JF3)

(-) PROSITE Motifs  (1, 1)

Asymmetric/Biological Unit (1, 1)
 PROSITEUniProtKBPDB
No.IDACDescriptionIDLocationCountLocation
1GLOBINPS01033 Globin family profile.GLB1_GLYDI2-143  1A:2-143

(-) Exons   (0, 0)

(no "Exon" information available for 1JF3)

(-) Sequences/Alignments

Asymmetric/Biological Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:147
 aligned with GLB1_GLYDI | P02216 from UniProtKB/Swiss-Prot  Length:147

    Alignment length:147
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140
           GLB1_GLYDI     1 GLSAAQRQVIAATWKDIAGADNGAGVGKDCLIKFLSAHPQMAAVFGFSGASDPGVAALGAKVLAQIGVAVSHLGDEGKMVAQMKAVGVRHKGYGNKHIKAQYFEPLGASLLSAMEHRIGGKMNAAAKDAWAAAYADISGALISGLQS 147
               SCOP domains d1jf3a_ A: Glycera globin                                                                                                                           SCOP domains
               CATH domains 1jf3A00 A:1-147 Globins                                                                                                                             CATH domains
               Pfam domains -----Globin-1jf3A01 A:6-111                                                                                    ------------------------------------ Pfam domains
         Sec.struct. author ..hhhhhhhhhhhhhhhhh...hhhhhhhhhhhhhhhhhhhh.........hhhhhhhhhhhhhhhhhhhhh..hhhhhhhhhhhhhhhhhhh.....hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh. Sec.struct. author
                 SAPs(SNPs) --------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE -GLOBIN  PDB: A:2-143 UniProt: 2-143                                                                                                           ---- PROSITE
                 Transcript --------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 1jf3 A   1 GLSAAQRQVVASTWKDIAGADNGAGVGKECLSKFISAHPEMAAVFGFSGASDPGVAELGAKVLAQIGVAVSHLGDEGKMVAEMKAVGVRHKGYGNKHIKAEYFEPLGASLLSAMEHRIGGKMNAAAKDAWAAAYGDISGALISGLQS 147
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (1, 1)

Asymmetric/Biological Unit
(-)
Class: All alpha proteins (14657)

(-) CATH Domains  (1, 1)

Asymmetric/Biological Unit
(-)
Class: Mainly Alpha (13335)

(-) Pfam Domains  (1, 1)

Asymmetric/Biological Unit
(-)
Clan: Globin (291)

(-) Gene Ontology  (6, 6)

Asymmetric/Biological Unit(hide GO term definitions)
Chain A   (GLB1_GLYDI | P02216)
molecular function
    GO:0020037    heme binding    Interacting selectively and non-covalently with heme, any compound of iron complexed in a porphyrin (tetrapyrrole) ring.
    GO:0046872    metal ion binding    Interacting selectively and non-covalently with any metal ion.
    GO:0019825    oxygen binding    Interacting selectively and non-covalently with oxygen (O2).
    GO:0005344    oxygen transporter activity    Enables the directed movement of oxygen into, out of or within a cell, or between cells.
biological process
    GO:0015671    oxygen transport    The directed movement of oxygen (O2) into, out of or within a cell, or between cells, by means of some agent such as a transporter or pore.
    GO:0006810    transport    The directed movement of substances (such as macromolecules, small molecules, ions) or cellular components (such as complexes and organelles) into, out of or within a cell, or between cells, or within a multicellular organism by means of some agent such as a transporter, pore or motor protein.

 Visualization

(-) Interactive Views

Asymmetric/Biological Unit
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
    HEM  [ RasMol | Jena3D ]  +environment [ RasMol | Jena3D ]

  Sites
    AC1  [ RasMol ]  +environment [ RasMol ]

  Cis Peptide Bonds
(no "Cis Peptide Bonds" information available for 1jf3)


(-) Still Images

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick
[ Asym./Biol. Unit PNG format | Asym./Biol. Unit - sites PNG format ](automatic orientation, automatically generated)
Molscript
  protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick
[ mono PDF format | stereo PDF format ](default orientation, automatically generated)

 Databases and Analysis Tools

(-) Databases

Access by PDB/NDB ID
  1jf3
    Family and Domain Information: ProDom | SYSTERS
    General Structural Information: GlycoscienceDB | MMDB | NDB | OCA | PDB | PDBe | PDBj | PDBsum | PDBWiki | PQS | PROTEOPEDIA
    Orientation in Membranes: OPM
    Protein Surface: SURFACE
    Secondary Structure: DSSP (structure derived) | HSSP (homology derived)
    Structural Genomics: GeneCensus
    Structural Neighbours: CE | VAST
    Structure Classification: CATH | Dali | SCOP
    Validation and Original Data: BMRB Data View | BMRB Restraints Grid | EDS | PROCHECK | RECOORD | WHAT_CHECK

Access by UniProt ID/Accession number
  GLB1_GLYDI | P02216
    Comparative Protein Structure Models: ModBase
    Genomic Information: Ensembl
    Protein-protein Interaction: DIP
    Sequence, Family and Domain Information: InterPro | Pfam | SMART | UniProtKB/SwissProt

Access by Enzyme Classificator   (EC Number)
  (no 'Enzyme Classificator' available)
    General Enzyme Information: BRENDA | EC-PDB | Enzyme | IntEnz
    Pathway: KEGG | MetaCyc

Access by Disease Identifier   (MIM ID)
  (no 'MIM ID' available)
    Disease Information: OMIM

Access by GenAge ID
  (no 'GenAge ID' available)
    Age Related Information: GenAge

(-) Analysis Tools

Access by PDB/NDB ID
    Domain Information: XDom
    Interatomic Contacts of Structural Units: CSU
    Ligand-protein Contacts: LPC
    Protein Cavities: castP
    Sequence and Secondary Structure: PDBCartoon
    Structure Alignment: STRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    Structure and Sequence Browser: STING

Access by UniProt ID/Accession number
  GLB1_GLYDI | P02216
    Protein Disorder Prediction: DisEMBL | FoldIndex | GLOBPLOT (for more information see DisProt)

 Related Entries

(-) Entries Sharing at Least One Protein Chain (UniProt ID)

UniProtKB/Swiss-Prot
        GLB1_GLYDI | P02216: 1hbg 1jl7 2hbg

(-) Related Entries Specified in the PDB File

1jf4 CRYSTAL STRUCTURE OF COMPONENT IV GLYCERA DIBRANCHIATA MONOMERIC HEMOGLOBIN
