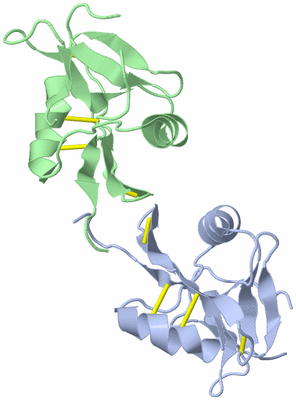

Image Asym./Biol. Unit
Asym./Biol. Unit  (Jmol Viewer)

(-) Description

Title :  CRYSTAL STRUCTURE OF THE MURINE NK CELL INHIBITORY RECEPTOR LY-49I

Authors :  N. Dimasi, W. M. Sawicki, L. A. Reineck, Y. Li, K. Natarajan, D. H. Murgulies, A. R. Mariuzza
Date :  29 May 01  (Deposition) - 17 Jul 02  (Release) - 24 Feb 09  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  3.00
Chains :  Asym./Biol. Unit :  A,B
Keywords :  Nk-Cell Surface Glycoprotein, Immune System (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  N. Dimasi, M. W. Sawicki, L. A. Reineck, Y. Li, K. Natarajan, D. H. Margulies, R. A. Mariuzza
Crystal Structure Of The Ly49I Natural Killer Cell Receptor Reveals Variability In Dimerization Mode Within The Ly49 Family.
J. Mol. Biol. V. 320 573 2002
PubMed-ID: 12096910  |  Reference-DOI: 10.1016/S0022-2836(02)00498-9
(for further references see the PDB file header)

(-) Compounds

Molecule 1 - MHC CLASS I RECOGNITION RECEPTOR LY49I
    Chains: A, B
    Engineered: YES
    Expression System: ESCHERICHIA COLI
    Expression System Plasmid: PT7-7
    Expression System Strain: BL21CODONPLUS
    Expression System Taxid: 562
    Expression System Vector Type: PLASMID
    Fragment: C-TYPE LECTIN-LIKE DOMAIN
    Organism Common: HOUSE MOUSE
    Organism Scientific: MUS MUSCULUS
    Organism Taxid: 10090
    Strain: 129-J

 Structural Features

(-) Chains, Units

  12
Asymmetric/Biological Unit : AB

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (0, 0)

(no "Ligand,Modified Residues,Ions" information available for 1JA3)

(-) Sites  (0, 0)

(no "Site" information available for 1JA3)

(-) SS Bonds  (8, 8)

Asymmetric/Biological Unit
No.Residues
1A:145 -A:150
2A:163 -A:251
3A:167 -A:253
4A:232 -A:245
5B:145 -B:150
6B:163 -B:251
7B:167 -B:253
8B:232 -B:245

(-) Cis Peptide Bonds  (0, 0)

(no "Cis Peptide Bond" information available for 1JA3)

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 1JA3)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 1JA3)

(-) Exons   (0, 0)

(no "Exon" information available for 1JA3)

(-) Sequences/Alignments

Asymmetric/Biological Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:115
 aligned with Q9JHN9_MOUSE | Q9JHN9 from UniProtKB/TrEMBL  Length:266

    Alignment length:122
                                   153       163       173       183       193       203       213       223       233       243       253       263
         Q9JHN9_MOUSE   144 VKYWFCYGTKCYYFIMNKTTWSGCKANCQHYSVPIVKIEDEDELKFLQRHVIPEGYWIGLSYDKKKKEWAWIDNGPSKFDMKIRKMNFKSRGCVFLSKARIEDTDCNIPYYCICGKKLDKFP 265
               SCOP domains d1ja3a_ A: NK cell receptor                                                                                                SCOP domains
               CATH domains 1ja3A00 A:140-261 Mannose-Binding Protein A, subunit A                                                                     CATH domains
               Pfam domains -------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .eeeeee..eeeeeeeeee.hhhhhhhhhhh........hhhhhhhhhhhh....eeeeeee......ee............-------...eeee....eeee.....eeeeeee...... Sec.struct. author
                 SAPs(SNPs) -------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE -------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript -------------------------------------------------------------------------------------------------------------------------- Transcript
                 1ja3 A 140 VKYWFCYGTKCYYFIMNKTTWSGCKANCQHYSVPIVKIEDEDELKFLQRHVIPEGYWIGLSYDKKKKEWAWIDNGPSKFDMK-------SRGCVFLSKARIEDTDCNIPYYCICGKKLDKFP 261
                                   149       159       169       179       189       199       209       219 |     229       239       249       259
                                                                                                           221     229


Chain B from PDB  Type:PROTEIN  Length:113
 aligned with Q9JHN9_MOUSE | Q9JHN9 from UniProtKB/TrEMBL  Length:266

    Alignment length:121
                                   153       163       173       183       193       203       213       223       233       243       253       263
         Q9JHN9_MOUSE   144 VKYWFCYGTKCYYFIMNKTTWSGCKANCQHYSVPIVKIEDEDELKFLQRHVIPEGYWIGLSYDKKKKEWAWIDNGPSKFDMKIRKMNFKSRGCVFLSKARIEDTDCNIPYYCICGKKLDKF 264
               SCOP domains d1ja3b_ B: NK cell receptor                                                                                               SCOP domains
               CATH domains 1ja3B00 B:140-260 Mannose-Binding Protein A, subunit A                                                                    CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .eeeeee..eeeeee.....hhhhhhhhhhh........hhhhhhhhhhhh....eeeeeee......eee...---.....-----.....eeee....eeee.........eeee.... Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------- Transcript
                 1ja3 B 140 VKYWFCYGTKCYYFIMNKTTWSGCKANCQHYSVPIVKIEDEDELKFLQRHVIPEGYWIGLSYDKKKKEWAWIDN---KFDMK-----FKSRGCVFLSKARIEDTDCNIPYYCICGKKLDKF 260
                                   149       159       169       179       189       199       209   |   220 |     229       239       249       259
                                                                                                   213 218 222   227
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (1, 2)

Asymmetric/Biological Unit
(-)
Class: Alpha and beta proteins (a+b) (23004)

(-) CATH Domains  (1, 2)

Asymmetric/Biological Unit
(-)
Class: Alpha Beta (26913)

(-) Pfam Domains  (0, 0)

(no "Pfam Domain" information available for 1JA3)

(-) Gene Ontology  (2, 2)

Asymmetric/Biological Unit(hide GO term definitions)
Chain A,B   (Q9JHN9_MOUSE | Q9JHN9)
cellular component
    GO:0016021    integral component of membrane    The component of a membrane consisting of the gene products and protein complexes having at least some part of their peptide sequence embedded in the hydrophobic region of the membrane.
    GO:0016020    membrane    A lipid bilayer along with all the proteins and protein complexes embedded in it an attached to it.

 Visualization

(-) Interactive Views

Asymmetric/Biological Unit
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
(no "Ligands, Modified Residues, Ions" information available for 1ja3)

  Sites
(no "Sites" information available for 1ja3)

  Cis Peptide Bonds
(no "Cis Peptide Bonds" information available for 1ja3)


(-) Still Images

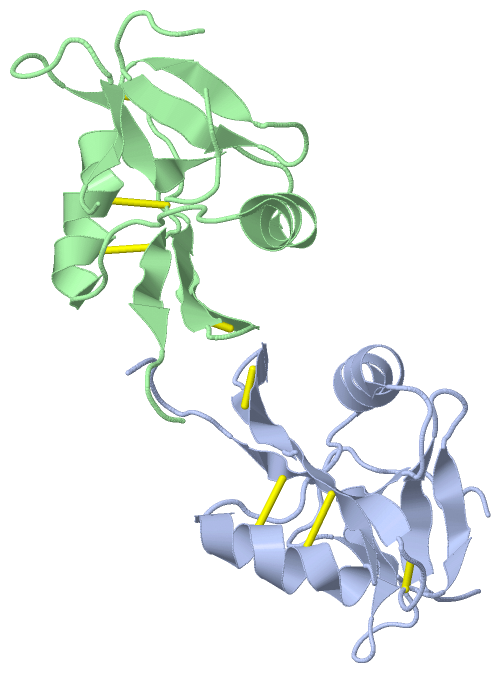

Jmol
