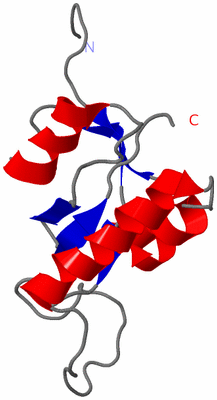

Image NMR Structure - model 1
NMR Structure - model 1  (Jmol Viewer)

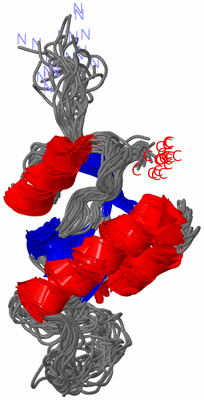

Image NMR Structure - all models
NMR Structure - all models  (Jmol Viewer)

(-) Description

Title :  SOLUTION STRUCTURE OF PIN1AT FROM ARABIDOPSIS THALIANA

Authors :  I. Landrieu, J. M. Wieruszeski, R. Wintjens, D. Inze, G. Lippens
Date :  15 May 01  (Deposition) - 07 Aug 02  (Release) - 09 Jun 09  (Revision)
Method :  SOLUTION NMR
Resolution :  NOT APPLICABLE
Chains :  NMR Structure  :  A  (20x)
Keywords :  Prolyl Cis/Trans Isomerase, Parvulin, Pin1, Phosphorylation (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  I. Landrieu, J. M. Wieruszeski, R. Wintjens, D. Inze, G. Lippens
Solution Structure Of The Single-Domain Prolyl Cis/Trans Isomerase Pin1At From Arabidopsis Thaliana
J. Mol. Biol. V. 320 321 2002
PubMed-ID: 12079389  |  Reference-DOI: 10.1016/S0022-2836(02)00429-1
(for further references see the PDB file header)

(-) Compounds

Molecule 1 - PEPTIDYL-PROLYL CIS-TRANS ISOMERASE
    Chains: A
    Engineered: YES
    Expression System: ESCHERICHIA COLI BL21(DE3)
    Expression System Plasmid: PET15B
    Expression System Strain: BL21(DE3)
    Expression System Taxid: 469008
    Expression System Vector Type: PLASMID
    Organism Common: THALE CRESS
    Organism Scientific: ARABIDOPSIS THALIANA
    Organism Taxid: 3702

 Structural Features

(-) Chains, Units


NMR Structure (20x):

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (0, 0)

(no "Ligand,Modified Residues,Ions" information available for 1J6Y)

(-) Sites  (0, 0)

(no "Site" information available for 1J6Y)

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 1J6Y)

(-) Cis Peptide Bonds  (0, 0)

(no "Cis Peptide Bond" information available for 1J6Y)

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 1J6Y)

(-) PROSITE Motifs  (2, 2)

NMR Structure (2, 2)
 PROSITEUniProtKBPDB
No.IDACDescriptionIDLocationCountLocation
1PPIC_PPIASE_2PS50198 PpiC-type peptidyl-prolyl cis-trans isomerase family profile.PIN1_ARATH4-119  1A:5-120
2PPIC_PPIASE_1PS01096 PpiC-type peptidyl-prolyl cis-trans isomerase signature.PIN1_ARATH59-79  1A:60-80

(-) Exons   (0, 0)

(no "Exon" information available for 1J6Y)

(-) Sequences/Alignments

NMR Structure
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:120
 aligned with PIN1_ARATH | Q9SL42 from UniProtKB/Swiss-Prot  Length:119

    Alignment length:120
                             1
                             |       9        19        29        39        49        59        69        79        89        99       109       119
           PIN1_ARATH     - -MASRDQVKASHILIKHQGSRRKASWKDPEGKIILTTTREAAVEQLKSIREDIVSGKANFEEVATRVSDCSSAKRGGDLGSFGRGQMQKPFEEATYALKVGDISDIVDTDSGVHIIKRTA 119
               SCOP domains d1j6ya_ A: Mitotic rotamase PIN1, domain 2                                                                               SCOP domains
               CATH domains 1j6yA00 A:1-120  [code=3.10.50.40, no name defined]                                                                      CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------ Pfam domains
         Sec.struct. author ........eee..ee......................hhhhhhhhhhhhhhhhhh....hhhhhhhh.hhhhhhh..eeee.......hhhhhhhhhh........eee..eee...... Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------ SAPs(SNPs)
                PROSITE (1) ----PPIC_PPIASE_2  PDB: A:5-120 UniProt: 4-119                                                                           PROSITE (1)
                PROSITE (2) -----------------------------------------------------------PPIC_PPIASE_1        ---------------------------------------- PROSITE (2)
                 Transcript ------------------------------------------------------------------------------------------------------------------------ Transcript
                 1j6y A   1 HMASRDQVKASHILIKHQGSRRKASWKDPEGKIILTTTREAAVEQLKSIREDIVSGKANFEEVATRVSDCSSAKRGGDLGSFGRGQMQKPFEEATYALKVGDISDIVDTDSGVHIIKRTA 120
                                    10        20        30        40        50        60        70        80        90       100       110       120
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (1, 1)

NMR Structure
(-)
Class: Alpha and beta proteins (a+b) (23004)

(-) CATH Domains  (1, 1)

NMR Structure
(-)
Class: Alpha Beta (26913)

(-) Pfam Domains  (0, 0)

(no "Pfam Domain" information available for 1J6Y)

(-) Gene Ontology  (9, 9)

NMR Structure(hide GO term definitions)
Chain A   (PIN1_ARATH | Q9SL42)
molecular function
    GO:0016853    isomerase activity    Catalysis of the geometric or structural changes within one molecule. Isomerase is the systematic name for any enzyme of EC class 5.
    GO:0003755    peptidyl-prolyl cis-trans isomerase activity    Catalysis of the reaction: peptidyl-proline (omega=180) = peptidyl-proline (omega=0).
    GO:0005515    protein binding    Interacting selectively and non-covalently with any protein or protein complex (a complex of two or more proteins that may include other nonprotein molecules).
biological process
    GO:0000413    protein peptidyl-prolyl isomerization    The modification of a protein by cis-trans isomerization of a proline residue.
    GO:0051726    regulation of cell cycle    Any process that modulates the rate or extent of progression through the cell cycle.
cellular component
    GO:0005829    cytosol    The part of the cytoplasm that does not contain organelles but which does contain other particulate matter, such as protein complexes.
    GO:0005783    endoplasmic reticulum    The irregular network of unit membranes, visible only by electron microscopy, that occurs in the cytoplasm of many eukaryotic cells. The membranes form a complex meshwork of tubular channels, which are often expanded into slitlike cavities called cisternae. The ER takes two forms, rough (or granular), with ribosomes adhering to the outer surface, and smooth (with no ribosomes attached).
    GO:0005886    plasma membrane    The membrane surrounding a cell that separates the cell from its external environment. It consists of a phospholipid bilayer and associated proteins.
    GO:0009506    plasmodesma    A fine cytoplasmic channel, found in all higher plants, that connects the cytoplasm of one cell to that of an adjacent cell.

 Visualization

(-) Interactive Views

NMR Structure
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
(no "Ligands, Modified Residues, Ions" information available for 1j6y)

  Sites
(no "Sites" information available for 1j6y)

  Cis Peptide Bonds
(no "Cis Peptide Bonds" information available for 1j6y)


(-) Still Images

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick

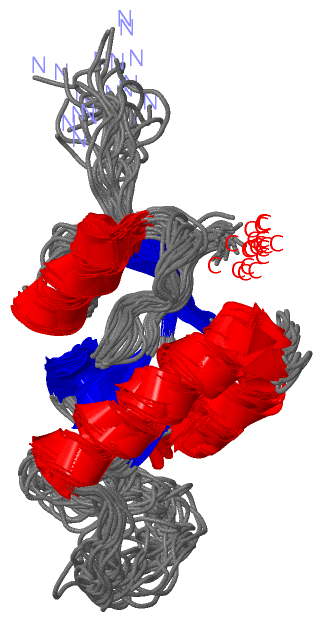

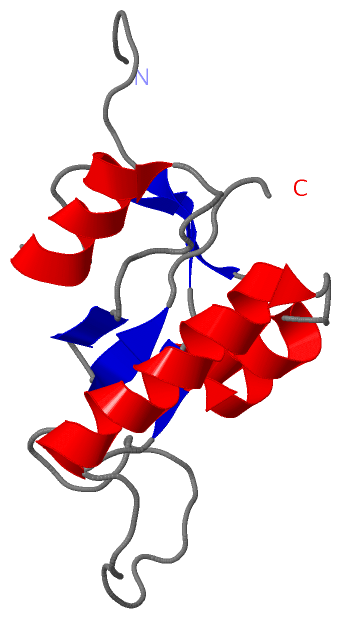

[ NMR Structure - model 1 PNG format | NMR Structure - all models PNG format ](automatic orientation, automatically generated)
