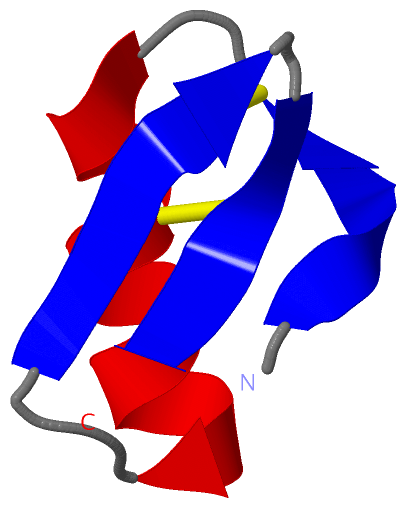

Image NMR Structure - model 1
NMR Structure - model 1  (Jmol Viewer)

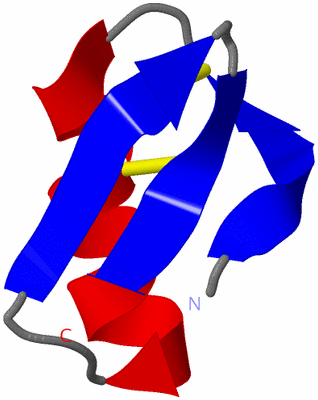

Image NMR Structure - all models
NMR Structure - all models  (Jmol Viewer)

(-) Description

Title :  SOLUTION STRUCTURE OF HERG-SPECIFIC SCORPION TOXIN BEKM-1

Authors :  Y. V. Korolokova, E. V. Bocharov, K. Angelo, I. V. Maslennikov, O. V. Grinenko, A. V. Lipkin, E. D. Nosireva, K. A. Pluzhnikov, S. - P. Olesen, A. S. Arseniev, E. V. Grishin
Date :  16 Apr 02  (Deposition) - 20 Nov 02  (Release) - 24 Feb 09  (Revision)
Method :  SOLUTION NMR
Resolution :  NOT APPLICABLE
Chains :  NMR Structure  :  A
Keywords :  Alpha-Beta Motif, Cysteine-Knot Motif, Toxin (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  Y. V. Korolkova, E. V. Bocharov, K. Angelo, I. V. Maslennikov, O. V. Grinenko, A. V. Lipkin, E. D. Nosyreva, K. A. Pluzhnikov, S. P. Olesen, A. S. Arseniev, E. V. Grishin
New Binding Site On Common Molecular Scaffold Provides Herg Channel Specificity Of Scorpion Toxin Bekm-1.
J. Biol. Chem. V. 277 43104 2002
PubMed-ID: 12151390  |  Reference-DOI: 10.1074/JBC.M204083200
(for further references see the PDB file header)

(-) Compounds

Molecule 1 - BEKM-1 TOXIN
    Chains: A
    Engineered: YES
    Expression System: ESCHERICHIA COLI
    Expression System Plasmid: PEZZ18
    Expression System Strain: HB101
    Expression System Taxid: 562
    Expression System Vector Type: PLASMID
    Organism Common: LESSER ASIAN SCORPION
    Organism Scientific: MESOBUTHUS EUPEUS
    Organism Taxid: 34648

 Structural Features

(-) Chains, Units


NMR Structure :

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (0, 0)

(no "Ligand,Modified Residues,Ions" information available for 1J5J)

(-) Sites  (0, 0)

(no "Site" information available for 1J5J)

(-) SS Bonds  (3, 3)

NMR Structure
No.Residues
1A:7 -A:28
2A:13 -A:33
3A:17 -A:35

(-) Cis Peptide Bonds  (0, 0)

(no "Cis Peptide Bond" information available for 1J5J)

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 1J5J)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 1J5J)

(-) Exons   (0, 0)

(no "Exon" information available for 1J5J)

(-) Sequences/Alignments

NMR Structure
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:36
 aligned with KGX21_MESEU | Q9BKB7 from UniProtKB/Swiss-Prot  Length:57

    Alignment length:36
                                    31        41        51
           KGX21_MESEU   22 RPTDIKCSESYQCFPVCKSRFGKTNGRCVNGFCDCF 57
               SCOP domains d1j5ja_ A: Bekm-1                    SCOP domains
               CATH domains ------------------------------------ CATH domains
               Pfam domains ------------------------------------ Pfam domains
         Sec.struct. author .eeeee..hhhhhhhhhhhhh...eeeee..eeeee Sec.struct. author
                 SAPs(SNPs) ------------------------------------ SAPs(SNPs)
                    PROSITE ------------------------------------ PROSITE
                 Transcript ------------------------------------ Transcript
                  1j5j A  1 RPTDIKCSESYQCFPVCKSRFGKTNGRCVNGFCDCF 36
                                    10        20        30
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (1, 1)

NMR Structure
(-)
Class: Small proteins (3458)

(-) CATH Domains  (0, 0)

(no "CATH Domain" information available for 1J5J)

(-) Pfam Domains  (0, 0)

(no "Pfam Domain" information available for 1J5J)

(-) Gene Ontology  (4, 4)

NMR Structure(hide GO term definitions)
Chain A   (KGX21_MESEU | Q9BKB7)
molecular function
    GO:0008200    ion channel inhibitor activity    Stops, prevents, or reduces the activity of an ion channel.
biological process
    GO:0006952    defense response    Reactions, triggered in response to the presence of a foreign body or the occurrence of an injury, which result in restriction of damage to the organism attacked or prevention/recovery from the infection caused by the attack.
    GO:0009405    pathogenesis    The set of specific processes that generate the ability of an organism to induce an abnormal, generally detrimental state in another organism.
cellular component
    GO:0005576    extracellular region    The space external to the outermost structure of a cell. For cells without external protective or external encapsulating structures this refers to space outside of the plasma membrane. This term covers the host cell environment outside an intracellular parasite.

 Visualization

(-) Interactive Views

NMR Structure
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
(no "Ligands, Modified Residues, Ions" information available for 1j5j)

  Sites
(no "Sites" information available for 1j5j)

  Cis Peptide Bonds
(no "Cis Peptide Bonds" information available for 1j5j)


(-) Still Images

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick
[ NMR Structure - model 1 PNG format | NMR Structure - all models PNG format ](automatic orientation, automatically generated)
Molscript
  protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick
[ mono PDF format | stereo PDF format ](default orientation, automatically generated)

 Databases and Analysis Tools

(-) Databases

Access by PDB/NDB ID
  1j5j
    Family and Domain Information: ProDom | SYSTERS
    General Structural Information: GlycoscienceDB | MMDB | NDB | OCA | PDB | PDBe | PDBj | PDBsum | PDBWiki | PQS | PROTEOPEDIA
    Orientation in Membranes: OPM
    Protein Surface: SURFACE
    Secondary Structure: DSSP (structure derived) | HSSP (homology derived)
    Structural Genomics: GeneCensus
    Structural Neighbours: CE | VAST
    Structure Classification: CATH | Dali | SCOP
    Validation and Original Data: BMRB Data View | BMRB Restraints Grid | EDS | PROCHECK | RECOORD | WHAT_CHECK

Access by UniProt ID/Accession number
  KGX21_MESEU | Q9BKB7
    Comparative Protein Structure Models: ModBase
    Genomic Information: Ensembl
    Protein-protein Interaction: DIP
    Sequence, Family and Domain Information: InterPro | Pfam | SMART | UniProtKB/SwissProt

Access by Enzyme Classificator   (EC Number)
  (no 'Enzyme Classificator' available)
    General Enzyme Information: BRENDA | EC-PDB | Enzyme | IntEnz
    Pathway: KEGG | MetaCyc

Access by Disease Identifier   (MIM ID)
  (no 'MIM ID' available)
    Disease Information: OMIM

Access by GenAge ID
  (no 'GenAge ID' available)
    Age Related Information: GenAge

(-) Analysis Tools

Access by PDB/NDB ID
    Domain Information: XDom
    Interatomic Contacts of Structural Units: CSU
    Ligand-protein Contacts: LPC
    Protein Cavities: castP
    Sequence and Secondary Structure: PDBCartoon
    Structure Alignment: STRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    Structure and Sequence Browser: STING

Access by UniProt ID/Accession number
  KGX21_MESEU | Q9BKB7
    Protein Disorder Prediction: DisEMBL | FoldIndex | GLOBPLOT (for more information see DisProt)

 Related Entries

(-) Entries Sharing at Least One Protein Chain (UniProt ID)

UniProtKB/Swiss-Prot
        KGX21_MESEU | Q9BKB7: 1lgl

(-) Related Entries Specified in the PDB File

5184 PROTON CHEMICAL SHIFTS AND COUPLING CONSTANTS OF BEKM-1
1lgl PDB-ID 1LGL REPRESENTS THE ENSEMBLE.
