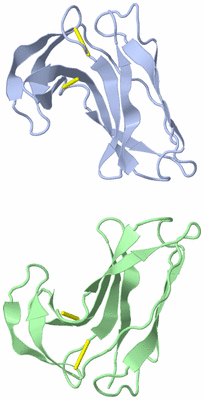

Image Asymmetric Unit
Asymmetric Unit  (Jmol Viewer)

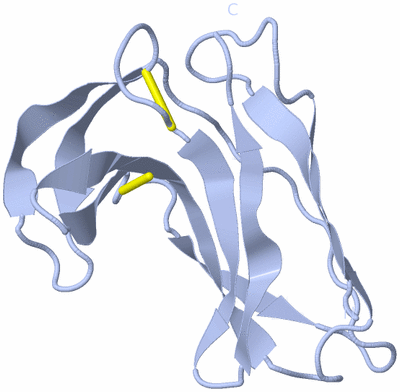

Image Biological Unit 1
Biological Unit 1  (Jmol Viewer)

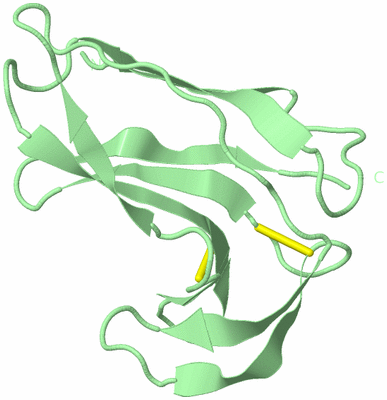

Image Biological Unit 2
Biological Unit 2  (Jmol Viewer)

(-) Description

Title :  CRYSTAL STRUCTURE OF APO-C1027

Authors :  Y. Chen, J. Li, Y. Liu, M. Bartlam, Y. Gao, L. Jin, H. Tang, Y. Shao, Y. Zhen, Z. Rao
Date :  30 Jul 01  (Deposition) - 03 Jun 03  (Release) - 24 Feb 09  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  1.80
Chains :  Asym. Unit :  A,B
Biol. Unit 1:  A  (1x)
Biol. Unit 2:  B  (1x)
Keywords :  Antibiotic, Dna-Binding (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  Y. Chen, J. Li, Y. Liu, M. Bartlam, Y. Gao, L. Jin, H. Tang, Y. Shao, Y. Zhen, Z. Rao
Crystal Structure Of Apo-C1027 And Computer Modeling Analysis Of C1027 Chromophore- Protein Complex
To Be Published
PubMed: search
(for further references see the PDB file header)

(-) Compounds

Molecule 1 - APOPROTEIN OF C1027
    Chains: A, B
    Organism Scientific: STREPTOMYCES GLOBISPORUS
    Organism Taxid: 1908
    Synonym: ANTITUMOR ANTIBIOTIC C-1027 APOPROTEIN

 Structural Features

(-) Chains, Units

  12
Asymmetric Unit : AB
Biological Unit 1 (1x): A
Biological Unit 2 (1x):  B

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (0, 0)

(no "Ligand,Modified Residues,Ions" information available for 1J48)

(-) Sites  (0, 0)

(no "Site" information available for 1J48)

(-) SS Bonds  (4, 4)

Asymmetric Unit
No.Residues
1A:34 -A:43
2A:83 -A:88
3B:34 -B:43
4B:83 -B:88

(-) Cis Peptide Bonds  (2, 2)

Asymmetric Unit
No.Residues
1Ser A:7 -Pro A:8
2Ser B:7 -Pro B:8

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 1J48)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 1J48)

(-) Exons   (0, 0)

(no "Exon" information available for 1J48)

(-) Sequences/Alignments

Asymmetric Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:109
 aligned with CAGA_STRGL | Q06110 from UniProtKB/Swiss-Prot  Length:143

    Alignment length:109
                                    43        53        63        73        83        93       103       113       123       133
           CAGA_STRGL    34 APAFSVSPASGLSDGQSVSVSVSGAAAGETYYIAQCAPVGGQDACNPATATSFTTDASGAASFSFVVRKSYTGSTPEGTPVGSVDCATAACNLGAGNSGLDLGHVALTF 142
               SCOP domains d1j48a_ A: Antitumor antibiotic C-1027                                                                        SCOP domains
               CATH domains 1j48A00 A:1-106  [code=2.60.40.230, no name defined]                                                          CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ..eeeee.........eeeeeee......eeeeeeeeee..eeee.....eeee...............eeeee.....eeeeee......eeeeee..eeeeeee... Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------- Transcript
                 1j48 A   1 APAFSVSPASGLSDGQSVSVSVSGAAAGETYYIAQCAPVGGQDACNPATATSFTTDASGAASFSFVVRKSYTGSTPEGTPVGSVDCATAACNLGAGNSGLDLGHVALTF 106
                                    10        20      ||28        38        48        58     |  67        77        87        97
                                                    26A|                                   63A
                                                     26B


Chain B from PDB  Type:PROTEIN  Length:109
 aligned with CAGA_STRGL | Q06110 from UniProtKB/Swiss-Prot  Length:143

    Alignment length:109
                                    43        53        63        73        83        93       103       113       123       133
           CAGA_STRGL    34 APAFSVSPASGLSDGQSVSVSVSGAAAGETYYIAQCAPVGGQDACNPATATSFTTDASGAASFSFVVRKSYTGSTPEGTPVGSVDCATAACNLGAGNSGLDLGHVALTF 142
               SCOP domains d1j48b_ B: Antitumor antibiotic C-1027                                                                        SCOP domains
               CATH domains 1j48B00 B:1-106  [code=2.60.40.230, no name defined]                                                          CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ..eeeee.........eeeeeee......eeeeeeeee....eee.....eeee...............eeeee.....eeeeee......eeeee....eeeeee... Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------- Transcript
                 1j48 B   1 APAFSVSPASGLSDGQSVSVSVSGAAAGETYYIAQCAPVGGQDACNPATATSFTTDASGAASFSFVVRKSYTGSTPEGTPVGSVDCATAACNLGAGNSGLDLGHVALTF 106
                                    10        20      ||28        38        48        58     |  67        77        87        97
                                                    26A|                                   63A
                                                     26B
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (1, 2)

Asymmetric Unit
(-)
Class: All beta proteins (24004)

(-) CATH Domains  (1, 2)

Asymmetric Unit
(-)
Class: Mainly Beta (13760)

(-) Pfam Domains  (0, 0)

(no "Pfam Domain" information available for 1J48)

(-) Gene Ontology  (3, 3)

Asymmetric Unit(hide GO term definitions)
Chain A,B   (CAGA_STRGL | Q06110)
molecular function
    GO:0003677    DNA binding    Any molecular function by which a gene product interacts selectively and non-covalently with DNA (deoxyribonucleic acid).
biological process
    GO:0006952    defense response    Reactions, triggered in response to the presence of a foreign body or the occurrence of an injury, which result in restriction of damage to the organism attacked or prevention/recovery from the infection caused by the attack.
    GO:0042742    defense response to bacterium    Reactions triggered in response to the presence of a bacterium that act to protect the cell or organism.

 Visualization

(-) Interactive Views

Asymmetric Unit
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
(no "Ligands, Modified Residues, Ions" information available for 1j48)

  Sites
(no "Sites" information available for 1j48)

  Cis Peptide Bonds
    Ser A:7 - Pro A:8   [ RasMol ]
    Ser B:7 - Pro B:8   [ RasMol ]

Biological Units
  Complete Structure
    Biological Unit 1  [ Jena3D ]
    Biological Unit 2  [ Jena3D ]

(-) Still Images

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick

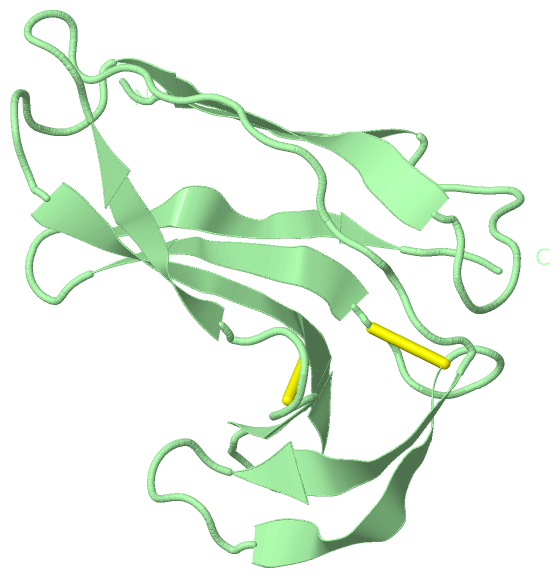

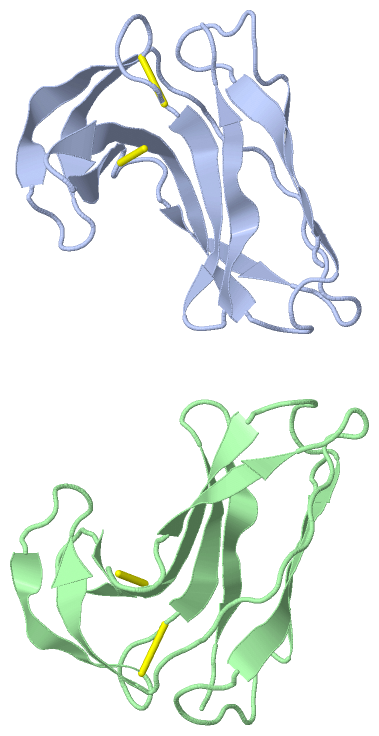

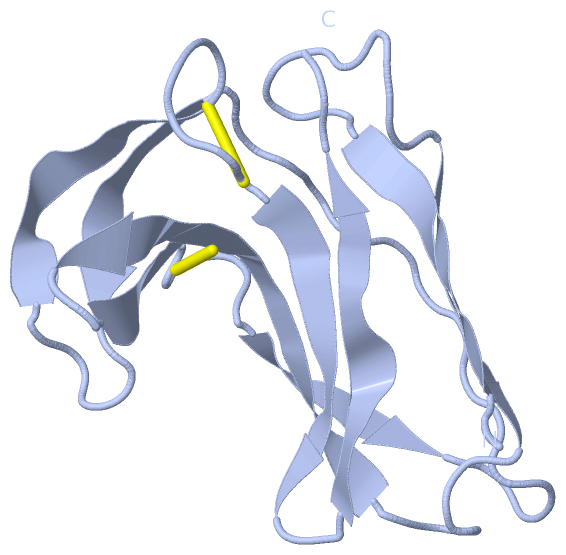

[ Asym. Unit PNG format | Biol. Unit 1 PNG format | Biol. Unit 2 PNG format ](automatic orientation, automatically generated)
Molscript
  protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick
[ mono PDF format | stereo PDF format ](default orientation, automatically generated)

 Databases and Analysis Tools

(-) Databases

Access by PDB/NDB ID
  1j48
    Family and Domain Information: ProDom | SYSTERS
    General Structural Information: GlycoscienceDB | MMDB | NDB | OCA | PDB | PDBe | PDBj | PDBsum | PDBWiki | PQS | PROTEOPEDIA
    Orientation in Membranes: OPM
    Protein Surface: SURFACE
    Secondary Structure: DSSP (structure derived) | HSSP (homology derived)
    Structural Genomics: GeneCensus
    Structural Neighbours: CE | VAST
    Structure Classification: CATH | Dali | SCOP
    Validation and Original Data: BMRB Data View | BMRB Restraints Grid | EDS | PROCHECK | RECOORD | WHAT_CHECK

Access by UniProt ID/Accession number
  CAGA_STRGL | Q06110
    Comparative Protein Structure Models: ModBase
    Genomic Information: Ensembl
    Protein-protein Interaction: DIP
    Sequence, Family and Domain Information: InterPro | Pfam | SMART | UniProtKB/SwissProt

Access by Enzyme Classificator   (EC Number)
  (no 'Enzyme Classificator' available)
    General Enzyme Information: BRENDA | EC-PDB | Enzyme | IntEnz
    Pathway: KEGG | MetaCyc

Access by Disease Identifier   (MIM ID)
  (no 'MIM ID' available)
    Disease Information: OMIM

Access by GenAge ID
  (no 'GenAge ID' available)
    Age Related Information: GenAge

(-) Analysis Tools

Access by PDB/NDB ID
    Domain Information: XDom
    Interatomic Contacts of Structural Units: CSU
    Ligand-protein Contacts: LPC
    Protein Cavities: castP
    Sequence and Secondary Structure: PDBCartoon
    Structure Alignment: STRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    Structure and Sequence Browser: STING

Access by UniProt ID/Accession number
  CAGA_STRGL | Q06110
    Protein Disorder Prediction: DisEMBL | FoldIndex | GLOBPLOT (for more information see DisProt)

 Related Entries

(-) Entries Sharing at Least One Protein Chain (UniProt ID)

UniProtKB/Swiss-Prot
        CAGA_STRGL | Q06110: 1hzk 1hzl

(-) Related Entries Specified in the PDB File

(no "Related Entries Specified in the PDB File" available for 1J48)
