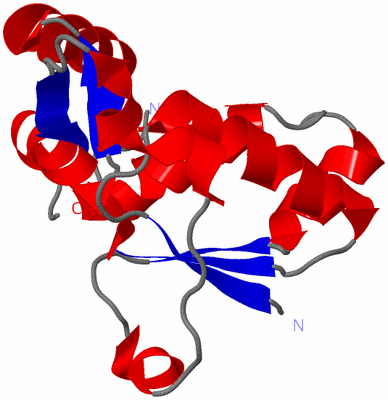

Image Asym./Biol. Unit
Asym./Biol. Unit  (Jmol Viewer)

(-) Description

Title :  CRYSTAL STRUCTURE OF RIBOSOMAL PROTEIN L13 FROM PYROCOCCUS HORIKOSHII

Authors :  T. Nakashima, M. Tanaka, T. Kazama, S. Kawamura, M. Kimura, M. Yao, I. Tanaka
Date :  21 Jan 03  (Deposition) - 04 Feb 03  (Release) - 24 Feb 09  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  1.60
Chains :  Asym./Biol. Unit :  A
Keywords :  Ribosomal Protein, Rrna Binding, Ribosomal Assembly, Ribosome (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  T. Nakashima, M. Tanaka, T. Kazama, S. Kawamura, M. Kimura, M. Yao, I. Tanaka
Crystal Structure Of Ribosomal Protein L13 From Hyperthermophilic Archaeon Pyrococcus Horikoshii
To Be Published
PubMed: search
(for further references see the PDB file header)

(-) Compounds

Molecule 1 - 50S RIBOSOMAL PROTEIN L13P
    Chains: A
    Engineered: YES
    Expression System: ESCHERICHIA COLI
    Expression System Plasmid: PET22B
    Expression System Taxid: 562
    Expression System Vector Type: PLASMID
    Gene: PH1634
    Organism Scientific: PYROCOCCUS HORIKOSHII
    Organism Taxid: 53953
    Synonym: RIBOSOMAL PROTEIN L13

 Structural Features

(-) Chains, Units

  1
Asymmetric/Biological Unit : A

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (0, 0)

(no "Ligand,Modified Residues,Ions" information available for 1J3A)

(-) Sites  (0, 0)

(no "Site" information available for 1J3A)

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 1J3A)

(-) Cis Peptide Bonds  (0, 0)

(no "Cis Peptide Bond" information available for 1J3A)

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 1J3A)

(-) PROSITE Motifs  (1, 1)

Asymmetric/Biological Unit (1, 1)
 PROSITEUniProtKBPDB
No.IDACDescriptionIDLocationCountLocation
1RIBOSOMAL_L13PS00783 Ribosomal protein L13 signature.RL13_PYRHO79-102  1A:79-102

(-) Exons   (0, 0)

(no "Exon" information available for 1J3A)

(-) Sequences/Alignments

Asymmetric/Biological Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:129
 aligned with RL13_PYRHO | O59300 from UniProtKB/Swiss-Prot  Length:142

    Alignment length:142
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140
           RL13_PYRHO     1 MRIINADGLILGRLASRVAKMLLEGEEVVIVNAEKAVITGNREVIFSKYKQRTGLRTLTNPRRGPFYPKRSDEIVRRTIRGMLPWKTDRGRKAFRRLKVYVGIPKEFQDKQLETIVEAHVSRLSRPKYVTVGEVAKFLGGKF 142
               SCOP domains d1j3aa_ A: Ribosomal protein L13                                                                                                               SCOP domains
               CATH domains 1j3aA00 A:1-142  [code=3.90.1180.10, no name defined]                                                                                          CATH domains
               Pfam domains ---------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .eeee....hhhhhhhhhhhhhhh...eeeehhhh.eee.hhhhhhhhhhhhh-------------...hhhhhhhhhhhh.....hhhhhhhhh.eee....hhhhh......hhhhhhhhh....eeehhhhhhhhh... Sec.struct. author
                 SAPs(SNPs) ---------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------RIBOSOMAL_L13           ---------------------------------------- PROSITE
                 Transcript ---------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 1j3a A   1 MRIINADGLILGRLASRVAKMLLEGEEVVIVNAEKAVITGNREVIFSKYKQRT-------------YPKRSDEIVRRTIRGMLPWKTDRGRKAFRRLKVYVGIPKEFQDKQLETIVEAHVSRLSRPKYVTVGEVAKFLGGKF 142
                                    10        20        30        40        50  |      -      | 70        80        90       100       110       120       130       140
                                                                               53            67
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (1, 1)

Asymmetric/Biological Unit
(-)
Class: Alpha and beta proteins (a/b) (23833)

(-) CATH Domains  (1, 1)

Asymmetric/Biological Unit
(-)
Class: Alpha Beta (26913)

(-) Pfam Domains  (0, 0)

(no "Pfam Domain" information available for 1J3A)

(-) Gene Ontology  (5, 5)

Asymmetric/Biological Unit(hide GO term definitions)
Chain A   (RL13_PYRHO | O59300)
molecular function
    GO:0003735    structural constituent of ribosome    The action of a molecule that contributes to the structural integrity of the ribosome.
biological process
    GO:0006412    translation    The cellular metabolic process in which a protein is formed, using the sequence of a mature mRNA or circRNA molecule to specify the sequence of amino acids in a polypeptide chain. Translation is mediated by the ribosome, and begins with the formation of a ternary complex between aminoacylated initiator methionine tRNA, GTP, and initiation factor 2, which subsequently associates with the small subunit of the ribosome and an mRNA or circRNA. Translation ends with the release of a polypeptide chain from the ribosome.
cellular component
    GO:0030529    intracellular ribonucleoprotein complex    An intracellular macromolecular complex containing both protein and RNA molecules.
    GO:0015934    large ribosomal subunit    The larger of the two subunits of a ribosome. Two sites on the ribosomal large subunit are involved in translation, namely the aminoacyl site (A site) and peptidyl site (P site).
    GO:0005840    ribosome    An intracellular organelle, about 200 A in diameter, consisting of RNA and protein. It is the site of protein biosynthesis resulting from translation of messenger RNA (mRNA). It consists of two subunits, one large and one small, each containing only protein and RNA. Both the ribosome and its subunits are characterized by their sedimentation coefficients, expressed in Svedberg units (symbol: S). Hence, the prokaryotic ribosome (70S) comprises a large (50S) subunit and a small (30S) subunit, while the eukaryotic ribosome (80S) comprises a large (60S) subunit and a small (40S) subunit. Two sites on the ribosomal large subunit are involved in translation, namely the aminoacyl site (A site) and peptidyl site (P site). Ribosomes from prokaryotes, eukaryotes, mitochondria, and chloroplasts have characteristically distinct ribosomal proteins.

 Visualization

(-) Interactive Views

Asymmetric/Biological Unit
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
(no "Ligands, Modified Residues, Ions" information available for 1j3a)

  Sites
(no "Sites" information available for 1j3a)

  Cis Peptide Bonds
(no "Cis Peptide Bonds" information available for 1j3a)


(-) Still Images

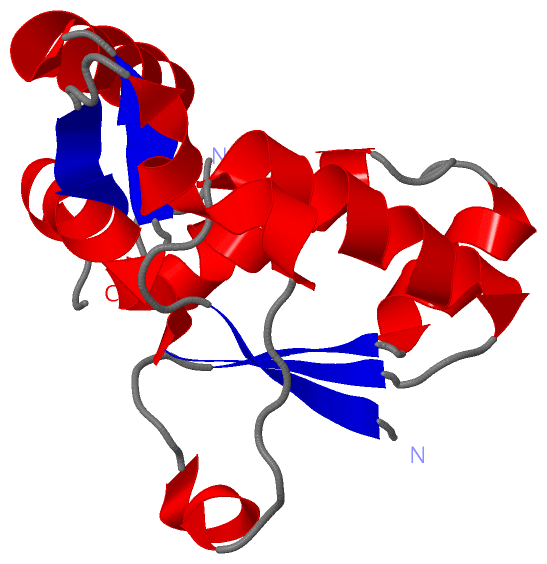

Jmol
