1J2U - JenaLib

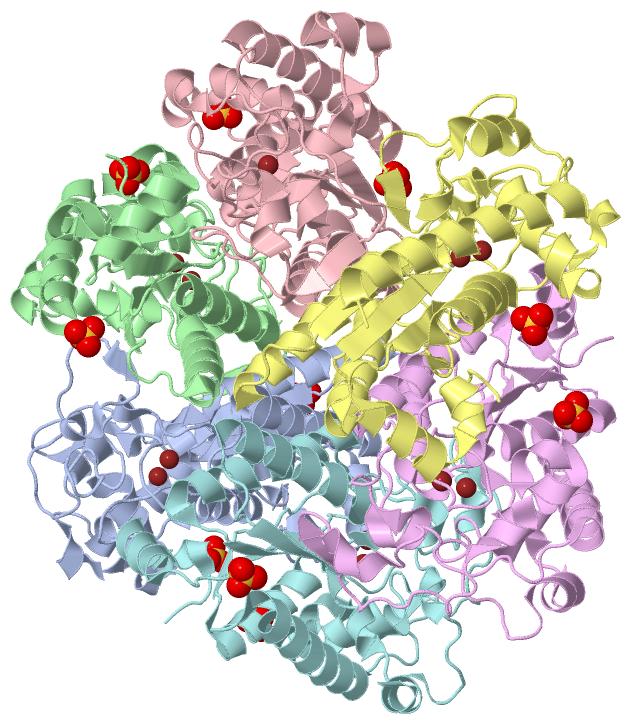

Asym./Biol. Unit (Jmol Viewer)

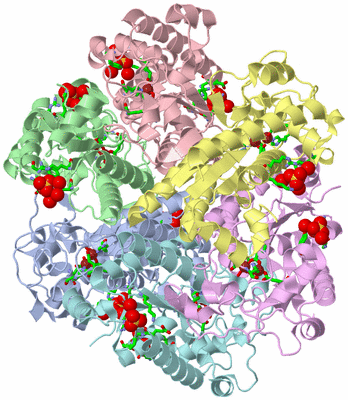

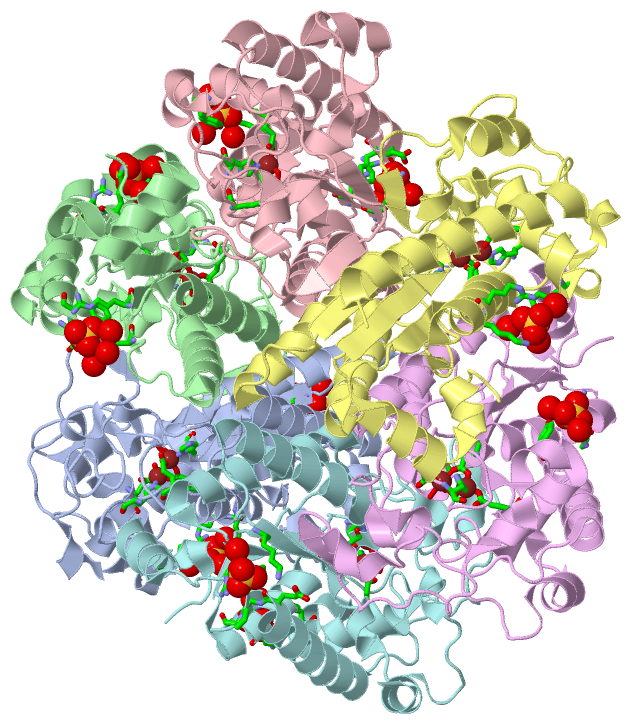

Asym./Biol. Unit - sites (Jmol Viewer)

Title :   CREATININASE ZN

Authors :   T. Yoshimoto, N. Tanaka, N. Kanada, T. Inoue, Y. Nakajima, M. Haratake, K. T. Nakamura, Y. Xu, K. Ito

Date :   11 Jan 03 (Deposition) - 27 Jan 04 (Release) - 24 Feb 09 (Revision)

Method :   X-RAY DIFFRACTION

Resolution :   1.85

Chains :   Asym./Biol. Unit : A,B,C,D,E,F

Keywords :   Creatine, Creatinine, Hydrolase (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :   T. Yoshimoto, N. Tanaka, N. Kanada, T. Inoue, Y. Nakajima, M. Haratake, K. T. Nakamura, Y. Xu, K. Ito
Crystal Structures Of Creatininase Reveal The Substrate Binding Site And Provide An Insight Into The Catalytic Mechanism
J. Mol. Biol. V. 337 399 2004
PubMed-ID: 15003455 | Reference-DOI: 10.1016/J.JMB.2004.01.022
(for further references see the PDB file header)

Molecule 1 - CREATININE AMIDOHYDROLASE
	Chains	:	A, B, C, D, E, F
	EC Number	:	3.5.2.10
	Engineered	:	YES
	Expression System	:	ESCHERICHIA COLI
	Expression System Plasmid	:	PBLUESCRIPT KS(-)
	Expression System Strain	:	DH5A
	Expression System Taxid	:	562
	Expression System Vector Type	:	PLASMID
	Organism Scientific	:	PSEUDOMONAS PUTIDA
	Organism Taxid	:	303
	Synonym	:	DIAGNASE

		1	2	3	4	5	6
Asymmetric/Biological Unit	:	A	B	C	D	E	F

Summary Information (see also Sequences/Alignments below)

Asymmetric/Biological Unit (2, 22)

No.	Name	Count	Type	Full Name
1	SO4	10	Ligand/Ion	SULFATE ION
2	ZN	12	Ligand/Ion	ZINC ION

Asymmetric Unit (22, 22)

No.	Name	Evidence	Residues	Description
01	AC1	SOFTWARE	HIS A:36 , ASP A:45 , GLU A:183 , ZN A:301 , HOH A:8008	BINDING SITE FOR RESIDUE ZN A 302
02	AC2	SOFTWARE	GLU A:34 , ASP A:45 , HIS A:120 , ZN A:302 , HOH A:8008 , HOH A:8009 , HOH A:8010	BINDING SITE FOR RESIDUE ZN A 301
03	AC3	SOFTWARE	HIS B:36 , ASP B:45 , GLU B:183 , ZN B:301 , HOH B:8009	BINDING SITE FOR RESIDUE ZN B 302
04	AC4	SOFTWARE	GLU B:34 , ASP B:45 , HIS B:120 , ZN B:302 , HOH B:8009 , HOH B:8010 , HOH B:8011	BINDING SITE FOR RESIDUE ZN B 301
05	AC5	SOFTWARE	HIS C:36 , ASP C:45 , GLU C:183 , ZN C:301 , HOH C:8010	BINDING SITE FOR RESIDUE ZN C 302
06	AC6	SOFTWARE	GLU C:34 , ASP C:45 , HIS C:120 , ZN C:302 , HOH C:8010 , HOH C:8011	BINDING SITE FOR RESIDUE ZN C 301
07	AC7	SOFTWARE	HIS D:36 , ASP D:45 , GLU D:183 , HOH D:8002	BINDING SITE FOR RESIDUE ZN D 302
08	AC8	SOFTWARE	GLU D:34 , ASP D:45 , HIS D:120 , HOH D:8002 , HOH D:8003 , HOH D:8004	BINDING SITE FOR RESIDUE ZN D 301
09	AC9	SOFTWARE	HIS E:36 , ASP E:45 , GLU E:183 , ZN E:301 , HOH E:8004	BINDING SITE FOR RESIDUE ZN E 302
10	BC1	SOFTWARE	GLU E:34 , ASP E:45 , HIS E:120 , ZN E:302 , HOH E:8004 , HOH E:8005 , HOH E:8006	BINDING SITE FOR RESIDUE ZN E 301
11	BC2	SOFTWARE	HIS F:36 , ASP F:45 , GLU F:183 , ZN F:301 , HOH F:8011	BINDING SITE FOR RESIDUE ZN F 302
12	BC3	SOFTWARE	GLU F:34 , ASP F:45 , HIS F:120 , ZN F:302 , HOH F:8011 , HOH F:8012	BINDING SITE FOR RESIDUE ZN F 301
13	BC4	SOFTWARE	LYS D:54 , ARG D:55 , TYR D:191 , HOH D:8062 , HOH D:8137 , HOH D:8145	BINDING SITE FOR RESIDUE SO4 D 8001
14	BC5	SOFTWARE	LYS B:54 , ARG B:55 , TYR B:191 , HOH B:8089 , HOH B:8154 , HOH B:8205	BINDING SITE FOR RESIDUE SO4 B 8002
15	BC6	SOFTWARE	LYS E:54 , ARG E:55 , TYR E:191 , HOH E:8070 , HOH E:8158	BINDING SITE FOR RESIDUE SO4 E 8003
16	BC7	SOFTWARE	LYS F:54 , ARG F:55 , TYR F:191 , HOH F:8039 , HOH F:8139 , HOH F:8152	BINDING SITE FOR RESIDUE SO4 F 8004
17	BC8	SOFTWARE	LYS C:54 , ARG C:55 , TYR C:191 , HOH C:8060 , HOH C:8123 , HOH C:8177	BINDING SITE FOR RESIDUE SO4 C 8005
18	BC9	SOFTWARE	LYS A:54 , ARG A:55 , TYR A:191 , HOH A:8060 , HOH A:8134 , HOH A:8250	BINDING SITE FOR RESIDUE SO4 A 8006
19	CC1	SOFTWARE	ARG A:113 , LYS A:147 , GLU A:256 , PHE A:257 , HOH A:8120 , HOH A:8237	BINDING SITE FOR RESIDUE SO4 A 8007
20	CC2	SOFTWARE	ARG B:113 , LYS B:147 , GLU B:256 , PHE B:257 , HOH B:8076 , HOH B:8148 , HOH B:8170	BINDING SITE FOR RESIDUE SO4 B 8008
21	CC3	SOFTWARE	ARG C:113 , LYS C:147 , GLU C:256 , PHE C:257 , HOH C:8075 , HOH C:8207	BINDING SITE FOR RESIDUE SO4 C 8009
22	CC4	SOFTWARE	ARG F:113 , LYS F:147 , GLU F:256 , PHE F:257 , PRO F:258 , HOH F:8082	BINDING SITE FOR RESIDUE SO4 F 8010

(no "SS Bond" information available for 1J2U)

Asymmetric/Biological Unit

No.	Residues
1	Phe A:214	-	Pro A:215
2	Phe B:214	-	Pro B:215
3	Phe C:214	-	Pro C:215
4	Phe D:214	-	Pro D:215
5	Phe E:214	-	Pro E:215
6	Phe F:214	-	Pro F:215

(no "SAP(SNP)/Variant" information available for 1J2U)

(no "PROSITE Motif" information available for 1J2U)

(no "Exon" information available for 1J2U)

Asymmetric/Biological Unit

Reformat:	Number of residues per line = ('0' or empty: single-line sequence representation)
	Number of residues per labelling interval =
	UniProt sequence: complete aligned part

Show mapping:	SCOP domains	CATH domains	Pfam domains	Secondary structure (by author)
	SAPs(SNPs)	PROSITE motifs	Exons
	(details for a mapped element are shown in a popup box when the mouse pointer rests over it)

Chain A from PDB  Type:PROTEIN  Length:257
 aligned with CRNA_PSEPU | P83772 from UniProtKB/Swiss-Prot  Length:260

    Alignment length:257
                                    12        22        32        42        52        62        72        82        92       102       112       122       132       142       152       162       172       182       192       202       212       222       232       242       252
           CRNA_PSEPU     3 KSVFVGELTWKEYEARVAAGDCVLMLPVGALEQHGHHMCMNVDVLLPTAVCKRVAERIGALVMPGLQYGYKSQQKSGGGNHFPGTTSLDGATLTGTVQDIIRELARHGARRLVLMNGHYENSMFIVEGIDLALRELRYAGIQDFKVVVLSYWDFVKDPAVIQQLYPEGFLGWDIEHGGVFETSLMLALYPDLVDLDRVVDHPPATFPPYDVFPVDPARTPAPGTLSSAKTASREKGELILEVCVQGIADAIREEFPP 259
               SCOP domains d1j2ua_ A: Creatininase                                                                                                                                                                                                                                           SCOP domains
               CATH domains 1j2uA00 A:3-259 Creatininase                                                                                                                                                                                                                                      CATH domains
               Pfam domains ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ...hhhhhhhhhhhhhhhh....eeeee............hhhhhhhhhhhhhhhhhhh.ee..........hhhhhh..........hhhhhhhhhhhhhhhhhhhh..eeeeee.hhhhhhhhhhhhhhhhhhhhhh.....eeeeee.hhhh.hhhhhhhhh............hhhhhhhhhhhhhhhhhhhhh...........eee..hhhhh............hhhhhhhhhhhhhhhhhhhhhhhh.. Sec.struct. author
                 SAPs(SNPs) ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 1j2u A   3 KSVFVGELTWKEYEARVAAGDCVLMLPVGALEQHGHHMCMNVDVLLPTAVCKRVAERIGALVMPGLQYGYKSQQKSGGGNHFPGTTSLDGATLTGTVQDIIRELARHGARRLVLMNGHYENSMFIVEGIDLALRELRYAGIQDFKVVVLSYWDFVKDPAVIQQLYPEGFLGWDIEHGGVFETSLMLALYPDLVDLDRVVDHPPATFPPYDVFPVDPARTPAPGTLSSAKTASREKGELILEVCVQGIADAIREEFPP 259
                                    12        22        32        42        52        62        72        82        92       102       112       122       132       142       152       162       172       182       192       202       212       222       232       242       252

Chain B from PDB  Type:PROTEIN  Length:257
 aligned with CRNA_PSEPU | P83772 from UniProtKB/Swiss-Prot  Length:260

    Alignment length:257
                                    12        22        32        42        52        62        72        82        92       102       112       122       132       142       152       162       172       182       192       202       212       222       232       242       252
           CRNA_PSEPU     3 KSVFVGELTWKEYEARVAAGDCVLMLPVGALEQHGHHMCMNVDVLLPTAVCKRVAERIGALVMPGLQYGYKSQQKSGGGNHFPGTTSLDGATLTGTVQDIIRELARHGARRLVLMNGHYENSMFIVEGIDLALRELRYAGIQDFKVVVLSYWDFVKDPAVIQQLYPEGFLGWDIEHGGVFETSLMLALYPDLVDLDRVVDHPPATFPPYDVFPVDPARTPAPGTLSSAKTASREKGELILEVCVQGIADAIREEFPP 259
               SCOP domains d1j2ub_ B: Creatininase                                                                                                                                                                                                                                           SCOP domains
               CATH domains 1j2uB00 B:3-259 Creatininase                                                                                                                                                                                                                                      CATH domains
               Pfam domains ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ...hhhhhhhhhhhhhhhh....eeeee............hhhhhhhhhhhhhhhhhhh.ee..........hhhhhh..........hhhhhhhhhhhhhhhhhhhh..eeeeee.hhhhhhhhhhhhhhhhhhhhhh.....eeeeee.hhhh.hhhhhhhhh.....hhhhh..hhhhhhhhhhhhhhhhhhhhh...........eee..hhhhh............hhhhhhhhhhhhhhhhhhhhhhhh.. Sec.struct. author
                 SAPs(SNPs) ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 1j2u B   3 KSVFVGELTWKEYEARVAAGDCVLMLPVGALEQHGHHMCMNVDVLLPTAVCKRVAERIGALVMPGLQYGYKSQQKSGGGNHFPGTTSLDGATLTGTVQDIIRELARHGARRLVLMNGHYENSMFIVEGIDLALRELRYAGIQDFKVVVLSYWDFVKDPAVIQQLYPEGFLGWDIEHGGVFETSLMLALYPDLVDLDRVVDHPPATFPPYDVFPVDPARTPAPGTLSSAKTASREKGELILEVCVQGIADAIREEFPP 259
                                    12        22        32        42        52        62        72        82        92       102       112       122       132       142       152       162       172       182       192       202       212       222       232       242       252

Chain C from PDB  Type:PROTEIN  Length:257
 aligned with CRNA_PSEPU | P83772 from UniProtKB/Swiss-Prot  Length:260

    Alignment length:257
                                    12        22        32        42        52        62        72        82        92       102       112       122       132       142       152       162       172       182       192       202       212       222       232       242       252
           CRNA_PSEPU     3 KSVFVGELTWKEYEARVAAGDCVLMLPVGALEQHGHHMCMNVDVLLPTAVCKRVAERIGALVMPGLQYGYKSQQKSGGGNHFPGTTSLDGATLTGTVQDIIRELARHGARRLVLMNGHYENSMFIVEGIDLALRELRYAGIQDFKVVVLSYWDFVKDPAVIQQLYPEGFLGWDIEHGGVFETSLMLALYPDLVDLDRVVDHPPATFPPYDVFPVDPARTPAPGTLSSAKTASREKGELILEVCVQGIADAIREEFPP 259
               SCOP domains d1j2uc_ C: Creatininase                                                                                                                                                                                                                                           SCOP domains
               CATH domains 1j2uC00 C:3-259 Creatininase                                                                                                                                                                                                                                      CATH domains
               Pfam domains ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ...hhhhhhhhhhhhhhhh....eeeee............hhhhhhhhhhhhhhhhhhh.ee..........hhhhhh..........hhhhhhhhhhhhhhhhhhhh..eeeeee.hhhhhhhhhhhhhhhhhhhhhh.....eeeeee.hhhh.hhhhhhhhh.....hhhhh..hhhhhhhhhhhhhhhhhhhhh...........eee..hhhhh............hhhhhhhhhhhhhhhhhhhhhhhh.. Sec.struct. author
                 SAPs(SNPs) ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 1j2u C   3 KSVFVGELTWKEYEARVAAGDCVLMLPVGALEQHGHHMCMNVDVLLPTAVCKRVAERIGALVMPGLQYGYKSQQKSGGGNHFPGTTSLDGATLTGTVQDIIRELARHGARRLVLMNGHYENSMFIVEGIDLALRELRYAGIQDFKVVVLSYWDFVKDPAVIQQLYPEGFLGWDIEHGGVFETSLMLALYPDLVDLDRVVDHPPATFPPYDVFPVDPARTPAPGTLSSAKTASREKGELILEVCVQGIADAIREEFPP 259
                                    12        22        32        42        52        62        72        82        92       102       112       122       132       142       152       162       172       182       192       202       212       222       232       242       252

Chain D from PDB  Type:PROTEIN  Length:257
 aligned with CRNA_PSEPU | P83772 from UniProtKB/Swiss-Prot  Length:260

    Alignment length:257
                                    12        22        32        42        52        62        72        82        92       102       112       122       132       142       152       162       172       182       192       202       212       222       232       242       252
           CRNA_PSEPU     3 KSVFVGELTWKEYEARVAAGDCVLMLPVGALEQHGHHMCMNVDVLLPTAVCKRVAERIGALVMPGLQYGYKSQQKSGGGNHFPGTTSLDGATLTGTVQDIIRELARHGARRLVLMNGHYENSMFIVEGIDLALRELRYAGIQDFKVVVLSYWDFVKDPAVIQQLYPEGFLGWDIEHGGVFETSLMLALYPDLVDLDRVVDHPPATFPPYDVFPVDPARTPAPGTLSSAKTASREKGELILEVCVQGIADAIREEFPP 259
               SCOP domains d1j2ud_ D: Creatininase                                                                                                                                                                                                                                           SCOP domains
               CATH domains 1j2uD00 D:3-259 Creatininase                                                                                                                                                                                                                                      CATH domains
               Pfam domains ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ...hhhhhhhhhhhhhhhh....eeeee............hhhhhhhhhhhhhhhhhhh.ee..........hhhhhh..........hhhhhhhhhhhhhhhhhhhh..eeeeee.hhhhhhhhhhhhhhhhhhhhhh.....eeeeee.hhhh.hhhhhhhhh............hhhhhhhhhhhhhhhhhhhhh...........eee..hhhhh............hhhhhhhhhhhhhhhhhhhhhhhh.. Sec.struct. author
                 SAPs(SNPs) ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 1j2u D   3 KSVFVGELTWKEYEARVAAGDCVLMLPVGALEQHGHHMCMNVDVLLPTAVCKRVAERIGALVMPGLQYGYKSQQKSGGGNHFPGTTSLDGATLTGTVQDIIRELARHGARRLVLMNGHYENSMFIVEGIDLALRELRYAGIQDFKVVVLSYWDFVKDPAVIQQLYPEGFLGWDIEHGGVFETSLMLALYPDLVDLDRVVDHPPATFPPYDVFPVDPARTPAPGTLSSAKTASREKGELILEVCVQGIADAIREEFPP 259
                                    12        22        32        42        52        62        72        82        92       102       112       122       132       142       152       162       172       182       192       202       212       222       232       242       252

Chain E from PDB  Type:PROTEIN  Length:257
 aligned with CRNA_PSEPU | P83772 from UniProtKB/Swiss-Prot  Length:260

    Alignment length:257
                                    12        22        32        42        52        62        72        82        92       102       112       122       132       142       152       162       172       182       192       202       212       222       232       242       252
           CRNA_PSEPU     3 KSVFVGELTWKEYEARVAAGDCVLMLPVGALEQHGHHMCMNVDVLLPTAVCKRVAERIGALVMPGLQYGYKSQQKSGGGNHFPGTTSLDGATLTGTVQDIIRELARHGARRLVLMNGHYENSMFIVEGIDLALRELRYAGIQDFKVVVLSYWDFVKDPAVIQQLYPEGFLGWDIEHGGVFETSLMLALYPDLVDLDRVVDHPPATFPPYDVFPVDPARTPAPGTLSSAKTASREKGELILEVCVQGIADAIREEFPP 259
               SCOP domains d1j2ue_ E: Creatininase                                                                                                                                                                                                                                           SCOP domains
               CATH domains 1j2uE00 E:3-259 Creatininase                                                                                                                                                                                                                                      CATH domains
               Pfam domains ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ...hhhhhhhhhhhhhhhh....eeeee............hhhhhhhhhhhhhhhhhhh.ee..........hhhhhh..........hhhhhhhhhhhhhhhhhhhh..eeeeee.hhhhhhhhhhhhhhhhhhhhhh.....eeeeee.hhhh.hhhhhhhhh............hhhhhhhhhhhhhhhhhhhhh...........eee..hhhhh............hhhhhhhhhhhhhhhhhhhhhhhh.. Sec.struct. author
                 SAPs(SNPs) ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 1j2u E   3 KSVFVGELTWKEYEARVAAGDCVLMLPVGALEQHGHHMCMNVDVLLPTAVCKRVAERIGALVMPGLQYGYKSQQKSGGGNHFPGTTSLDGATLTGTVQDIIRELARHGARRLVLMNGHYENSMFIVEGIDLALRELRYAGIQDFKVVVLSYWDFVKDPAVIQQLYPEGFLGWDIEHGGVFETSLMLALYPDLVDLDRVVDHPPATFPPYDVFPVDPARTPAPGTLSSAKTASREKGELILEVCVQGIADAIREEFPP 259
                                    12        22        32        42        52        62        72        82        92       102       112       122       132       142       152       162       172       182       192       202       212       222       232       242       252

Chain F from PDB  Type:PROTEIN  Length:257
 aligned with CRNA_PSEPU | P83772 from UniProtKB/Swiss-Prot  Length:260

    Alignment length:257
                                    12        22        32        42        52        62        72        82        92       102       112       122       132       142       152       162       172       182       192       202       212       222       232       242       252
           CRNA_PSEPU     3 KSVFVGELTWKEYEARVAAGDCVLMLPVGALEQHGHHMCMNVDVLLPTAVCKRVAERIGALVMPGLQYGYKSQQKSGGGNHFPGTTSLDGATLTGTVQDIIRELARHGARRLVLMNGHYENSMFIVEGIDLALRELRYAGIQDFKVVVLSYWDFVKDPAVIQQLYPEGFLGWDIEHGGVFETSLMLALYPDLVDLDRVVDHPPATFPPYDVFPVDPARTPAPGTLSSAKTASREKGELILEVCVQGIADAIREEFPP 259
               SCOP domains d1j2uf_ F: Creatininase                                                                                                                                                                                                                                           SCOP domains
               CATH domains 1j2uF00 F:3-259 Creatininase                                                                                                                                                                                                                                      CATH domains
               Pfam domains ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ...hhhhhhhhhhhhhhhh....eeeee............hhhhhhhhhhhhhhhhhhh.ee..........hhhhhh..........hhhhhhhhhhhhhhhhhhhh..eeeeee.hhhhhhhhhhhhhhhhhhhhhh.....eeeeee.hhhh.hhhhhhhhh.....hhhhh..hhhhhhhhhhhhhhhhhhhhh...........eee..hhhhh............hhhhhhhhhhhhhhhhhhhhhhhh.. Sec.struct. author
                 SAPs(SNPs) ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 1j2u F   3 KSVFVGELTWKEYEARVAAGDCVLMLPVGALEQHGHHMCMNVDVLLPTAVCKRVAERIGALVMPGLQYGYKSQQKSGGGNHFPGTTSLDGATLTGTVQDIIRELARHGARRLVLMNGHYENSMFIVEGIDLALRELRYAGIQDFKVVVLSYWDFVKDPAVIQQLYPEGFLGWDIEHGGVFETSLMLALYPDLVDLDRVVDHPPATFPPYDVFPVDPARTPAPGTLSSAKTASREKGELILEVCVQGIADAIREEFPP 259
                                    12        22        32        42        52        62        72        82        92       102       112       122       132       142       152       162       172       182       192       202       212       222       232       242       252

Legend:		→ Mismatch	(orange background)
	-	→ Gap	(green background, '-', border residues have a numbering label)
		→ Modified Residue	(blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
	x	→ Chemical Group	(purple background, 'x', labelled with number + name, e.g. ACE or NH2)
	extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '\|'

Asymmetric/Biological Unit

Classes(

)

Folds(

)

Superfamilies( (-)

)

Families(

)

Protein Domains( (-)

)

Organisms( (-)

)

Class: Alpha and beta proteins (a/b) (23833)

Fold: Creatininase (13)

Superfamily: Creatininase (13)

Family: Creatininase (13)

Protein domain: Creatininase (12)

Pseudomonas putida [TaxId: 303] (12)

1a	d1j2ua_	A:
1b	d1j2ub_	B:
1c	d1j2uc_	C:
1d	d1j2ud_	D:
1e	d1j2ue_	E:
1f	d1j2uf_	F:

Asymmetric/Biological Unit

Classes(

)

Architectures( (-)

)

Topologies( (-)

)

Homologous Superfamilies( (-)

)

Organisms( (-)

)

Class: Alpha Beta (26913)

Architecture: 3-Layer(aba) Sandwich (12045)

Topology: Rossmann fold (7312)

Homologous Superfamily: Creatininase (12)

Pseudomonas putida. Organism_taxid: 303. (11)

1a	1j2uA00	A:3-259
1b	1j2uE00	E:3-259
1c	1j2uF00	F:3-259
1d	1j2uB00	B:3-259
1e	1j2uC00	C:3-259
1f	1j2uD00	D:3-259

(no "Pfam Domain" information available for 1J2U)

Asymmetric/Biological Unit(hide GO term definitions)

Chain A,B,C,D,E,F (CRNA_PSEPU | P83772)

molecular function
	GO:0047789	creatininase activity	Catalysis of the reaction: creatinine + H(2)O = creatine.
	GO:0016787	hydrolase activity	Catalysis of the hydrolysis of various bonds, e.g. C-O, C-N, C-C, phosphoric anhydride bonds, etc. Hydrolase is the systematic name for any enzyme of EC class 3.
	GO:0030145	manganese ion binding	Interacting selectively and non-covalently with manganese (Mn) ions.
	GO:0046872	metal ion binding	Interacting selectively and non-covalently with any metal ion.
	GO:0008270	zinc ion binding	Interacting selectively and non-covalently with zinc (Zn) ions.
biological process
	GO:0006601	creatine biosynthetic process	The chemical reactions and pathways resulting in the formation of creatine, N-[amino(imino)methyl]-N-methylglycine. Creatine is formed by a process beginning with amidino group transfer from L-arginine to glycine to form guanidinoacetate, followed by methyl group transfer from S-adenosyl-L-methionine to guanidinoacetate; it is then is phosphorylated to form a pool that stores high energy phosphate for the replenishment of ATP during periods of high, or fluctuating energy demand. In animals, most creatine is transported to and used in muscle.
	GO:0006602	creatinine catabolic process	The chemical reactions and pathways resulting in the breakdown of creatinine, 2-amino-1,5-dihydro-1-methyl-4H-imidazol-4-one, an end product of creatine metabolism and a normal constituent of urine.

Asymmetric/Biological Unit
	Complete Structure
		Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
		WebMol \| AstexViewer[tm]@PDBe (Java Applets, require no local installation except for Java; loading may be slow)
		STRAP (Java WebStart application, automatic local installation, requires Java; full application with system access!)
		RasMol (require local installation)
		Molscript (VRML) (requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

	Ligands, Modified Residues, Ions
		SO4	[ RasMol \| Jena3D ]	+environment [ RasMol \| Jena3D ]
		ZN	[ RasMol \| Jena3D ]	+environment [ RasMol \| Jena3D ]

	Sites
		AC1	[ RasMol ]	+environment [ RasMol ]
		AC2	[ RasMol ]	+environment [ RasMol ]
		AC3	[ RasMol ]	+environment [ RasMol ]
		AC4	[ RasMol ]	+environment [ RasMol ]
		AC5	[ RasMol ]	+environment [ RasMol ]
		AC6	[ RasMol ]	+environment [ RasMol ]
		AC7	[ RasMol ]	+environment [ RasMol ]
		AC8	[ RasMol ]	+environment [ RasMol ]
		AC9	[ RasMol ]	+environment [ RasMol ]
		BC1	[ RasMol ]	+environment [ RasMol ]
		BC2	[ RasMol ]	+environment [ RasMol ]
		BC3	[ RasMol ]	+environment [ RasMol ]
		BC4	[ RasMol ]	+environment [ RasMol ]
		BC5	[ RasMol ]	+environment [ RasMol ]
		BC6	[ RasMol ]	+environment [ RasMol ]
		BC7	[ RasMol ]	+environment [ RasMol ]
		BC8	[ RasMol ]	+environment [ RasMol ]
		BC9	[ RasMol ]	+environment [ RasMol ]
		CC1	[ RasMol ]	+environment [ RasMol ]
		CC2	[ RasMol ]	+environment [ RasMol ]
		CC3	[ RasMol ]	+environment [ RasMol ]
		CC4	[ RasMol ]	+environment [ RasMol ]

	Cis Peptide Bonds
		Phe A:214 - Pro A:215	[ RasMol ]
		Phe B:214 - Pro B:215	[ RasMol ]
		Phe C:214 - Pro C:215	[ RasMol ]
		Phe D:214 - Pro D:215	[ RasMol ]
		Phe E:214 - Pro E:215	[ RasMol ]
		Phe F:214 - Pro F:215	[ RasMol ]

Jmol
	protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick [ Asym./Biol. Unit PNG format \| Asym./Biol. Unit - sites PNG format ](automatic orientation, automatically generated)
Molscript
	protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick [ mono PDF format \| stereo PDF format ](default orientation, automatically generated)

Access by PDB/NDB ID
	1j2u
		Family and Domain Information	:	ProDom \| SYSTERS
		General Structural Information	:	GlycoscienceDB \| MMDB \| NDB \| OCA \| PDB \| PDBe \| PDBj \| PDBsum \| PDBWiki \| PQS \| PROTEOPEDIA
		Orientation in Membranes	:	OPM
		Protein Surface	:	SURFACE
		Secondary Structure	:	DSSP (structure derived) \| HSSP (homology derived)
		Structural Genomics	:	GeneCensus
		Structural Neighbours	:	CE \| VAST
		Structure Classification	:	CATH \| Dali \| SCOP
		Validation and Original Data	:	BMRB Data View \| BMRB Restraints Grid \| EDS \| PROCHECK \| RECOORD \| WHAT_CHECK

Access by UniProt ID/Accession number
	CRNA_PSEPU \| P83772
		Comparative Protein Structure Models	:	ModBase
		Genomic Information	:	Ensembl
		Protein-protein Interaction	:	DIP
		Sequence, Family and Domain Information	:	InterPro \| Pfam \| SMART \| UniProtKB/SwissProt

Access by Enzyme Classificator (EC Number)
	3.5.2.10
		General Enzyme Information	:	BRENDA \| EC-PDB \| Enzyme \| IntEnz
		Pathway	:	KEGG \| MetaCyc

Access by Disease Identifier (MIM ID)
	(no 'MIM ID' available)
		Disease Information	:	OMIM

Access by GenAge ID
	(no 'GenAge ID' available)
		Age Related Information	:	GenAge

Access by PDB/NDB ID
		Domain Information	:	XDom
		Interatomic Contacts of Structural Units	:	CSU
		Ligand-protein Contacts	:	LPC
		Protein Cavities	:	castP
		Sequence and Secondary Structure	:	PDBCartoon
		Structure Alignment	:	STRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
		Structure and Sequence Browser	:	STING

Access by UniProt ID/Accession number
	CRNA_PSEPU \| P83772
		Protein Disorder Prediction	:	DisEMBL \| FoldIndex \| GLOBPLOT (for more information see DisProt)

UniProtKB/Swiss-Prot
	CRNA_PSEPU \| P83772	:	1j2t 1q3k 1v7z 3a6d 3a6e 3a6f 3a6g 3a6h 3a6j 3a6k 3a6l

1j2t	1J2T IS CREATININASE MN STRUCTURE

Description

Compounds

Structural Features

Chains, Units

Ligands, Modified Residues, Ions (2, 22)

Sites (22, 22)

SS Bonds (0, 0)

Cis Peptide Bonds (6, 6)

Sequence-Structure Mapping

SAPs(SNPs)/Variants (0, 0)

PROSITE Motifs (0, 0)

Exons (0, 0)

Sequences/Alignments

Classification and Annotation

SCOP Domains (1, 6)

CATH Domains (1, 6)

Pfam Domains (0, 0)

Gene Ontology (7, 7)

Visualization

Interactive Views

Still Images

Databases and Analysis Tools

Databases

Analysis Tools

Related Entries

Entries Sharing at Least One Protein Chain (UniProt ID)

Related Entries Specified in the PDB File
