Title :   SOLUTION STRUCTURE OF CPI-17(22-120) T38D

Authors :   S. Ohki, M. Eto, M. Shimizu, R. Takada, D. L. Brautigan, M. Kainosho

Date :   07 Jan 03 (Deposition) - 17 Jun 03 (Release) - 24 Feb 09 (Revision)

Method :   SOLUTION NMR

Resolution :   NOT APPLICABLE

Chains :   NMR Structure  : A

Keywords :   Helix Bundle, Protein Binding (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :   S. Ohki, M. Eto, M. Shimizu, R. Takada, D. L. Brautigan, M. Kainosho
Distinctive Solution Conformation Of Phosphatase Inhibitor Cpi-17 Substituted With Aspartate At The Phosphorylation-Site Threonine Residue
J. Mol. Biol. V. 326 1539 2003
PubMed-ID: 12595264 | Reference-DOI: 10.1016/S0022-2836(03)00048-2
(for further references see the PDB file header)

Compounds

Molecule 1 - 17-KDA PKC-POTENTIATED INHIBITORY PROTEIN OF PP1
	Chains	:	A
	Engineered	:	YES
	Expression System	:	ESCHERICHIA COLI BL21
	Expression System Plasmid	:	PET3A
	Expression System Strain	:	BL21
	Expression System Taxid	:	511693
	Expression System Vector Type	:	PLASMID
	Mutation	:	YES
	Organism Common	:	PIG
	Organism Scientific	:	SUS SCROFA
	Organism Taxid	:	9823
	Strain	:	DH5A
	Synonym	:	CPI-17
	Tissue	:	AORTA

Structural Features

Chains, Units

Ligands, Modified Residues, Ions (0, 0)

Sites (0, 0)

SS Bonds (0, 0)

Cis Peptide Bonds (0, 0)

Sequence-Structure Mapping

SAPs(SNPs)/Variants (0, 0)

PROSITE Motifs (0, 0)

Exons (0, 0)

Sequences/Alignments

NMR Structure

Reformat:	Number of residues per line = ('0' or empty: single-line sequence representation)
	Number of residues per labelling interval =
	UniProt sequence: complete aligned part

Show mapping:	SCOP domains	CATH domains	Pfam domains	Secondary structure (by author)
	SAPs(SNPs)	PROSITE motifs	Exons
	(details for a mapped element are shown in a popup box when the mouse pointer rests over it)

Chain A from PDB  Type:PROTEIN  Length:99
 aligned with PP14A_PIG | O18734 from UniProtKB/Swiss-Prot  Length:147

    Alignment length:99
                                    31        41        51        61        71        81        91       101       111
            PP14A_PIG    22 GPGGSPGGLQKRHARVTVKYDRRELQRRLDVEKWIDGRLEELYRGREADMPDEVNIDELLELESEEERSRKIQGLLKSCTNPTENFVQELLVKLRGLHK 120
               SCOP domains d1j2na_ A: Myosin phosphatase inhibitor 17kDa protein, CPI-17                                       SCOP domains
               CATH domains 1j2nA00 A:1-99 Myosin phosphatase inhibitor 17kDa protein, CPI-17                                   CATH domains
               Pfam domains --------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ........................hhhhhhhhhhhhhhhhhhh...........hhhhhh....hhhhhhhhhhhhh.....hhhhhhhhhhhh..... Sec.struct. author
                 SAPs(SNPs) --------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE --------------------------------------------------------------------------------------------------- PROSITE
                 Transcript --------------------------------------------------------------------------------------------------- Transcript
                 1j2n A   1 GPGGSPGGLQKRHARVDVKYDRRELQRRLDVEKWIDGRLEELYRGREADMPDEVNIDELLELESEEERSRKIQGLLKSCTNPTENFVQELLVKLRGLHK  99
                                    10        20        30        40        50        60        70        80        90

Legend:		→ Mismatch	(orange background)
	-	→ Gap	(green background, '-', border residues have a numbering label)
		→ Modified Residue	(blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
	x	→ Chemical Group	(purple background, 'x', labelled with number + name, e.g. ACE or NH2)
	extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '\|'

Classification and Annotation

SCOP Domains (1, 1)

CATH Domains (1, 1)

Pfam Domains (0, 0)

Gene Ontology (7, 7)

NMR Structure(hide GO term definitions)

Chain A (PP14A_PIG | O18734)

molecular function
	GO:0004864	protein phosphatase inhibitor activity	Stops, prevents or reduces the activity of a protein phosphatase, an enzyme that hydrolyzes phosphate groups from phosphorylated proteins.
	GO:0004865	protein serine/threonine phosphatase inhibitor activity	Stops, prevents or reduces the activity of a serine/threonine protein phosphatase, an enzyme that catalyzes the reaction: protein serine/threonine phosphate + H2O = protein serine/threonine + phosphate.
biological process
	GO:0035690	cellular response to drug	Any process that results in a change in state or activity of a cell (in terms of movement, secretion, enzyme production, gene expression, etc.) as a result of a drug stimulus. A drug is a substance used in the diagnosis, treatment or prevention of a disease.
	GO:0043086	negative regulation of catalytic activity	Any process that stops or reduces the activity of an enzyme.
	GO:0042325	regulation of phosphorylation	Any process that modulates the frequency, rate or extent of addition of phosphate groups into a molecule.
	GO:0035304	regulation of protein dephosphorylation	Any process that modulates the frequency, rate or extent of removal of phosphate groups from a protein.
cellular component
	GO:0005737	cytoplasm	All of the contents of a cell excluding the plasma membrane and nucleus, but including other subcellular structures.

Visualization

Interactive Views

NMR Structure
	Complete Structure
		Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
		WebMol \| AstexViewer[tm]@PDBe (Java Applets, require no local installation except for Java; loading may be slow)
		STRAP (Java WebStart application, automatic local installation, requires Java; full application with system access!)
		RasMol (require local installation)
		Molscript (VRML) (requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

	Ligands, Modified Residues, Ions
(no "Ligands, Modified Residues, Ions" information available for 1j2n)

	Sites
(no "Sites" information available for 1j2n)

	Cis Peptide Bonds
(no "Cis Peptide Bonds" information available for 1j2n)

Still Images

Jmol

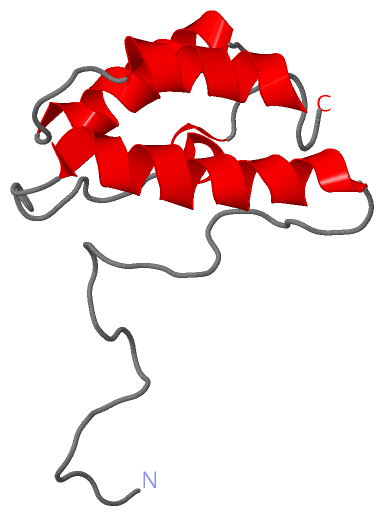

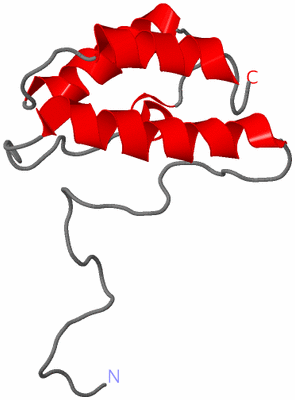

	protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick [ NMR Structure - model 1 PNG format \| NMR Structure - all models PNG format ](automatic orientation, automatically generated)
Molscript
	protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick [ mono PDF format \| stereo PDF format ](default orientation, automatically generated)
