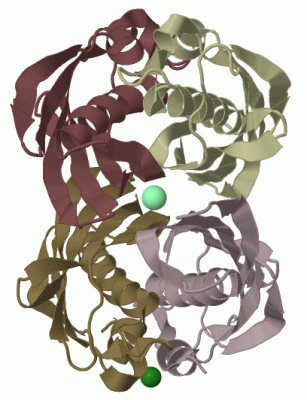

Image Biol.Unit 1 - manually
Biol.Unit 1 - manually  (Jmol Viewer)

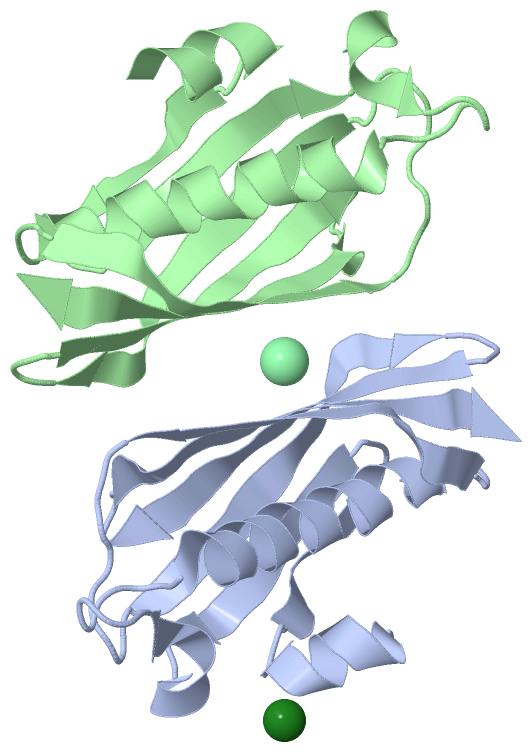

Image Asymmetric Unit
Asymmetric Unit  (Jmol Viewer)

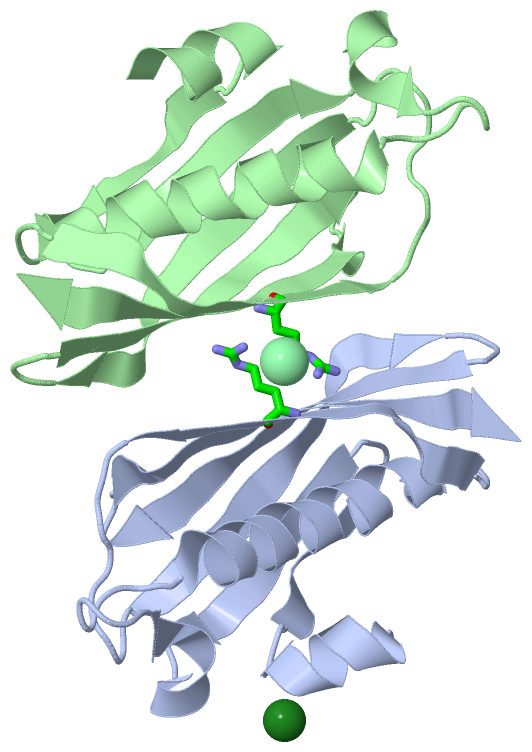

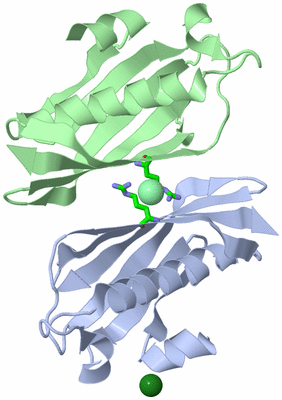

Image Asym. Unit - sites
Asym. Unit - sites  (Jmol Viewer)

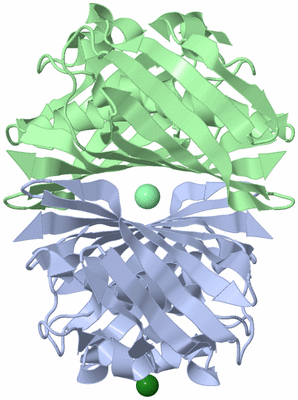

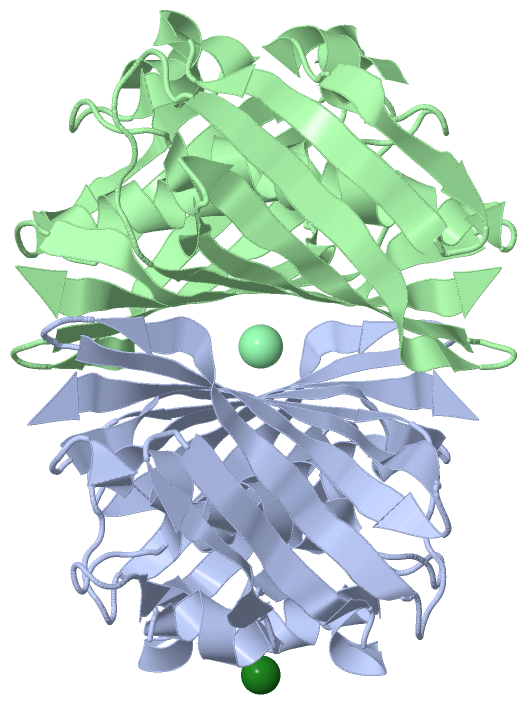

Image Biological Unit 1
Biological Unit 1  (Jmol Viewer)

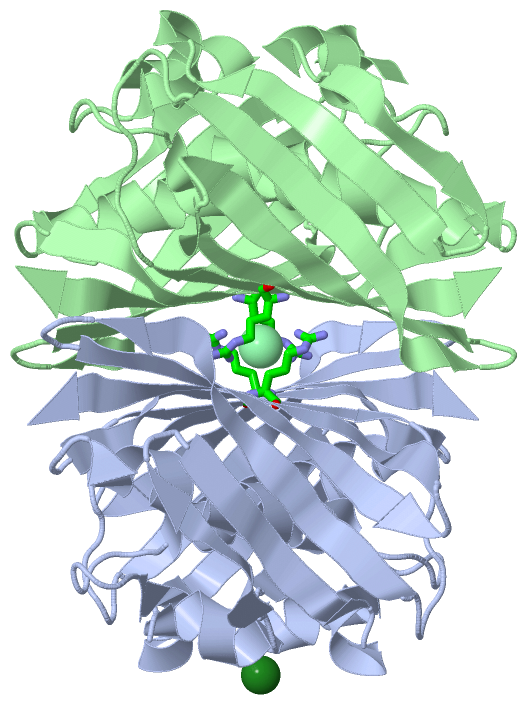

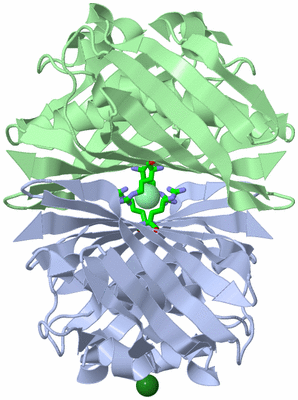

Image Biol. Unit 1 - sites
Biol. Unit 1 - sites  (Jmol Viewer)

(-) Description

Title :  CRYSTAL STRUCTURE OF PAAI FROM THERMUS THERMOPHILUS HB8

Authors :  N. Kunishima, M. Sugahara, S. Kuramitsu, S. Yokoyama, M. Miyano, Riken Structural Genomics/Proteomics Initiative (Rsgi)
Date :  24 Dec 02  (Deposition) - 17 Feb 04  (Release) - 13 Jul 11  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  1.70
Chains :  Asym. Unit :  A,B
Biol. Unit 1:  A,B  (2x)
Keywords :  Thioesterase, Hot Dog Fold, Phenylacetic Acid Degradation, Structural Genomics, Riken Structural Genomics/Proteomics Initiative, Rsgi, Hydrolase (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  N. Kunishima, Y. Asada, M. Sugahara, J. Ishijima, Y. Nodake, M. Sugahara, M. Miyano, S. Kuramitsu, S. Yokoyama, M. Sugahara
A Novel Induced-Fit Reaction Mechanism Of Asymmetric Hot Do Thioesterase Paai
J. Mol. Biol. V. 352 212 2005
PubMed-ID: 16061252  |  Reference-DOI: 10.1016/J.JMB.2005.07.008

(-) Compounds

Molecule 1 - PAAI PROTEIN
    Chains: A, B
    Engineered: YES
    Expression System: ESCHERICHIA COLI
    Expression System Plasmid: PET11A
    Expression System Taxid: 562
    Expression System Vector Type: PLASMID
    Organism Scientific: THERMUS THERMOPHILUS
    Organism Taxid: 300852
    Strain: HB8

 Structural Features

(-) Chains, Units

  12
Asymmetric Unit : AB
Biological Unit 1 (2x): AB

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (2, 2)

Asymmetric Unit (2, 2)
No.NameCountTypeFull Name
1CL1Ligand/IonCHLORIDE ION
2MG1Ligand/IonMAGNESIUM ION
Biological Unit 1 (0, 0)
No.NameCountTypeFull Name
1CL-1Ligand/IonCHLORIDE ION
2MG-1Ligand/IonMAGNESIUM ION

(-) Sites  (2, 2)

Asymmetric Unit (2, 2)
No.NameEvidenceResiduesDescription
1AC1SOFTWAREARG A:67 , ARG B:67BINDING SITE FOR RESIDUE CL A 1001
2AC2SOFTWAREHOH A:1003 , HOH A:1004 , HOH A:1005 , HOH A:1006BINDING SITE FOR RESIDUE MG A 1002

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 1J1Y)

(-) Cis Peptide Bonds  (0, 0)

(no "Cis Peptide Bond" information available for 1J1Y)

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 1J1Y)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 1J1Y)

(-) Exons   (0, 0)

(no "Exon" information available for 1J1Y)

(-) Sequences/Alignments

Asymmetric Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:116
 aligned with Q5SJP3_THET8 | Q5SJP3 from UniProtKB/TrEMBL  Length:136

    Alignment length:116
                                    11        21        31        41        51        61        71        81        91       101       111
         Q5SJP3_THET8     2 RDPFMEALGLKVLHLAPGEAVVAGEVRADHLNLHGTAHGGFLYALADSAFALASNTRGPAVALSCRMDYFRPLGAGARVEARAVEVNLSRRTATYRVEVVSEGKLVALFTGTVFRL 117
               SCOP domains d1j1ya_ A: Phenylacetic acid degradation protein PaaI                                                                SCOP domains
               CATH domains 1j1yA00 A:2-117  [code=3.10.129.10, no name defined]                                                                 CATH domains
               Pfam domains -------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .hhhhhhh..eeeeee..eeeeeee.hhhhh......hhhhhhhhhhhhhhhhhhh...eeeeeeeeee........eeeeeeeeeee...eeeeeeeeee..eeeeeeeeeeee. Sec.struct. author
                 SAPs(SNPs) -------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE -------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript -------------------------------------------------------------------------------------------------------------------- Transcript
                 1j1y A   2 RDPFMEALGLKVLHLAPGEAVVAGEVRADHLNLHGTAHGGFLYALADSAFALASNTRGPAVALSCRMDYFRPLGAGARVEARAVEVNLSRRTATYRVEVVSEGKLVALFTGTVFRL 117
                                    11        21        31        41        51        61        71        81        91       101       111


Chain B from PDB  Type:PROTEIN  Length:115
 aligned with Q5SJP3_THET8 | Q5SJP3 from UniProtKB/TrEMBL  Length:136

    Alignment length:115
                                    12        22        32        42        52        62        72        82        92       102       112
         Q5SJP3_THET8     3 DPFMEALGLKVLHLAPGEAVVAGEVRADHLNLHGTAHGGFLYALADSAFALASNTRGPAVALSCRMDYFRPLGAGARVEARAVEVNLSRRTATYRVEVVSEGKLVALFTGTVFRL 117
               SCOP domains d1j1yb_ B: Phenylacetic acid degradation protein PaaI                                                               SCOP domains
               CATH domains 1j1yB00 B:3-117  [code=3.10.129.10, no name defined]                                                                CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author hhhhhhh..eeeeee..eeeeeee.hhhhh......hhhhhhhhhhhhhhhhhhh...eeeeeeeeee........eeeeeeeeeee...eeeeeeeeee..eeeeeeeeeeee. Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------- Transcript
                 1j1y B   3 DPFMEALGLKVLHLAPGEAVVAGEVRADHLNLHGTAHGGFLYALADSAFALASNTRGPAVALSCRMDYFRPLGAGARVEARAVEVNLSRRTATYRVEVVSEGKLVALFTGTVFRL 117
                                    12        22        32        42        52        62        72        82        92       102       112
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (1, 2)

Asymmetric Unit
(-)
Class: Alpha and beta proteins (a+b) (23004)

(-) CATH Domains  (1, 2)

Asymmetric Unit
(-)
Class: Alpha Beta (26913)

(-) Pfam Domains  (0, 0)

(no "Pfam Domain" information available for 1J1Y)

(-) Gene Ontology  (1, 1)

Asymmetric Unit(hide GO term definitions)
Chain A,B   (Q5SJP3_THET8 | Q5SJP3)
molecular function
    GO:0016790    thiolester hydrolase activity    Catalysis of the reaction: RCO-SR' + H2O = RCOOH + HSR'. This reaction is the hydrolysis of a thiolester bond, an ester formed from a carboxylic acid and a thiol (i.e., RCO-SR'), such as that found in acetyl-coenzyme A.

 Visualization

(-) Interactive Views

Asymmetric Unit
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
    CL  [ RasMol | Jena3D ]  +environment [ RasMol | Jena3D ]
    MG  [ RasMol | Jena3D ]  +environment [ RasMol | Jena3D ]

  Sites
    AC1  [ RasMol ]  +environment [ RasMol ]
    AC2  [ RasMol ]  +environment [ RasMol ]

  Cis Peptide Bonds
(no "Cis Peptide Bonds" information available for 1j1y)

Biological Unit
  Complete Structure
    Biological Unit 1  [ Jena3D ]

(-) Still Images

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick
[ Asym. Unit PNG format | Asym. Unit - sites PNG format | Biol. Unit 1 PNG format | Biol. Unit 1 - sites PNG format ](automatic orientation, automatically generated)
Molscript
  protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick
[ mono PDF format | stereo PDF format ](default orientation, automatically generated)

 Databases and Analysis Tools

(-) Databases

Access by PDB/NDB ID
  1j1y
    Family and Domain Information: ProDom | SYSTERS
    General Structural Information: GlycoscienceDB | MMDB | NDB | OCA | PDB | PDBe | PDBj | PDBsum | PDBWiki | PQS | PROTEOPEDIA
    Orientation in Membranes: OPM
    Protein Surface: SURFACE
    Secondary Structure: DSSP (structure derived) | HSSP (homology derived)
    Structural Genomics: GeneCensus
    Structural Neighbours: CE | VAST
    Structure Classification: CATH | Dali | SCOP
    Validation and Original Data: BMRB Data View | BMRB Restraints Grid | EDS | PROCHECK | RECOORD | WHAT_CHECK

Access by UniProt ID/Accession number
  Q5SJP3_THET8 | Q5SJP3
    Comparative Protein Structure Models: ModBase
    Genomic Information: Ensembl
    Protein-protein Interaction: DIP
    Sequence, Family and Domain Information: InterPro | Pfam | SMART | UniProtKB/TrEMBL

Access by Enzyme Classificator   (EC Number)
  (no 'Enzyme Classificator' available)
    General Enzyme Information: BRENDA | EC-PDB | Enzyme | IntEnz
    Pathway: KEGG | MetaCyc

Access by Disease Identifier   (MIM ID)
  (no 'MIM ID' available)
    Disease Information: OMIM

Access by GenAge ID
  (no 'GenAge ID' available)
    Age Related Information: GenAge

(-) Analysis Tools

Access by PDB/NDB ID
    Domain Information: XDom
    Interatomic Contacts of Structural Units: CSU
    Ligand-protein Contacts: LPC
    Protein Cavities: castP
    Sequence and Secondary Structure: PDBCartoon
    Structure Alignment: STRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    Structure and Sequence Browser: STING

Access by UniProt ID/Accession number
  Q5SJP3_THET8 | Q5SJP3
    Protein Disorder Prediction: DisEMBL | FoldIndex | GLOBPLOT (for more information see DisProt)

 Related Entries

(-) Entries Sharing at Least One Protein Chain (UniProt ID)

UniProtKB/TrEMBL
        Q5SJP3_THET8 | Q5SJP3: 1wlu 1wlv 1wm6 1wn3 2dsl
