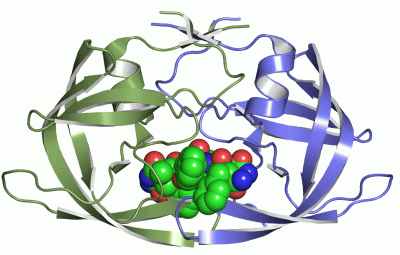

Image Asym./Biol. Unit - manually
Asym./Biol. Unit - manually  (Jmol Viewer)

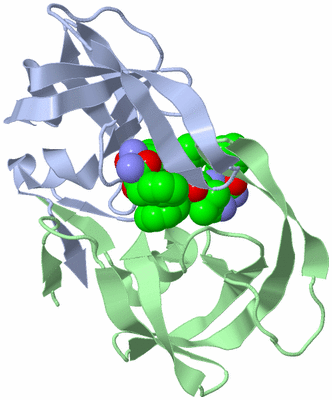

Image Asym./Biol. Unit
Asym./Biol. Unit  (Jmol Viewer)

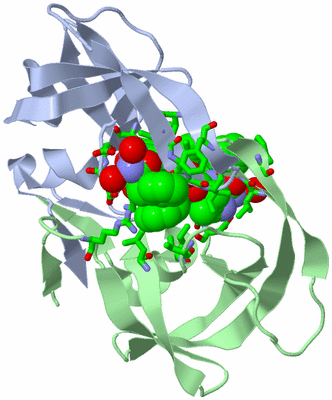

Image Asym./Biol. Unit - sites
Asym./Biol. Unit - sites  (Jmol Viewer)

(-) Description

Title :  INHIBITOR OF HIV PROTEASE WITH UNUSUAL BINDING MODE POTENTLY INHIBITING MULTI-RESISTANT PROTEASE MUTANTS

Authors :  J. Weber, J. R. Mesters, M. Lepsik, J. Prejdova, M. Svec, J. Sponarova, P. Mlcochova, K. Skalicka, K. Strisovsky, T. Uhlikova, M. Soucek, L. Machala, M. Stankova, J. Vondrasek, T. Klimkait, H. - G. Kraeusslich, R. Hilgenfeld, J. Konvalinka
Date :  02 Oct 02  (Deposition) - 23 Dec 02  (Release) - 24 Feb 09  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  1.90
Chains :  Asym./Biol. Unit :  A,B
Keywords :  Hiv-1 Proteinase, Potent Inhibitor, Subsite Binding, Hydrolase (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  J. Weber, J. R. Mesters, M. Lepsik, J. Prejdova, M. Svec, J. Sponarova, P. Mlcochova, K. Skalicka, K. Strisovsky, T. Uhlikova, M. Soucek, L. Machala, M. Stankova, J. Vondrasek, T. Klimkait, H. -G. Kraeusslich, R. Hilgenfeld, J. Konvalinka
Unusual Binding Mode Of An Hiv-1 Protease Inhibitor Explains Its Potency Against Multi-Drug-Resistant Virus Strains
J. Mol. Biol. V. 324 739 2002
PubMed-ID: 12460574  |  Reference-DOI: 10.1016/S0022-2836(02)01139-7
(for further references see the PDB file header)

(-) Compounds

Molecule 1 - PROTEINASE
    Chains: A, B
    EC Number: 3.4.23.16
    Engineered: YES
    Expression System: ESCHERICHIA COLI BL21
    Expression System Plasmid: PET24A
    Expression System Strain: BL21
    Expression System Taxid: 511693
    Expression System Vector Type: PLASMID
    Organism Scientific: HUMAN IMMUNODEFICIENCY VIRUS 1
    Organism Taxid: 11676
    Synonym: PROTEASE

 Structural Features

(-) Chains, Units

  12
Asymmetric/Biological Unit : AB

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (1, 1)

Asymmetric/Biological Unit (1, 1)
No.NameCountTypeFull Name
1Q501Ligand/Ion{(1S)-1-BENZYL-4-[3-CARBAMOYL-1-(1-CARBAMOYL-2-PHENYL-ETHYLCARBAMOYL)-(S)-PROPYLCARBAMOYL]-2-OXO-5-PHENYL-PENTYL}-CARBAMIC ACID TERT-BUTYL ESTER

(-) Sites  (1, 1)

Asymmetric Unit (1, 1)
No.NameEvidenceResiduesDescription
1AC1SOFTWAREARG A:8 , ASP A:25 , GLY A:27 , ALA A:28 , ASP A:29 , ASP A:30 , ILE A:47 , GLY A:48 , GLY A:49 , ILE A:50 , PHE A:53 , PRO A:81 , VAL A:82 , ILE A:84 , HOH A:192 , ARG B:8 , LEU B:23 , ASP B:25 , GLY B:27 , ALA B:28 , ASP B:29 , ASP B:30 , ILE B:47 , GLY B:48 , GLY B:49 , ILE B:50 , PHE B:53 , VAL B:82 , ILE B:84 , HOH B:1017 , HOH B:1018 , HOH B:1032 , HOH B:1064 , HOH B:1068BINDING SITE FOR RESIDUE Q50 B 1001

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 1IZH)

(-) Cis Peptide Bonds  (0, 0)

(no "Cis Peptide Bond" information available for 1IZH)

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 1IZH)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 1IZH)

(-) Exons   (0, 0)

(no "Exon" information available for 1IZH)

(-) Sequences/Alignments

Asymmetric/Biological Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:99
 aligned with Q90EB9_9HIV1 | Q90EB9 from UniProtKB/TrEMBL  Length:99

    Alignment length:99
                                    10        20        30        40        50        60        70        80        90
          Q90EB9_9HIV1    1 PQITLWQRPLVTIKIGGQLKEALLDTGADDTVLEEMNLPGRWKPKMIGGIGGFIKVRQYDQILIEICGHKAIGTVLVGPTPVNIIGRNLLTQIGCTLNF 99
               SCOP domains d1izha_ A: Human immunodeficiency virus type 1 protease                                             SCOP domains
               CATH domains 1izhA00 A:1-99 Acid Proteases                                                                       CATH domains
               Pfam domains --------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .ee......eeeeee..eeeeeee.......ee.........eeeeeee..eeeeeeeeeeeeeee..eeeeeeeee......eehhhhhhhhh.eee. Sec.struct. author
                 SAPs(SNPs) --------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE --------------------------------------------------------------------------------------------------- PROSITE
                 Transcript --------------------------------------------------------------------------------------------------- Transcript
                  1izh A  1 PQITLWQRPLVTIKIGGQLKEALLDTGADDTVLEEMNLPGRWKPKMIGGIGGFIKVRQYDQILIEICGHKAIGTVLVGPTPVNIIGRNLLTQIGCTLNF 99
                                    10        20        30        40        50        60        70        80        90


Chain B from PDB  Type:PROTEIN  Length:99
 aligned with Q90EB9_9HIV1 | Q90EB9 from UniProtKB/TrEMBL  Length:99

    Alignment length:99
                                    10        20        30        40        50        60        70        80        90
          Q90EB9_9HIV1    1 PQITLWQRPLVTIKIGGQLKEALLDTGADDTVLEEMNLPGRWKPKMIGGIGGFIKVRQYDQILIEICGHKAIGTVLVGPTPVNIIGRNLLTQIGCTLNF 99
               SCOP domains d1izhb_ B: Human immunodeficiency virus type 1 protease                                             SCOP domains
               CATH domains 1izhB00 B:1-99 Acid Proteases                                                                       CATH domains
               Pfam domains --------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .ee......eeeeee..eeeeeee.......ee.........eeeeeee..eeeeeeeeeeeeeee..eeeeeeeee......eehhhhhhhhh.eee. Sec.struct. author
                 SAPs(SNPs) --------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE --------------------------------------------------------------------------------------------------- PROSITE
                 Transcript --------------------------------------------------------------------------------------------------- Transcript
                  1izh B  1 PQITLWQRPLVTIKIGGQLKEALLDTGADDTVLEEMNLPGRWKPKMIGGIGGFIKVRQYDQILIEICGHKAIGTVLVGPTPVNIIGRNLLTQIGCTLNF 99
                                    10        20        30        40        50        60        70        80        90
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (1, 2)

Asymmetric/Biological Unit
(-)
Class: All beta proteins (24004)

(-) CATH Domains  (1, 2)

Asymmetric/Biological Unit
(-)
Class: Mainly Beta (13760)

(-) Pfam Domains  (0, 0)

(no "Pfam Domain" information available for 1IZH)

(-) Gene Ontology  (4, 4)

Asymmetric/Biological Unit(hide GO term definitions)
Chain A,B   (Q90EB9_9HIV1 | Q90EB9)
molecular function
    GO:0004190    aspartic-type endopeptidase activity    Catalysis of the hydrolysis of internal, alpha-peptide bonds in a polypeptide chain by a mechanism in which a water molecule bound by the side chains of aspartic residues at the active center acts as a nucleophile.
    GO:0016787    hydrolase activity    Catalysis of the hydrolysis of various bonds, e.g. C-O, C-N, C-C, phosphoric anhydride bonds, etc. Hydrolase is the systematic name for any enzyme of EC class 3.
    GO:0008233    peptidase activity    Catalysis of the hydrolysis of a peptide bond. A peptide bond is a covalent bond formed when the carbon atom from the carboxyl group of one amino acid shares electrons with the nitrogen atom from the amino group of a second amino acid.
biological process
    GO:0006508    proteolysis    The hydrolysis of proteins into smaller polypeptides and/or amino acids by cleavage of their peptide bonds.

 Visualization

(-) Interactive Views

Asymmetric/Biological Unit
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
    Q50  [ RasMol | Jena3D ]  +environment [ RasMol | Jena3D ]

  Sites
    AC1  [ RasMol ]  +environment [ RasMol ]

  Cis Peptide Bonds
(no "Cis Peptide Bonds" information available for 1izh)


(-) Still Images

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick

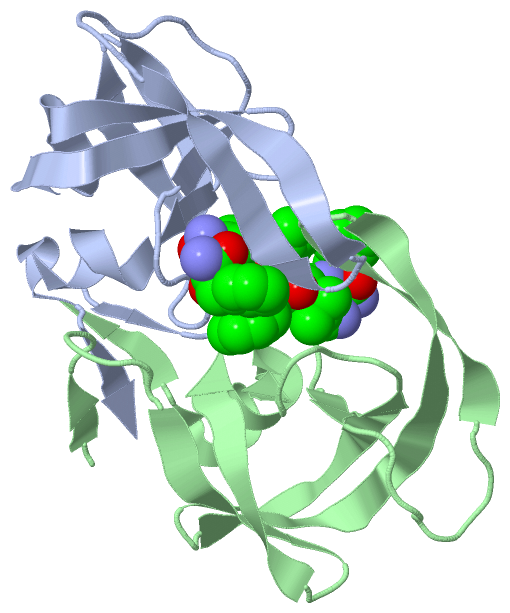

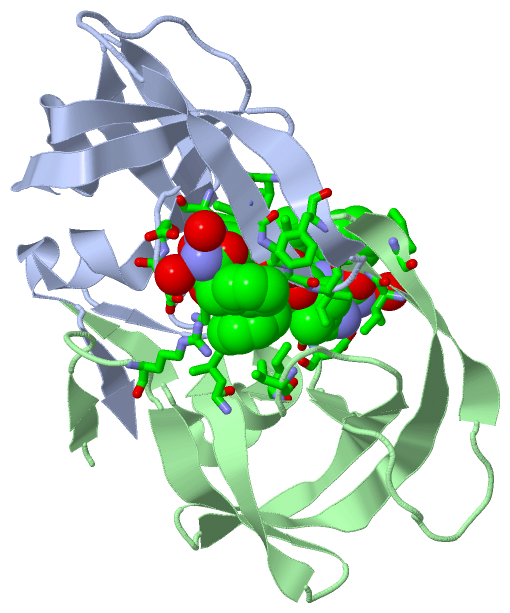

[ Asym./Biol. Unit PNG format | Asym./Biol. Unit - sites PNG format ](automatic orientation, automatically generated)
Molscript
  protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick
[ mono PDF format | stereo PDF format ](default orientation, automatically generated)

 Databases and Analysis Tools

(-) Databases

Access by PDB/NDB ID
  1izh
    Family and Domain Information: ProDom | SYSTERS
    General Structural Information: GlycoscienceDB | MMDB | NDB | OCA | PDB | PDBe | PDBj | PDBsum | PDBWiki | PQS | PROTEOPEDIA
    Orientation in Membranes: OPM
    Protein Surface: SURFACE
    Secondary Structure: DSSP (structure derived) | HSSP (homology derived)
    Structural Genomics: GeneCensus
    Structural Neighbours: CE | VAST
    Structure Classification: CATH | Dali | SCOP
    Validation and Original Data: BMRB Data View | BMRB Restraints Grid | EDS | PROCHECK | RECOORD | WHAT_CHECK

Access by UniProt ID/Accession number
  Q90EB9_9HIV1 | Q90EB9
    Comparative Protein Structure Models: ModBase
    Genomic Information: Ensembl
    Protein-protein Interaction: DIP
    Sequence, Family and Domain Information: InterPro | Pfam | SMART | UniProtKB/TrEMBL

Access by Enzyme Classificator   (EC Number)
  3.4.23.16
    General Enzyme Information: BRENDA | EC-PDB | Enzyme | IntEnz
    Pathway: KEGG | MetaCyc

Access by Disease Identifier   (MIM ID)
  (no 'MIM ID' available)
    Disease Information: OMIM

Access by GenAge ID
  (no 'GenAge ID' available)
    Age Related Information: GenAge

(-) Analysis Tools

Access by PDB/NDB ID
    Domain Information: XDom
    Interatomic Contacts of Structural Units: CSU
    Ligand-protein Contacts: LPC
    Protein Cavities: castP
    Sequence and Secondary Structure: PDBCartoon
    Structure Alignment: STRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    Structure and Sequence Browser: STING

Access by UniProt ID/Accession number
  Q90EB9_9HIV1 | Q90EB9
    Protein Disorder Prediction: DisEMBL | FoldIndex | GLOBPLOT (for more information see DisProt)

 Related Entries

(-) Entries Sharing at Least One Protein Chain (UniProt ID)

UniProtKB/Swiss-Prot
        Q90EB9_9HIV1 | Q90EB9: 1izi

(-) Related Entries Specified in the PDB File

1izi 1IZI CONTAINS THE SAME PROTEIN, A71V, V82T, I84V MUTANT
