1IZ9 - JenaLib

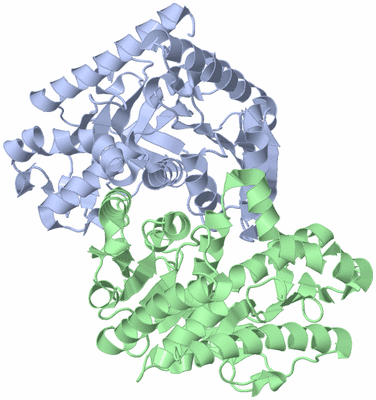

Asym./Biol. Unit (Jmol Viewer)

Title :   CRYSTAL STRUCTURE OF MALATE DEHYDROGENASE FROM THERMUS THERMOPHILUS HB8

Authors :   R. Hirose, T. Hasegawa, A. Yamano, S. Kuramitsu, K. Hamada, Riken Stru Genomics/Proteomics Initiative (Rsgi)

Date :   01 Oct 02 (Deposition) - 16 Oct 02 (Release) - 12 Nov 14 (Revision)

Method :   X-RAY DIFFRACTION

Resolution :   2.00

Chains :   Asym./Biol. Unit : A,B

Keywords :   Rossmann Fold, Riken Structural Genomics/Proteomics Initiative, Rsgi, Structural Genomics, Oxidoreductase (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :   R. Hirose, T. Hasegawa, A. Yamano, S. Kuramitsu, K. Hamada
Crystal Structure Of Malate Dehydrogenase From Thermus Themrophilus Hb8
To Be Published
PubMed: search

Molecule 1 - MALATE DEHYDROGENASE
	Chains	:	A, B
	EC Number	:	1.1.1.37
	Engineered	:	YES
	Expression System	:	ESCHERICHIA COLI
	Expression System Plasmid	:	PET11A
	Expression System Taxid	:	562
	Expression System Vector Type	:	PLASMID
	Organism Scientific	:	THERMUS THERMOPHILUS
	Organism Taxid	:	274

		1	2
Asymmetric/Biological Unit	:	A	B

Summary Information (see also Sequences/Alignments below)

(no "Ligand,Modified Residues,Ions" information available for 1IZ9)

(no "Site" information available for 1IZ9)

(no "SS Bond" information available for 1IZ9)

Asymmetric/Biological Unit

No.	Residues
1	Asn A:131	-	Pro A:132
2	Asn B:131	-	Pro B:132

Asymmetric/Biological Unit (1, 2)

								dbSNP	PDB
No.	Source	Variant ID	Variant			UniProt ID	Status	ID	Chain	Variant
1	UniProt	VAR_MDH_THETH_001 *	T	190	I	MDH_THETH	---	---	A/B	T	190	I
	* ID not provided by source

SNP/SAP Summary Statistics (UniProtKB/Swiss-Prot)

Asymmetric/Biological Unit (1, 2)

	PROSITE			UniProtKB		PDB
No.	ID	AC	Description	ID	Location	Count	Location
1	MDH	PS00068	Malate dehydrogenase active site signature.	MDH_THETH	155-167	2	A:155-167 B:155-167

(no "Exon" information available for 1IZ9)

Asymmetric/Biological Unit

Reformat:	Number of residues per line = ('0' or empty: single-line sequence representation)
	Number of residues per labelling interval =
	UniProt sequence: complete aligned part

Show mapping:	SCOP domains	CATH domains	Pfam domains	Secondary structure (by author)
	SAPs(SNPs)	PROSITE motifs	Exons
	(details for a mapped element are shown in a popup box when the mouse pointer rests over it)

Chain A from PDB  Type:PROTEIN  Length:327
 aligned with MDH_THETH | P10584 from UniProtKB/Swiss-Prot  Length:327

    Alignment length:327
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150       160       170       180       190       200       210       220       230       240       250       260       270       280       290       300       310       320
            MDH_THETH     1 MKAPVRVAVTGAAGQIGYSLLFRIAAGEMLGKDQPVILQLLEIPQAMKALEGVVMELEDCAFPLLAGLEATDDPKVAFKDADYALLVGAAPRKAGMERRDLLQVNGKIFTEQGRALAEVAKKDVKVLVVGNPANTNALIAYKNAPGLNPRNFTAMTRLDHNRAKAQLAKKTGTGVDRIRRMTVWGNHSSTMFPDLFHAEVDGRPALELVDMEWYEKVFIPTVAQRGAAIIQARGASSAASAANAAIEHIRDWALGTPEGDWVSMAVPSQGEYGIPEGIVYSFPVTAKDGAYRVVEGLEINEFARKRMEITAQELLDEMEQVKALGLI 327
               SCOP domains d1iz9a1 A:1-154 Malate dehydrogenase                                                                                                                      d1iz9a2 A:155-327 Malate dehydrogenase                                                                                                                                        SCOP domains
               CATH domains -1iz9A01 A:2-154 NAD(P)-binding Rossmann-like Domain                                                                                                      1iz9A02 A:155-326 L-2-Hydroxyisocaproate Dehydrogenase, subunit A, domain 2                                                                                                 - CATH domains
               Pfam domains --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ....eeeeee...hhhhhhhhhhhhh.........eeeeee.hhhhhhhhhhhhhhhhh.....eeeeeee.hhhhhh....eeee..........hhhhhhhhhhhhhhhhhhhhhhhh....eeee...hhhhhhhhhhhh....hhh.eee.hhhhhhhhhhhhhhhhh.hhh.ee..eee.......eee....ee..ee.hhh.hhhhhhhhhhhhhhhhhhhhhhhhh..hhhhhhhhhhhhhhhhhhh......eeeeee..hhhhh....eeeeeeeee..eeee......hhhhhhhhhhhhhhhhhhhhhhhhh... Sec.struct. author
                 SAPs(SNPs) ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------I----------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ----------------------------------------------------------------------------------------------------------------------------------------------------------MDH          ---------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 1iz9 A   1 MKAPVRVAVTGAAGQIGYSLLFRIAAGEMLGKDQPVILQLLEIPQAMKALEGVVMELEDCAFPLLAGLEATDDPKVAFKDADYALLVGAAPRKAGMERRDLLQVNGKIFTEQGRALAEVAKKDVKVLVVGNPANTNALIAYKNAPGLNPRNFTAMTRLDHNRAKAQLAKKTGTGVDRIRRMTVWGNHSSTMFPDLFHAEVDGRPALELVDMEWYEKVFIPTVAQRGAAIIQARGASSAASAANAAIEHIRDWALGTPEGDWVSMAVPSQGEYGIPEGIVYSFPVTAKDGAYRVVEGLEINEFARKRMEITAQELLDEMEQVKALGLI 327
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150       160       170       180       190       200       210       220       230       240       250       260       270       280       290       300       310       320

Chain B from PDB  Type:PROTEIN  Length:327
 aligned with MDH_THETH | P10584 from UniProtKB/Swiss-Prot  Length:327

    Alignment length:327
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150       160       170       180       190       200       210       220       230       240       250       260       270       280       290       300       310       320
            MDH_THETH     1 MKAPVRVAVTGAAGQIGYSLLFRIAAGEMLGKDQPVILQLLEIPQAMKALEGVVMELEDCAFPLLAGLEATDDPKVAFKDADYALLVGAAPRKAGMERRDLLQVNGKIFTEQGRALAEVAKKDVKVLVVGNPANTNALIAYKNAPGLNPRNFTAMTRLDHNRAKAQLAKKTGTGVDRIRRMTVWGNHSSTMFPDLFHAEVDGRPALELVDMEWYEKVFIPTVAQRGAAIIQARGASSAASAANAAIEHIRDWALGTPEGDWVSMAVPSQGEYGIPEGIVYSFPVTAKDGAYRVVEGLEINEFARKRMEITAQELLDEMEQVKALGLI 327
               SCOP domains d1iz9b1 B:1-154 Malate dehydrogenase                                                                                                                      d1iz9b2 B:155-327 Malate dehydrogenase                                                                                                                                        SCOP domains
               CATH domains -1iz9B01 B:2-154 NAD(P)-binding Rossmann-like Domain                                                                                                      1iz9B02 B:155-326 L-2-Hydroxyisocaproate Dehydrogenase, subunit A, domain 2                                                                                                 - CATH domains
               Pfam domains --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ....eeeeee...hhhhhhhhhhhhh.........eeeeee.hhhhhhhhhhhhhhhhh.....eeeeeee.hhhhhh....eeee..........hhhhhhhhhhhhhhhhhhhhhhhh....eeee...hhhhhhhhhhhh....hhh.eee.hhhhhhhhhhhhhhhhh.hhh.ee..eee.......eee....ee..ee.hhh.hhhhhhhhhhhhhhhhhhhhhhhhh..hhhhhhhhhhhhhhhhhh.......eeeeee..hhhhh....eeeeeeeee..eeee......hhhhhhhhhhhhhhhhhhhhhhhhh... Sec.struct. author
                 SAPs(SNPs) ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------I----------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ----------------------------------------------------------------------------------------------------------------------------------------------------------MDH          ---------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 1iz9 B   1 MKAPVRVAVTGAAGQIGYSLLFRIAAGEMLGKDQPVILQLLEIPQAMKALEGVVMELEDCAFPLLAGLEATDDPKVAFKDADYALLVGAAPRKAGMERRDLLQVNGKIFTEQGRALAEVAKKDVKVLVVGNPANTNALIAYKNAPGLNPRNFTAMTRLDHNRAKAQLAKKTGTGVDRIRRMTVWGNHSSTMFPDLFHAEVDGRPALELVDMEWYEKVFIPTVAQRGAAIIQARGASSAASAANAAIEHIRDWALGTPEGDWVSMAVPSQGEYGIPEGIVYSFPVTAKDGAYRVVEGLEINEFARKRMEITAQELLDEMEQVKALGLI 327
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150       160       170       180       190       200       210       220       230       240       250       260       270       280       290       300       310       320

Legend:		→ Mismatch	(orange background)
	-	→ Gap	(green background, '-', border residues have a numbering label)
		→ Modified Residue	(blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
	x	→ Chemical Group	(purple background, 'x', labelled with number + name, e.g. ACE or NH2)
	extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '\|'

(no "Pfam Domain" information available for 1IZ9)

Asymmetric/Biological Unit(hide GO term definitions)

Chain A,B (MDH_THETH | P10584)

molecular function
	GO:0030060	L-malate dehydrogenase activity	Catalysis of the reaction: (S)-malate + NAD+ = oxaloacetate + NADH + H+.
	GO:0003824	catalytic activity	Catalysis of a biochemical reaction at physiological temperatures. In biologically catalyzed reactions, the reactants are known as substrates, and the catalysts are naturally occurring macromolecular substances known as enzymes. Enzymes possess specific binding sites for substrates, and are usually composed wholly or largely of protein, but RNA that has catalytic activity (ribozyme) is often also regarded as enzymatic.
	GO:0016615	malate dehydrogenase activity	Catalysis of the reversible conversion of pyruvate or oxaloacetate to malate.
	GO:0016491	oxidoreductase activity	Catalysis of an oxidation-reduction (redox) reaction, a reversible chemical reaction in which the oxidation state of an atom or atoms within a molecule is altered. One substrate acts as a hydrogen or electron donor and becomes oxidized, while the other acts as hydrogen or electron acceptor and becomes reduced.
	GO:0016616	oxidoreductase activity, acting on the CH-OH group of donors, NAD or NADP as acceptor	Catalysis of an oxidation-reduction (redox) reaction in which a CH-OH group acts as a hydrogen or electron donor and reduces NAD+ or NADP.
biological process
	GO:0005975	carbohydrate metabolic process	The chemical reactions and pathways involving carbohydrates, any of a group of organic compounds based of the general formula Cx(H2O)y. Includes the formation of carbohydrate derivatives by the addition of a carbohydrate residue to another molecule.
	GO:0019752	carboxylic acid metabolic process	The chemical reactions and pathways involving carboxylic acids, any organic acid containing one or more carboxyl (COOH) groups or anions (COO-).
	GO:0006108	malate metabolic process	The chemical reactions and pathways involving malate, the anion of hydroxybutanedioic acid, a chiral hydroxydicarboxylic acid. The (+) enantiomer is an important intermediate in metabolism as a component of both the TCA cycle and the glyoxylate cycle.
	GO:0055114	oxidation-reduction process	A metabolic process that results in the removal or addition of one or more electrons to or from a substance, with or without the concomitant removal or addition of a proton or protons.
	GO:0006099	tricarboxylic acid cycle	A nearly universal metabolic pathway in which the acetyl group of acetyl coenzyme A is effectively oxidized to two CO2 and four pairs of electrons are transferred to coenzymes. The acetyl group combines with oxaloacetate to form citrate, which undergoes successive transformations to isocitrate, 2-oxoglutarate, succinyl-CoA, succinate, fumarate, malate, and oxaloacetate again, thus completing the cycle. In eukaryotes the tricarboxylic acid is confined to the mitochondria. See also glyoxylate cycle.
