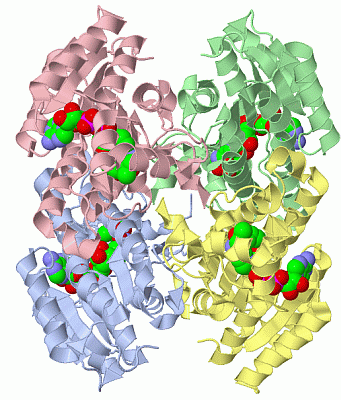

Image Biol.Unit 1 - manually
Biol.Unit 1 - manually  (Jmol Viewer)

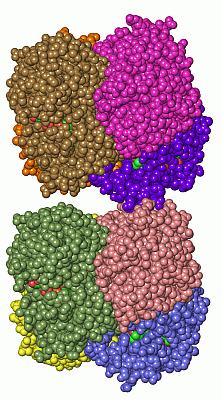

Image Asym.Unit - manually
Asym.Unit - manually  (Jmol Viewer)

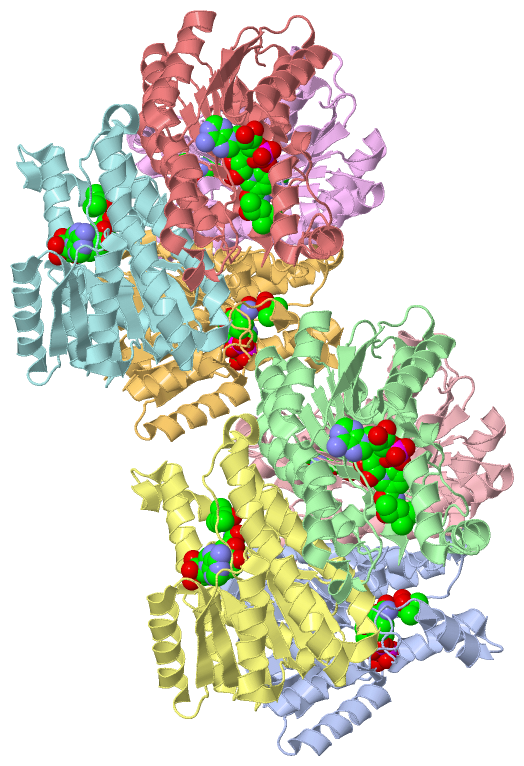

Image Asymmetric Unit
Asymmetric Unit  (Jmol Viewer)

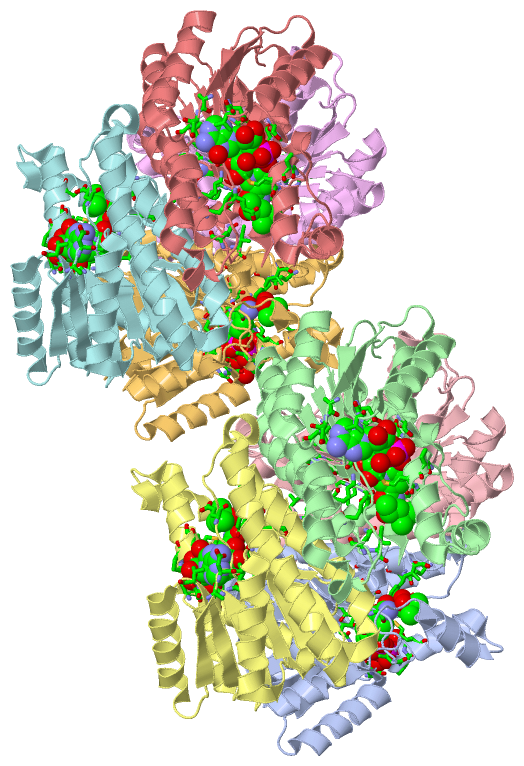

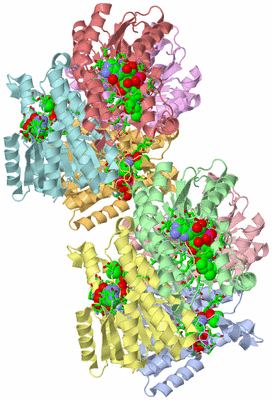

Image Asym. Unit - sites
Asym. Unit - sites  (Jmol Viewer)

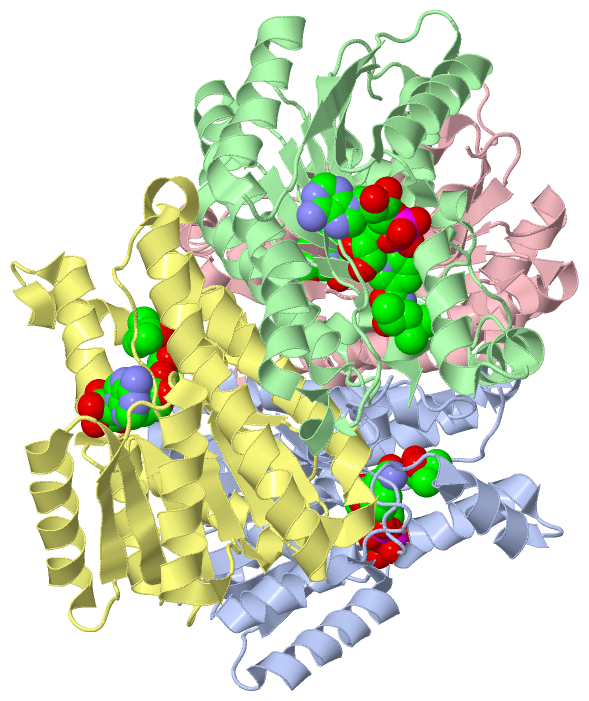

Image Biological Unit 1
Biological Unit 1  (Jmol Viewer)

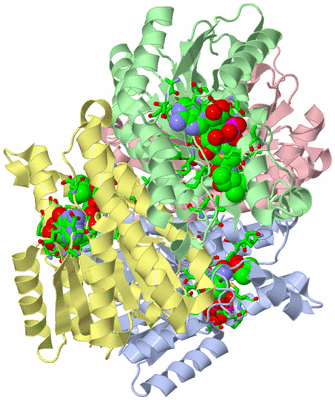

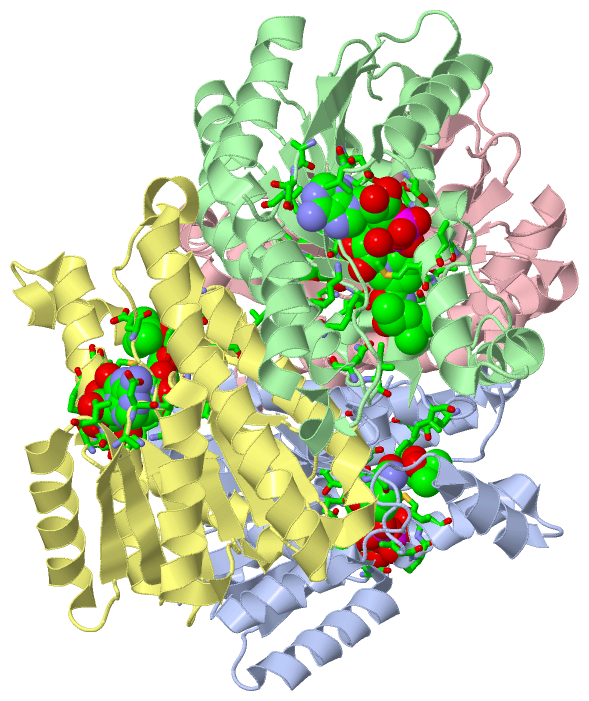

Image Biol. Unit 1 - sites
Biol. Unit 1 - sites  (Jmol Viewer)

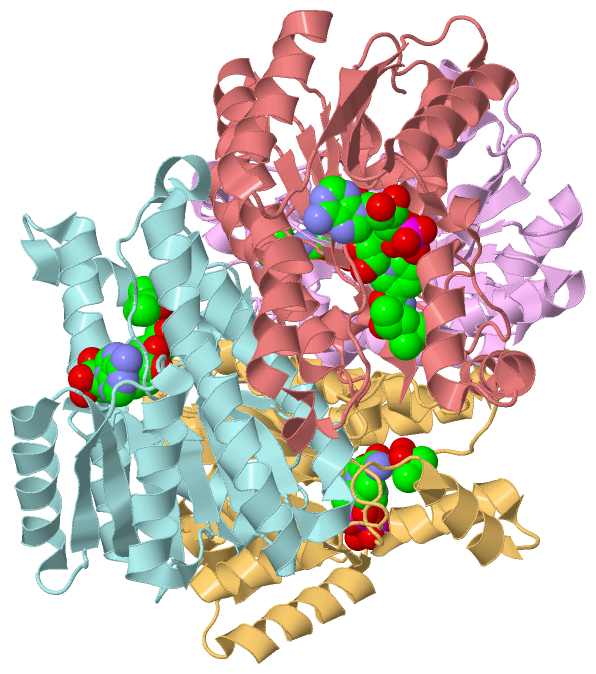

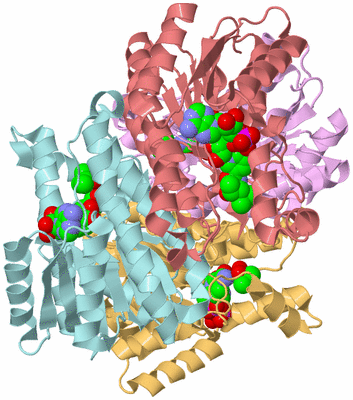

Image Biological Unit 2
Biological Unit 2  (Jmol Viewer)

(-) Description

Title :  CRYSTAL STRUCTURE OF LEVODIONE REDUCTASE

Authors :  S. Sogabe, T. Fukami, Y. Shiratori, A. Yoshizumi, M. Wada
Date :  25 Jul 02  (Deposition) - 27 May 03  (Release) - 24 Feb 09  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  1.60
Chains :  Asym. Unit :  A,B,C,D,E,F,G,H
Biol. Unit 1:  A,B,C,D  (1x)
Biol. Unit 2:  E,F,G,H  (1x)
Keywords :  Oxidoreductase (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  S. Sogabe, A. Yoshizumi, T. Fukami, Y. Shiratori, S. Shimizu, H. Takagi, S. Nakamori, M. Wada
The Crystal Structure And Stereospecificity Of Levodione Reductase From Corynebacterium Aquaticum M-13
J. Biol. Chem. V. 278 19387 2003
PubMed-ID: 12621044  |  Reference-DOI: 10.1074/JBC.M208146200
(for further references see the PDB file header)

(-) Compounds

Molecule 1 - LEVODIONE REDUCTASE
    Chains: A, B, C, D, E, F, G, H
    Engineered: YES
    Expression System: ESCHERICHIA COLI
    Expression System Plasmid: PKK223-3
    Expression System Taxid: 562
    Expression System Vector Type: PLASMID
    Organism Scientific: LEIFSONIA AQUATICA
    Organism Taxid: 144185
    Strain: M-13

 Structural Features

(-) Chains, Units

  12345678
Asymmetric Unit : ABCDEFGH
Biological Unit 1 (1x): ABCD
Biological Unit 2 (1x):     EFGH

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (2, 16)

Asymmetric Unit (2, 16)
No.NameCountTypeFull Name
1MRD8Ligand/Ion(4R)-2-METHYLPENTANE-2,4-DIOL
2NAD8Ligand/IonNICOTINAMIDE-ADENINE-DINUCLEOTIDE
Biological Unit 1 (2, 8)
No.NameCountTypeFull Name
1MRD4Ligand/Ion(4R)-2-METHYLPENTANE-2,4-DIOL
2NAD4Ligand/IonNICOTINAMIDE-ADENINE-DINUCLEOTIDE
Biological Unit 2 (2, 8)
No.NameCountTypeFull Name
1MRD4Ligand/Ion(4R)-2-METHYLPENTANE-2,4-DIOL
2NAD4Ligand/IonNICOTINAMIDE-ADENINE-DINUCLEOTIDE

(-) Sites  (16, 16)

Asymmetric Unit (16, 16)
No.NameEvidenceResiduesDescription
01AC1SOFTWAREGLY A:20 , SER A:23 , GLY A:24 , LEU A:25 , ASP A:44 , VAL A:45 , ALA A:71 , ASP A:72 , VAL A:73 , ASN A:99 , GLY A:101 , THR A:150 , SER A:152 , TYR A:165 , LYS A:169 , PRO A:195 , GLY A:196 , THR A:200 , PRO A:201 , MET A:202 , VAL A:203 , MRD A:1269 , HOH A:1272 , HOH A:1328BINDING SITE FOR RESIDUE NAD A 1268
02AC2SOFTWAREGLY B:20 , SER B:23 , GLY B:24 , LEU B:25 , ASP B:44 , VAL B:45 , ALA B:71 , ASP B:72 , VAL B:73 , ASN B:99 , THR B:150 , SER B:152 , TYR B:165 , LYS B:169 , PRO B:195 , GLY B:196 , THR B:200 , PRO B:201 , MET B:202 , VAL B:203 , MRD B:2269 , HOH B:2274 , HOH B:2314BINDING SITE FOR RESIDUE NAD B 2268
03AC3SOFTWAREGLY C:20 , SER C:23 , GLY C:24 , LEU C:25 , ASP C:44 , VAL C:45 , ALA C:71 , ASP C:72 , VAL C:73 , ASN C:99 , THR C:150 , SER C:152 , TYR C:165 , LYS C:169 , PRO C:195 , GLY C:196 , THR C:200 , PRO C:201 , MET C:202 , VAL C:203 , MRD C:3269 , HOH C:3272 , HOH C:3307 , HOH C:3391BINDING SITE FOR RESIDUE NAD C 3268
04AC4SOFTWAREGLY D:20 , SER D:23 , GLY D:24 , LEU D:25 , ASP D:44 , VAL D:45 , ALA D:71 , ASP D:72 , VAL D:73 , ASN D:99 , GLY D:101 , THR D:150 , SER D:152 , TYR D:165 , LYS D:169 , PRO D:195 , GLY D:196 , THR D:200 , PRO D:201 , MET D:202 , VAL D:203 , MRD D:4269 , HOH D:4283 , HOH D:4364BINDING SITE FOR RESIDUE NAD D 4268
05AC5SOFTWAREGLY E:20 , SER E:23 , GLY E:24 , LEU E:25 , ASP E:44 , VAL E:45 , ALA E:71 , ASP E:72 , VAL E:73 , ASN E:99 , GLY E:101 , THR E:150 , SER E:152 , TYR E:165 , LYS E:169 , PRO E:195 , GLY E:196 , THR E:200 , PRO E:201 , MET E:202 , VAL E:203 , MRD E:5269 , HOH E:5273 , HOH E:5360BINDING SITE FOR RESIDUE NAD E 5268
06AC6SOFTWAREGLY F:20 , SER F:23 , GLY F:24 , LEU F:25 , ASP F:44 , VAL F:45 , ALA F:71 , ASP F:72 , VAL F:73 , ASN F:99 , GLY F:101 , THR F:150 , SER F:152 , TYR F:165 , LYS F:169 , PRO F:195 , GLY F:196 , THR F:200 , PRO F:201 , MET F:202 , VAL F:203 , MRD F:6269 , HOH F:6272 , HOH F:6348BINDING SITE FOR RESIDUE NAD F 6268
07AC7SOFTWAREGLY G:20 , GLY G:22 , SER G:23 , GLY G:24 , LEU G:25 , ASP G:44 , VAL G:45 , ALA G:71 , ASP G:72 , VAL G:73 , ASN G:99 , ILE G:123 , THR G:150 , SER G:152 , TYR G:165 , LYS G:169 , PRO G:195 , GLY G:196 , THR G:200 , PRO G:201 , MET G:202 , VAL G:203 , MRD G:7269 , HOH G:7280 , HOH G:7324 , HOH G:7383BINDING SITE FOR RESIDUE NAD G 7268
08AC8SOFTWAREGLY H:20 , SER H:23 , GLY H:24 , LEU H:25 , ASP H:44 , VAL H:45 , ALA H:71 , ASP H:72 , VAL H:73 , ASN H:99 , ALA H:100 , THR H:150 , SER H:152 , TYR H:165 , LYS H:169 , PRO H:195 , GLY H:196 , THR H:200 , PRO H:201 , MET H:202 , VAL H:203 , MRD H:8269 , HOH H:8274 , HOH H:8316 , HOH H:8370BINDING SITE FOR RESIDUE NAD H 8268
09AC9SOFTWAREGLU A:103 , ILE A:159 , GLN A:162 , TYR A:165 , NAD A:1268BINDING SITE FOR RESIDUE MRD A 1269
10BC1SOFTWAREILE B:159 , GLN B:162 , TYR B:165 , NAD B:2268BINDING SITE FOR RESIDUE MRD B 2269
11BC2SOFTWAREGLU C:103 , ILE C:159 , GLN C:162 , TYR C:165 , NAD C:3268BINDING SITE FOR RESIDUE MRD C 3269
12BC3SOFTWAREGLU D:103 , ILE D:159 , GLN D:162 , TYR D:165 , NAD D:4268BINDING SITE FOR RESIDUE MRD D 4269
13BC4SOFTWAREGLU E:103 , ILE E:159 , GLN E:162 , TYR E:165 , NAD E:5268BINDING SITE FOR RESIDUE MRD E 5269
14BC5SOFTWAREGLU F:103 , ILE F:159 , GLN F:162 , TYR F:165 , SER F:206 , NAD F:6268BINDING SITE FOR RESIDUE MRD F 6269
15BC6SOFTWAREGLU G:103 , ILE G:159 , GLN G:162 , TYR G:165 , SER G:206 , NAD G:7268BINDING SITE FOR RESIDUE MRD G 7269
16BC7SOFTWAREGLU H:103 , ILE H:159 , GLN H:162 , TYR H:165 , NAD H:8268BINDING SITE FOR RESIDUE MRD H 8269

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 1IY8)

(-) Cis Peptide Bonds  (0, 0)

(no "Cis Peptide Bond" information available for 1IY8)

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 1IY8)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 1IY8)

(-) Exons   (0, 0)

(no "Exon" information available for 1IY8)

(-) Sequences/Alignments

Asymmetric Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:258
 aligned with LVR_LEIAQ | Q9LBG2 from UniProtKB/Swiss-Prot  Length:267

    Alignment length:258
                                    19        29        39        49        59        69        79        89        99       109       119       129       139       149       159       169       179       189       199       209       219       229       239       249       259
            LVR_LEIAQ    10 RFTDRVVLITGGGSGLGRATAVRLAAEGAKLSLVDVSSEGLEASKAAVLETAPDAEVLTTVADVSDEAQVEAYVTATTERFGRIDGFFNNAGIEGKQNPTESFTAAEFDKVVSINLRGVFLGLEKVLKIMREQGSGMVVNTASVGGIRGIGNQSGYAAAKHGVVGLTRNSAVEYGRYGIRINAIAPGAIWTPMVENSMKQLDPENPRKAAEEFIQVNPSKRYGEAPEIAAVVAFLLSDDASYVNATVVPIDGGQSAAY 267
               SCOP domains d1iy8a_ A: Levodione reductase                                                                                                                                                                                                                                     SCOP domains
               CATH domains 1iy8A00 A:10-267 NAD(P)-binding Rossmann-like Domain                                                                                                                                                                                                               CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Pfam domains
         Sec.struct. author .....eeeee...hhhhhhhhhhhhhh..eeeeee.hhhhhhhhhhhhhhhh....eeeee....hhhhhhhhhhhhhhhhh...eeee.........hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh..eeeee.hhhhh.....hhhhhhhhhhhhhhhhhhhhhhhhhh.eeeeeee....hhhhhhhhhhhh..hhhhhhhhhhh........hhhhhhhhhhhhhhhhhh.....eeee........ Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Transcript
                 1iy8 A  10 RFTDRVVLITGGGSGLGRATAVRLAAEGAKLSLVDVSSEGLEASKAAVLETAPDAEVLTTVADVSDEAQVEAYVTATTERFGRIDGFFNNAGIEGKQNPTESFTAAEFDKVVSINLRGVFLGLEKVLKIMREQGSGMVVNTASVGGIRGIGNQSGYAAAKHGVVGLTRNSAVEYGRYGIRINAIAPGAIWTPMVENSMKQLDPENPRKAAEEFIQVNPSKRYGEAPEIAAVVAFLLSDDASYVNATVVPIDGGQSAAY 267
                                    19        29        39        49        59        69        79        89        99       109       119       129       139       149       159       169       179       189       199       209       219       229       239       249       259


Chain B from PDB  Type:PROTEIN  Length:258
 aligned with LVR_LEIAQ | Q9LBG2 from UniProtKB/Swiss-Prot  Length:267

    Alignment length:258
                                    19        29        39        49        59        69        79        89        99       109       119       129       139       149       159       169       179       189       199       209       219       229       239       249       259
            LVR_LEIAQ    10 RFTDRVVLITGGGSGLGRATAVRLAAEGAKLSLVDVSSEGLEASKAAVLETAPDAEVLTTVADVSDEAQVEAYVTATTERFGRIDGFFNNAGIEGKQNPTESFTAAEFDKVVSINLRGVFLGLEKVLKIMREQGSGMVVNTASVGGIRGIGNQSGYAAAKHGVVGLTRNSAVEYGRYGIRINAIAPGAIWTPMVENSMKQLDPENPRKAAEEFIQVNPSKRYGEAPEIAAVVAFLLSDDASYVNATVVPIDGGQSAAY 267
               SCOP domains d1iy8b_ B: Levodione reductase                                                                                                                                                                                                                                     SCOP domains
               CATH domains 1iy8B00 B:10-267 NAD(P)-binding Rossmann-like Domain                                                                                                                                                                                                               CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Pfam domains
         Sec.struct. author .....eeeee...hhhhhhhhhhhhhh..eeeeee.hhhhhhhhhhhhhhhh....eeeee....hhhhhhhhhhhhhhhhh...eeee.........hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh..eeeee.hhhhh.....hhhhhhhhhhhhhhhhhhhhhhhhhh.eeeeeee....hhhhhhhhhhhh..hhhhhhhhhhh........hhhhhhhhhhhhhhhhhh.....eeee..hhhhh. Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Transcript
                 1iy8 B  10 RFTDRVVLITGGGSGLGRATAVRLAAEGAKLSLVDVSSEGLEASKAAVLETAPDAEVLTTVADVSDEAQVEAYVTATTERFGRIDGFFNNAGIEGKQNPTESFTAAEFDKVVSINLRGVFLGLEKVLKIMREQGSGMVVNTASVGGIRGIGNQSGYAAAKHGVVGLTRNSAVEYGRYGIRINAIAPGAIWTPMVENSMKQLDPENPRKAAEEFIQVNPSKRYGEAPEIAAVVAFLLSDDASYVNATVVPIDGGQSAAY 267
                                    19        29        39        49        59        69        79        89        99       109       119       129       139       149       159       169       179       189       199       209       219       229       239       249       259


Chain C from PDB  Type:PROTEIN  Length:258
 aligned with LVR_LEIAQ | Q9LBG2 from UniProtKB/Swiss-Prot  Length:267

    Alignment length:258
                                    19        29        39        49        59        69        79        89        99       109       119       129       139       149       159       169       179       189       199       209       219       229       239       249       259
            LVR_LEIAQ    10 RFTDRVVLITGGGSGLGRATAVRLAAEGAKLSLVDVSSEGLEASKAAVLETAPDAEVLTTVADVSDEAQVEAYVTATTERFGRIDGFFNNAGIEGKQNPTESFTAAEFDKVVSINLRGVFLGLEKVLKIMREQGSGMVVNTASVGGIRGIGNQSGYAAAKHGVVGLTRNSAVEYGRYGIRINAIAPGAIWTPMVENSMKQLDPENPRKAAEEFIQVNPSKRYGEAPEIAAVVAFLLSDDASYVNATVVPIDGGQSAAY 267
               SCOP domains d1iy8c_ C: Levodione reductase                                                                                                                                                                                                                                     SCOP domains
               CATH domains 1iy8C00 C:10-267 NAD(P)-binding Rossmann-like Domain                                                                                                                                                                                                               CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Pfam domains
         Sec.struct. author .....eeeee...hhhhhhhhhhhhhh..eeeeee.hhhhhhhhhhhhhhhh....eeeee....hhhhhhhhhhhhhhhhh...eeee.........hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh..eeeee.hhhhh.....hhhhhhhhhhhhhhhhhhhhhhhhhh.eeeeeee....hhhhhhhhhhhh..hhhhhhhhhhh........hhhhhhhhhhhhhhhhhh.....eeee..hhhhh. Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Transcript
                 1iy8 C  10 RFTDRVVLITGGGSGLGRATAVRLAAEGAKLSLVDVSSEGLEASKAAVLETAPDAEVLTTVADVSDEAQVEAYVTATTERFGRIDGFFNNAGIEGKQNPTESFTAAEFDKVVSINLRGVFLGLEKVLKIMREQGSGMVVNTASVGGIRGIGNQSGYAAAKHGVVGLTRNSAVEYGRYGIRINAIAPGAIWTPMVENSMKQLDPENPRKAAEEFIQVNPSKRYGEAPEIAAVVAFLLSDDASYVNATVVPIDGGQSAAY 267
                                    19        29        39        49        59        69        79        89        99       109       119       129       139       149       159       169       179       189       199       209       219       229       239       249       259


Chain D from PDB  Type:PROTEIN  Length:258
 aligned with LVR_LEIAQ | Q9LBG2 from UniProtKB/Swiss-Prot  Length:267

    Alignment length:258
                                    19        29        39        49        59        69        79        89        99       109       119       129       139       149       159       169       179       189       199       209       219       229       239       249       259
            LVR_LEIAQ    10 RFTDRVVLITGGGSGLGRATAVRLAAEGAKLSLVDVSSEGLEASKAAVLETAPDAEVLTTVADVSDEAQVEAYVTATTERFGRIDGFFNNAGIEGKQNPTESFTAAEFDKVVSINLRGVFLGLEKVLKIMREQGSGMVVNTASVGGIRGIGNQSGYAAAKHGVVGLTRNSAVEYGRYGIRINAIAPGAIWTPMVENSMKQLDPENPRKAAEEFIQVNPSKRYGEAPEIAAVVAFLLSDDASYVNATVVPIDGGQSAAY 267
               SCOP domains d1iy8d_ D: Levodione reductase                                                                                                                                                                                                                                     SCOP domains
               CATH domains 1iy8D00 D:10-267 NAD(P)-binding Rossmann-like Domain                                                                                                                                                                                                               CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Pfam domains
         Sec.struct. author .....eeeee...hhhhhhhhhhhhhh..eeeeee.hhhhhhhhhhhhhhhh....eeeee....hhhhhhhhhhhhhhhhh...eeee.........hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh..eeeee.hhhhh.....hhhhhhhhhhhhhhhhhhhhhhhhhh.eeeeeee....hhhhhhhhhhhh..hhhhhhhhhhh........hhhhhhhhhhhhhhhhhh.....eeee..hhhhh. Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Transcript
                 1iy8 D  10 RFTDRVVLITGGGSGLGRATAVRLAAEGAKLSLVDVSSEGLEASKAAVLETAPDAEVLTTVADVSDEAQVEAYVTATTERFGRIDGFFNNAGIEGKQNPTESFTAAEFDKVVSINLRGVFLGLEKVLKIMREQGSGMVVNTASVGGIRGIGNQSGYAAAKHGVVGLTRNSAVEYGRYGIRINAIAPGAIWTPMVENSMKQLDPENPRKAAEEFIQVNPSKRYGEAPEIAAVVAFLLSDDASYVNATVVPIDGGQSAAY 267
                                    19        29        39        49        59        69        79        89        99       109       119       129       139       149       159       169       179       189       199       209       219       229       239       249       259


Chain E from PDB  Type:PROTEIN  Length:258
 aligned with LVR_LEIAQ | Q9LBG2 from UniProtKB/Swiss-Prot  Length:267

    Alignment length:258
                                    19        29        39        49        59        69        79        89        99       109       119       129       139       149       159       169       179       189       199       209       219       229       239       249       259
            LVR_LEIAQ    10 RFTDRVVLITGGGSGLGRATAVRLAAEGAKLSLVDVSSEGLEASKAAVLETAPDAEVLTTVADVSDEAQVEAYVTATTERFGRIDGFFNNAGIEGKQNPTESFTAAEFDKVVSINLRGVFLGLEKVLKIMREQGSGMVVNTASVGGIRGIGNQSGYAAAKHGVVGLTRNSAVEYGRYGIRINAIAPGAIWTPMVENSMKQLDPENPRKAAEEFIQVNPSKRYGEAPEIAAVVAFLLSDDASYVNATVVPIDGGQSAAY 267
               SCOP domains d1iy8e_ E: Levodione reductase                                                                                                                                                                                                                                     SCOP domains
               CATH domains 1iy8E00 E:10-267 NAD(P)-binding Rossmann-like Domain                                                                                                                                                                                                               CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Pfam domains
         Sec.struct. author .....eeeee...hhhhhhhhhhhhhh..eeeeee.hhhhhhhhhhhhhhhh....eeeee....hhhhhhhhhhhhhhhhh...eeee.........hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh..eeeee.hhhhh.....hhhhhhhhhhhhhhhhhhhhhhhhhh.eeeeeee....hhhhhhhhhhhh..hhhhhhhhhhh........hhhhhhhhhhhhhhhhhh.....eeee........ Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Transcript
                 1iy8 E  10 RFTDRVVLITGGGSGLGRATAVRLAAEGAKLSLVDVSSEGLEASKAAVLETAPDAEVLTTVADVSDEAQVEAYVTATTERFGRIDGFFNNAGIEGKQNPTESFTAAEFDKVVSINLRGVFLGLEKVLKIMREQGSGMVVNTASVGGIRGIGNQSGYAAAKHGVVGLTRNSAVEYGRYGIRINAIAPGAIWTPMVENSMKQLDPENPRKAAEEFIQVNPSKRYGEAPEIAAVVAFLLSDDASYVNATVVPIDGGQSAAY 267
                                    19        29        39        49        59        69        79        89        99       109       119       129       139       149       159       169       179       189       199       209       219       229       239       249       259


Chain F from PDB  Type:PROTEIN  Length:258
 aligned with LVR_LEIAQ | Q9LBG2 from UniProtKB/Swiss-Prot  Length:267

    Alignment length:258
                                    19        29        39        49        59        69        79        89        99       109       119       129       139       149       159       169       179       189       199       209       219       229       239       249       259
            LVR_LEIAQ    10 RFTDRVVLITGGGSGLGRATAVRLAAEGAKLSLVDVSSEGLEASKAAVLETAPDAEVLTTVADVSDEAQVEAYVTATTERFGRIDGFFNNAGIEGKQNPTESFTAAEFDKVVSINLRGVFLGLEKVLKIMREQGSGMVVNTASVGGIRGIGNQSGYAAAKHGVVGLTRNSAVEYGRYGIRINAIAPGAIWTPMVENSMKQLDPENPRKAAEEFIQVNPSKRYGEAPEIAAVVAFLLSDDASYVNATVVPIDGGQSAAY 267
               SCOP domains d1iy8f_ F: Levodione reductase                                                                                                                                                                                                                                     SCOP domains
               CATH domains 1iy8F00 F:10-267 NAD(P)-binding Rossmann-like Domain                                                                                                                                                                                                               CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Pfam domains
         Sec.struct. author .....eeeee...hhhhhhhhhhhhhh..eeeeee.hhhhhhhhhhhhhhhh....eeeee....hhhhhhhhhhhhhhhhh...eeee.........hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh..eeeee.hhhhh.....hhhhhhhhhhhhhhhhhhhhhhhhhh.eeeeeee....hhhhhhhhhhhh..hhhhhhhhhhh........hhhhhhhhhhhhhhhhhh.....eeee..hhhhh. Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Transcript
                 1iy8 F  10 RFTDRVVLITGGGSGLGRATAVRLAAEGAKLSLVDVSSEGLEASKAAVLETAPDAEVLTTVADVSDEAQVEAYVTATTERFGRIDGFFNNAGIEGKQNPTESFTAAEFDKVVSINLRGVFLGLEKVLKIMREQGSGMVVNTASVGGIRGIGNQSGYAAAKHGVVGLTRNSAVEYGRYGIRINAIAPGAIWTPMVENSMKQLDPENPRKAAEEFIQVNPSKRYGEAPEIAAVVAFLLSDDASYVNATVVPIDGGQSAAY 267
                                    19        29        39        49        59        69        79        89        99       109       119       129       139       149       159       169       179       189       199       209       219       229       239       249       259


Chain G from PDB  Type:PROTEIN  Length:258
 aligned with LVR_LEIAQ | Q9LBG2 from UniProtKB/Swiss-Prot  Length:267

    Alignment length:258
                                    19        29        39        49        59        69        79        89        99       109       119       129       139       149       159       169       179       189       199       209       219       229       239       249       259
            LVR_LEIAQ    10 RFTDRVVLITGGGSGLGRATAVRLAAEGAKLSLVDVSSEGLEASKAAVLETAPDAEVLTTVADVSDEAQVEAYVTATTERFGRIDGFFNNAGIEGKQNPTESFTAAEFDKVVSINLRGVFLGLEKVLKIMREQGSGMVVNTASVGGIRGIGNQSGYAAAKHGVVGLTRNSAVEYGRYGIRINAIAPGAIWTPMVENSMKQLDPENPRKAAEEFIQVNPSKRYGEAPEIAAVVAFLLSDDASYVNATVVPIDGGQSAAY 267
               SCOP domains d1iy8g_ G: Levodione reductase                                                                                                                                                                                                                                     SCOP domains
               CATH domains 1iy8G00 G:10-267 NAD(P)-binding Rossmann-like Domain                                                                                                                                                                                                               CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Pfam domains
         Sec.struct. author .....eeeee...hhhhhhhhhhhhhh..eeeeee.hhhhhhhhhhhhhhhh....eeeee....hhhhhhhhhhhhhhhhh...eeee.........hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh..eeeee.hhhhh.....hhhhhhhhhhhhhhhhhhhhhhhhhh.eeeeeee....hhhhhhhhhhhh..hhhhhhhhhhh........hhhhhhhhhhhhhhhhhh.....eeee........ Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Transcript
                 1iy8 G  10 RFTDRVVLITGGGSGLGRATAVRLAAEGAKLSLVDVSSEGLEASKAAVLETAPDAEVLTTVADVSDEAQVEAYVTATTERFGRIDGFFNNAGIEGKQNPTESFTAAEFDKVVSINLRGVFLGLEKVLKIMREQGSGMVVNTASVGGIRGIGNQSGYAAAKHGVVGLTRNSAVEYGRYGIRINAIAPGAIWTPMVENSMKQLDPENPRKAAEEFIQVNPSKRYGEAPEIAAVVAFLLSDDASYVNATVVPIDGGQSAAY 267
                                    19        29        39        49        59        69        79        89        99       109       119       129       139       149       159       169       179       189       199       209       219       229       239       249       259


Chain H from PDB  Type:PROTEIN  Length:258
 aligned with LVR_LEIAQ | Q9LBG2 from UniProtKB/Swiss-Prot  Length:267

    Alignment length:258
                                    19        29        39        49        59        69        79        89        99       109       119       129       139       149       159       169       179       189       199       209       219       229       239       249       259
            LVR_LEIAQ    10 RFTDRVVLITGGGSGLGRATAVRLAAEGAKLSLVDVSSEGLEASKAAVLETAPDAEVLTTVADVSDEAQVEAYVTATTERFGRIDGFFNNAGIEGKQNPTESFTAAEFDKVVSINLRGVFLGLEKVLKIMREQGSGMVVNTASVGGIRGIGNQSGYAAAKHGVVGLTRNSAVEYGRYGIRINAIAPGAIWTPMVENSMKQLDPENPRKAAEEFIQVNPSKRYGEAPEIAAVVAFLLSDDASYVNATVVPIDGGQSAAY 267
               SCOP domains d1iy8h_ H: Levodione reductase                                                                                                                                                                                                                                     SCOP domains
               CATH domains 1iy8H00 H:10-267 NAD(P)-binding Rossmann-like Domain                                                                                                                                                                                                               CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Pfam domains
         Sec.struct. author .....eeeee...hhhhhhhhhhhhhh..eeeeee.hhhhhhhhhhhhhhhh....eeeee....hhhhhhhhhhhhhhhhh...eeee.........hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh..eeeee.hhhhh.....hhhhhhhhhhhhhhhhhhhhhhhhhh.eeeeeee....hhhhhhhhhhhh..hhhhhhhhhhh........hhhhhhhhhhhhhhhhhh.....eeee..hhhhh. Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Transcript
                 1iy8 H  10 RFTDRVVLITGGGSGLGRATAVRLAAEGAKLSLVDVSSEGLEASKAAVLETAPDAEVLTTVADVSDEAQVEAYVTATTERFGRIDGFFNNAGIEGKQNPTESFTAAEFDKVVSINLRGVFLGLEKVLKIMREQGSGMVVNTASVGGIRGIGNQSGYAAAKHGVVGLTRNSAVEYGRYGIRINAIAPGAIWTPMVENSMKQLDPENPRKAAEEFIQVNPSKRYGEAPEIAAVVAFLLSDDASYVNATVVPIDGGQSAAY 267
                                    19        29        39        49        59        69        79        89        99       109       119       129       139       149       159       169       179       189       199       209       219       229       239       249       259
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (1, 8)

Asymmetric Unit
(-)
Class: Alpha and beta proteins (a/b) (23833)

(-) CATH Domains  (1, 8)

Asymmetric Unit
(-)
Class: Alpha Beta (26913)

(-) Pfam Domains  (0, 0)

(no "Pfam Domain" information available for 1IY8)

(-) Gene Ontology  (2, 2)

Asymmetric Unit(hide GO term definitions)
Chain A,B,C,D,E,F,G,H   (LVR_LEIAQ | Q9LBG2)
molecular function
    GO:0016491    oxidoreductase activity    Catalysis of an oxidation-reduction (redox) reaction, a reversible chemical reaction in which the oxidation state of an atom or atoms within a molecule is altered. One substrate acts as a hydrogen or electron donor and becomes oxidized, while the other acts as hydrogen or electron acceptor and becomes reduced.
biological process
    GO:0055114    oxidation-reduction process    A metabolic process that results in the removal or addition of one or more electrons to or from a substance, with or without the concomitant removal or addition of a proton or protons.

 Visualization

(-) Interactive Views

Asymmetric Unit
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
    MRD  [ RasMol | Jena3D ]  +environment [ RasMol | Jena3D ]
    NAD  [ RasMol | Jena3D ]  +environment [ RasMol | Jena3D ]

  Sites
    AC1  [ RasMol ]  +environment [ RasMol ]
    AC2  [ RasMol ]  +environment [ RasMol ]
    AC3  [ RasMol ]  +environment [ RasMol ]
    AC4  [ RasMol ]  +environment [ RasMol ]
    AC5  [ RasMol ]  +environment [ RasMol ]
    AC6  [ RasMol ]  +environment [ RasMol ]
    AC7  [ RasMol ]  +environment [ RasMol ]
    AC8  [ RasMol ]  +environment [ RasMol ]
    AC9  [ RasMol ]  +environment [ RasMol ]
    BC1  [ RasMol ]  +environment [ RasMol ]
    BC2  [ RasMol ]  +environment [ RasMol ]
    BC3  [ RasMol ]  +environment [ RasMol ]
    BC4  [ RasMol ]  +environment [ RasMol ]
    BC5  [ RasMol ]  +environment [ RasMol ]
    BC6  [ RasMol ]  +environment [ RasMol ]
    BC7  [ RasMol ]  +environment [ RasMol ]

  Cis Peptide Bonds
(no "Cis Peptide Bonds" information available for 1iy8)

Biological Units
  Complete Structure
    Biological Unit 1  [ Jena3D ]
    Biological Unit 2  [ Jena3D ]

(-) Still Images

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick
[ Asym. Unit PNG format | Asym. Unit - sites PNG format | Biol. Unit 1 PNG format | Biol. Unit 1 - sites PNG format | Biol. Unit 2 PNG format ](automatic orientation, automatically generated)
Molscript
  protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick
[ mono PDF format | stereo PDF format ](default orientation, automatically generated)

 Databases and Analysis Tools

(-) Databases

Access by PDB/NDB ID
  1iy8
    Family and Domain Information: ProDom | SYSTERS
    General Structural Information: GlycoscienceDB | MMDB | NDB | OCA | PDB | PDBe | PDBj | PDBsum | PDBWiki | PQS | PROTEOPEDIA
    Orientation in Membranes: OPM
    Protein Surface: SURFACE
    Secondary Structure: DSSP (structure derived) | HSSP (homology derived)
    Structural Genomics: GeneCensus
    Structural Neighbours: CE | VAST
    Structure Classification: CATH | Dali | SCOP
    Validation and Original Data: BMRB Data View | BMRB Restraints Grid | EDS | PROCHECK | RECOORD | WHAT_CHECK

Access by UniProt ID/Accession number
  LVR_LEIAQ | Q9LBG2
    Comparative Protein Structure Models: ModBase
    Genomic Information: Ensembl
    Protein-protein Interaction: DIP
    Sequence, Family and Domain Information: InterPro | Pfam | SMART | UniProtKB/SwissProt

Access by Enzyme Classificator   (EC Number)
  (no 'Enzyme Classificator' available)
    General Enzyme Information: BRENDA | EC-PDB | Enzyme | IntEnz
    Pathway: KEGG | MetaCyc

Access by Disease Identifier   (MIM ID)
  (no 'MIM ID' available)
    Disease Information: OMIM

Access by GenAge ID
  (no 'GenAge ID' available)
    Age Related Information: GenAge

(-) Analysis Tools

Access by PDB/NDB ID
    Domain Information: XDom
    Interatomic Contacts of Structural Units: CSU
    Ligand-protein Contacts: LPC
    Protein Cavities: castP
    Sequence and Secondary Structure: PDBCartoon
    Structure Alignment: STRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    Structure and Sequence Browser: STING

Access by UniProt ID/Accession number
  LVR_LEIAQ | Q9LBG2
    Protein Disorder Prediction: DisEMBL | FoldIndex | GLOBPLOT (for more information see DisProt)

 Related Entries

(-) Entries Sharing at Least One Protein Chain (UniProt ID)

(no "Entries Sharing at Least One Protein Chain" available for 1IY8)

(-) Related Entries Specified in the PDB File

(no "Related Entries Specified in the PDB File" available for 1IY8)
