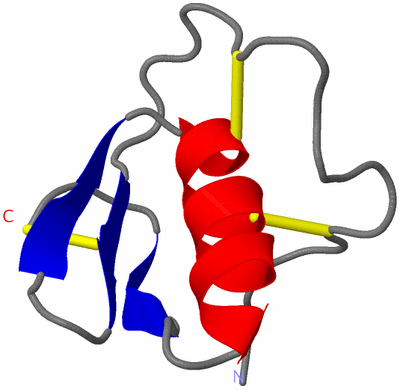

Image NMR Structure - model 1
NMR Structure - model 1  (Jmol Viewer)

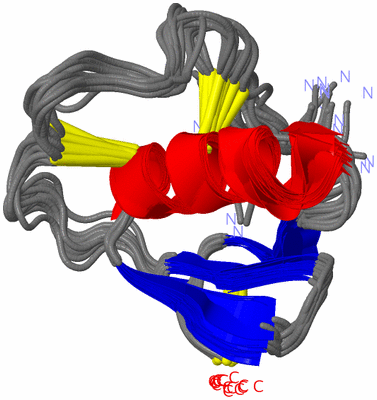

Image NMR Structure - all models
NMR Structure - all models  (Jmol Viewer)

(-) Description

Title :  SOLUTION STRUCTURE OF WILD TYPE OMSVP3

Authors :  H. Hemmi, T. Kumazaki, T. Yamazaki, S. Kojima, T. Yoshida, Y. Kyogoku, M. Katsu, H. Yokosawa, K. Miura, Y. Kobayashi
Date :  23 Jul 02  (Deposition) - 11 Mar 03  (Release) - 24 Feb 09  (Revision)
Method :  SOLUTION NMR
Resolution :  NOT APPLICABLE
Chains :  NMR Structure  :  A  (15x)
Keywords :  Solution Structure, Csh Motif, Nmr, Omsvp3, Ovomucoid Third Domain, Protease Inhibitor, Hydrolase (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  H. Hemmi, T. Kumazaki, T. Yamazaki, S. Kojima, T. Yoshida, Y. Kyogoku, M. Katsu, F. Shinohara, H. Yokosawa, K. Miura, Y. Kobayashi
Inhibitory Specificity Change Of Ovomucoid Third Domain Of The Silver Pheasant Upon Introduction Of An Engineered Cys14-Cys39 Bond
Biochemistry V. 42 2524 2003
PubMed-ID: 12614146  |  Reference-DOI: 10.1021/BI026727C
(for further references see the PDB file header)

(-) Compounds

Molecule 1 - OMSVP3
    Chains: A
    Engineered: YES
    Expression System: ESCHERICHIA COLI BL21
    Expression System Plasmid: PET22B
    Expression System Strain: BL21
    Expression System Taxid: 511693
    Expression System Vector Type: PLASMID
    Fragment: THIRD DOMAIN
    Organism Common: SILVER PHEASANT
    Organism Scientific: LOPHURA NYCTHEMERA
    Organism Taxid: 9046
    Synonym: OVOMUCOID

 Structural Features

(-) Chains, Units


NMR Structure (15x):

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (0, 0)

(no "Ligand,Modified Residues,Ions" information available for 1IY5)

(-) Sites  (0, 0)

(no "Site" information available for 1IY5)

(-) SS Bonds  (3, 3)

NMR Structure
No.Residues
1A:8 -A:38
2A:16 -A:35
3A:24 -A:56

(-) Cis Peptide Bonds  (1, 15)

NMR Structure
No.ModelResidues
11, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 15Tyr A:11 -Pro A:12

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 1IY5)

(-) PROSITE Motifs  (1, 1)

NMR Structure (1, 1)
 PROSITEUniProtKBPDB
No.IDACDescriptionIDLocationCountLocation
1KAZAL_1PS00282 Kazal serine protease inhibitors family signature.IOVO_LOPNY16-38  1A:16-38

(-) Exons   (0, 0)

(no "Exon" information available for 1IY5)

(-) Sequences/Alignments

NMR Structure
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:54
 aligned with IOVO_LOPNY | P67954 from UniProtKB/Swiss-Prot  Length:56

    Alignment length:54
                                    12        22        32        42        52
            IOVO_LOPNY    3 AVSVDCSEYPKPACTMEYRPLCGSDNKTYGNKCNFCNAVVESNGTLTLSHFGKC 56
               SCOP domains d1iy5a_ A: Ovomucoid domains                           SCOP domains
               CATH domains 1iy5A00 A:3-56  [code=3.30.60.30, no name defined]     CATH domains
               Pfam domains ------------------------------------------------------ Pfam domains
         Sec.struct. author ....................eee...eee.hhhhhhhhhhhhh....eee.... Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------ SAPs(SNPs)
                    PROSITE -------------KAZAL_1  PDB: A:16-38  ------------------ PROSITE
                 Transcript ------------------------------------------------------ Transcript
                  1iy5 A  3 AVSVDCSEYPKPACTMEYRPLCGSDNKTYGNKCNFCNAVVESNGTLTLSHFGKC 56
                                    12        22        32        42        52
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (1, 1)

NMR Structure
(-)
Class: Small proteins (3458)

(-) CATH Domains  (1, 1)

NMR Structure
(-)
Class: Alpha Beta (26913)

(-) Pfam Domains  (0, 0)

(no "Pfam Domain" information available for 1IY5)

(-) Gene Ontology  (5, 5)

NMR Structure(hide GO term definitions)
Chain A   (IOVO_LOPNY | P67954)
molecular function
    GO:0030414    peptidase inhibitor activity    Stops, prevents or reduces the activity of a peptidase, any enzyme that catalyzes the hydrolysis peptide bonds.
    GO:0004867    serine-type endopeptidase inhibitor activity    Stops, prevents or reduces the activity of serine-type endopeptidases, enzymes that catalyze the hydrolysis of nonterminal peptide bonds in a polypeptide chain; a serine residue (and a histidine residue) are at the active center of the enzyme.
biological process
    GO:0010951    negative regulation of endopeptidase activity    Any process that decreases the frequency, rate or extent of endopeptidase activity, the endohydrolysis of peptide bonds within proteins.
    GO:0010466    negative regulation of peptidase activity    Any process that stops or reduces the rate of peptidase activity, the hydrolysis of peptide bonds within proteins.
cellular component
    GO:0005576    extracellular region    The space external to the outermost structure of a cell. For cells without external protective or external encapsulating structures this refers to space outside of the plasma membrane. This term covers the host cell environment outside an intracellular parasite.

 Visualization

(-) Interactive Views

NMR Structure
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
(no "Ligands, Modified Residues, Ions" information available for 1iy5)

  Sites
(no "Sites" information available for 1iy5)

  Cis Peptide Bonds
    Tyr A:11 - Pro A:12   [ RasMol ]


(-) Still Images

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick

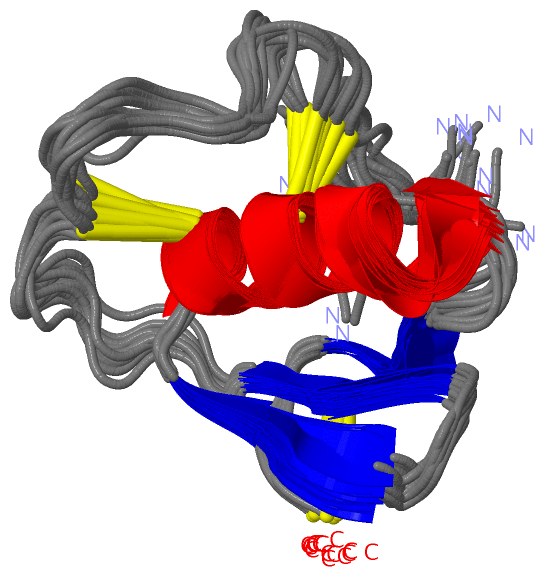

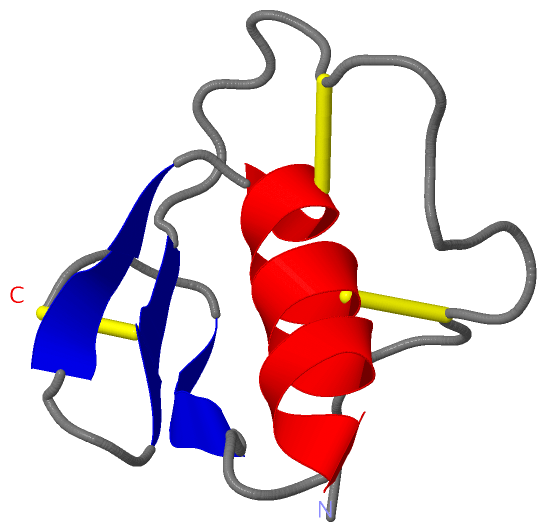

[ NMR Structure - model 1 PNG format | NMR Structure - all models PNG format ](automatic orientation, automatically generated)
Molscript
  protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick
[ mono PDF format | stereo PDF format ](default orientation, automatically generated)

 Databases and Analysis Tools

(-) Databases

Access by PDB/NDB ID
  1iy5
    Family and Domain Information: ProDom | SYSTERS
    General Structural Information: GlycoscienceDB | MMDB | NDB | OCA | PDB | PDBe | PDBj | PDBsum | PDBWiki | PQS | PROTEOPEDIA
    Orientation in Membranes: OPM
    Protein Surface: SURFACE
    Secondary Structure: DSSP (structure derived) | HSSP (homology derived)
    Structural Genomics: GeneCensus
    Structural Neighbours: CE | VAST
    Structure Classification: CATH | Dali | SCOP
    Validation and Original Data: BMRB Data View | BMRB Restraints Grid | EDS | PROCHECK | RECOORD | WHAT_CHECK

Access by UniProt ID/Accession number
  IOVO_LOPNY | P67954
    Comparative Protein Structure Models: ModBase
    Genomic Information: Ensembl
    Protein-protein Interaction: DIP
    Sequence, Family and Domain Information: InterPro | Pfam | SMART | UniProtKB/SwissProt

Access by Enzyme Classificator   (EC Number)
  (no 'Enzyme Classificator' available)
    General Enzyme Information: BRENDA | EC-PDB | Enzyme | IntEnz
    Pathway: KEGG | MetaCyc

Access by Disease Identifier   (MIM ID)
  (no 'MIM ID' available)
    Disease Information: OMIM

Access by GenAge ID
  (no 'GenAge ID' available)
    Age Related Information: GenAge

(-) Analysis Tools

Access by PDB/NDB ID
    Domain Information: XDom
    Interatomic Contacts of Structural Units: CSU
    Ligand-protein Contacts: LPC
    Protein Cavities: castP
    Sequence and Secondary Structure: PDBCartoon
    Structure Alignment: STRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    Structure and Sequence Browser: STING

Access by UniProt ID/Accession number
  IOVO_LOPNY | P67954
    Protein Disorder Prediction: DisEMBL | FoldIndex | GLOBPLOT (for more information see DisProt)

 Related Entries

(-) Entries Sharing at Least One Protein Chain (UniProt ID)

UniProtKB/Swiss-Prot
        IOVO_LOPNY | P67954: 1iy6 2ovo 4ovo

(-) Related Entries Specified in the PDB File

1iy6 1IY6 CONTAINS OMSVP3 VARIANT, P14C/N39C
