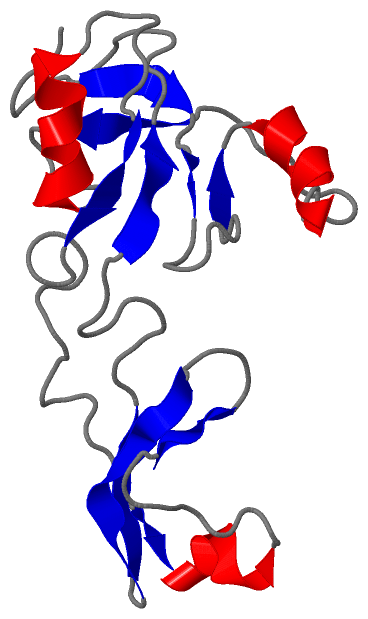

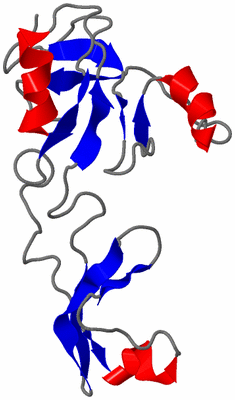

Image NMR Structure - model 1
NMR Structure - model 1  (Jmol Viewer)

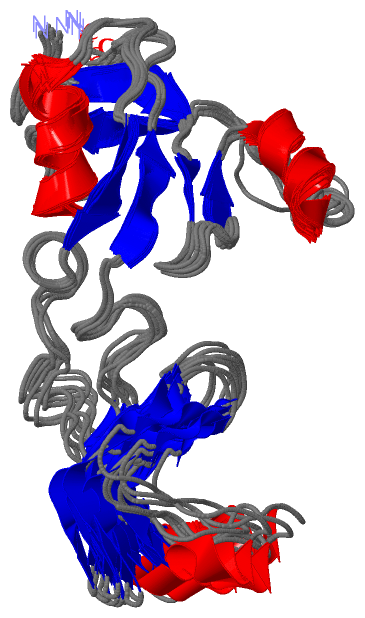

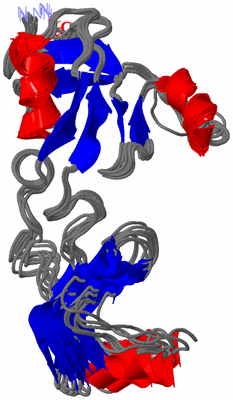

Image NMR Structure - all models
NMR Structure - all models  (Jmol Viewer)

(-) Description

Title :  SOLUTION STRUCTURE OF THE METHANOCOCCUS THERMOLITHOTROPHICUS FKBP

Authors :  R. Suzuki, K. Nagata, M. Kawakami, N. Nemoto, M. Furutani, K. Adachi, T. Maruyama, M. Tanokura
Date :  12 Jun 02  (Deposition) - 10 Jun 03  (Release) - 24 Feb 09  (Revision)
Method :  SOLUTION NMR
Resolution :  NOT APPLICABLE
Chains :  NMR Structure  :  A  (10x)
Keywords :  Fkbp Fold, Ppiase, Isomerase (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  R. Suzuki, K. Nagata, F. Yumoto, M. Kawakami, N. Nemoto, M. Furutani, K. Adachi, T. Maruyama, M. Tanokura
Three-Dimensional Solution Structure Of An Archaeal Fkbp With A Dual Function Of Peptidyl Prolyl Cis-Trans Isomerase And Chaperone-Like Activities
J. Mol. Biol. V. 328 1149 2003
PubMed-ID: 12729748  |  Reference-DOI: 10.1016/S0022-2836(03)00379-6
(for further references see the PDB file header)

(-) Compounds

Molecule 1 - FKBP
    Chains: A
    EC Number: 5.2.1.8
    Engineered: YES
    Expression System: ESCHERICHIA COLI
    Expression System Plasmid: PET-11D
    Expression System Strain: BL21(DE3)/PLYSS
    Expression System Taxid: 562
    Expression System Vector Type: PLASMID
    Mutation: YES
    Organism Scientific: METHANOTHERMOCOCCUS THERMOLITHOTROPHICUS
    Organism Taxid: 2186
    Synonym: FKBP-TYPE PEPTIDYL-PROLYL CIS-TRANS ISOMERASE

 Structural Features

(-) Chains, Units


NMR Structure (10x):

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (0, 0)

(no "Ligand,Modified Residues,Ions" information available for 1IX5)

(-) Sites  (0, 0)

(no "Site" information available for 1IX5)

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 1IX5)

(-) Cis Peptide Bonds  (0, 0)

(no "Cis Peptide Bond" information available for 1IX5)

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 1IX5)

(-) PROSITE Motifs  (1, 1)

NMR Structure (1, 1)
 PROSITEUniProtKBPDB
No.IDACDescriptionIDLocationCountLocation
1FKBP_PPIASEPS50059 FKBP-type peptidyl-prolyl cis-trans isomerase domain profile.FKBP_METTL8-99  1A:8-99

(-) Exons   (0, 0)

(no "Exon" information available for 1IX5)

(-) Sequences/Alignments

NMR Structure
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:151
 aligned with FKBP_METTL | O52980 from UniProtKB/Swiss-Prot  Length:154

    Alignment length:151
                                    13        23        33        43        53        63        73        83        93       103       113       123       133       143       153
           FKBP_METTL     4 LVDKGVKIKVDYIGKLESGDVFDTSIEEVAKEAGIYAPDREYEPLEFVVGEGQLIQGFEEAVLDMEVGDEKTVKIPAEKAYGNRNEMLIQKIPRDAFKEADFEPEEGMVILAEGIPATITEVTDNEVTLDFNHELAGKDLVFTIKIIEVVE 154
               SCOP domains d1ix5a_ A: Archaeal FKBP                                                                                                                                SCOP domains
               CATH domains ------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ......eeee..ee........ee.hhhhhhhhh..........eeee......hhhhhhhhhh.......eeee................eehhhhhh........eeee....eeeeeeee..eeeee.........eeee........ Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ----FKBP_PPIASE  PDB: A:8-99 UniProt: 8-99                                                      ------------------------------------------------------- PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 1ix5 A   4 MVDKGVKIKVDYIGKLESGDVFDTSIEEVAKEAGIYAPDREYEPLEFVVGEGQLIQGFEEAVLDMEVGDEKTVKIPAEKAYGNRNEMLIQKIPRDAFKEADFEPEEGMVILAEGIPATITEVTDNEVTLDFNHELAGKDLVFTIKIIEVVE 154
                                    13        23        33        43        53        63        73        83        93       103       113       123       133       143       153
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (1, 1)

NMR Structure
(-)
Class: Alpha and beta proteins (a+b) (23004)

(-) CATH Domains  (0, 0)

(no "CATH Domain" information available for 1IX5)

(-) Pfam Domains  (0, 0)

(no "Pfam Domain" information available for 1IX5)

(-) Gene Ontology  (4, 4)

NMR Structure(hide GO term definitions)
Chain A   (FKBP_METTL | O52980)
molecular function
    GO:0016853    isomerase activity    Catalysis of the geometric or structural changes within one molecule. Isomerase is the systematic name for any enzyme of EC class 5.
    GO:0003755    peptidyl-prolyl cis-trans isomerase activity    Catalysis of the reaction: peptidyl-proline (omega=180) = peptidyl-proline (omega=0).
biological process
    GO:0006457    protein folding    The process of assisting in the covalent and noncovalent assembly of single chain polypeptides or multisubunit complexes into the correct tertiary structure.
    GO:0000413    protein peptidyl-prolyl isomerization    The modification of a protein by cis-trans isomerization of a proline residue.
