1IU8 - JenaLib

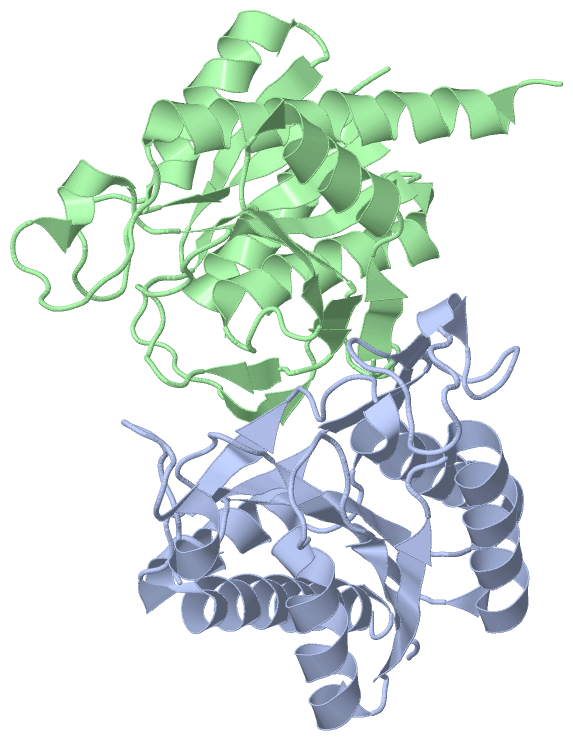

Asymmetric Unit (Jmol Viewer)

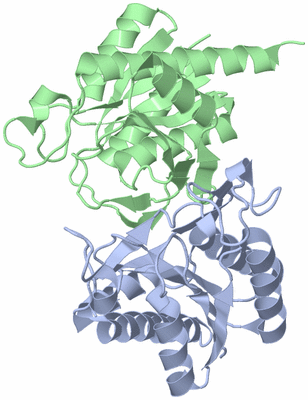

Biological Unit 1 (Jmol Viewer)

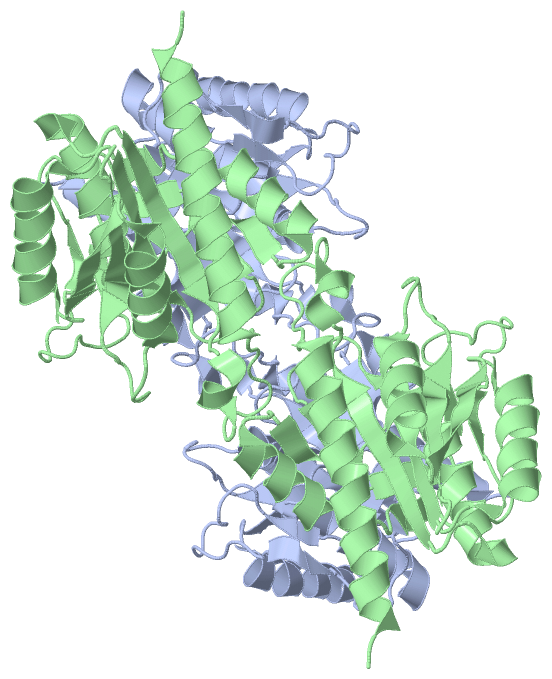

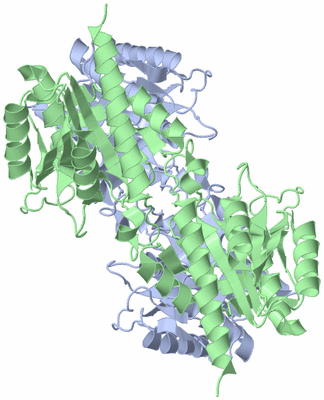

Biological Unit 2 (Jmol Viewer)

Title :   THE X-RAY CRYSTAL STRUCTURE OF PYRROLIDONE-CARBOXYLATE PEPTIDASE FROM HYPERTHERMOPHILIC ARCHAEON PYROCOCCUS HORIKOSHII

Authors :   M. Sokabe, T. Kawamura, N. Sakai, M. Yao, N. Watanabe, I. Tanaka

Date :   28 Feb 02 (Deposition) - 20 Mar 02 (Release) - 24 Feb 09 (Revision)

Method :   X-RAY DIFFRACTION

Resolution :   1.60

Chains :   Asym. Unit : A,B
Biol. Unit 1: A,B  (1x)
Biol. Unit 2: A,B  (2x)

Keywords :   Hydrolase, Thiol Protease, Complete Proteome (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :   M. Sokabe, T. Kawamura, N. Sakai, M. Yao, N. Watanabe, I. Tanaka
The X-Ray Crystal Structure Of Pyrrolidone-Carboxylate Peptidase From Hyperthermophilic Archaea Pyrococcus Horikoshii
J. Struct. Funct. Genom. V. 2 145 2002
PubMed-ID: 12836705 | Reference-DOI: 10.1023/A:1021257701676
(for further references see the PDB file header)

Molecule 1 - PYRROLIDONE-CARBOXYLATE PEPTIDASE
	Chains	:	A, B
	EC Number	:	3.4.19.3
	Engineered	:	YES
	Expression System	:	ESCHERICHIA COLI
	Expression System Plasmid	:	PET-22B(+)
	Expression System Strain	:	BL21-CODNPLUS(DE3)-RIL-X
	Expression System Taxid	:	562
	Expression System Vector Type	:	PLASMID
	Gene	:	PH0596
	Organism Scientific	:	PYROCOCCUS HORIKOSHII
	Organism Taxid	:	53953

		1	2
Asymmetric Unit	:	A	B
Biological Unit 1 (1x)	:	A	B
Biological Unit 2 (2x)	:	A	B

Summary Information (see also Sequences/Alignments below)

(no "Ligand,Modified Residues,Ions" information available for 1IU8)

(no "Site" information available for 1IU8)

(no "SS Bond" information available for 1IU8)

Asymmetric Unit

No.	Residues
1	Tyr A:155	-	Pro A:156
2	Tyr B:155	-	Pro B:156

(no "SAP(SNP)/Variant" information available for 1IU8)

Asymmetric Unit (2, 4)

	PROSITE			UniProtKB		PDB
No.	ID	AC	Description	ID	Location	Count	Location
1	PYRASE_GLU	PS01333	Pyrrolidone-carboxylate peptidase glutamic acid active site.	PCP_PYRHO	65-81	2	A:65-81 B:65-81
2	PYRASE_CYS	PS01334	Pyrrolidone-carboxylate peptidase cysteine active site.	PCP_PYRHO	126-140	2	A:126-140 B:126-140

Biological Unit 1 (2, 4)

	PROSITE			UniProtKB		PDB
No.	ID	AC	Description	ID	Location	Count	Location
1	PYRASE_GLU	PS01333	Pyrrolidone-carboxylate peptidase glutamic acid active site.	PCP_PYRHO	65-81	2	A:65-81 B:65-81
2	PYRASE_CYS	PS01334	Pyrrolidone-carboxylate peptidase cysteine active site.	PCP_PYRHO	126-140	2	A:126-140 B:126-140

Biological Unit 2 (2, 8)

	PROSITE			UniProtKB		PDB
No.	ID	AC	Description	ID	Location	Count	Location
1	PYRASE_GLU	PS01333	Pyrrolidone-carboxylate peptidase glutamic acid active site.	PCP_PYRHO	65-81	4	A:65-81 B:65-81
2	PYRASE_CYS	PS01334	Pyrrolidone-carboxylate peptidase cysteine active site.	PCP_PYRHO	126-140	4	A:126-140 B:126-140

(no "Exon" information available for 1IU8)

Asymmetric Unit

Reformat:	Number of residues per line = ('0' or empty: single-line sequence representation)
	Number of residues per labelling interval =
	UniProt sequence: complete aligned part

Show mapping:	SCOP domains	CATH domains	Pfam domains	Secondary structure (by author)
	SAPs(SNPs)	PROSITE motifs	Exons
	(details for a mapped element are shown in a popup box when the mouse pointer rests over it)

Chain A from PDB  Type:PROTEIN  Length:206
 aligned with PCP_PYRHO | O58321 from UniProtKB/Swiss-Prot  Length:206

    Alignment length:206
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150       160       170       180       190       200
            PCP_PYRHO     1 MKILLTGFEPFGGDDKNPTMDIVEALSERIPEVVGEILPVSFKRAREKLLKVLDDVRPDITINLGLAPGRTHISVERVAVNMIDARIPDNDGEQPKDEPIVEGGPAAYFATIPTREIVEEMKKNGIPAVLSYTAGTYLCNFAMYLTLHTSATKGYPKIAGFIHVPYTPDQVLEKKNTPSMSLDLEIKGVEIAIRVAQSALHSSQLR 206
               SCOP domains d1iu8a_ A: Pyrrolidone carboxyl peptidase (pyroglutamate aminopeptidase)                                                                                                                                       SCOP domains
               CATH domains 1iu8A00 A:1-206  [code=3.40.630.20, no name defined]                                                                                                                                                           CATH domains
               Pfam domains -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ..eeeeee........hhhhhhhhhhhhhh..eeeeee..hhhhhhhhhhhhhhhhh..eeeeeee......eeee.eee..ee...........eee........eee...hhhhhhhhhhhh...eeee.....hhhhhhhhhhhhhhhhhh...eeeeeee..hhhhh.........hhhhhhhhhhhhhhhhhhhhhhh... Sec.struct. author
                 SAPs(SNPs) -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ----------------------------------------------------------------PYRASE_GLU       --------------------------------------------PYRASE_CYS     ------------------------------------------------------------------ PROSITE
                 Transcript -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 1iu8 A   1 MKILLTGFEPFGGDDKNPTMDIVEALSERIPEVVGEILPVSFKRAREKLLKVLDDVRPDITINLGLAPGRTHISVERVAVNMIDARIPDNDGEQPKDEPIVEGGPAAYFATIPTREIVEEMKKNGIPAVLSYTAGTYLCNFAMYLTLHTSATKGYPKIAGFIHVPYTPDQVLEKKNTPSMSLDLEIKGVEIAIRVAQSALHSSQLR 206
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150       160       170       180       190       200

Chain B from PDB  Type:PROTEIN  Length:206
 aligned with PCP_PYRHO | O58321 from UniProtKB/Swiss-Prot  Length:206

    Alignment length:206
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150       160       170       180       190       200
            PCP_PYRHO     1 MKILLTGFEPFGGDDKNPTMDIVEALSERIPEVVGEILPVSFKRAREKLLKVLDDVRPDITINLGLAPGRTHISVERVAVNMIDARIPDNDGEQPKDEPIVEGGPAAYFATIPTREIVEEMKKNGIPAVLSYTAGTYLCNFAMYLTLHTSATKGYPKIAGFIHVPYTPDQVLEKKNTPSMSLDLEIKGVEIAIRVAQSALHSSQLR 206
               SCOP domains d1iu8b_ B: Pyrrolidone carboxyl peptidase (pyroglutamate aminopeptidase)                                                                                                                                       SCOP domains
               CATH domains 1iu8B00 B:1-206  [code=3.40.630.20, no name defined]                                                                                                                                                           CATH domains
               Pfam domains -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ..eeeeee........hhhhhhhhhhhhhh..eeeeee..hhhhhhhhhhhhhhhhh..eeeeeee......eeee.eee..ee...........eee........eee...hhhhhhhhhhhh...eeee.....hhhhhhhhhhhhhhhhhh...eeeeeee..hhhhh.........hhhhhhhhhhhhhhhhhhhhhhhh.. Sec.struct. author
                 SAPs(SNPs) -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ----------------------------------------------------------------PYRASE_GLU       --------------------------------------------PYRASE_CYS     ------------------------------------------------------------------ PROSITE
                 Transcript -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 1iu8 B   1 MKILLTGFEPFGGDDKNPTMDIVEALSERIPEVVGEILPVSFKRAREKLLKVLDDVRPDITINLGLAPGRTHISVERVAVNMIDARIPDNDGEQPKDEPIVEGGPAAYFATIPTREIVEEMKKNGIPAVLSYTAGTYLCNFAMYLTLHTSATKGYPKIAGFIHVPYTPDQVLEKKNTPSMSLDLEIKGVEIAIRVAQSALHSSQLR 206
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150       160       170       180       190       200

Legend:		→ Mismatch	(orange background)
	-	→ Gap	(green background, '-', border residues have a numbering label)
		→ Modified Residue	(blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
	x	→ Chemical Group	(purple background, 'x', labelled with number + name, e.g. ACE or NH2)
	extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '\|'

Asymmetric Unit

Classes(

)

Architectures( (-)

)

Topologies( (-)

)

Homologous Superfamilies( (-)

)

Organisms( (-)

)

Class: Alpha Beta (26913)

Architecture: 3-Layer(aba) Sandwich (12045)

Topology: Aminopeptidase (284)

Homologous Superfamily: [code=3.40.630.20, no name defined] (15)

Pyrococcus horikoshii. Organism_taxid: 53953. (1)

1a	1iu8A00	A:1-206
1b	1iu8B00	B:1-206

(no "Pfam Domain" information available for 1IU8)

Asymmetric Unit(hide GO term definitions)

Chain A,B (PCP_PYRHO | O58321)

molecular function
	GO:0008234	cysteine-type peptidase activity	Catalysis of the hydrolysis of peptide bonds in a polypeptide chain by a mechanism in which the sulfhydryl group of a cysteine residue at the active center acts as a nucleophile.
	GO:0016787	hydrolase activity	Catalysis of the hydrolysis of various bonds, e.g. C-O, C-N, C-C, phosphoric anhydride bonds, etc. Hydrolase is the systematic name for any enzyme of EC class 3.
	GO:0008233	peptidase activity	Catalysis of the hydrolysis of a peptide bond. A peptide bond is a covalent bond formed when the carbon atom from the carboxyl group of one amino acid shares electrons with the nitrogen atom from the amino group of a second amino acid.
	GO:0016920	pyroglutamyl-peptidase activity	Catalysis of the release of the N-terminal pyroglutamyl group from a peptide or protein.
biological process
	GO:0006508	proteolysis	The hydrolysis of proteins into smaller polypeptides and/or amino acids by cleavage of their peptide bonds.
cellular component
	GO:0005737	cytoplasm	All of the contents of a cell excluding the plasma membrane and nucleus, but including other subcellular structures.
	GO:0005829	cytosol	The part of the cytoplasm that does not contain organelles but which does contain other particulate matter, such as protein complexes.

Asymmetric Unit
	Complete Structure
		Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
		WebMol \| AstexViewer[tm]@PDBe (Java Applets, require no local installation except for Java; loading may be slow)
		STRAP (Java WebStart application, automatic local installation, requires Java; full application with system access!)
		RasMol (require local installation)
		Molscript (VRML) (requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

	Ligands, Modified Residues, Ions
(no "Ligands, Modified Residues, Ions" information available for 1iu8)

	Sites
(no "Sites" information available for 1iu8)

	Cis Peptide Bonds
		Tyr A:155 - Pro A:156	[ RasMol ]
		Tyr B:155 - Pro B:156	[ RasMol ]

Biological Units
	Complete Structure
		Biological Unit 1	[ Jena3D ]
		Biological Unit 2	[ Jena3D ]

Jmol
	protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick [ Asym. Unit PNG format \| Biol. Unit 1 PNG format \| Biol. Unit 2 PNG format ](automatic orientation, automatically generated)
Molscript
	protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick [ mono PDF format \| stereo PDF format ](default orientation, automatically generated)

Access by PDB/NDB ID
	1iu8
		Family and Domain Information	:	ProDom \| SYSTERS
		General Structural Information	:	GlycoscienceDB \| MMDB \| NDB \| OCA \| PDB \| PDBe \| PDBj \| PDBsum \| PDBWiki \| PQS \| PROTEOPEDIA
		Orientation in Membranes	:	OPM
		Protein Surface	:	SURFACE
		Secondary Structure	:	DSSP (structure derived) \| HSSP (homology derived)
		Structural Genomics	:	GeneCensus
		Structural Neighbours	:	CE \| VAST
		Structure Classification	:	CATH \| Dali \| SCOP
		Validation and Original Data	:	BMRB Data View \| BMRB Restraints Grid \| EDS \| PROCHECK \| RECOORD \| WHAT_CHECK

Access by UniProt ID/Accession number
	PCP_PYRHO \| O58321
		Comparative Protein Structure Models	:	ModBase
		Genomic Information	:	Ensembl
		Protein-protein Interaction	:	DIP
		Sequence, Family and Domain Information	:	InterPro \| Pfam \| SMART \| UniProtKB/SwissProt

Access by Enzyme Classificator (EC Number)
	3.4.19.3
		General Enzyme Information	:	BRENDA \| EC-PDB \| Enzyme \| IntEnz
		Pathway	:	KEGG \| MetaCyc

Access by Disease Identifier (MIM ID)
	(no 'MIM ID' available)
		Disease Information	:	OMIM

Access by GenAge ID
	(no 'GenAge ID' available)
		Age Related Information	:	GenAge

Access by PDB/NDB ID
		Domain Information	:	XDom
		Interatomic Contacts of Structural Units	:	CSU
		Ligand-protein Contacts	:	LPC
		Protein Cavities	:	castP
		Sequence and Secondary Structure	:	PDBCartoon
		Structure Alignment	:	STRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
		Structure and Sequence Browser	:	STING

Access by UniProt ID/Accession number
	PCP_PYRHO \| O58321
		Protein Disorder Prediction	:	DisEMBL \| FoldIndex \| GLOBPLOT (for more information see DisProt)

(no "Entries Sharing at Least One Protein Chain" available for 1IU8)

(no "Related Entries Specified in the PDB File" available for 1IU8)
