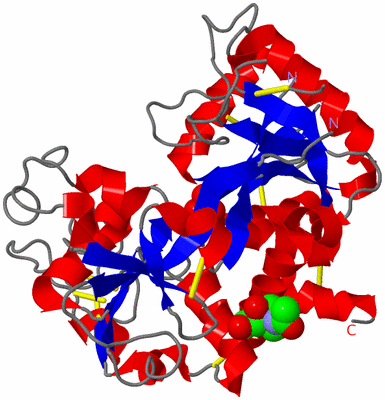

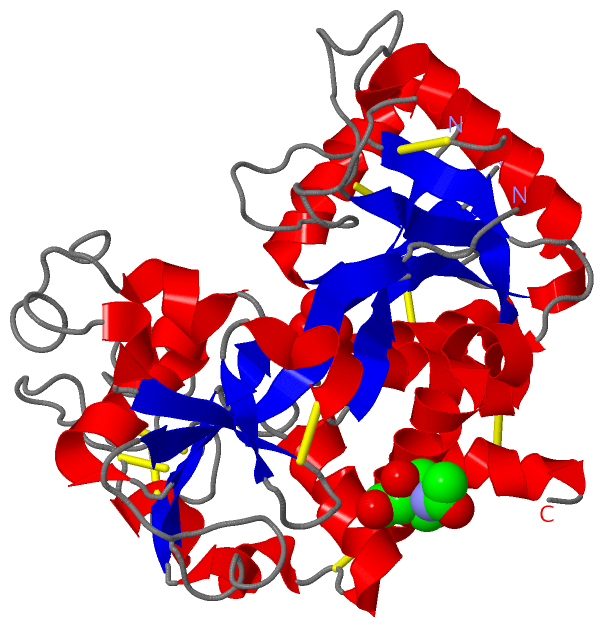

Asym./Biol. Unit (Jmol Viewer)

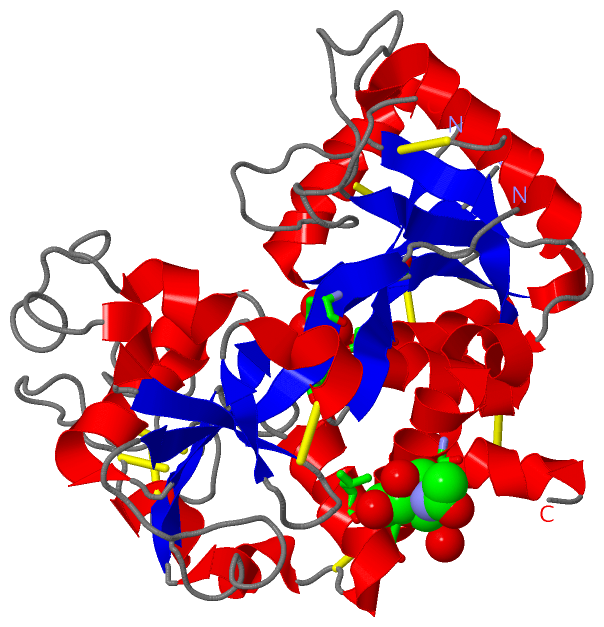

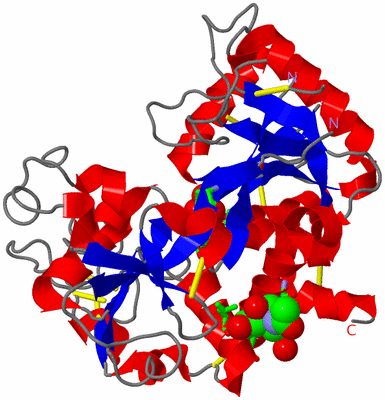

Asym./Biol. Unit - sites (Jmol Viewer)

Title :   OVOTRANSFERRIN, C-TERMINAL LOBE, APO FORM

Authors :   K. Mizutani, B. K. Muralidhara, H. Yamashita, S. Tabata, B. Mikami, M. H

Date :   06 Jul 01 (Deposition) - 28 Nov 01 (Release) - 13 Jul 11 (Revision)

Method :   X-RAY DIFFRACTION

Resolution :   2.30

Chains :   Asym./Biol. Unit : A

Keywords :   Transferrin, Ovotransferrin, Iron Binding Protein, Transport Protein, Metal Transport (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :   K. Mizutani, B. K. Muralidhara, H. Yamashita, S. Tabata, B. Mikami, M. Hirose
Anion-Mediated Fe3+ Release Mechanism In Ovotransferrin C-Lobe: A Structurally Identified So4(2-) Binding Site And Its Implications For The Kinetic Pathway.
J. Biol. Chem. V. 276 35940 2001
PubMed-ID: 11466309 | Reference-DOI: 10.1074/JBC.M102590200

Molecule 1 - OVOTRANSFERRIN
	Chains	:	A
	Fragment	:	C-TERMINAL LOBE
	Organism Common	:	CHICKEN
	Organism Scientific	:	GALLUS GALLUS
	Organism Taxid	:	9031
	Tissue	:	EGG

		1
Asymmetric/Biological Unit	:	A

Summary Information (see also Sequences/Alignments below)

Asymmetric/Biological Unit (2, 2)

No.	Name	Count	Type	Full Name
1	NAG	1	Ligand/Ion	N-ACETYL-D-GLUCOSAMINE
2	SO4	1	Ligand/Ion	SULFATE ION

Asymmetric Unit (2, 2)

No.	Name	Evidence	Residues	Description
1	AC1	SOFTWARE	LEU A:470 , ASN A:473 , THR A:663 , HOH A:825	BINDING SITE FOR RESIDUE NAG A 705
2	AC2	SOFTWARE	ASP A:395 , TYR A:431 , THR A:461 , HIS A:592	BINDING SITE FOR RESIDUE SO4 A 701

Asymmetric/Biological Unit

No.	Residues
1	A:348	-	A:380
2	A:358	-	A:371
3	A:405	-	A:680
4	A:421	-	A:643
5	A:454	-	A:530
6	A:478	-	A:671
7	A:488	-	A:502
8	A:499	-	A:513
9	A:570	-	A:584

(no "Cis Peptide Bond" information available for 1IQ7)

Asymmetric/Biological Unit (1, 1)

								dbSNP	PDB
No.	Source	Variant ID	Variant			UniProt ID	Status	ID	Chain	Variant
1	UniProt	VAR_TRFE_CHICK_004 *	S	686	N	TRFE_CHICK	---	---	A	S	667	N
	* ID not provided by source

SNP/SAP Summary Statistics (UniProtKB/Swiss-Prot)

Asymmetric/Biological Unit (4, 4)

	PROSITE			UniProtKB		PDB
No.	ID	AC	Description	ID	Location	Count	Location
1	TRANSFERRIN_LIKE_4	PS51408	Transferrin-like domain profile.	TRFE_CHICK	26-352 364-689	1	- A:345-670
2	TRANSFERRIN_LIKE_1	PS00205	Transferrin-like domain signature 1.	TRFE_CHICK	111-120 450-459	1	- A:431-440
3	TRANSFERRIN_LIKE_2	PS00206	Transferrin-like domain signature 2.	TRFE_CHICK	210-226 543-558	1	- A:524-539
4	TRANSFERRIN_LIKE_3	PS00207	Transferrin-like domain signature 3.	TRFE_CHICK	242-272 584-614	1	- A:565-595

(no "Exon" information available for 1IQ7)

Asymmetric/Biological Unit

Reformat:	Number of residues per line = ('0' or empty: single-line sequence representation)
	Number of residues per labelling interval =
	UniProt sequence: complete aligned part

Show mapping:	SCOP domains	CATH domains	Pfam domains	Secondary structure (by author)
	SAPs(SNPs)	PROSITE motifs	Exons
	(details for a mapped element are shown in a popup box when the mouse pointer rests over it)

Chain A from PDB  Type:PROTEIN  Length:341
 aligned with TRFE_CHICK | P02789 from UniProtKB/Swiss-Prot  Length:705

    Alignment length:343
                                   372       382       392       402       412       422       432       442       452       462       472       482       492       502       512       522       532       542       552       562       572       582       592       602       612       622       632       642       652       662       672       682       692       702
           TRFE_CHICK   363 RIQWCAVGKDEKSKCDRWSVVSNGDVECTVVDETKDCIIKIMKGEADAVALDGGLVYTAGVCGLVPVMAERYDDESQCSKTDERPASYFAVAVARKDSNVNWNNLKGKKSCHTAVGRTAGWVIPMGLIHNRTGTCNFDEYFSEGCAPGSPPNSRLCQLCQGSGGIPPEKCVASSHEKYFGYTGALRCLVEKGDVAFIQHSTVEENTGGKNKADWAKNLQMDDFELLCTDGRRANVMDYRECNLAEVPTHAVVVRPEKANKIRDLLERQEKRFGVNGSEKSKFMMFESQNKDLLFKDLTKCLFKVREGTTYKEFLGDKFYTVISSLKTCNPSDILQMCSFLEGK 705
               SCOP domains d1iq7a_ A: Ovotransferrin                                                                                                                                                                                                                                                                                                                               SCOP domains
               CATH domains 1iq7A01 A:344-414,A:593-653 Periplasmic binding protein-like II        1iq7A 02  A:415-592,A:654-661 Periplasmic binding protein-like II                                                                                                                 1iq7A01 A:344-414,A:593-653                                  1iq7A02 ------------------------- CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ..eeeeehhhhhhhhhhhhhhh....eeeee.hhhhhhhhhhh.....eeehhhhhhhhhhh..eeeeeee.....-...-....eeeeeeeeee.............eeee........hhhhhhhhhhhhh..hhhhhh.eee.......hhhhh.....................hhhhhhhhhhhhh..eeeee.hhhhhh.............hhh.eeee.....eee.hhhhhh..eeee..eeeehhhhhhhhhhhhhhhhhhhh..........................eeee.....hhhhhhhhhhhhhhhhhhhh..hhhhhhhhhhh.. Sec.struct. author
                 SAPs(SNPs) -----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------N------------------- SAPs(SNPs)
                PROSITE (1) -TRANSFERRIN_LIKE_4  PDB: A:345-670 UniProt: 364-689                                                                                                                                                                                                                                                                                   ---------------- PROSITE (1)
                PROSITE (2) ---------------------------------------------------------------------------------------TRANSFERRI-----------------------------------------------------------------------------------TRANSFERRIN_LIKE-------------------------TRANSFERRIN_LIKE_3             ------------------------------------------------------------------------------------------- PROSITE (2)
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 1iq7 A 344 RIQWCAVGKDEKSKCDRWSVVSNGDVECTVVDETKDCIIKIMKGEADAVALDGGLVYTAGVCGLVPVMAERYDDES-CSK-DERPASYFAVAVARKDSNVNWNNLKGKKSCHTAVGRTAGWVIPMGLIHNRTGTCNFDEYFSEGCAPGSPPNSRLCQLCQGSGGIPPEKCVASSHEKYFGYTGALRCLVEKGDVAFIQHSTVEENTGGKNKADWAKNLQMDDFELLCTDGRRANVMDYRECNLAEVPTHAVVVRPEKANKIRDLLERQEKRFGVNGSEKSKFMMFESQNKDLLFKDLTKCLFKVREGTTYKEFLGDKFYTVISSLKTCNPSDILQMCSFLEGK 686
                                   353       363       373       383       393       403       413     | 423 |     433       443       453       463       473       483       493       503       513       523       533       543       553       563       573       583       593       603       613       623       633       643       653       663       673       683
                                                                                                     419 | | |
                                                                                                       421 | |
                                                                                                         423 |
                                                                                                           425

Legend:		→ Mismatch	(orange background)
	-	→ Gap	(green background, '-', border residues have a numbering label)
		→ Modified Residue	(blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
	x	→ Chemical Group	(purple background, 'x', labelled with number + name, e.g. ACE or NH2)
	extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '\|'

Asymmetric/Biological Unit

Classes(

)

Folds(

)

Superfamilies( (-)

)

Families(

)

Protein Domains( (-)

)

Organisms( (-)

)

Class: Alpha and beta proteins (a/b) (23833)

Fold: Periplasmic binding protein-like II (813)

Superfamily: Periplasmic binding protein-like II (813)

Family: Transferrin (82)

Protein domain: Ovotransferrin (14)

Chicken (Gallus gallus) [TaxId: 9031] (9)

d1iq7a_

Asymmetric/Biological Unit

Classes(

)

Architectures( (-)

)

Topologies( (-)

)

Homologous Superfamilies( (-)

)

Organisms( (-)

)

Class: Alpha Beta (26913)

Architecture: 3-Layer(aba) Sandwich (12045)

Topology: D-Maltodextrin-Binding Protein; domain 2 (600)

Homologous Superfamily: Periplasmic binding protein-like II (486)

Chicken (Gallus gallus) (10)

1a	1iq7A01	A:344-414,A:593-653
1b	1iq7A02	A:415-592,A:654-661

(no "Pfam Domain" information available for 1IQ7)

Asymmetric/Biological Unit(hide GO term definitions)

Chain A (TRFE_CHICK | P02789)

molecular function
	GO:0046872	metal ion binding	Interacting selectively and non-covalently with any metal ion.
biological process
	GO:0006953	acute-phase response	An acute inflammatory response that involves non-antibody proteins whose concentrations in the plasma increase in response to infection or injury of homeothermic animals.
	GO:0006811	ion transport	The directed movement of charged atoms or small charged molecules into, out of or within a cell, or between cells, by means of some agent such as a transporter or pore.
	GO:0055072	iron ion homeostasis	Any process involved in the maintenance of an internal steady state of iron ions within an organism or cell.
	GO:0032496	response to lipopolysaccharide	Any process that results in a change in state or activity of an organism (in terms of movement, secretion, enzyme production, gene expression, etc.) as a result of a lipopolysaccharide stimulus; lipopolysaccharide is a major component of the cell wall of gram-negative bacteria.
	GO:0006810	transport	The directed movement of substances (such as macromolecules, small molecules, ions) or cellular components (such as complexes and organelles) into, out of or within a cell, or between cells, or within a multicellular organism by means of some agent such as a transporter, pore or motor protein.
cellular component
	GO:0031012	extracellular matrix	A structure lying external to one or more cells, which provides structural support for cells or tissues.
	GO:0005576	extracellular region	The space external to the outermost structure of a cell. For cells without external protective or external encapsulating structures this refers to space outside of the plasma membrane. This term covers the host cell environment outside an intracellular parasite.
	GO:0005615	extracellular space	That part of a multicellular organism outside the cells proper, usually taken to be outside the plasma membranes, and occupied by fluid.
