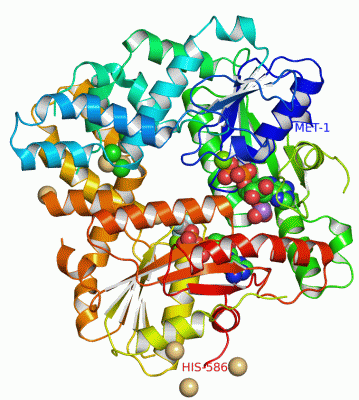

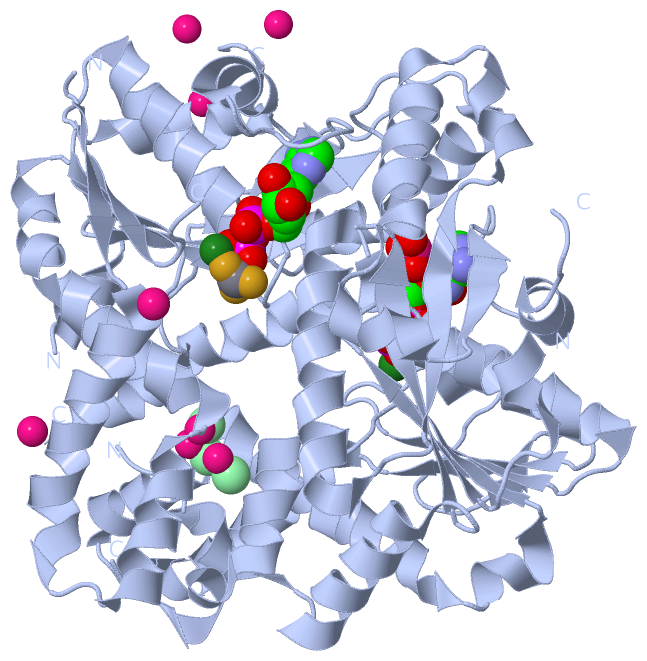

Image Asym.Unit - manually
Asym.Unit - manually  (Jmol Viewer)

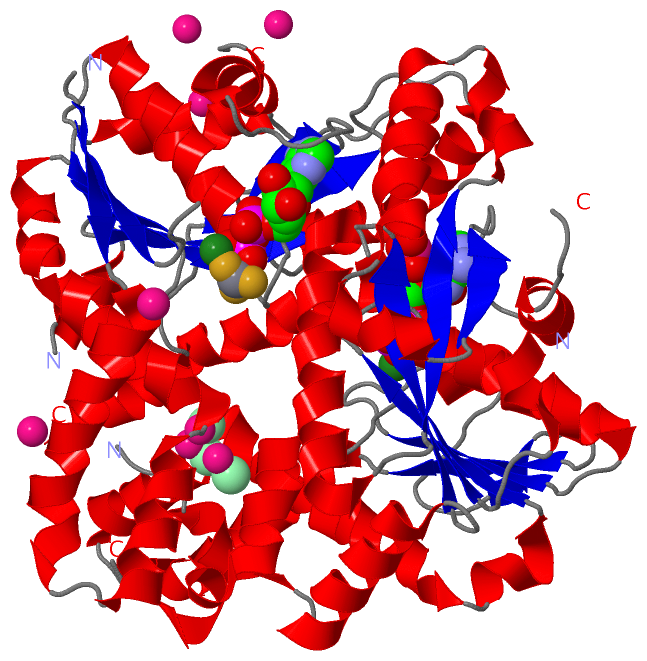

Image Asymmetric Unit
Asymmetric Unit  (Jmol Viewer)

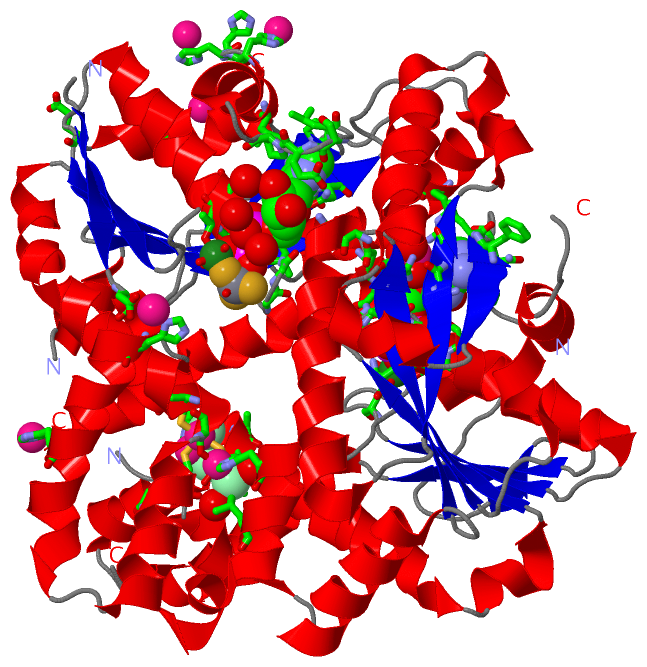

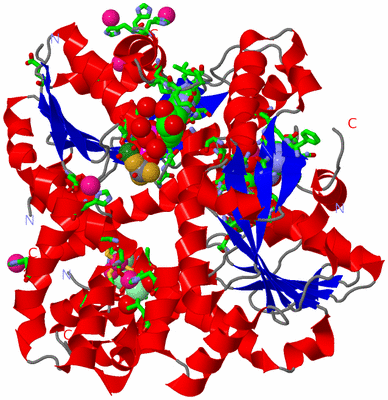

Image Asym. Unit - sites
Asym. Unit - sites  (Jmol Viewer)

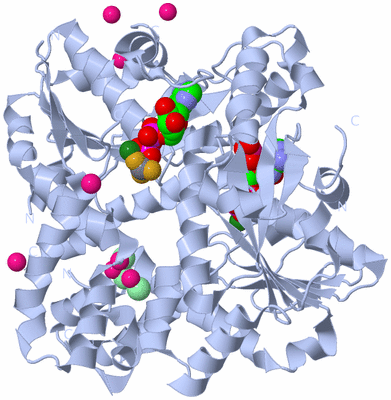

Image Biological Unit 1
Biological Unit 1  (Jmol Viewer)

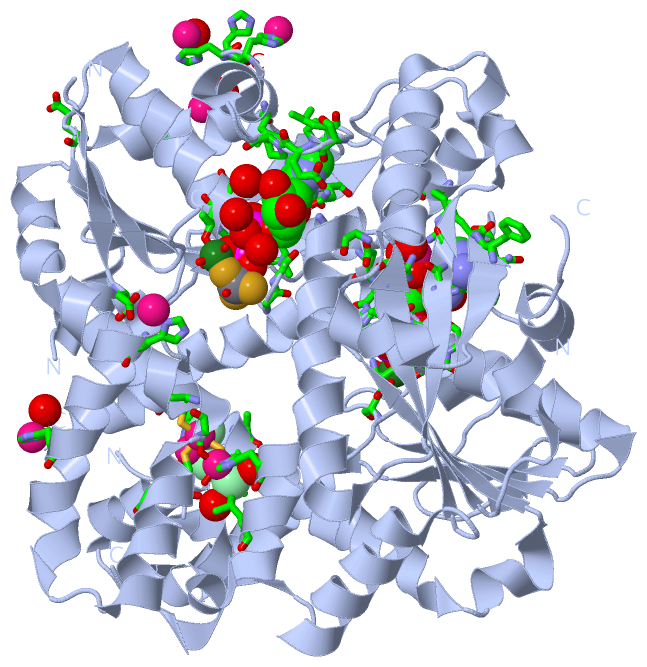

Image Biol. Unit 1 - sites
Biol. Unit 1 - sites  (Jmol Viewer)

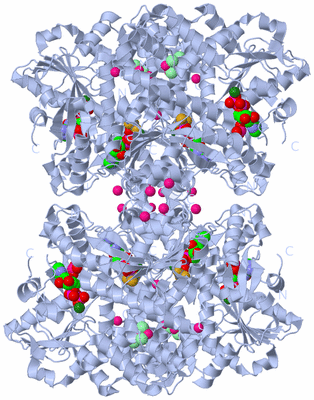

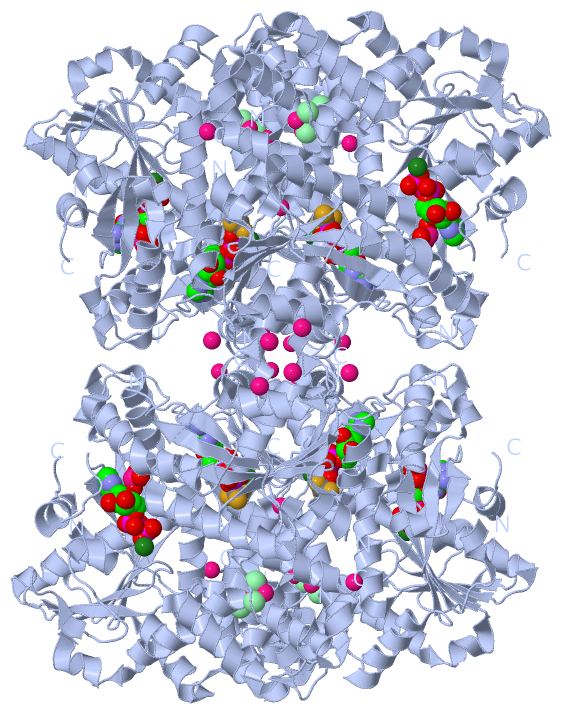

Image Biological Unit 2
Biological Unit 2  (Jmol Viewer)

(-) Description

Title :  CRYSTAL STRUCTURE OF THE ESCHERICHIA COLI ARSENITE-TRANSLOCATING ATPASE IN COMPLEX WITH MG-ADP-ALF3

Authors :  T. Zhou, S. Radaev, B. P. Rosen, D. L. Gatti
Date :  20 Apr 01  (Deposition) - 12 Sep 01  (Release) - 13 Jul 11  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  2.15
Chains :  Asym. Unit :  A
Biol. Unit 1:  A  (1x)
Biol. Unit 2:  A  (4x)
Keywords :  Aluminum Fluoride, Adp, Arsa Atpase, Atp Binding Site, Hydrolase (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  T. Zhou, S. Radaev, B. P. Rosen, D. L. Gatti
Conformational Changes In Four Regions Of The Escherichia Coli Arsa Atpase Link Atp Hydrolysis To Ion Translocation.
J. Biol. Chem. V. 276 30414 2001
PubMed-ID: 11395509  |  Reference-DOI: 10.1074/JBC.M103671200

(-) Compounds

Molecule 1 - ARSENICAL PUMP-DRIVING ATPASE
    Chains: A
    EC Number: 3.6.3.16
    Engineered: YES
    Expression System: ESCHERICHIA COLI
    Expression System Taxid: 562
    Gene: ARSA
    Organism Scientific: ESCHERICHIA COLI
    Organism Taxid: 562
    Synonym: ARSENITE-TRANSLOCATING ATPASE, ARSENICAL RESISTANCE ATPASE

 Structural Features

(-) Chains, Units

  1
Asymmetric Unit : A
Biological Unit 1 (1x): A
Biological Unit 2 (4x): A

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (6, 17)

Asymmetric Unit (6, 17)
No.NameCountTypeFull Name
1ADP2Ligand/IonADENOSINE-5'-DIPHOSPHATE
2AF31Ligand/IonALUMINUM FLUORIDE
3CD8Ligand/IonCADMIUM ION
4CL3Ligand/IonCHLORIDE ION
5MG2Ligand/IonMAGNESIUM ION
6TAS1Ligand/IonTRIHYDROXYARSENITE(III)
Biological Unit 1 (3, 4)
No.NameCountTypeFull Name
1ADP2Ligand/IonADENOSINE-5'-DIPHOSPHATE
2AF31Ligand/IonALUMINUM FLUORIDE
3CD-1Ligand/IonCADMIUM ION
4CL-1Ligand/IonCHLORIDE ION
5MG-1Ligand/IonMAGNESIUM ION
6TAS1Ligand/IonTRIHYDROXYARSENITE(III)
Biological Unit 2 (3, 16)
No.NameCountTypeFull Name
1ADP8Ligand/IonADENOSINE-5'-DIPHOSPHATE
2AF34Ligand/IonALUMINUM FLUORIDE
3CD-1Ligand/IonCADMIUM ION
4CL-1Ligand/IonCHLORIDE ION
5MG-1Ligand/IonMAGNESIUM ION
6TAS4Ligand/IonTRIHYDROXYARSENITE(III)

(-) Sites  (17, 17)

Asymmetric Unit (17, 17)
No.NameEvidenceResiduesDescription
01AC1SOFTWARETHR A:22 , ASP A:45 , ADP A:590 , HOH A:875 , HOH A:876 , HOH A:877BINDING SITE FOR RESIDUE MG A 592
02AC2SOFTWARETHR A:341 , ADP A:591 , AF3 A:700 , HOH A:878 , HOH A:879 , HOH A:880BINDING SITE FOR RESIDUE MG A 593
03AC3SOFTWAREHIS A:585 , HOH A:891BINDING SITE FOR RESIDUE CD A 600
04AC4SOFTWAREASP A:321 , HOH A:889 , HOH A:890BINDING SITE FOR RESIDUE CD A 601
05AC5SOFTWAREGLU A:326 , HIS A:584 , HIS A:586 , HOH A:885BINDING SITE FOR RESIDUE CD A 602
06AC6SOFTWAREHIS A:397 , HOH A:737 , HOH A:886BINDING SITE FOR RESIDUE CD A 603
07AC7SOFTWAREASP A:386 , HIS A:388BINDING SITE FOR RESIDUE CD A 604
08AC8SOFTWAREGLY A:111 , ALA A:112 , CYS A:113 , CYS A:172 , HIS A:453 , CD A:594 , CD A:595 , CL A:598BINDING SITE FOR RESIDUE CL A 597
09AC9SOFTWAREGLN A:108 , GLY A:111 , THR A:114 , CD A:595 , CL A:597BINDING SITE FOR RESIDUE CL A 598
10BC1SOFTWARECYS A:113 , LEU A:152 , CD A:596 , HOH A:712 , HOH A:713 , HOH A:881BINDING SITE FOR RESIDUE CL A 599
11BC2SOFTWARECYS A:113 , CYS A:172 , CYS A:422 , CL A:597 , HOH A:703BINDING SITE FOR RESIDUE CD A 594
12BC3SOFTWARECYS A:172 , HIS A:453 , CL A:597 , CL A:598 , HOH A:883BINDING SITE FOR RESIDUE CD A 595
13BC4SOFTWARECYS A:113 , HIS A:148 , SER A:420 , CL A:599 , HOH A:881BINDING SITE FOR RESIDUE CD A 596
14BC5SOFTWAREGLY A:18 , VAL A:19 , GLY A:20 , LYS A:21 , THR A:22 , SER A:23 , ASN A:235 , GLY A:236 , PHE A:276 , LEU A:277 , GLN A:278 , ASN A:281 , MET A:282 , THR A:501 , THR A:502 , ARG A:543 , MG A:592 , TAS A:701 , HOH A:875 , HOH A:876 , HOH A:877BINDING SITE FOR RESIDUE ADP A 590
15BC6SOFTWAREGLN A:208 , GLY A:337 , VAL A:338 , GLY A:339 , LYS A:340 , THR A:341 , THR A:342 , ASN A:527 , ASN A:528 , PRO A:566 , LEU A:568 , SER A:570 , GLU A:571 , PRO A:572 , LEU A:581 , MG A:593 , AF3 A:700 , HOH A:728 , HOH A:769 , HOH A:843 , HOH A:878 , HOH A:879BINDING SITE FOR RESIDUE ADP A 591
16BC7SOFTWAREGLY A:336 , GLY A:337 , LYS A:340 , ADP A:591 , MG A:593 , HOH A:878 , HOH A:879 , HOH A:880 , HOH A:893BINDING SITE FOR RESIDUE AF3 A 700
17BC8SOFTWAREARG A:206 , GLU A:500 , ARG A:543 , ADP A:590BINDING SITE FOR RESIDUE TAS A 701

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 1IHU)

(-) Cis Peptide Bonds  (0, 0)

(no "Cis Peptide Bond" information available for 1IHU)

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 1IHU)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 1IHU)

(-) Exons   (0, 0)

(no "Exon" information available for 1IHU)

(-) Sequences/Alignments

Asymmetric Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:540
 aligned with ARSA1_ECOLX | P08690 from UniProtKB/Swiss-Prot  Length:583

    Alignment length:586
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                583
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150       160       170       180       190       200       210       220       230       240       250       260       270       280       290       300       310       320       330       340       350       360       370       380       390       400       410       420       430       440       450       460       470       480       490       500       510       520       530       540       550       560       570       580  |
          ARSA1_ECOLX     1 MQFLQNIPPYLFFTGKGGVGKTSISCATAIRLAEQGKRVLLVSTDPASNVGQVFSQTIGITIQAIASVPGLSALEIDPQAAAQQYRARIVDPIKGVLPDDVVSSINEQLSGACTTEIAAFDEFTGLLTDASLLTRFDHIIFDTAPTGHTIRLLQLPGAWSSFIDSNPEGASCLGPMAGLEKQREQYAYAVEALSDPKRTRLVLVARLQKSTLQEVARTHLELAAIGLKNQYLVINGVLPKTEAANDTLAAAIWEREQEALANLPADLAGLPTDTLFLQPVNMVGVSALSRLLSTQPVASPSSDEYLQQRPDIPSLSALVDDIARNEHGLIMLMGKGGVGKTTMAAAIAVRLADMGFDVHLTTSDPAAHLSMTLNGSLNNLQVSRIDPHEETERYRQHVLETKGKELDEAGKRLLEEDLRSPCTEEIAVFQAFSRVIREAGKRFVVMDTAPTGHTLLLLDATGAYHREIAKKMGEKGHFTTPMMLLQDPERTKVLLVTLPETTPVLEAANLQADLERAGIHPWGWIINNSLSIADTRSPLLRMRAQQELPQIESVKRQHASRVALVPVLASEPTGIDKLKQLAG---   -
               SCOP domains d1ihua1 A:1-296 Arsenite-translocating ATPase ArsA                                                                                                                                                                                                                                                                 d1ihua2 A:308-586 Arsenite-translocating ATPase ArsA                                                                                                                                                                                                                                    SCOP domains
               CATH domains 1ihuA02 A:1-296 P-loop containing nucleotide triphosphate hydrolases                                                                                                                                                                                                                                               -1ihuA01 A:309-582 P-loop containing nucleotide triphosphat           e hydrolases                                                                                                                                                                                                 ---- CATH domains
               Pfam domains ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author hhhhh....eeeee.....hhhhhhhhhhhhhhhh...eeeee.....hhhhhh........ee......eeeee.hhhhhhhhhhhhhhhhhh...hhhhhhhhhhhh.hhhhhhhhhhhhhhhhhhh.hhhhhh.eeee....hhhhhhhhhhhhhhh...------...hhhhhhh..hhhhhhhhhhhhhh...eeeeeeee.hhhhhhhhhhhhhhhhhhh...eeeeeeee.hhhhhh.hhhhhhhhhhhhhhhhh.hhhhhh..eeeee.......hhhhhhhh.....-----------......hhhhhhhhhhh...eeeeee.....hhhhhhhhhhhhhhhh...eeeee....-----------..eeeee.hhhhhhhhhhhhhhhhhhh..hhhhhhhhhhhh.hhhhhhhhhhhhhhhhhhhhhh.eeee....hhhhhhhhhhh------------------.hhhhhhh...eeeeeee..hhhhhhhhhhhhhhhhhh.....eeeeeee.......hhhhhhhhhhhhhhhhhhhh.....eeeee.......hhhhhhhhhh... Sec.struct. author
                 SAPs(SNPs) ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 1ihu A   1 MQFLQNIPPYLFFTGKGGVGKTSISCATAIRLAEQGKRVLLVSTDPASNVGQVFSQTIGNTIQAIASVPGLSALEIDPQAAAQQYRARIVDPIKGVLPDDVVSSINEQLSGACTTEIAAFDEFTGLLTDASLLTRFDHIIFDTAPTGHTIRLLQLPGAWSSFI------ASCLGPMAGLEKQREQYAYAVEALSDPKRTRLVLVARLQKSTLQEVARTHLELAAIGLKNQYLVINGVLPKTEAANDTLAAAIWEREQEALANLPADLAGLPTDTLFLQPVNMVGVSALSRLLSTQP-----------QRPDIPSLSALVDDIARNEHGLIMLMGKGGVGKTTMAAAIAVRLADMGFDVHLTTSDPA-----------NNLQVSRIDPHEETERYRQHVLETKGKELDEAGKRLLEEDLRSPCTEEIAVFQAFSRVIREAGKRFVVMDTAPTGHTLLLLDAT------------------TPMMLLQDPERTKVLLVTLPETTPVLEAANLQADLERAGIHPWGWIINNSLSIADTRSPLLRMRAQQELPQIESVKRQHASRVALVPVLASEPTGIDKLKQLAGHHH 586
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150       160  |    170       180       190       200       210       220       230       240       250       260       270       280       290     |   -       310       320       330       340       350       360     |   -       380       390       400       410       420       430       440       450       460|        -       480       490       500       510       520       530       540       550       560       570       580
                                                                                                                                                                                            163    170                                                                                                                           296         308                                                       366         378                                                                                461                480
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (1, 2)

Asymmetric Unit
(-)
Class: Alpha and beta proteins (a/b) (23833)

(-) CATH Domains  (1, 2)

Asymmetric Unit
(-)
Class: Alpha Beta (26913)

(-) Pfam Domains  (0, 0)

(no "Pfam Domain" information available for 1IHU)

(-) Gene Ontology  (9, 9)

Asymmetric Unit(hide GO term definitions)
Chain A   (ARSA1_ECOLX | P08690)
molecular function
    GO:0005524    ATP binding    Interacting selectively and non-covalently with ATP, adenosine 5'-triphosphate, a universally important coenzyme and enzyme regulator.
    GO:0016887    ATPase activity    Catalysis of the reaction: ATP + H2O = ADP + phosphate + 2 H+. May or may not be coupled to another reaction.
    GO:0015446    ATPase-coupled arsenite transmembrane transporter activity    Catalysis of the transfer of a solute or solutes from one side of a membrane to the other according to the reaction: ATP + H2O + arsenite(in) = ADP + phosphate + arsenite(out).
    GO:0016787    hydrolase activity    Catalysis of the hydrolysis of various bonds, e.g. C-O, C-N, C-C, phosphoric anhydride bonds, etc. Hydrolase is the systematic name for any enzyme of EC class 3.
    GO:0000166    nucleotide binding    Interacting selectively and non-covalently with a nucleotide, any compound consisting of a nucleoside that is esterified with (ortho)phosphate or an oligophosphate at any hydroxyl group on the ribose or deoxyribose.
biological process
    GO:0098656    anion transmembrane transport    A process in which an anion is transported from one side of a membrane to the other by means of some agent such as a transporter or pore.
    GO:0098655    cation transmembrane transport    A process in which a cation is transported from one side of a membrane to the other by means of some agent such as a transporter or pore.
    GO:0071722    detoxification of arsenic-containing substance    Any process that reduces or removes the toxicity of compounds containing arsenic, including arsenates, arsenites, and arsenides. These include transport of such compounds away from sensitive areas and to compartments or complexes whose purpose is sequestration of arsenic or arsenic-containing compounds.
    GO:0046685    response to arsenic-containing substance    Any process that results in a change in state or activity of a cell or an organism (in terms of movement, secretion, enzyme production, gene expression, etc.) as a result of an arsenic stimulus from compounds containing arsenic, including arsenates, arsenites, and arsenides.

 Visualization

(-) Interactive Views

Asymmetric Unit
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
    ADP  [ RasMol | Jena3D ]  +environment [ RasMol | Jena3D ]
    AF3  [ RasMol | Jena3D ]  +environment [ RasMol | Jena3D ]
    CD  [ RasMol | Jena3D ]  +environment [ RasMol | Jena3D ]
    CL  [ RasMol | Jena3D ]  +environment [ RasMol | Jena3D ]
    MG  [ RasMol | Jena3D ]  +environment [ RasMol | Jena3D ]
    TAS  [ RasMol | Jena3D ]  +environment [ RasMol | Jena3D ]

  Sites
    AC1  [ RasMol ]  +environment [ RasMol ]
    AC2  [ RasMol ]  +environment [ RasMol ]
    AC3  [ RasMol ]  +environment [ RasMol ]
    AC4  [ RasMol ]  +environment [ RasMol ]
    AC5  [ RasMol ]  +environment [ RasMol ]
    AC6  [ RasMol ]  +environment [ RasMol ]
    AC7  [ RasMol ]  +environment [ RasMol ]
    AC8  [ RasMol ]  +environment [ RasMol ]
    AC9  [ RasMol ]  +environment [ RasMol ]
    BC1  [ RasMol ]  +environment [ RasMol ]
    BC2  [ RasMol ]  +environment [ RasMol ]
    BC3  [ RasMol ]  +environment [ RasMol ]
    BC4  [ RasMol ]  +environment [ RasMol ]
    BC5  [ RasMol ]  +environment [ RasMol ]
    BC6  [ RasMol ]  +environment [ RasMol ]
    BC7  [ RasMol ]  +environment [ RasMol ]
    BC8  [ RasMol ]  +environment [ RasMol ]

  Cis Peptide Bonds
(no "Cis Peptide Bonds" information available for 1ihu)

Biological Units
  Complete Structure
    Biological Unit 1  [ Jena3D ]
    Biological Unit 2  [ Jena3D ]

(-) Still Images

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick
[ Asym. Unit PNG format | Asym. Unit - sites PNG format | Biol. Unit 1 PNG format | Biol. Unit 1 - sites PNG format | Biol. Unit 2 PNG format ](automatic orientation, automatically generated)
Molscript
  protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick
[ mono PDF format | stereo PDF format ](default orientation, automatically generated)

 Databases and Analysis Tools

(-) Databases

Access by PDB/NDB ID
  1ihu
    Family and Domain Information: ProDom | SYSTERS
    General Structural Information: GlycoscienceDB | MMDB | NDB | OCA | PDB | PDBe | PDBj | PDBsum | PDBWiki | PQS | PROTEOPEDIA
    Orientation in Membranes: OPM
    Protein Surface: SURFACE
    Secondary Structure: DSSP (structure derived) | HSSP (homology derived)
    Structural Genomics: GeneCensus
    Structural Neighbours: CE | VAST
    Structure Classification: CATH | Dali | SCOP
    Validation and Original Data: BMRB Data View | BMRB Restraints Grid | EDS | PROCHECK | RECOORD | WHAT_CHECK

Access by UniProt ID/Accession number
  ARSA1_ECOLX | P08690
    Comparative Protein Structure Models: ModBase
    Genomic Information: Ensembl
    Protein-protein Interaction: DIP
    Sequence, Family and Domain Information: InterPro | Pfam | SMART | UniProtKB/SwissProt

Access by Enzyme Classificator   (EC Number)
  3.6.3.16
    General Enzyme Information: BRENDA | EC-PDB | Enzyme | IntEnz
    Pathway: KEGG | MetaCyc

Access by Disease Identifier   (MIM ID)
  (no 'MIM ID' available)
    Disease Information: OMIM

Access by GenAge ID
  (no 'GenAge ID' available)
    Age Related Information: GenAge

(-) Analysis Tools

Access by PDB/NDB ID
    Domain Information: XDom
    Interatomic Contacts of Structural Units: CSU
    Ligand-protein Contacts: LPC
    Protein Cavities: castP
    Sequence and Secondary Structure: PDBCartoon
    Structure Alignment: STRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    Structure and Sequence Browser: STING

Access by UniProt ID/Accession number
  ARSA1_ECOLX | P08690
    Protein Disorder Prediction: DisEMBL | FoldIndex | GLOBPLOT (for more information see DisProt)

 Related Entries

(-) Entries Sharing at Least One Protein Chain (UniProt ID)

UniProtKB/Swiss-Prot
        ARSA1_ECOLX | P08690: 1f48 1ii0 1ii9

(-) Related Entries Specified in the PDB File

1f48 CRYSTAL STRUCTURE OF THE ESCHERICHIA COLI ARSENITE- TRANSLOCATING ATPASE
1ii0 CRYSTAL STRUCTURE OF THE ESCHERICHIA COLI ARSENITE- TRANSLOCATING ATPASE
1ii9 CRYSTAL STRUCTURE OF THE ESCHERICHIA COLI ARSENITE- TRANSLOCATING ATPASE IN COMPLEX WITH AMP-PNP
